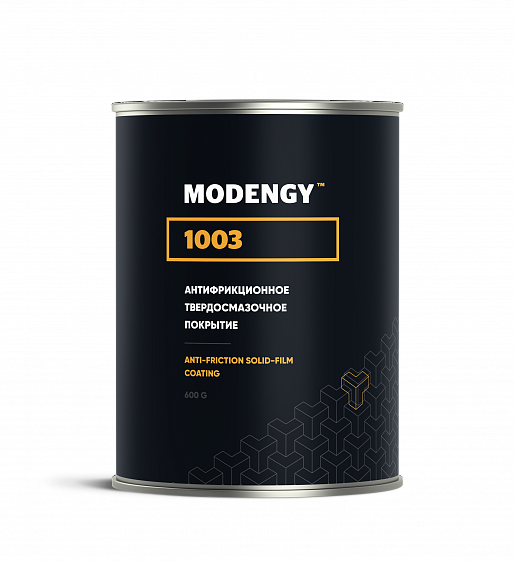

MODENGY 1003

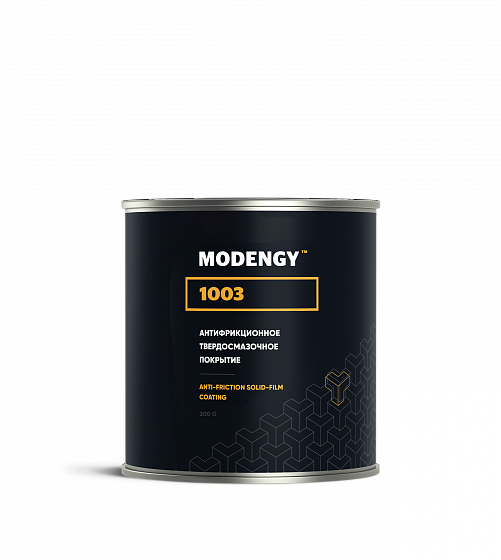

200 G

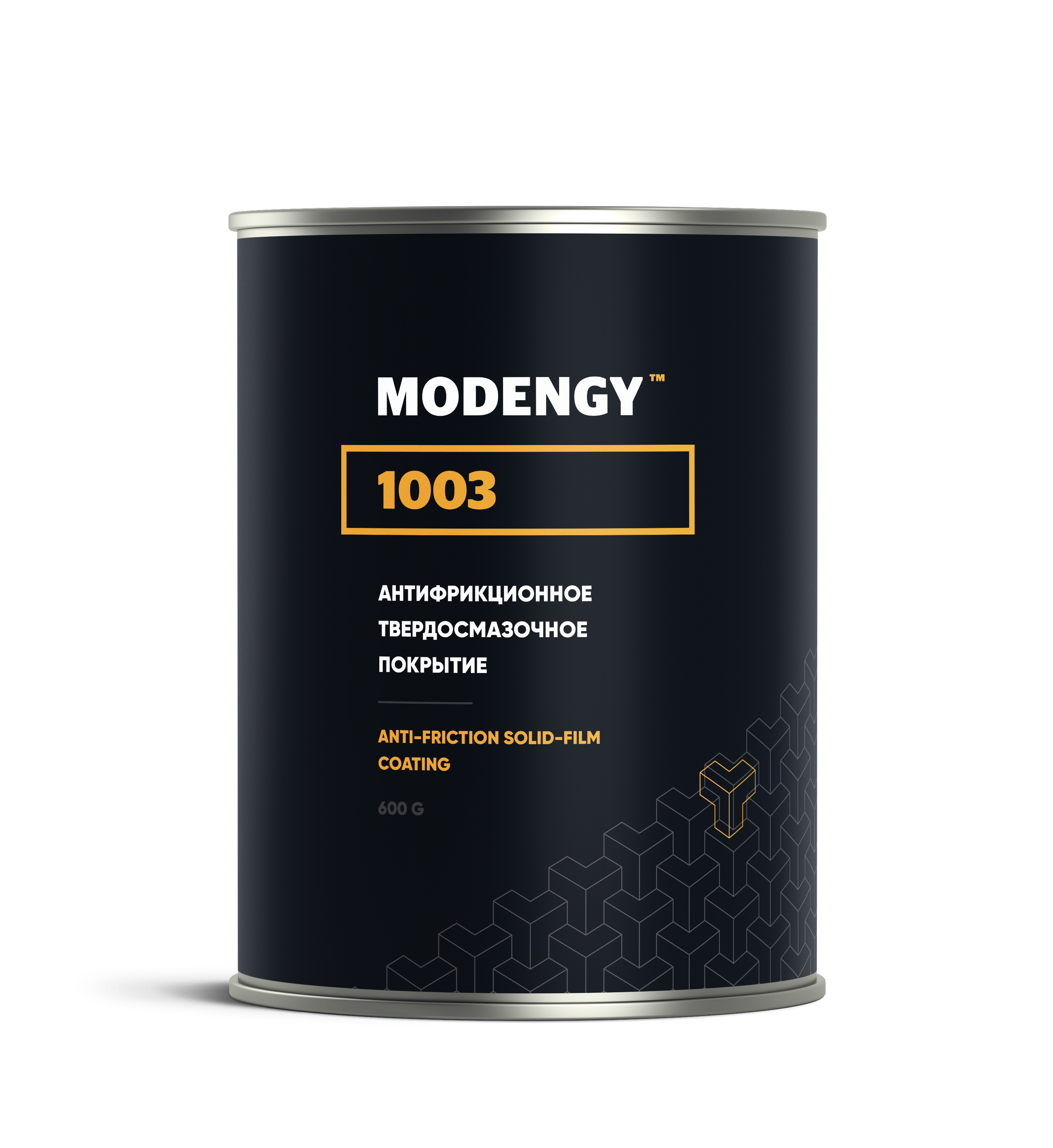

1600 G Can

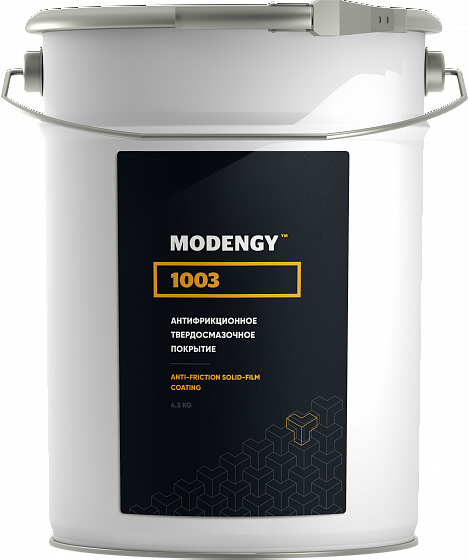

4.5 KG Pail
मोंलिब्डेनम डाइसल्फाइड (Molybdenum disulfide) और ग्रेफाइट (graphite) पर आधारित एंटी-फ्रिक्शन सॉलिड-फिल्म कोटिंग (Anti-friction solid-film coating)
इसका उपयोग उपकरण के ड्राइविंग शाफ्ट के स्प्लिन्ड जोड़ों, उत्खनन (एक्सावेटर) पिन और बुशिंग, मशीन टूल्स के स्लाइडिंग गाइडवे, और ICE पिस्टन स्कर्ट के लिए किया जाता है।
Package sizes:
MODENGY 1003 in action
Before
After
They provide low friction coefficient at starting of the units after a long downtime, wear reduction, and protection against such chemically aggressive medium as antifreeze.
Before
After
They provide low friction coefficient at starting of the units after a long downtime, wear reduction, and protection against such chemically aggressive medium as antifreeze.
Before
After
For the purpose of protecting these parts against wearing, and to extend service lifetime of the equipment, MODENGY 1003 and MODENGY 1014 anti-friction solid-film coatings are used.
Before
After

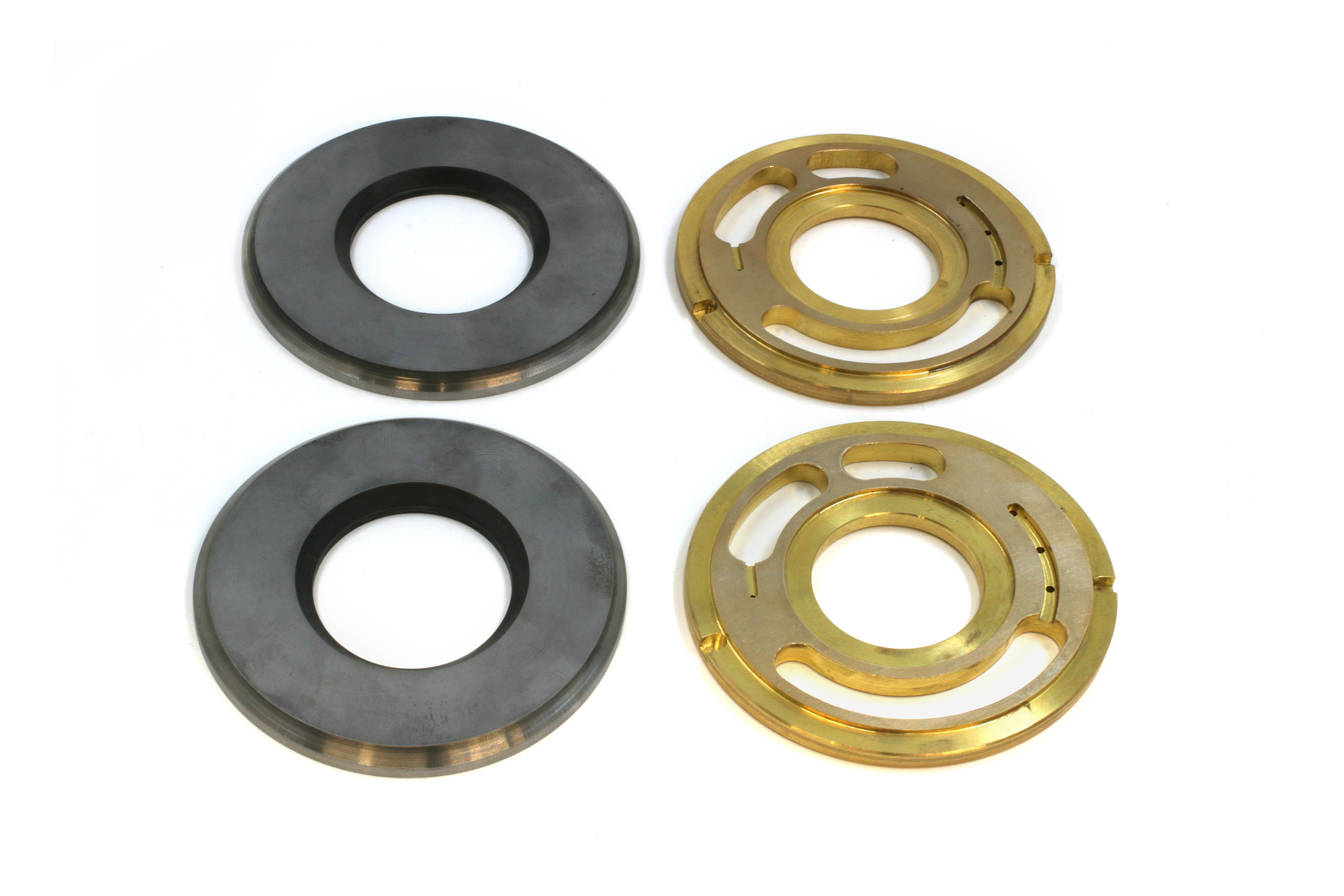

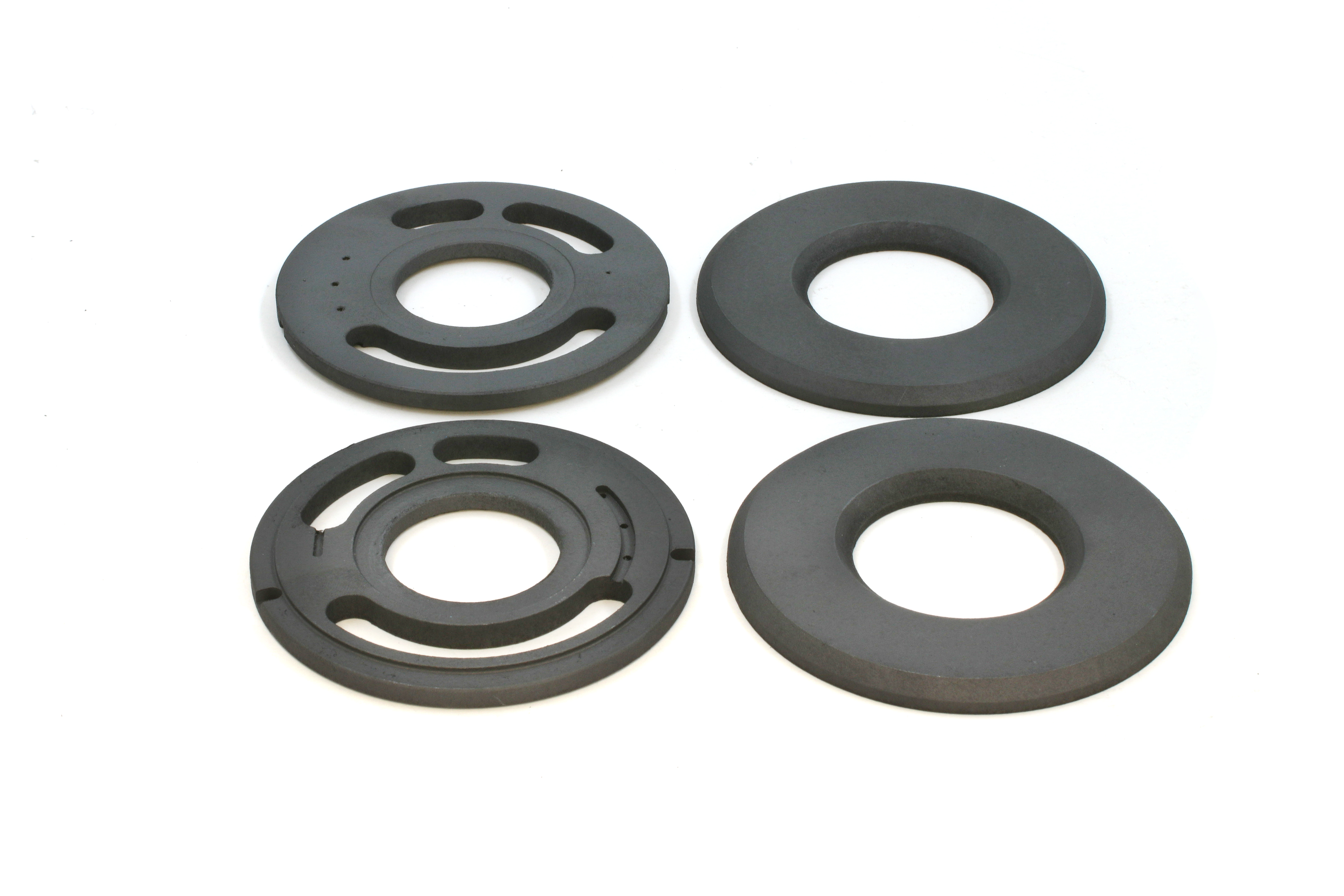

Use of MODENGY 1003 coating enables to reduce prime cost of axial-piston pumps production.
Before
After

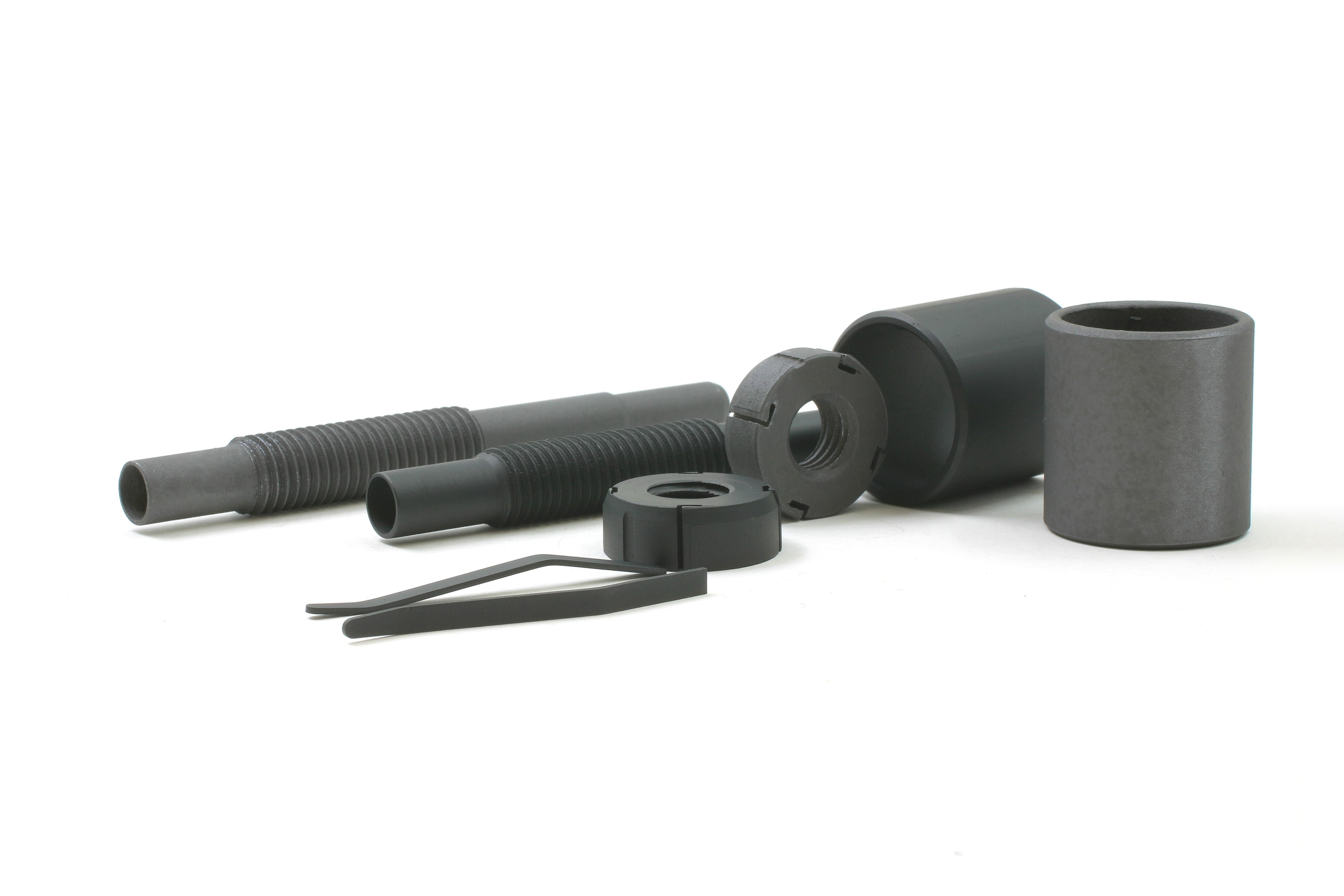

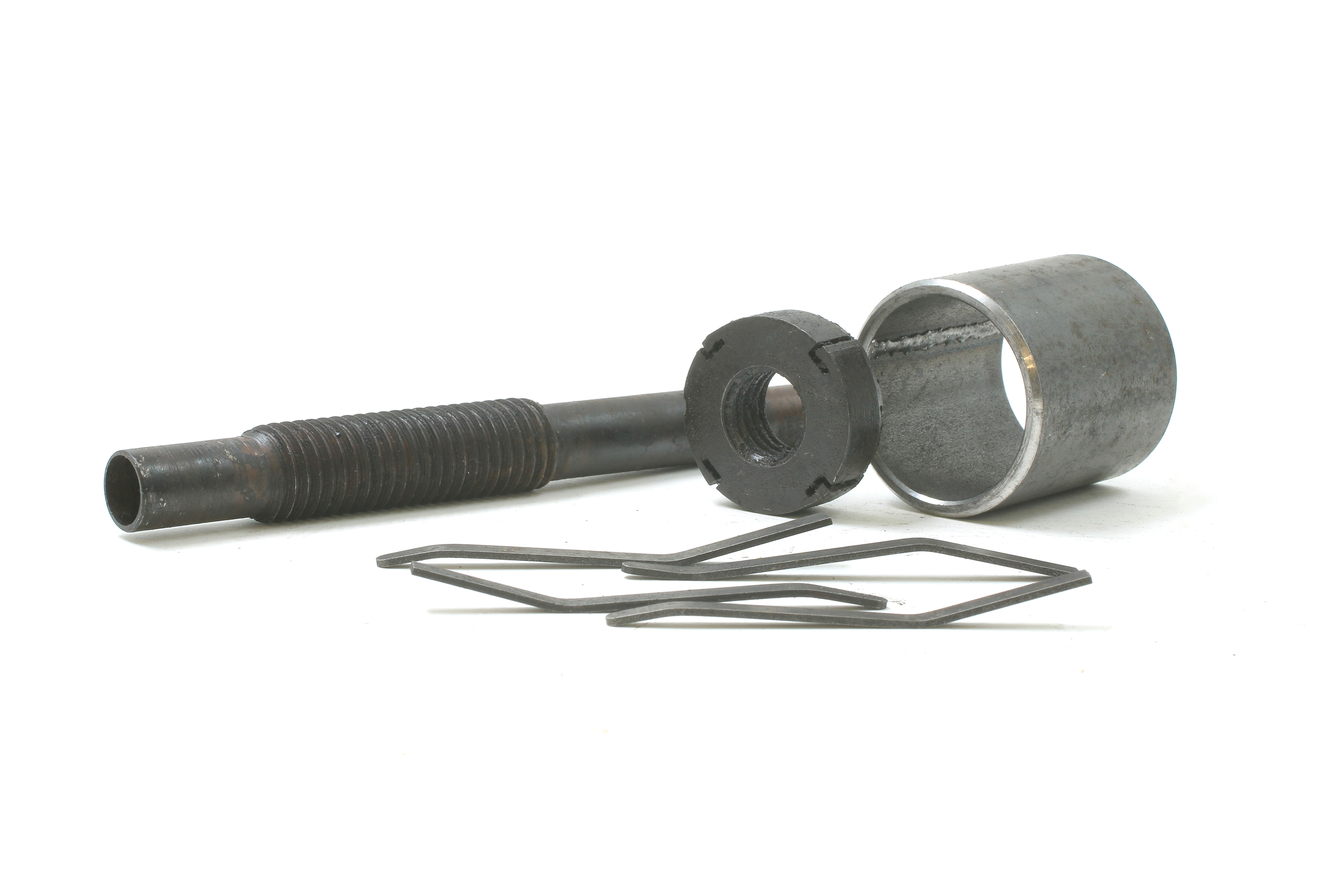

To provide aesthetic appearance for the parts, MODENGY 1003 and MODENGY 1009 solid-film coatings are used. MODENGY 1009 also protects the parts against corrosion extending their service lifetime. The coatings need no renewing for the entire operation period of the tyre studding devices.
Before
After

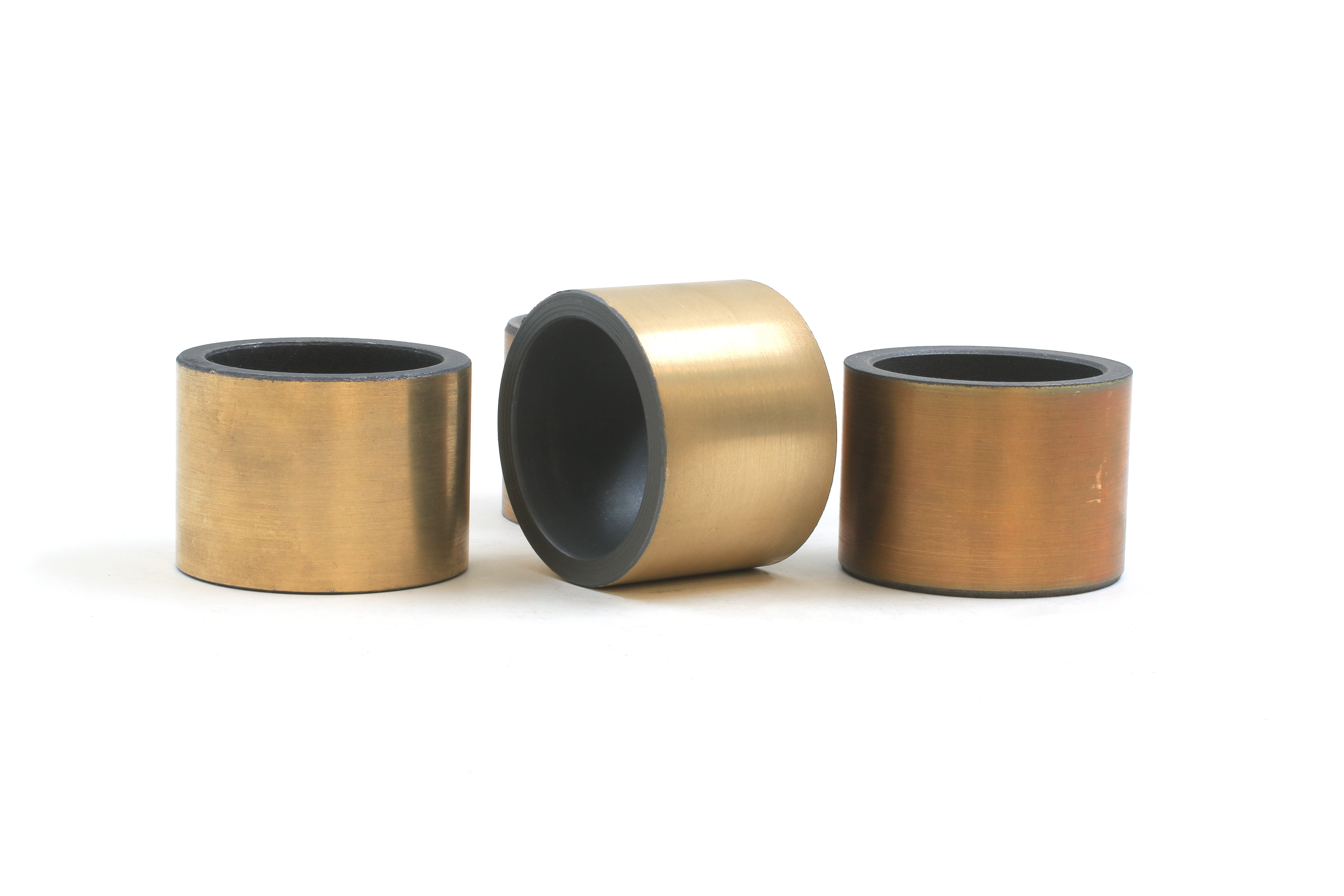

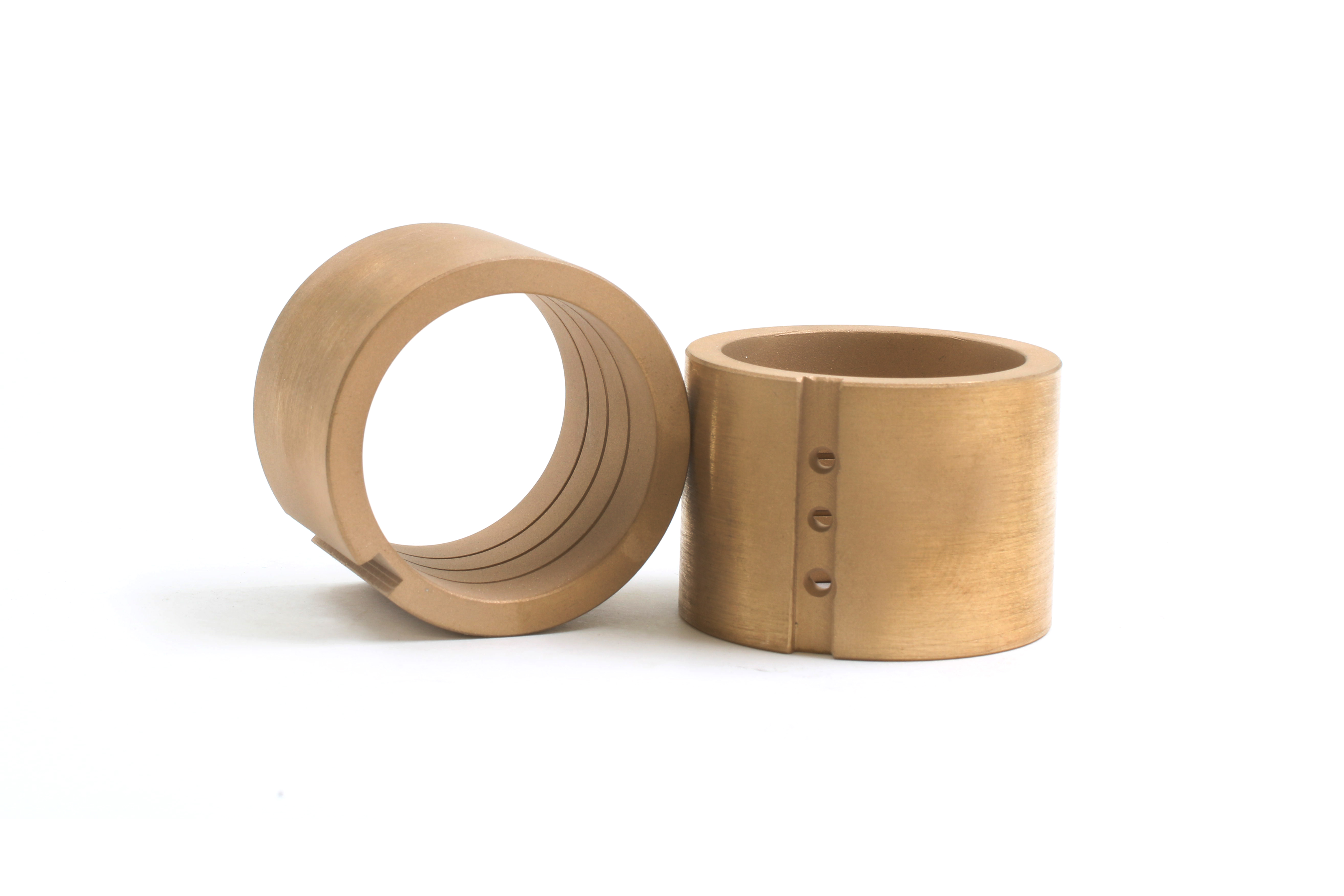

MODENGY 1003 anti-friction solid-film coating is used to reduce friction, wear, to prevent the slide bearing working surface damage in process of operating it.
Before
After

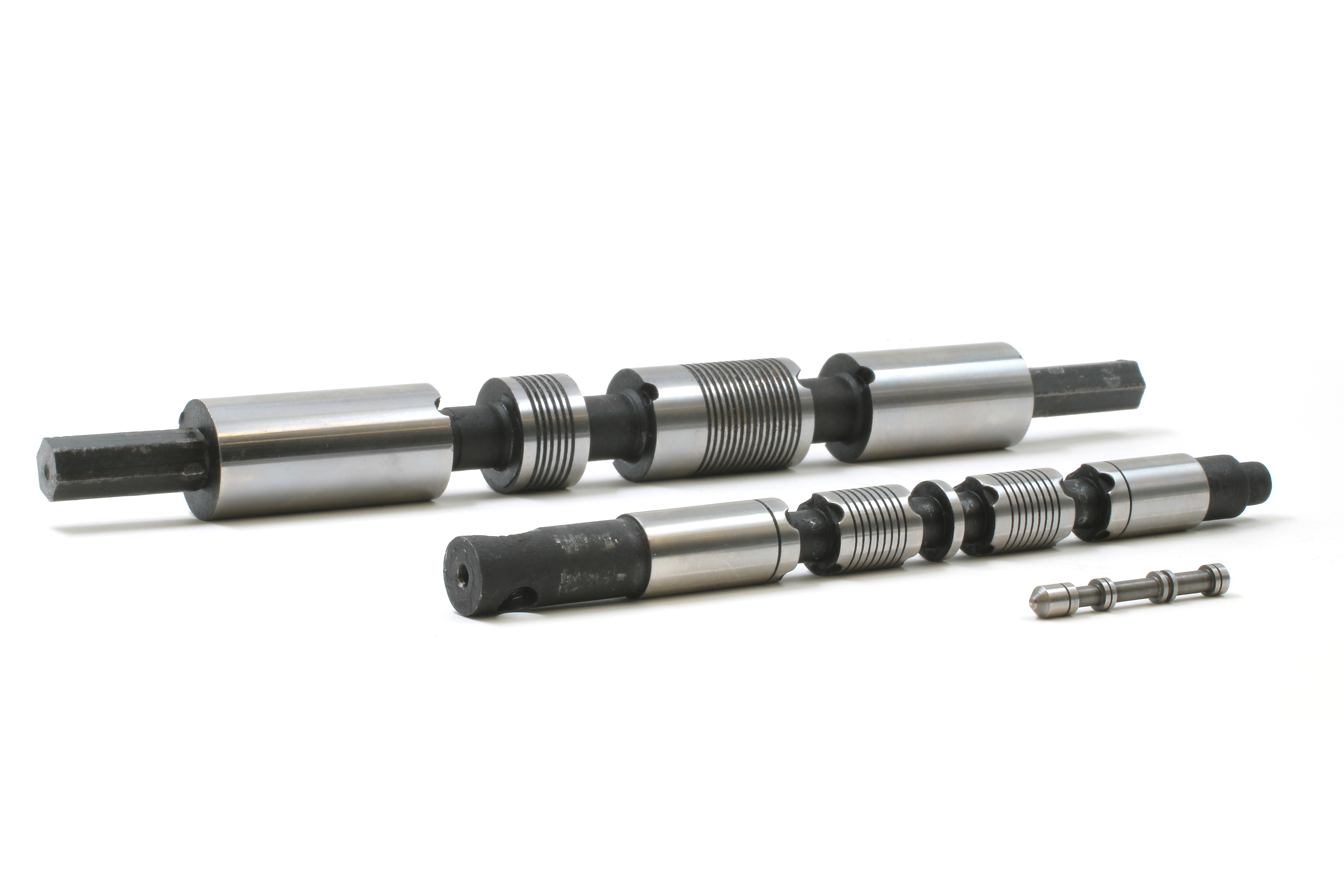

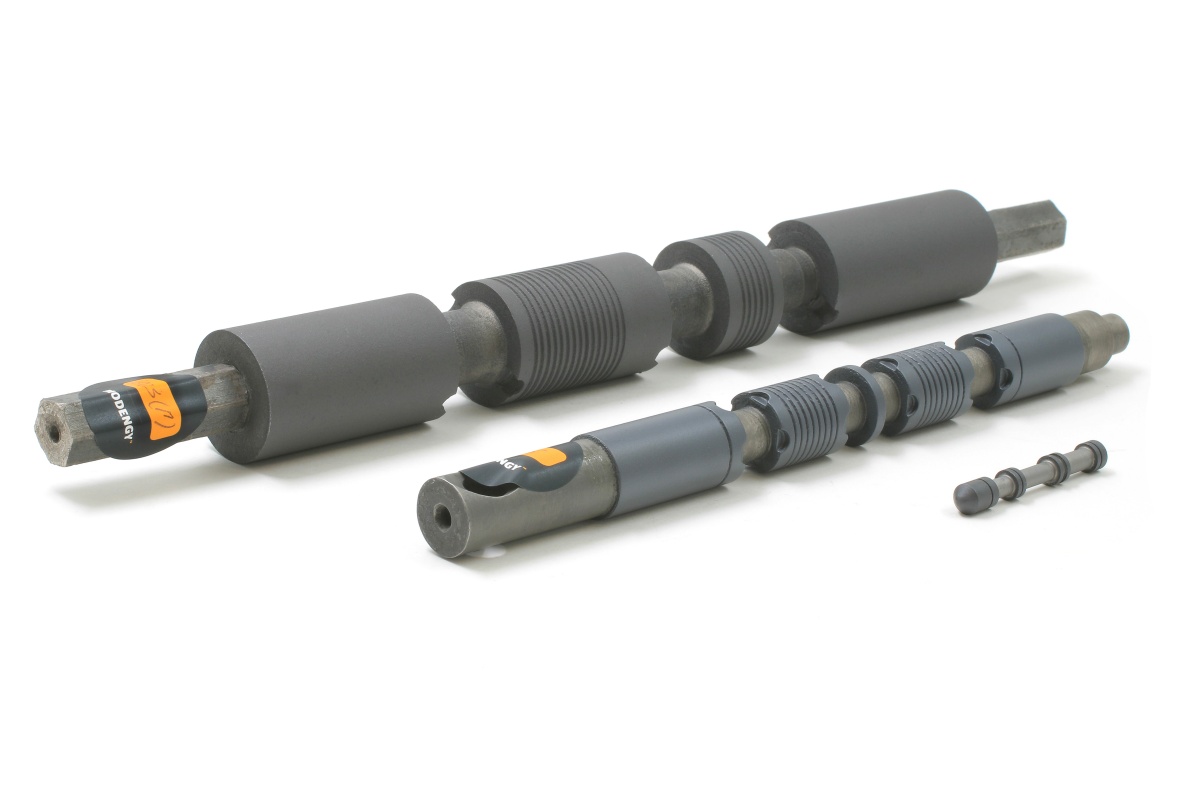

To reduce friction coefficient, MODENGY 1005 and MODENGY 1003 anti-friction solid-film coatings are applied onto the rod surfaces. Due to use of these coatings, reliability of the hydraulic distributor improves, their service lifetime extends, and lifetime lubrication of the unit is provided.
Before
After

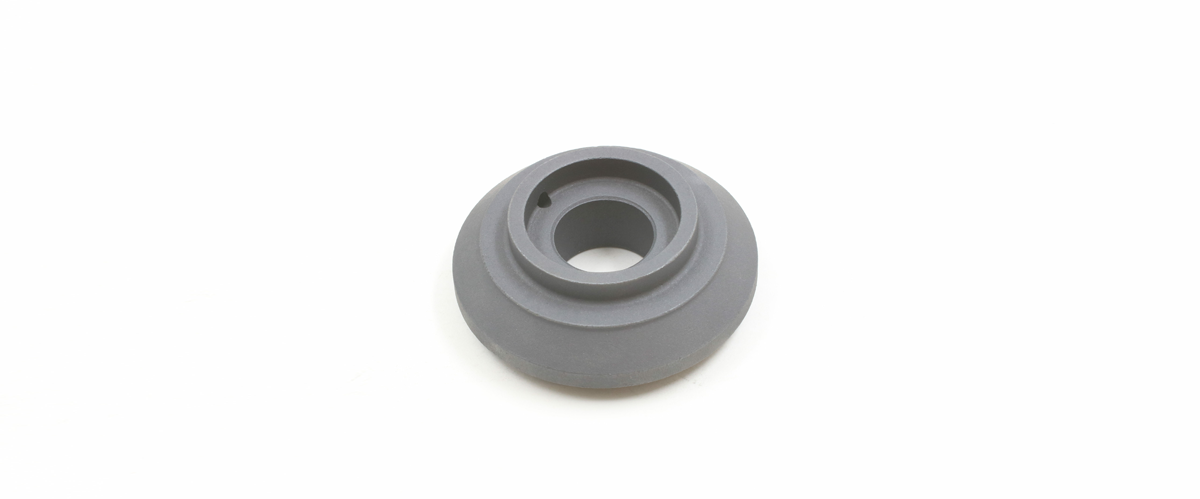

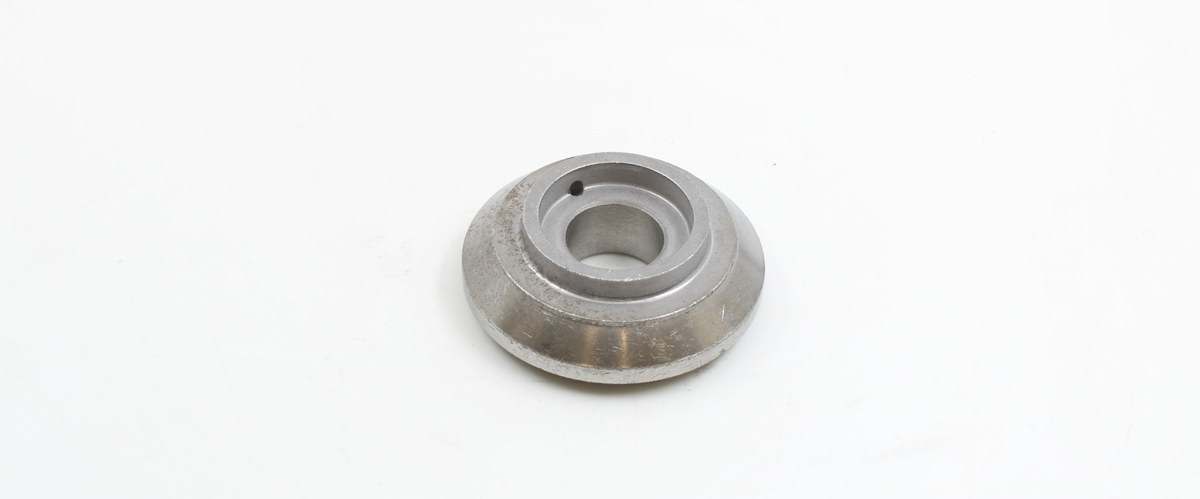

To reduce friction in the wheel-to-bushing pair, and to provide long reliable operation of the trolley wheels, MODENGY 1003 and MODENGY 1014 anti-friction solid-film coatings are applied onto the bearings.
Before
After

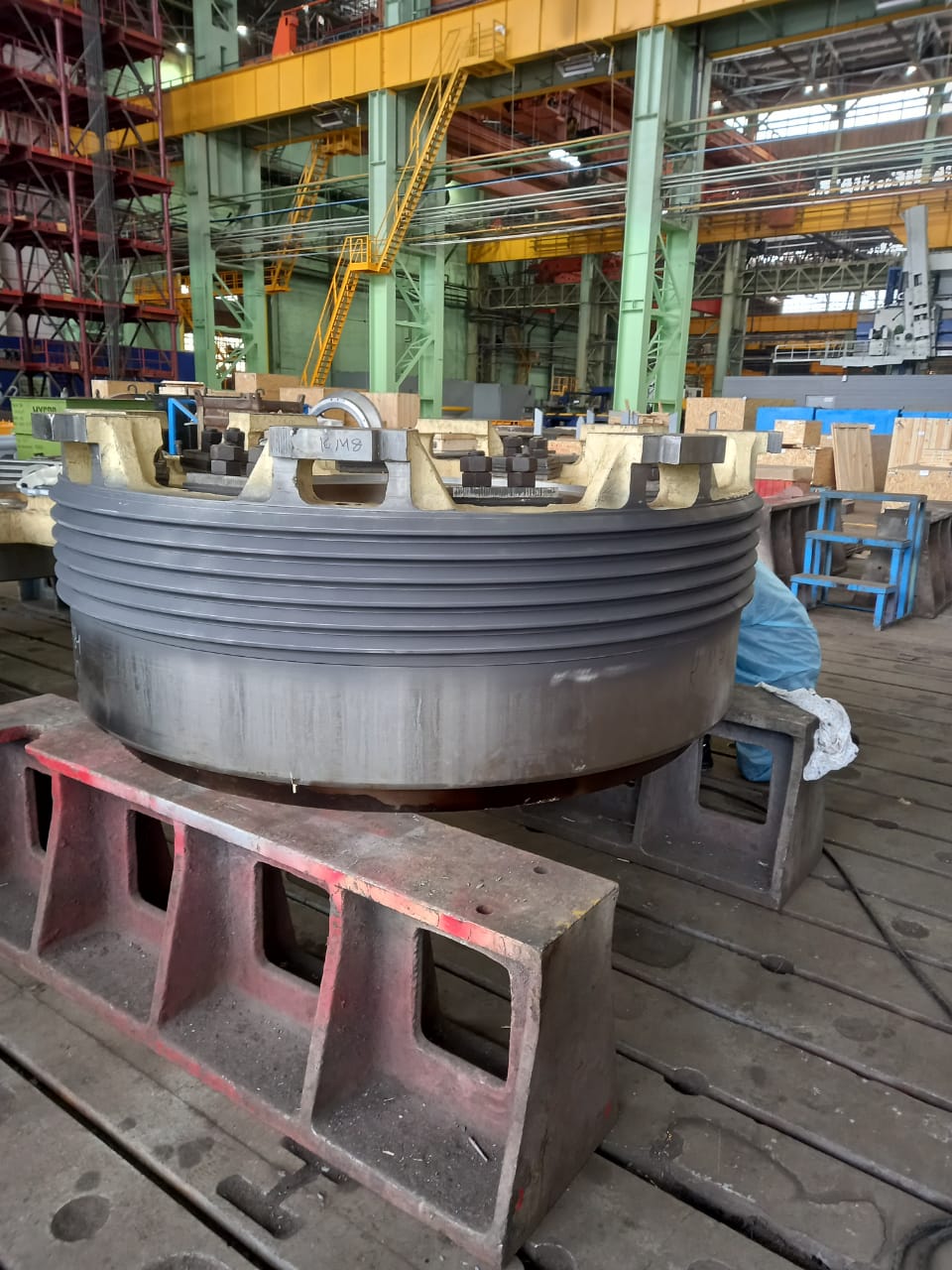

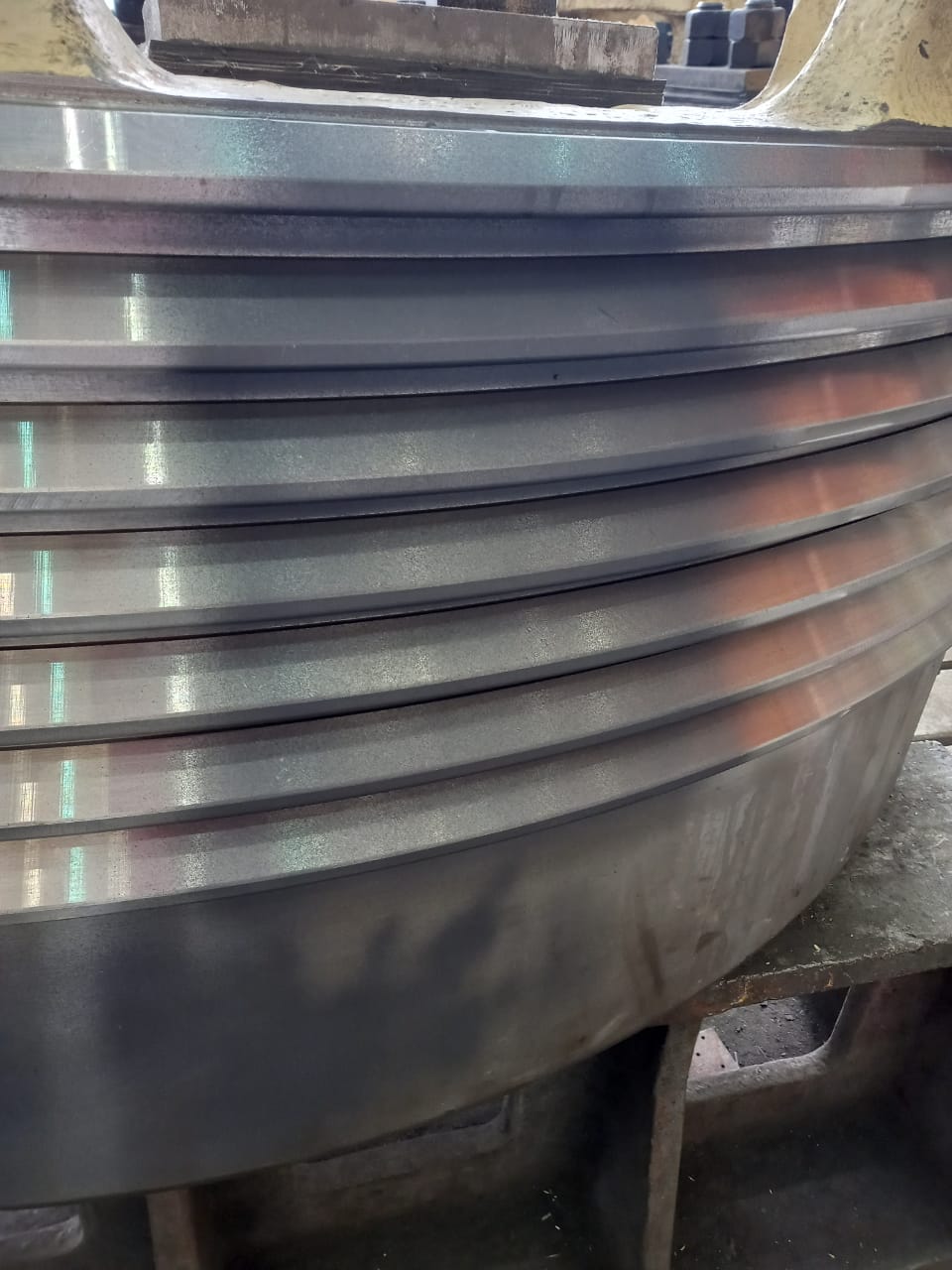

To protect them from damaging, MODENGY 1003 anti-friction solid-film coating is applied onto the buttress threads of the gyratory crushers. It forms a steady lubricating separating layer that makes assembly and adjustment of the connections easier, excludes forming scuffing and galling.
Before
After

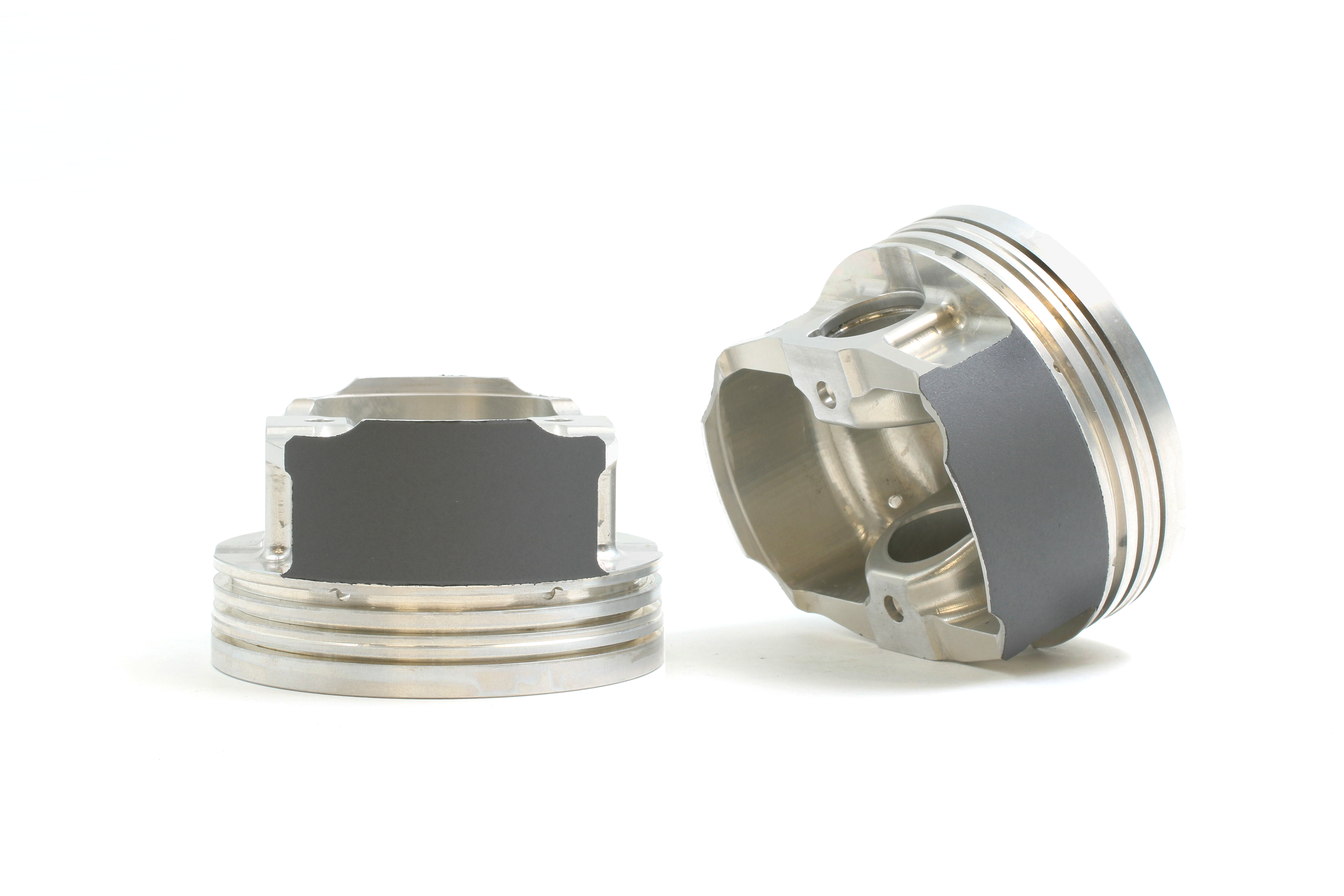

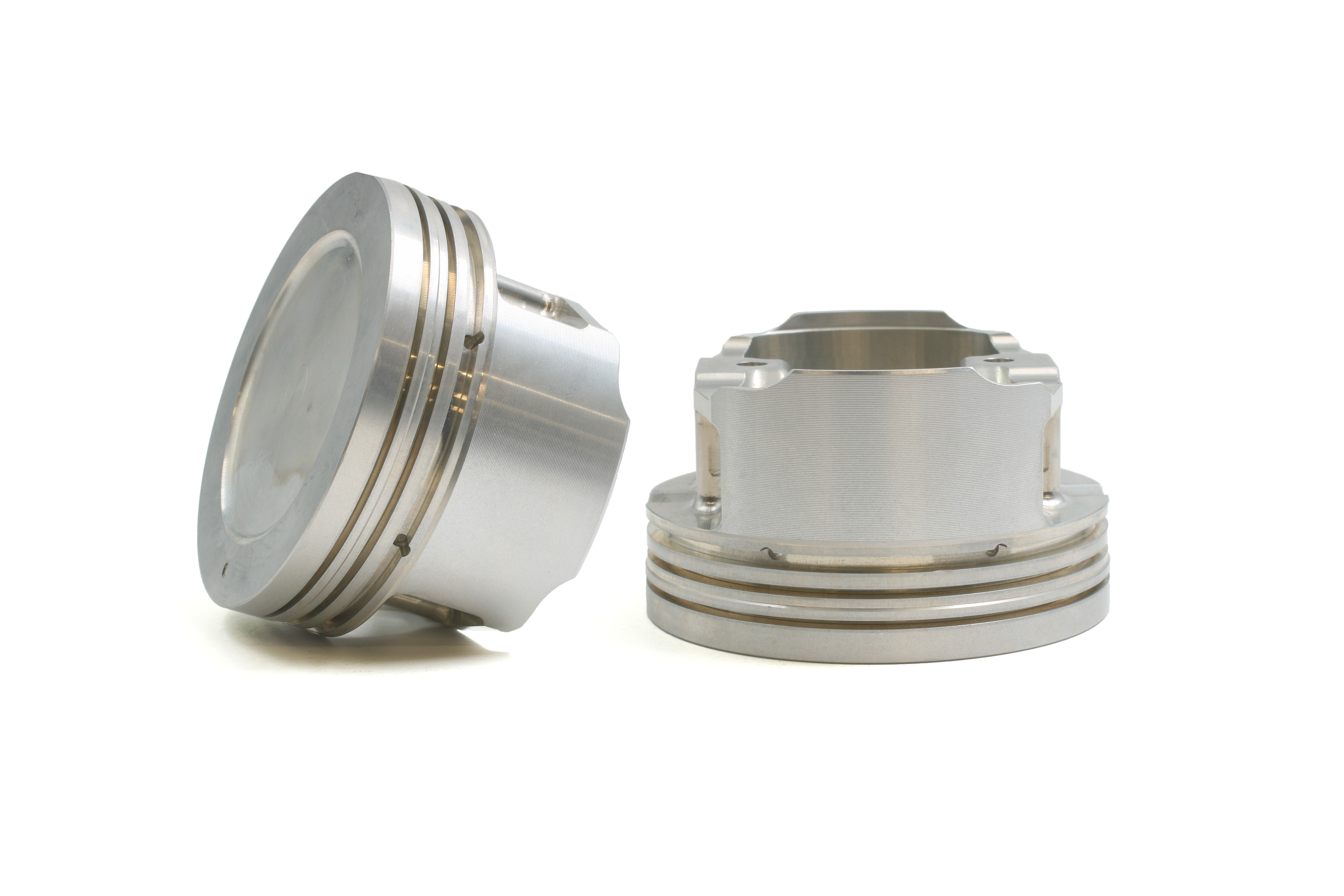

To extend service lifetime of the pistons, MODENGY 1003 and MODENGY 1007 anti-friction solid-film coatings are used. They reduce friction even at high loads onto the piston side surfaces while moving and changing its direction.
Before
After

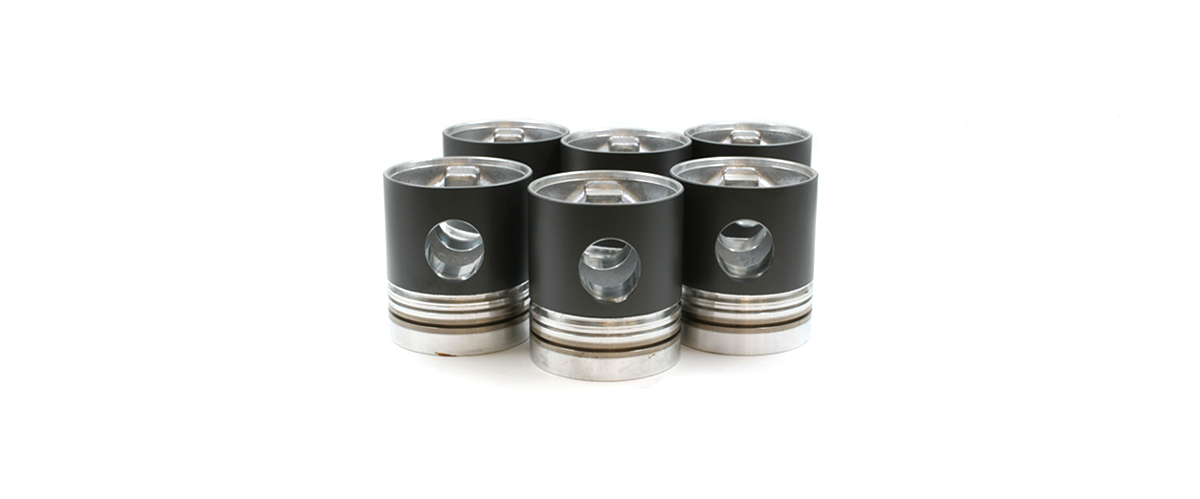

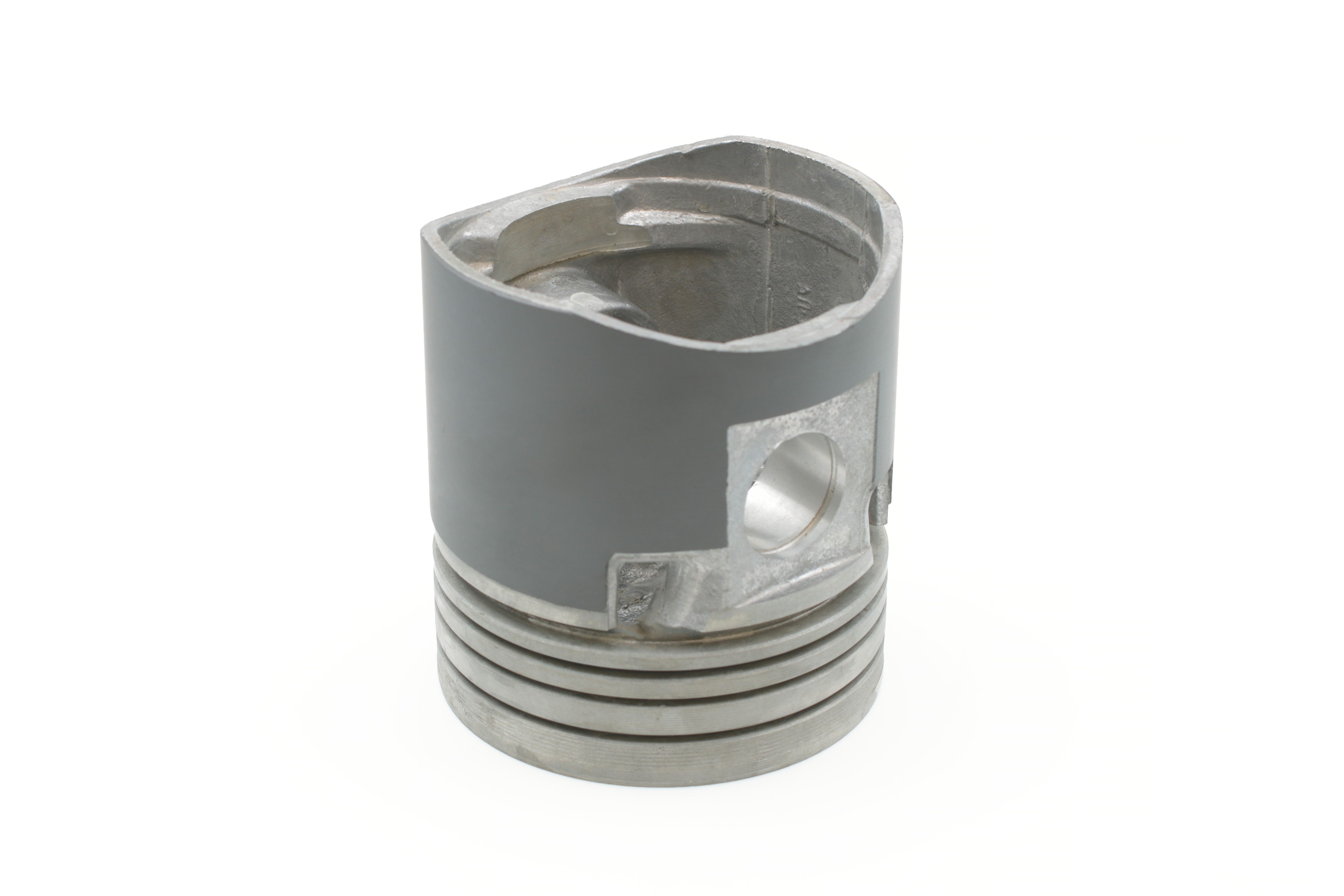

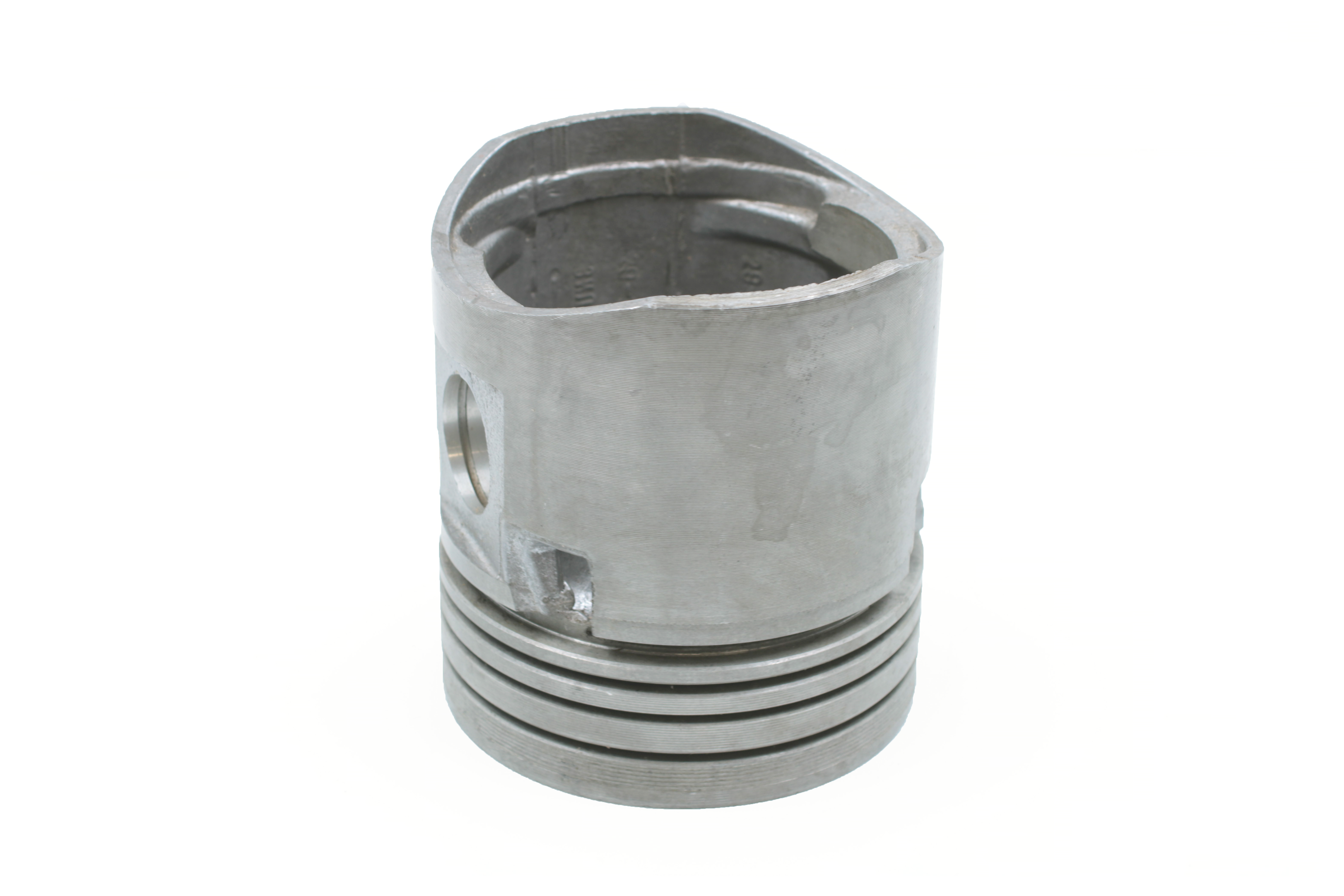

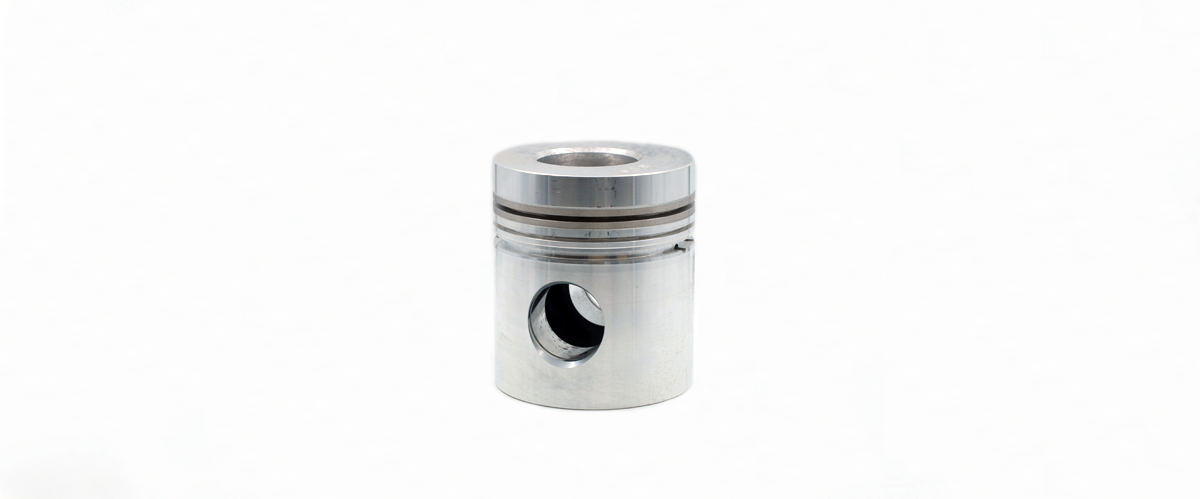

To extend service lifetime of the engine, MODENGY 1003 anti-friction solid-film coating is applied onto the piston skirts. Its wear-resistant separating layer prevents forming scuffing at overheating and extreme loads, makes cold start of the engine easier, and reduces friction of the mated parts under conditions of so called 'oil starving'.
Before
After

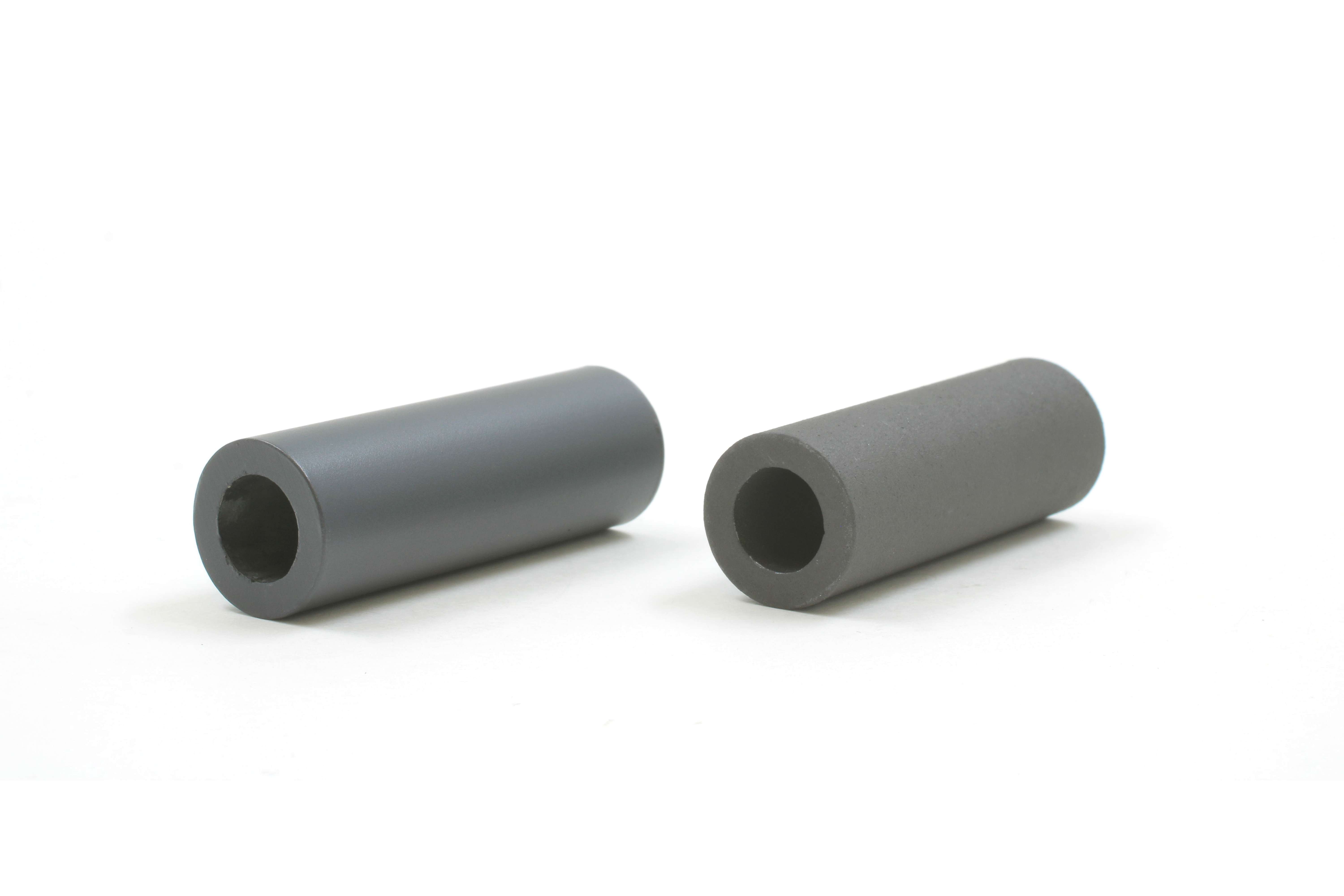

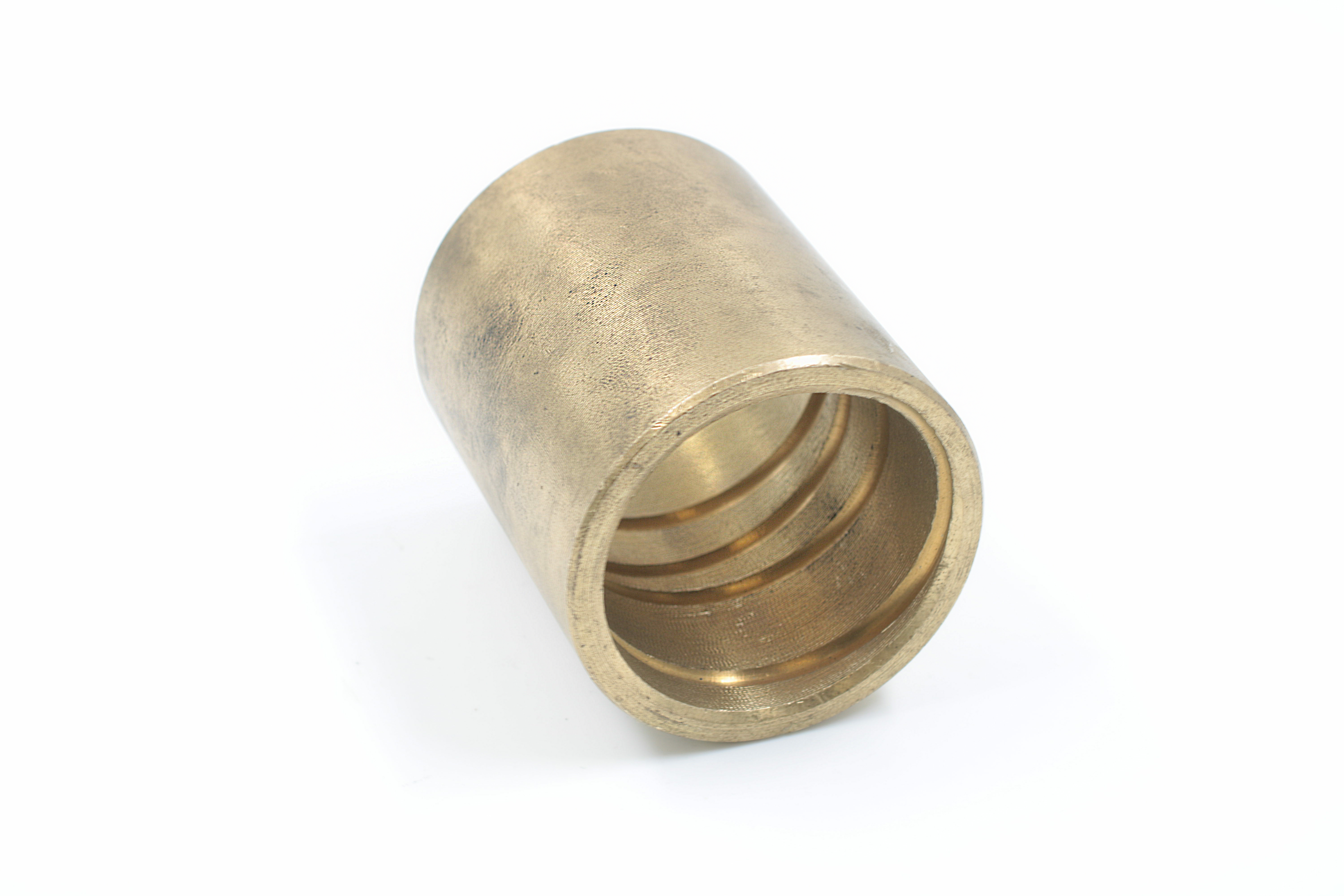

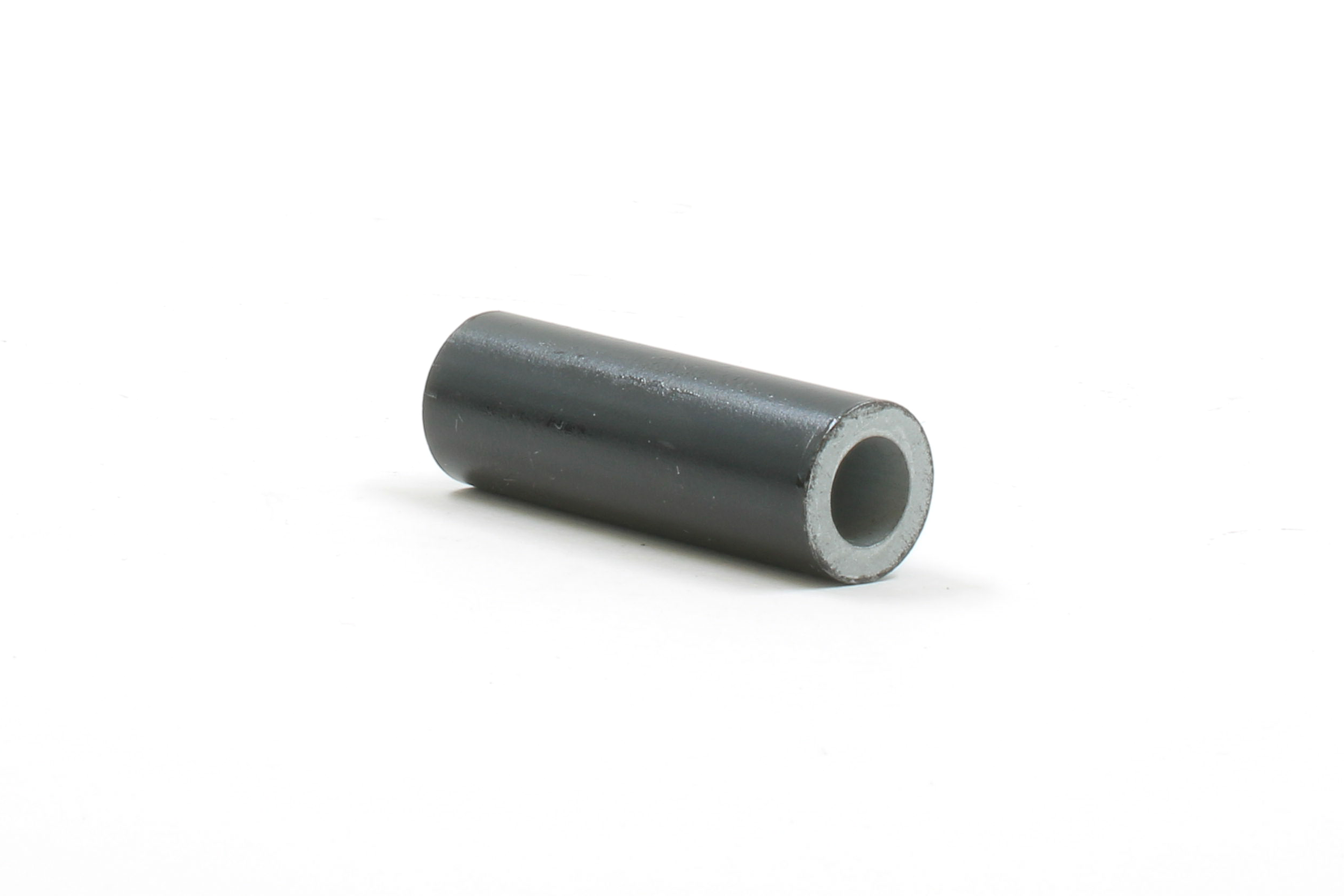

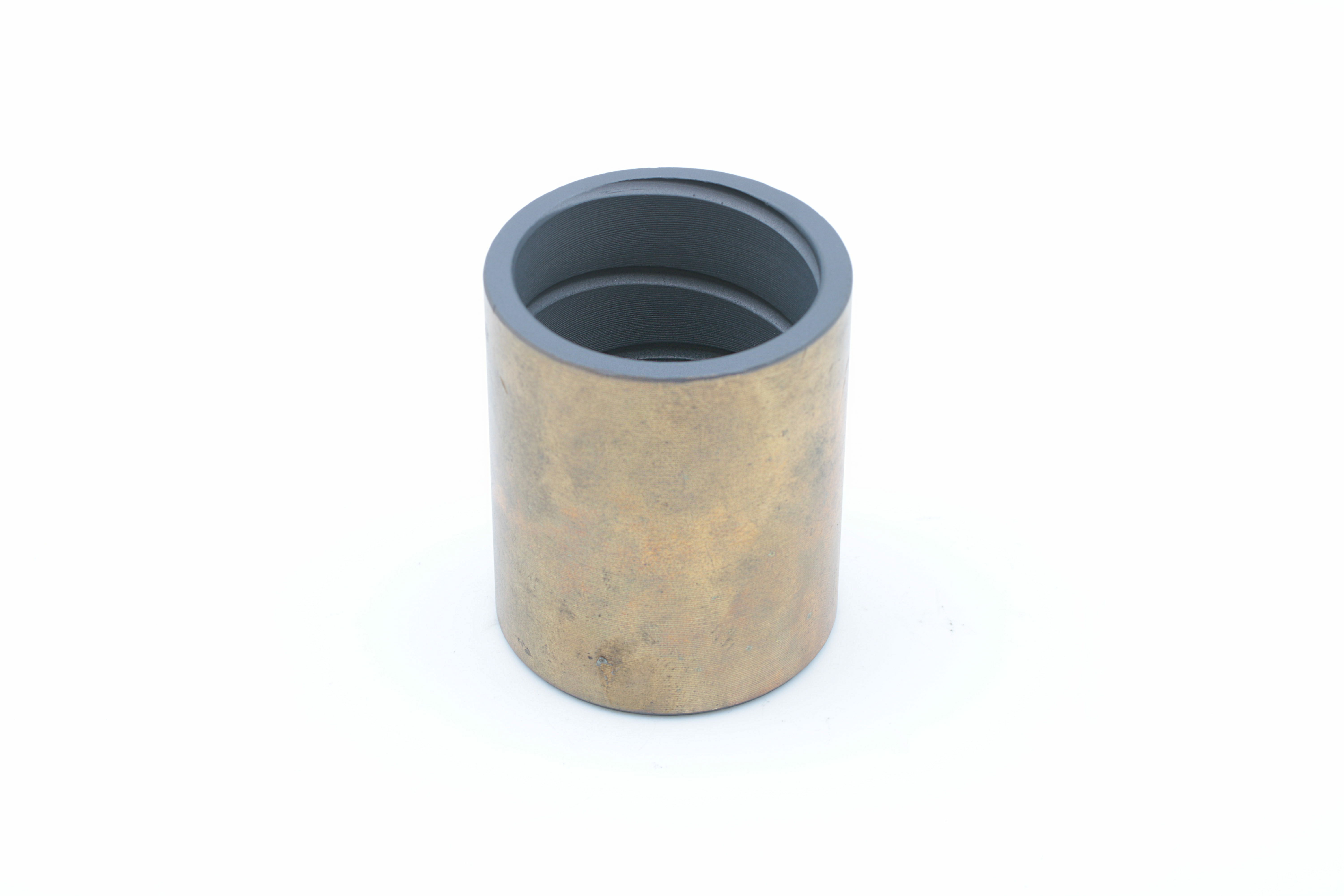

The units and mechanisms of the agricultural machinery are subjected to high loads in process of operating. Particularly, the bushing-axle friction pair often functions under conditions of lubricating fluid lack, and as a result, it gets worn fast, and requires replacement.
To solve this issue MODENGY 1003 anti-friction solid-film coating is applied onto the internal surface of the bushing. It reduces friction and wear of the mated parts under conditions of oil starving, and thus extends service lifetime of the unit.
To solve this issue MODENGY 1003 anti-friction solid-film coating is applied onto the internal surface of the bushing. It reduces friction and wear of the mated parts under conditions of oil starving, and thus extends service lifetime of the unit.
Before
After
MODENGY 1003 coating is an effective replacement for a slide bearing in car dampers. It is applied onto the internal surface of the rod guideways, and provides stably low friction coefficient of the moving parts. A resistant solid-film layer of the coating provides smooth going, and mechanism wear reduction.
Before
After
Coatings create a wear resistant separating layer on the parts surfaces that prevents scuffing at overheating, increased loads, as well as at the engine start moments at temperatures below zero.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator सतहों को साफ करने, चिकनाई हटाने और सक्रिय करने के लिए है
- MODENGY 1013 Special Solvent कोटिंग लगाने के बाद उपकरण को धोने और बिना सुखी कोटिंग को हटाने के लिए
- MODENGY M1-250 Spray gun - MODENGY एंटी-फ्रिक्शन सॉलिड-फिल्म कोटिंग्स लगाने के लिए
Advantages
- कम Friction coefficient
- उच्च Load-carrying ability
- विस्तृत service temperature range
- धूल भरे वातावरण (dusty environment) में कार्यक्षमता (Workability)
- High adhesion
- यह Room Temperature पर Cure होने में सक्षम है।
- इसमें anti-emergency lubrication के गुण मौजूद हैं।
- Fretting-corrosion के खिलाफ प्रभावी बचाव
- यह robots द्वारा parts assembly की गति को बढ़ा देता है।
- यह stick-slip motion को रोकता है।
- लंब लंबी सेवा अवधि (यूनिट कंस्ट्रक्शन पर निर्भर – ड्यूरेबल लुब्रिकेशन)
Specifications
- रंग: grey-black
- सर्विस तापमान रेंज: -70 … +260 °С
- Standard coating consumption: 100 g / m²
- Cure temperature / time: +170 °C / 20 min या +20 °C / 720 min
It is used in the following typical units
स्लाइडिंग बेयरिंग, स्लाइडिंग गाइडवे, टूथ गियर, थ्रेडेड कनेक्शन, स्प्लिंड जॉइंट्स और कीड कनेक्शन, एडजस्टिंग वेजेज, धातु/धातु घर्षण युग्मों वाली अन्य इकाइयाँ
Documents
Video
MODENGY coating for car dampers
MODENGY 1003 on the cone crushers. Applying the coating at the territory of the gold-extraction factory
MODENGY coating for car dampers
MODENGY 1003 on the cone crushers. Applying the coating at the territory of the gold-extraction factory
