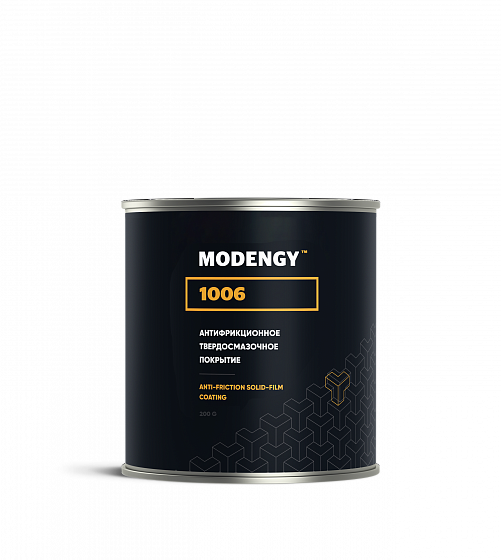

MODENGY 1006
200 G Bottle

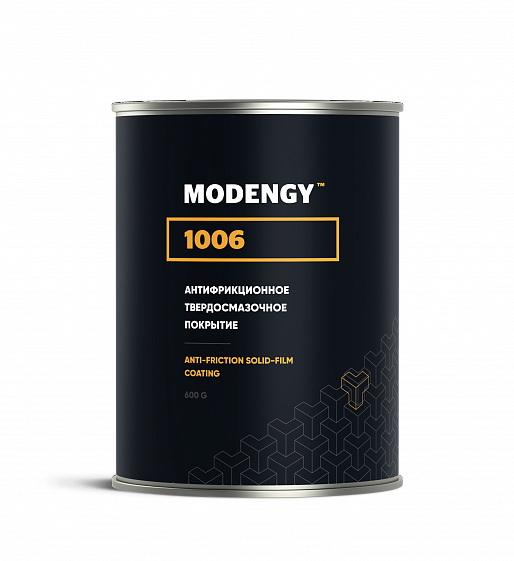

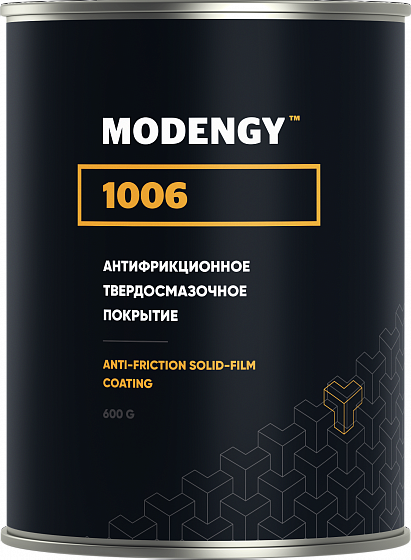

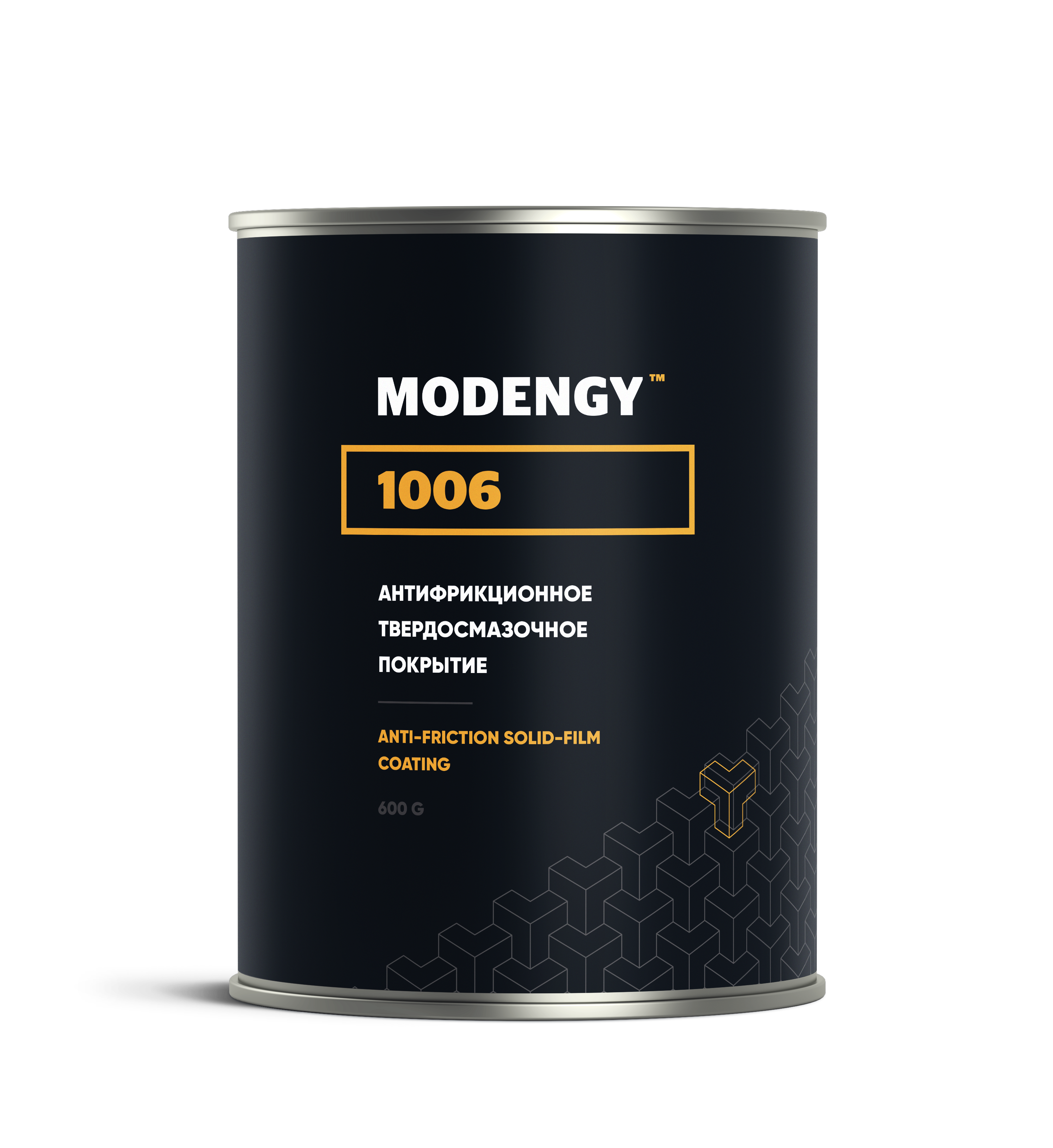

600 G Can

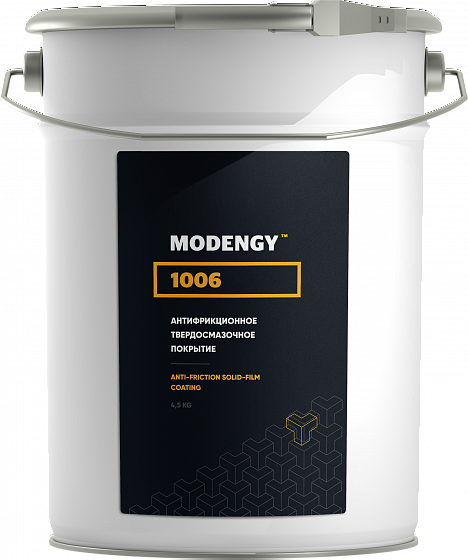

4.5 KG Pail
Molybdenum disulfide और graphite पर आधारित anti-friction solid-film coating
इसका उपयोग पंपों और वॉल्वों के स्लाइडिंग बेयरिंग, हाइड्रोलिक उपकरणों के प्लंजर पेयर; वितरण और नियंत्रण उपकरणों में स्लाइडिंग वॉल्व और साधारण वॉल्व; ऊर्जा उद्योग में पावर गियर्स के गियरव्हील; चरम परिस्थितियों में संचालित पिस्टन और स्लाइडिंग बेयरिंग सहित आंतरिक-दहन इंजन के पुर्जों; वितरण और नियंत्रण उपकरणों में स्लाइडिंग वॉल्व और प्लेन वॉल्व, ऊर्जा में पावर गियर्स के गियरव्हील में, चरम परिस्थितियों में संचालित आंतरिक-दहन इंजन के पुर्जों (पिस्टन, बेयरिंग, कैम सहित) में किया जाता है।
Package sizes:
MODENGY 1006 in action
Before
After

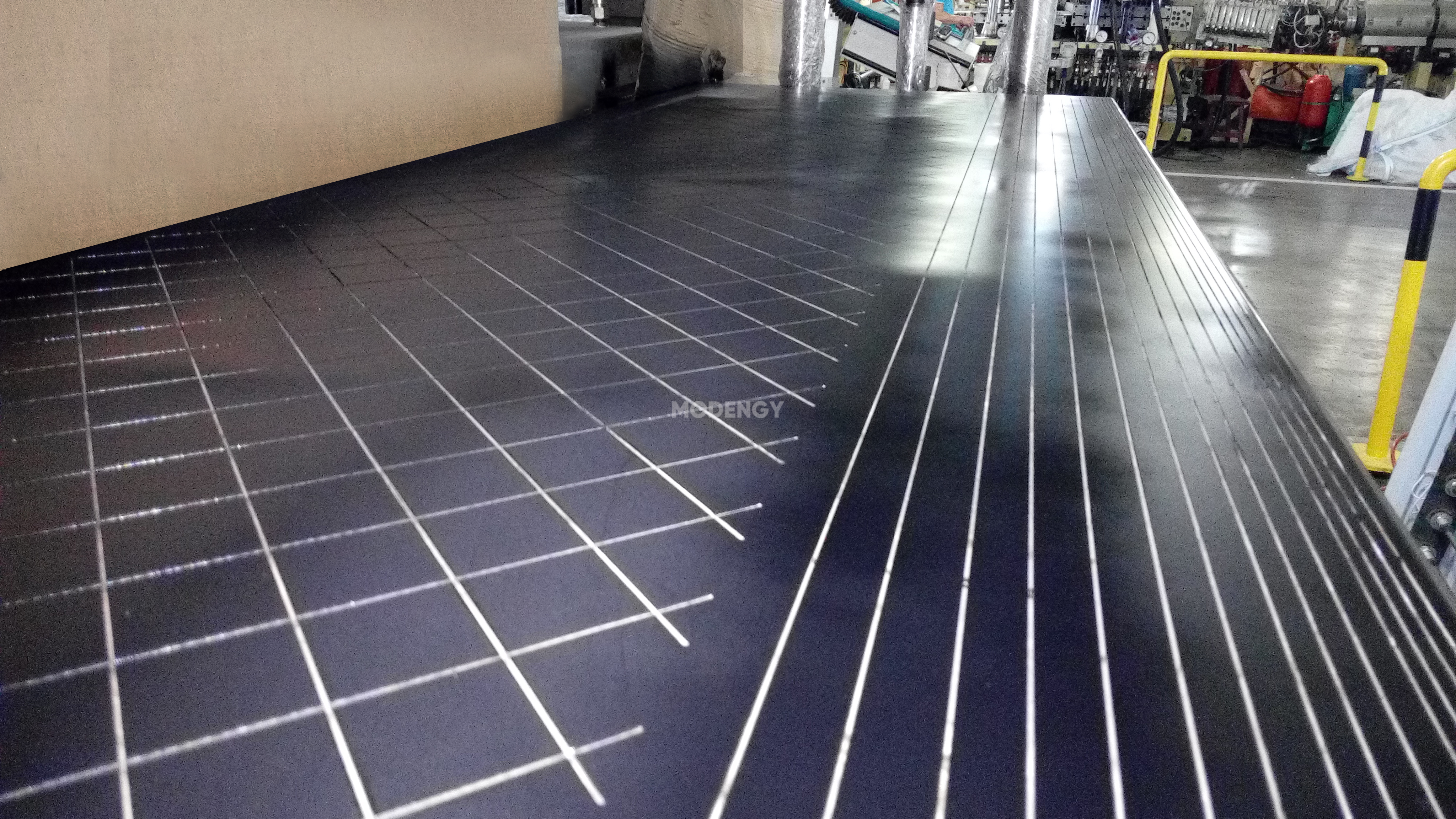

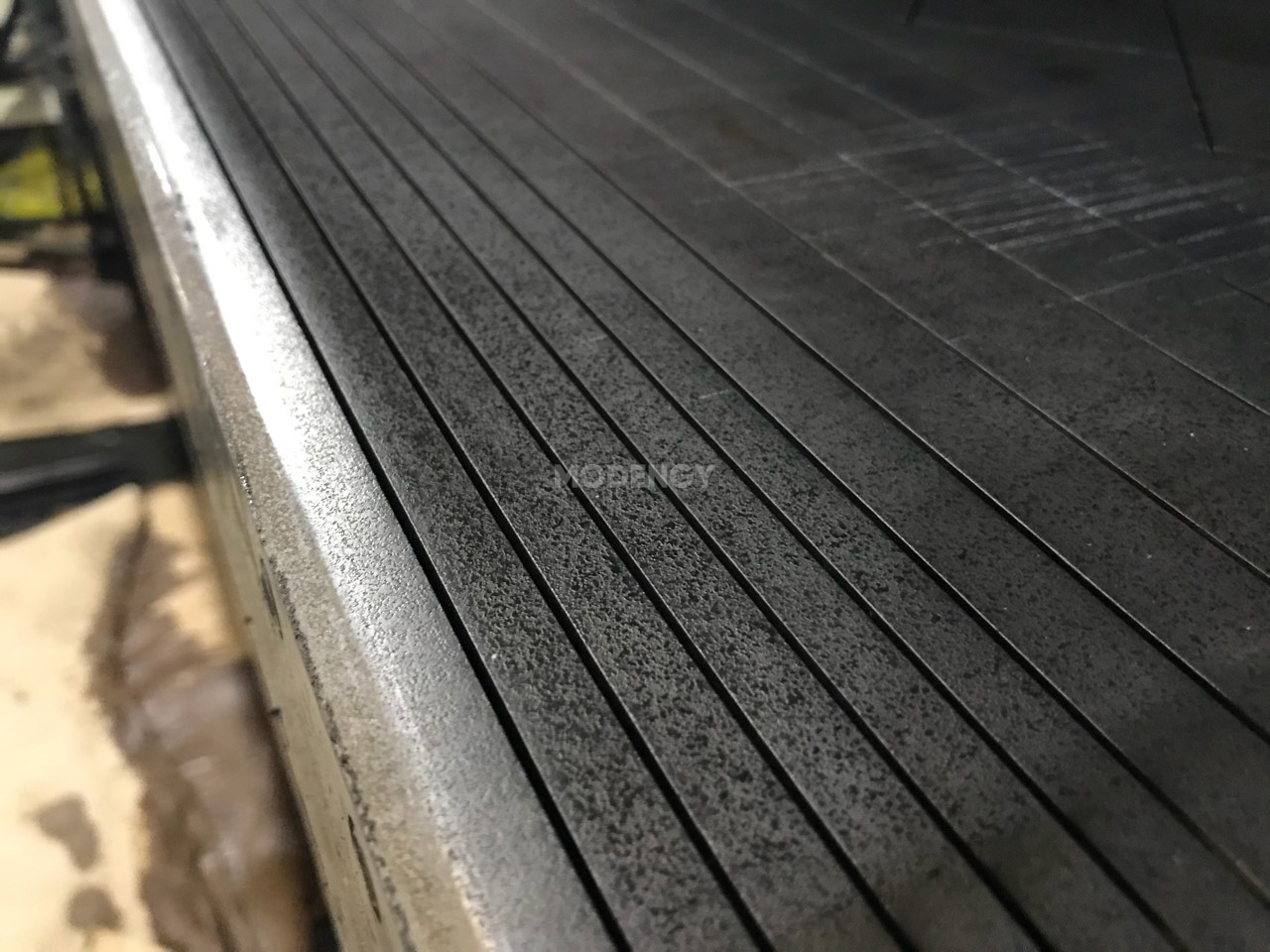

MODENGY 1006 coating is successfully used on the calibrators' plates of the machine tools on producing honeycomb polycarbonate. A thin layer of this coating improves sliding of the sheets of the items along the plates preventing them from stick-slip motion.
Before
After

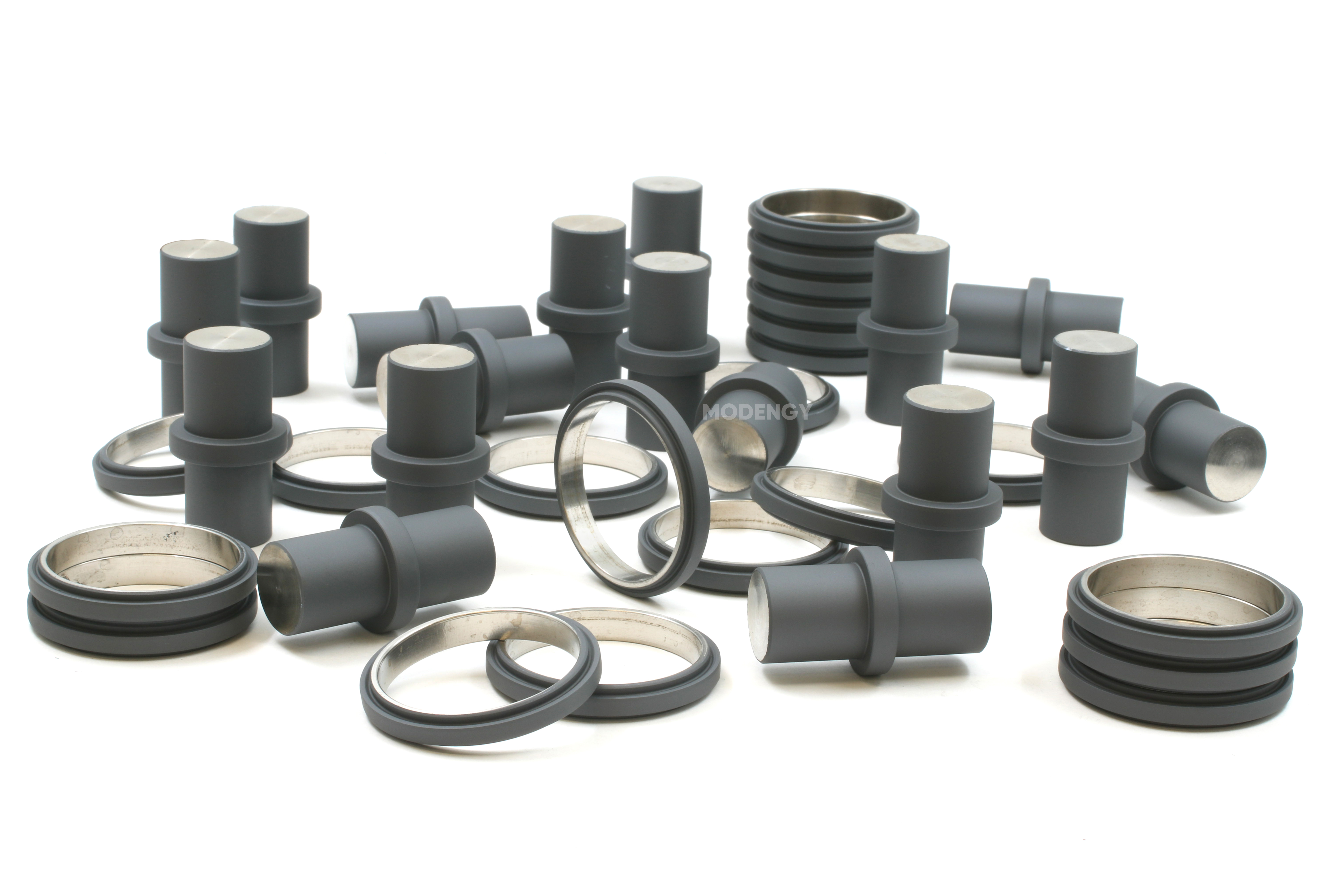

MODENGY 1006 is applied onto plunger pairs pistons surfaces to protect them against scuffing, and to reduce wear of the units operating in the inert gas medium.
Before
After
MODENGY 1006 coating based on molybdenum disulfide and graphite is used to extend service lifetime of the energy equipment parts operating under extreme conditions. It reduces friction and wear of the titanic bearings, and steel thrusts, provides trouble-free operating of the important units.
Before
After

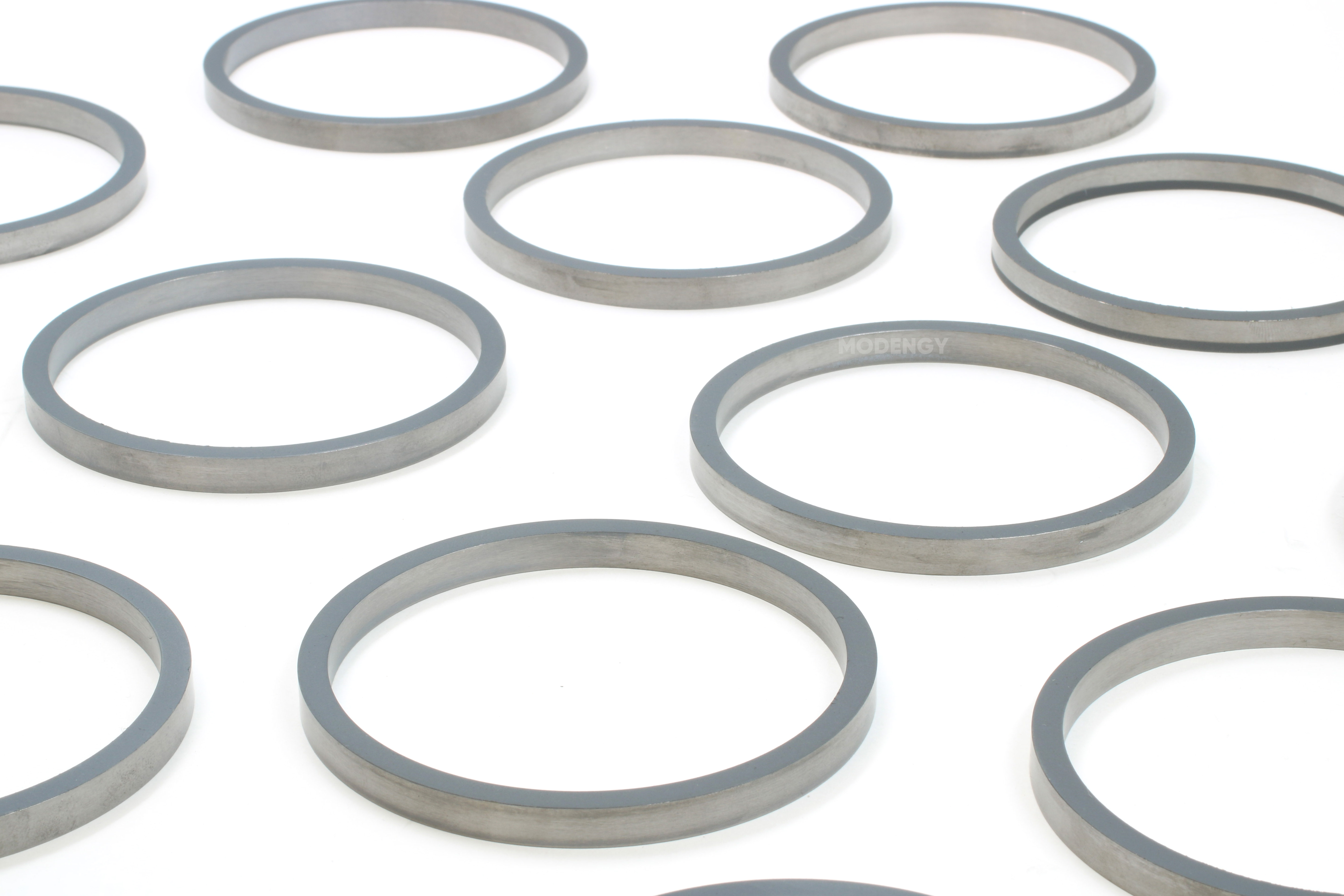

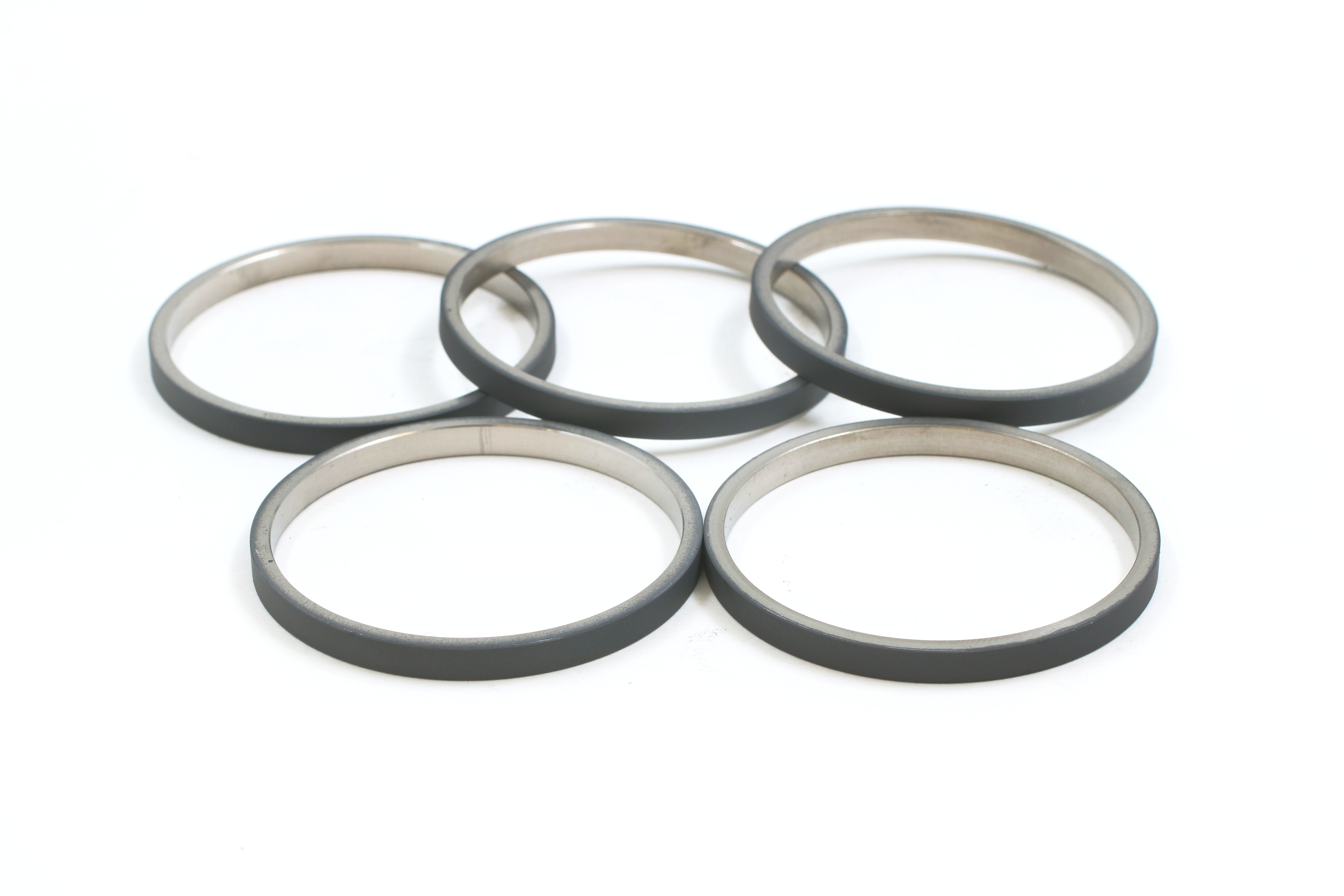

In order to extend service lifetime of the dry gas seals, MODENGY 1006 anti-friction solid-film coating based on molybdenum disulfide and graphite is applied onto the ring surfaces facing each other. This reduces friction between the contacting surfaces decreasing parts wear, and eliminating excessive noise while the superchargers are operating.
Before
After

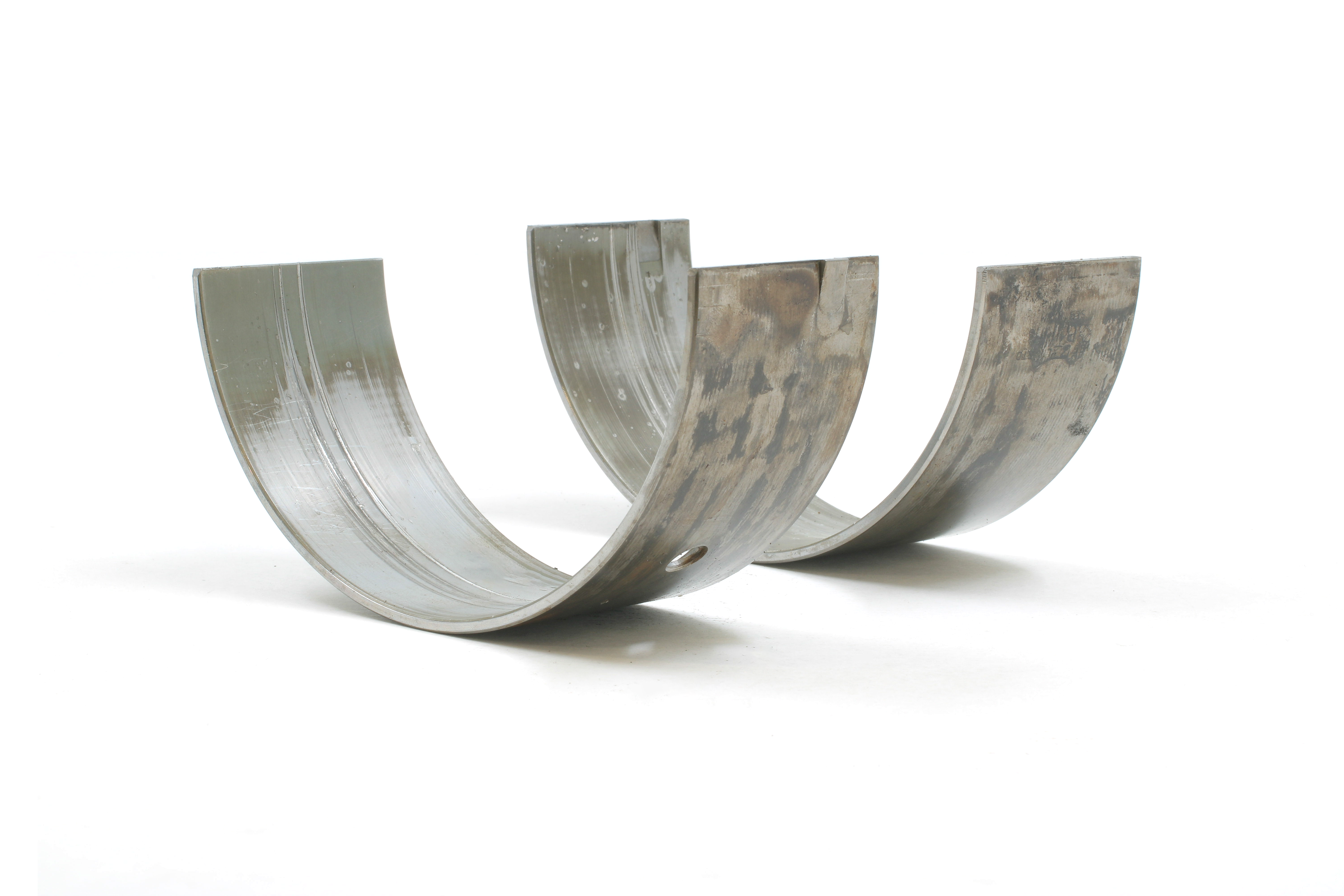

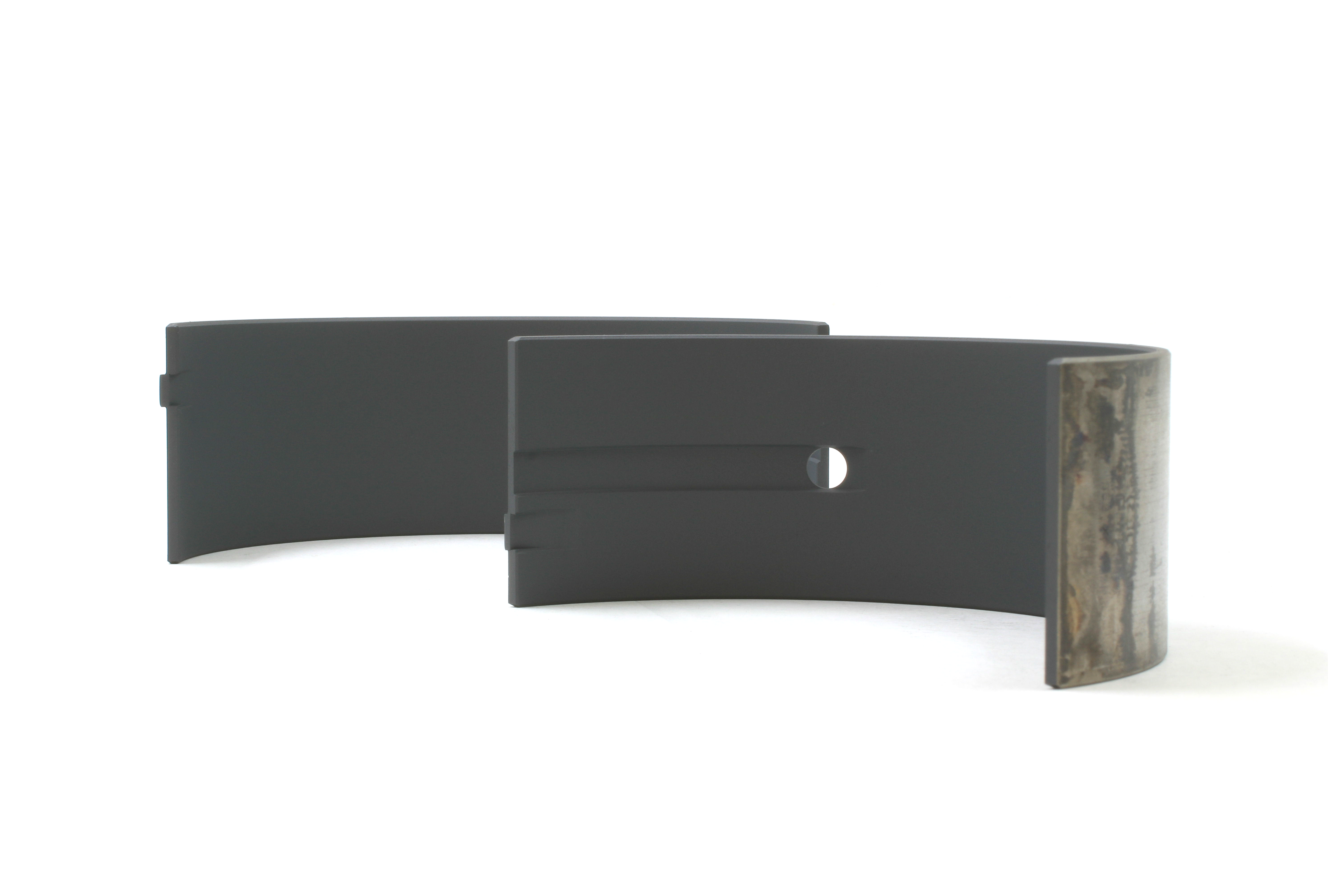

In order to reduce wear, and to extend service lifetime, MODENGY 1006 anti-friction solid-film coating based on molybdenum disulfide and graphite is applied onto working surfaces of diesel generators inserts.
Before
After

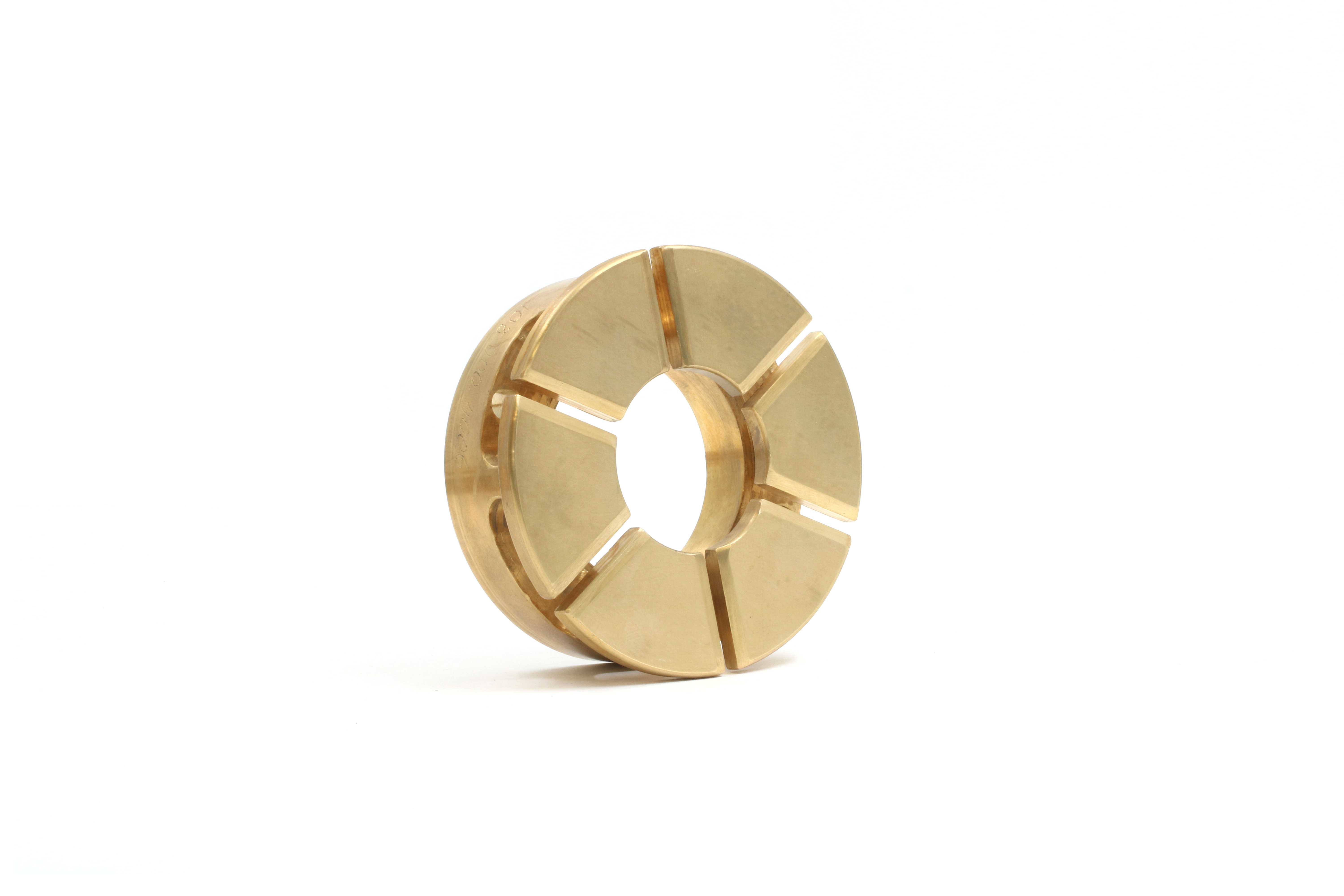

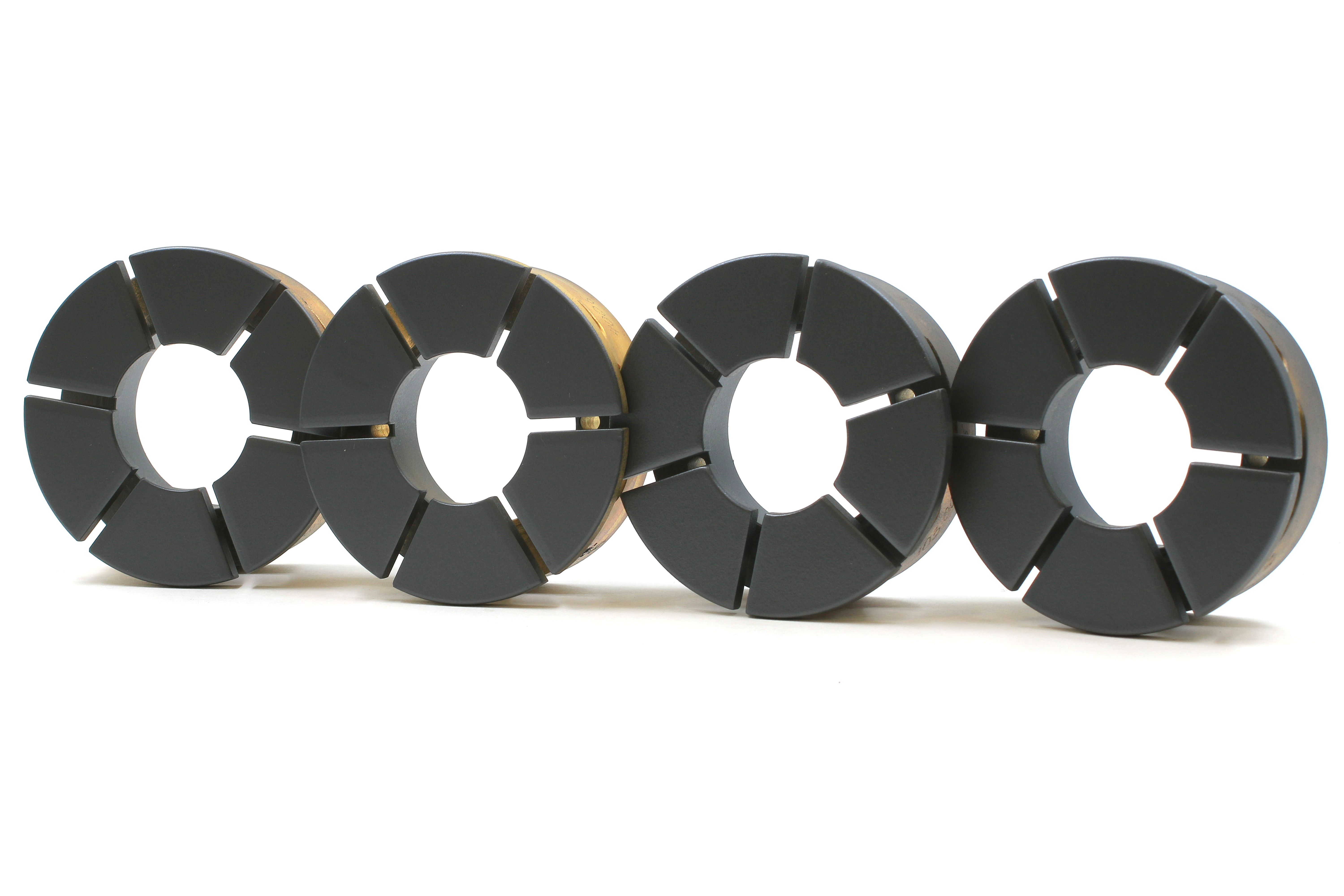

MODENGY 1006, and MODENGY 1066 reduce friction at the moments of starting and stopping as well as extend service lifetime of the highly loaded thrust bearings.
Before
After
In order to prevent scuffing of the parts, MODENGY 1006 and MODENGY 1009 anti-friction solid-film coatings are used. They reduce friction in rotation process of the cuff, and thus prolong service lifetime, and operation reliability of the unit.
Before
After

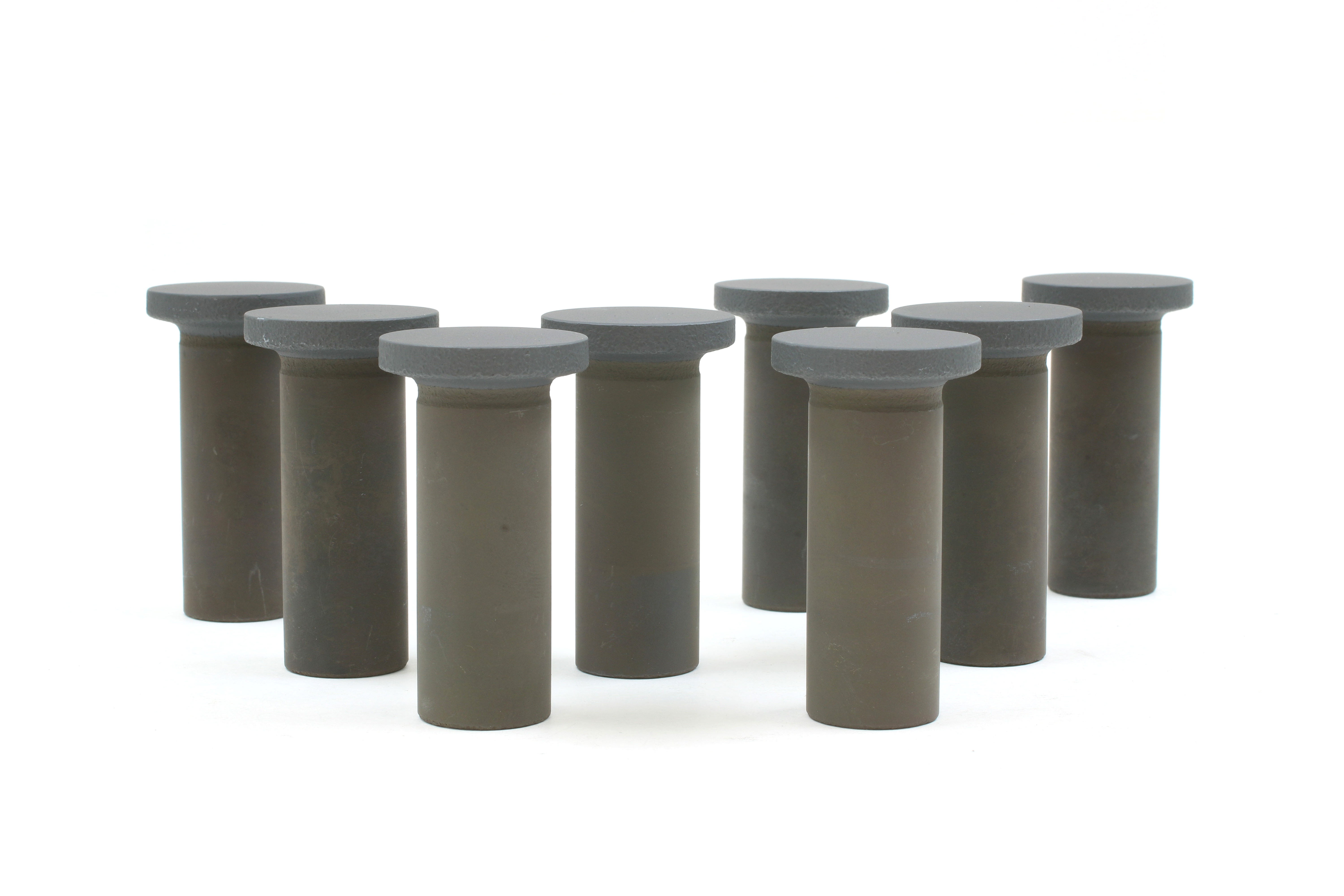

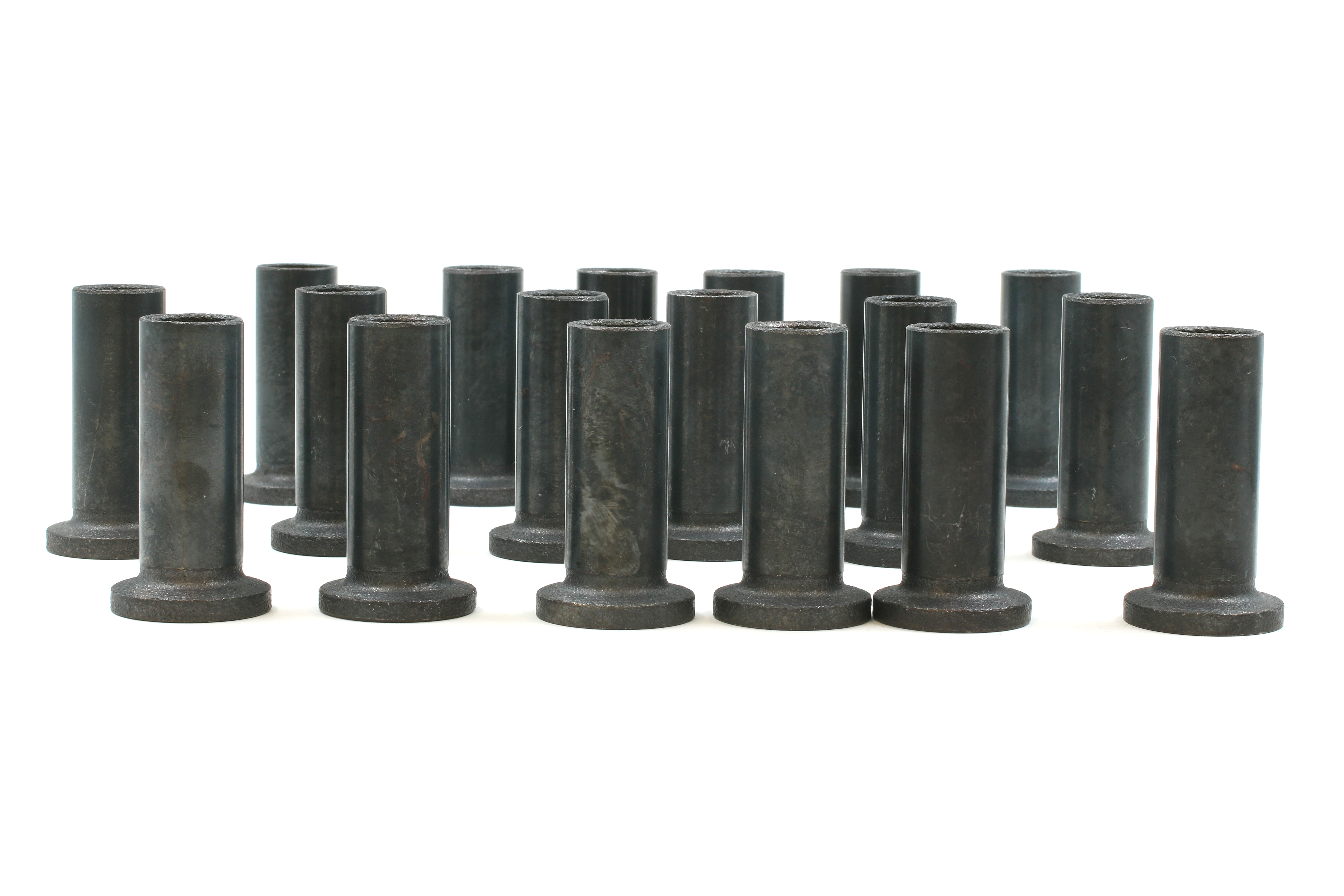

To extend service lifetime and reliability of the tappets operating, MODENGY 1006 anti-friction solid-film coating based on molybdenum disulfide and graphite is used. It is applied onto the supporting portion the parts, and contributes to reducing friction and wear.
Before
After

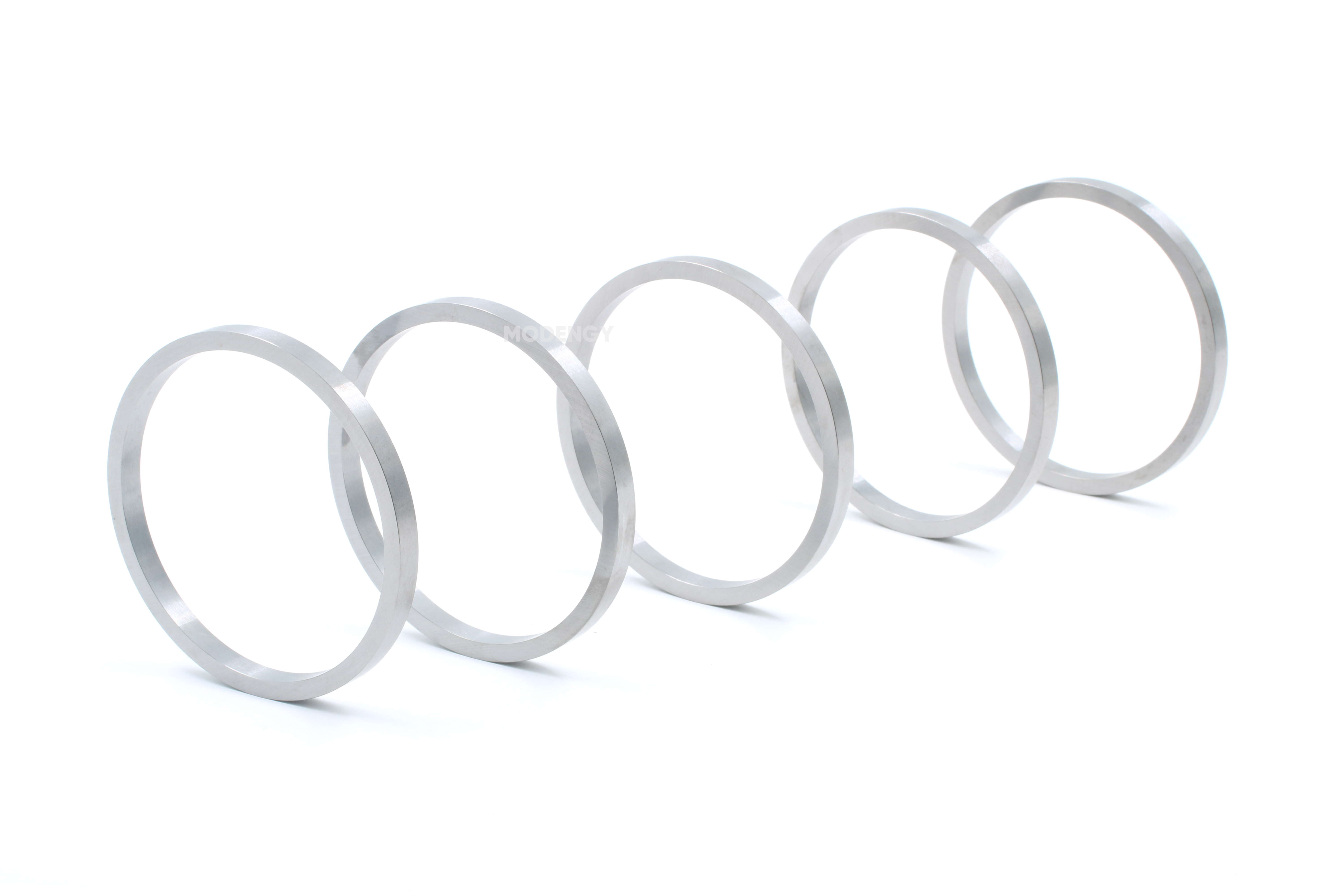

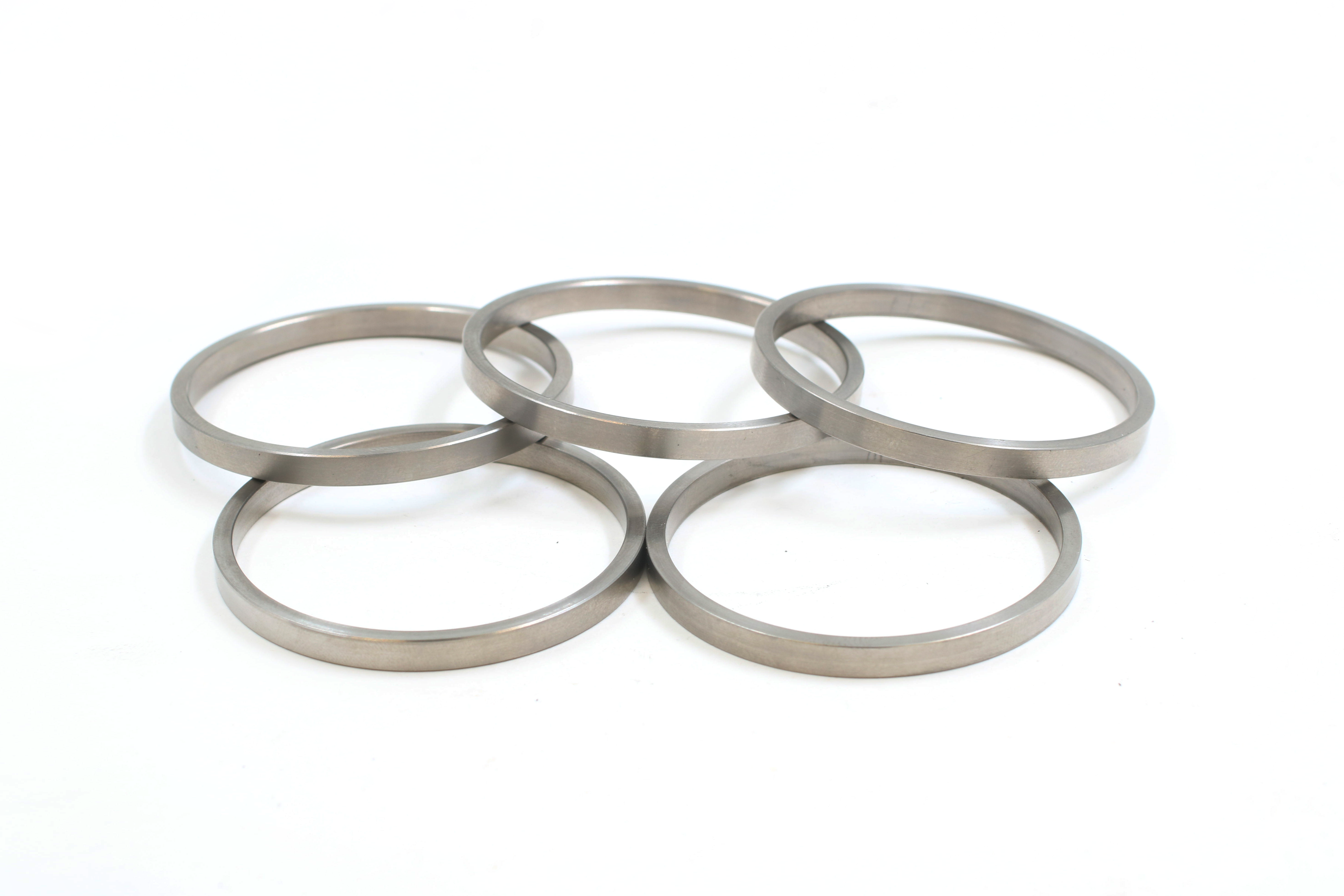

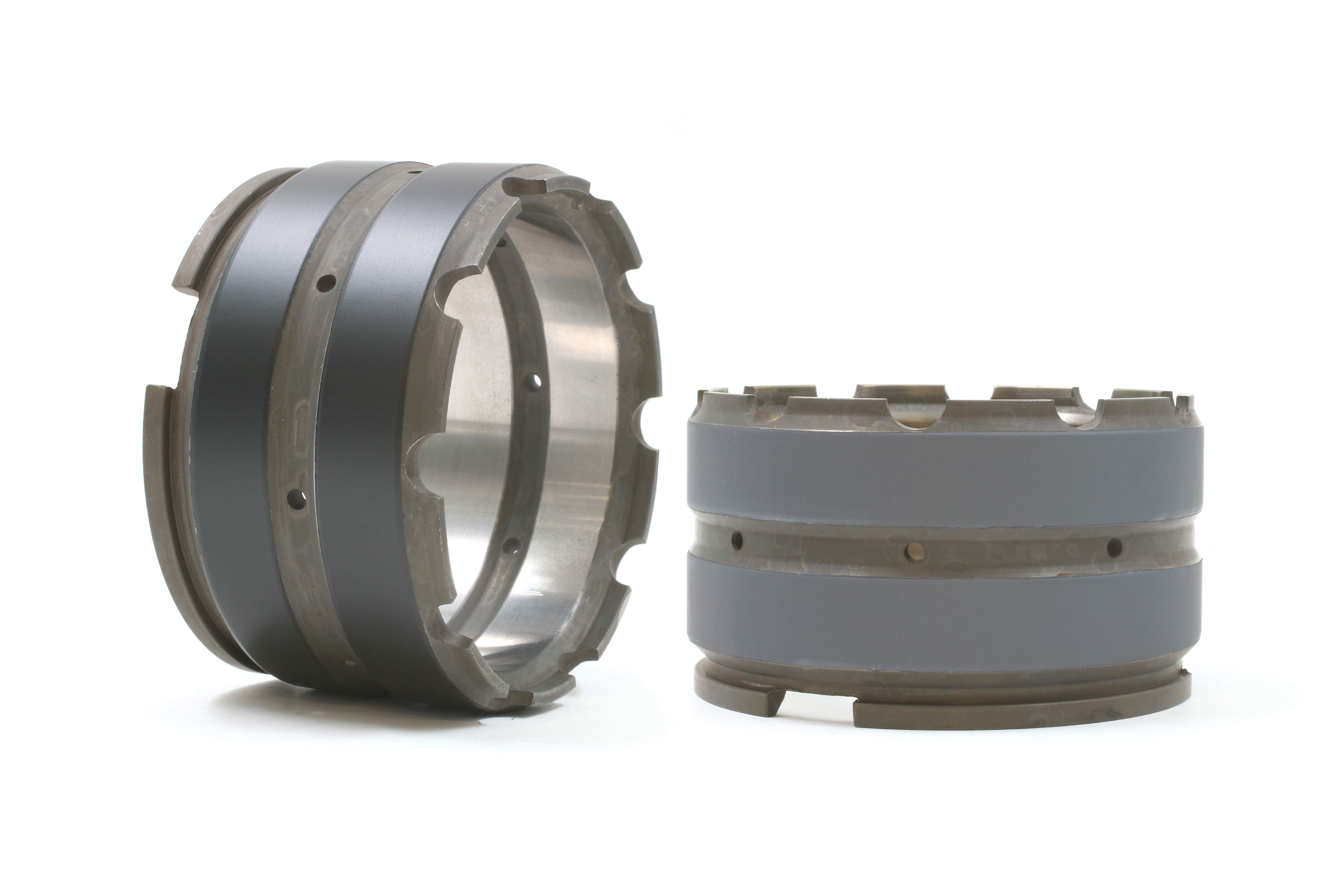

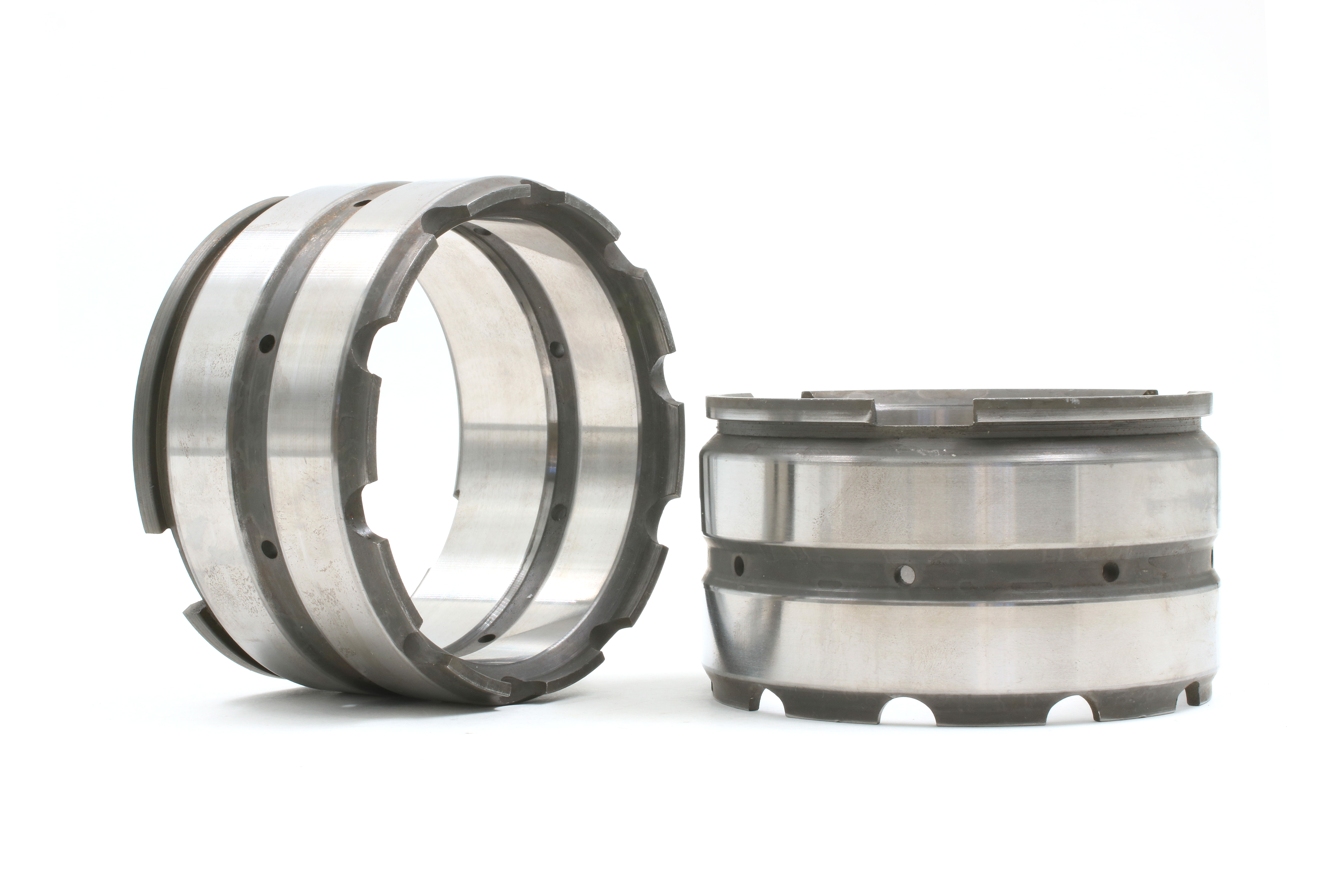

In order to extend service lifetime of the unit at operating under conditions of being exposed to the inert gas, the titanium bearing rings get applied with MODENGY 1006 based on molybdenum disulfide and graphite, and MODENGY 2560 based on tungsten disulfide and graphite coatings.
Before
After
The purpose is – to provide constant friction coefficient in steel/ Kevlar pair, corrosion protection, and to improve equipment reliability
Before
After

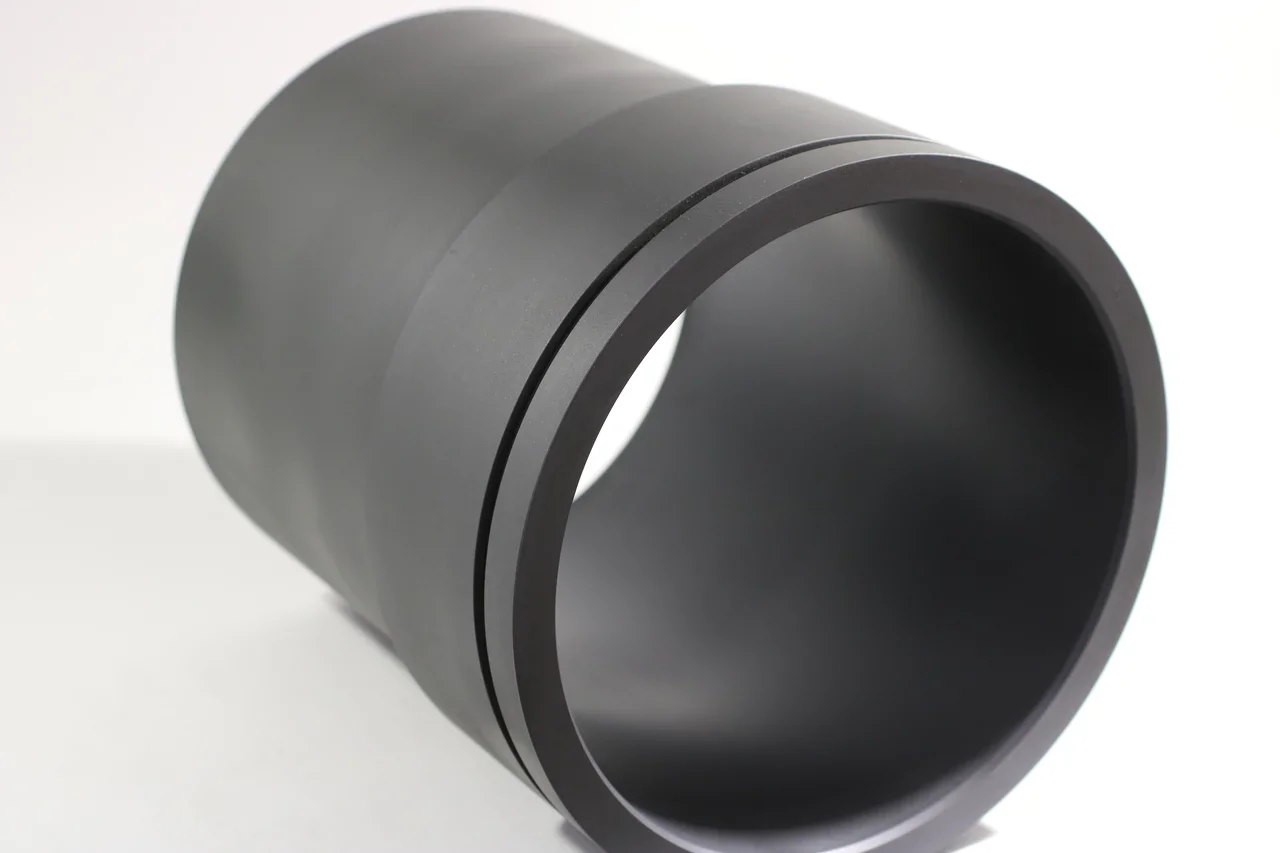

MODENGY 1006 and MODENGY 1014 increases tightness of the hydro-cylinders by forming a separating layer resistant to hydraulic oils. These coatings prevents stick-slip motion, reduces the friction losses as much as possible, and significantly extends service life of the equipment.
Before
After

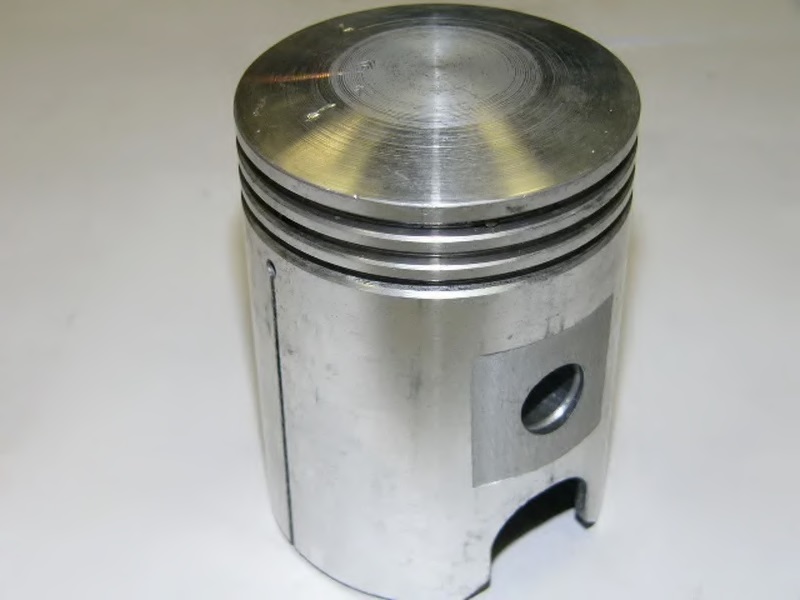

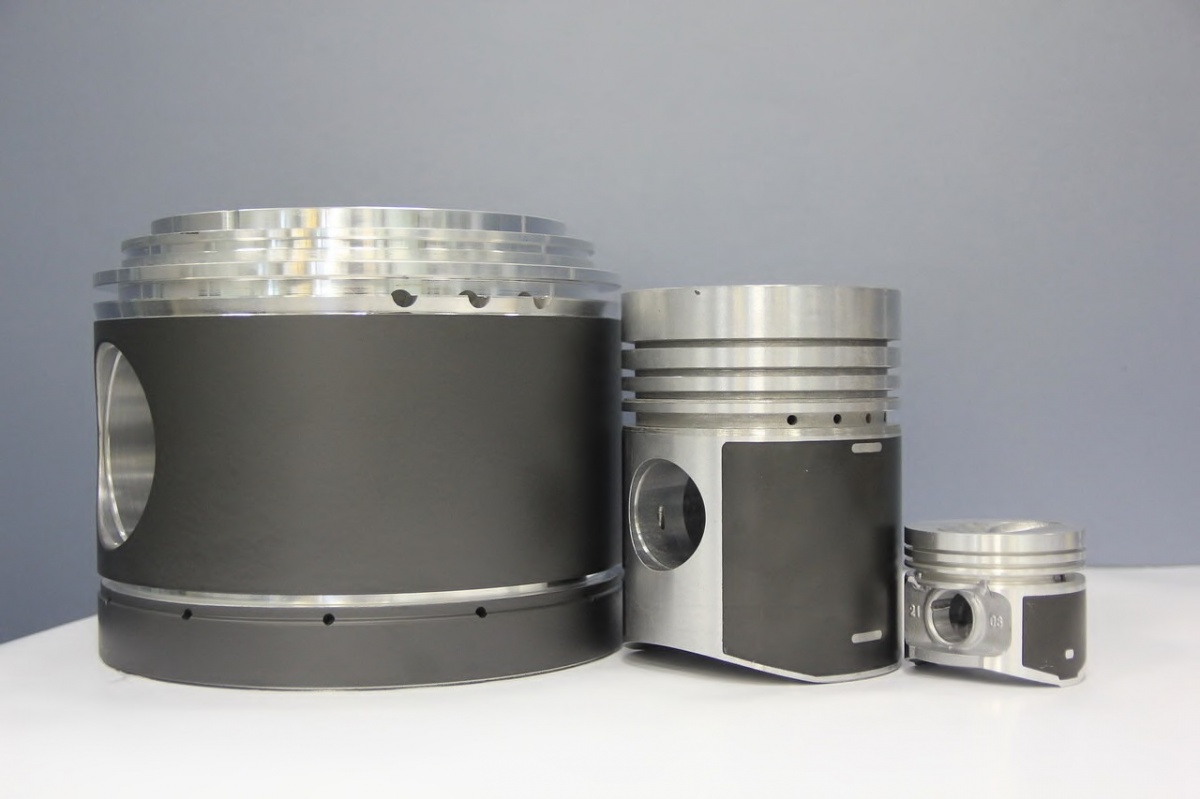

The coatings are applied onto the piston skirts of the compressors, diesel locomotives, and specialty machinery. These coatings protect the parts against increased friction, scuffing forming, and intensive wear at the moments of start, at so called ‘oil starvation’, at overloads which increases service life of the equipment, contributes to reducing noise and fuel consumption.
The coatings operate within a wide temperature range, have high load-carrying capacity, none fuel, oil, or solvent types destroy them.
The coatings operate within a wide temperature range, have high load-carrying capacity, none fuel, oil, or solvent types destroy them.
Before
After

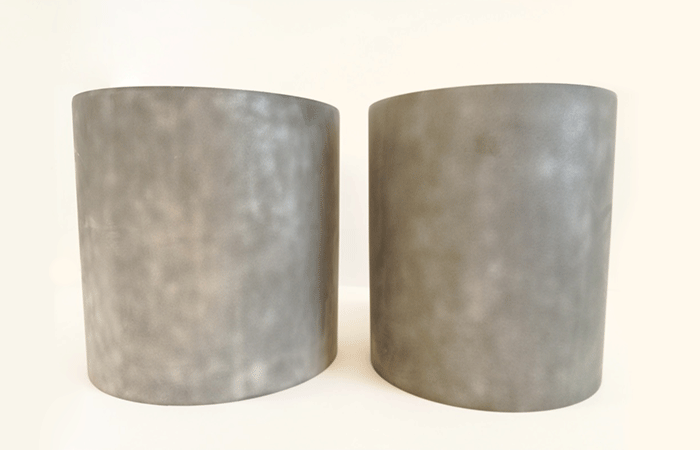

MODENGY 1006 and MODENGY 1066 with low friction coefficient and high heat resistance are applied onto the calibrators to prevent forming defects on the polymer film surface.
Use of these coatings increases equipment efficiency, lowers defective product percentage, and significantly reduces risk of calibrator failure.
Use of these coatings increases equipment efficiency, lowers defective product percentage, and significantly reduces risk of calibrator failure.
Additional expendable materials
and equipment
- MODENGY स्पेशल क्लीनर-एक्टिवेटर सतहों को साफ करने, चिकनाई हटाने और सक्रिय करने के लिए अभिप्रेत है
- MODENGY 1015 स्पेशल सॉल्वेंट को कोटिंग लगाने के बाद उपकरणों को धोने और बिना सुखी हुई कोटिंग को हटाने के लिए अभिप्रेत है
- MODENGY 1013 स्पेशल सॉल्वेंट कोटिंग पॉलिमराइजेशन की पूर्णता को नियंत्रित करने के लिए
- MODENGY M1-250 स्प्रे गन - MODENGY एंटी-फ्रिक्शन सॉलिड-फिल्म कोटिंग्स लगाने के लिए
Advantages
- कम friction coefficient
- उच्च Load carrying capacity
- विस्तृत service temperature range
- धूल भरे वातावरण (dusty environment) में Workability
- उच्च Adhesion
- डायनेमिक लोड्स पर उच्च Wear resistance
- इसमें anti-emergency lubrication के गुण मौजूद हैं।
- पूरी तरह Cure होने के बाद Non-toxic।
- यह stick-slip motion को रोकता है।
- लंबी सर्विस लाइफ (यूनिट कंस्ट्रक्शन पर निर्भर – ड्यूरेबल लुब्रिकेशन)
- यह robots के साथ parts assembly की गति को बढ़ा देता है।
Specifications
- रंग: grey-black
- Service temperatures range: -70 … +315 °C (कम समय के लिए +450 °C तक)
- मानक coating consumption: 67 g / m²
- Cure temperature / time: +200 °С / 20 min
It is used in the following typical units
स्लाइडिंग बेयरिंग, स्लाइडिंग गाइडवे, गियरिंग, सिलेंडर-और-पिस्टन समूह, स्प्लिन्ड जोड़, और कीड कनेक्शन, धातु/धातु घर्षण जोड़े वाली अन्य इकाइयाँ
