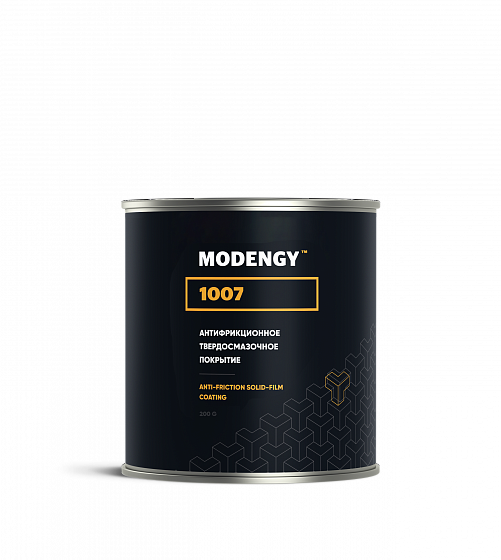

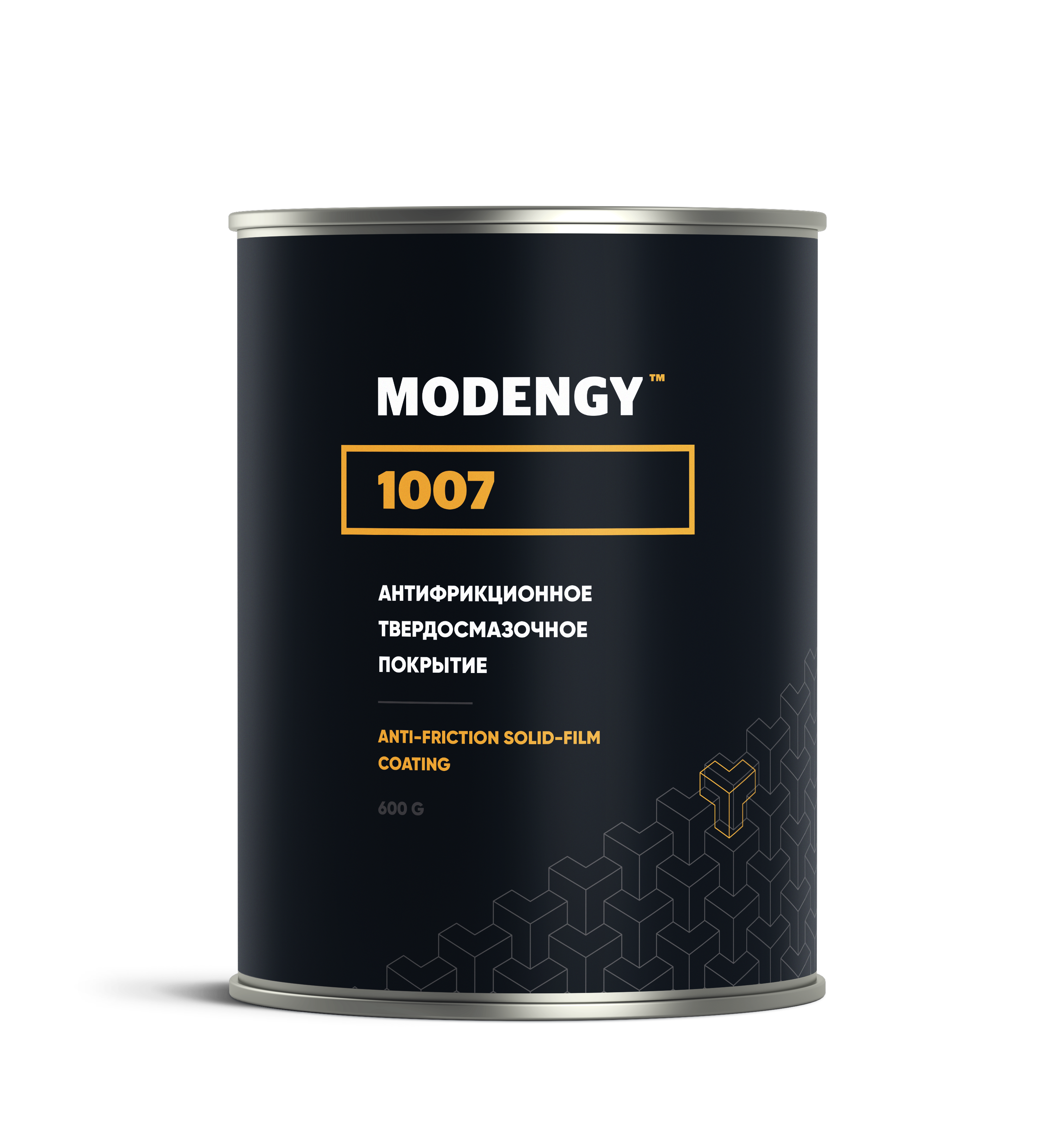

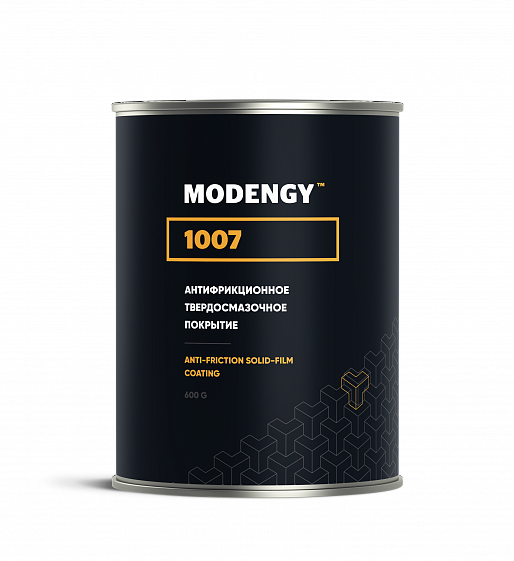

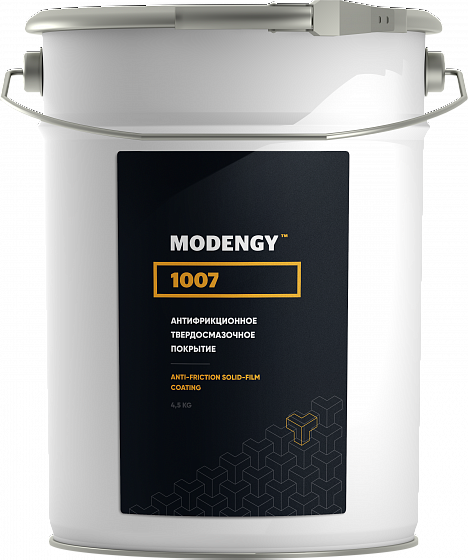

MODENGY 1007
200 G
600 G Can
4.5 KG Pail
Graphite पर आधारित anti-friction solid-film coating
इसका उपयोग ऑटोमोटिव मशीनरी की घर्षण इकाइयों में किया जाता है, जिसमें इंजन पिस्टन स्कर्ट, स्प्लिन्ड जोड़, कैमशाफ्ट और क्रैंकशाफ्ट बुशिंग शामिल हैं; तेल या ग्रीस से लुब्रिकेट होने वाली इकाइयों के लिए एक अतिरिक्त आपातकालीन-रोधी लुब्रिकेशन के रूप में; कम्प्रेसर, पंप, न्यूमेटिक और हाइड्रोलिक ड्राइव के पिस्टन में; तेल के कुएं में डूबने वाले इलेक्ट्रिक सेंट्रीफ्यूगल पंपों के स्लाइडिंग बेयरिंग में; पॉलिमर को प्रोसेस करने वाले उपकरणों की स्लाइडिंग सतहों पर, जिनमें सोल्डरिंग मैट्रिसेस, कैलिब्रेटर, कूलिंग टेबल शामिल हैं; फिलिंग-एंड-पैकिंग मशीनों के स्लाइडिंग गाइडवे में; स्क्रू कम्प्रेसर रोटर्स में; अत्यधिक भार वाली स्लाइडिंग घर्षण इकाइयों में जो गर्मी, नमी और धूल के संपर्क में आती हैं, जहाँ तेल और ग्रीस प्रभावी नहीं होते हैं
Package sizes:
MODENGY 1007 in action
Before
After
MODENGY 1007 coating with high anti-adhesive properties protects the mold working surfaces against polymer sticking-on reducing need in cleaning them, and improving productivity of the equipment.
Before
After

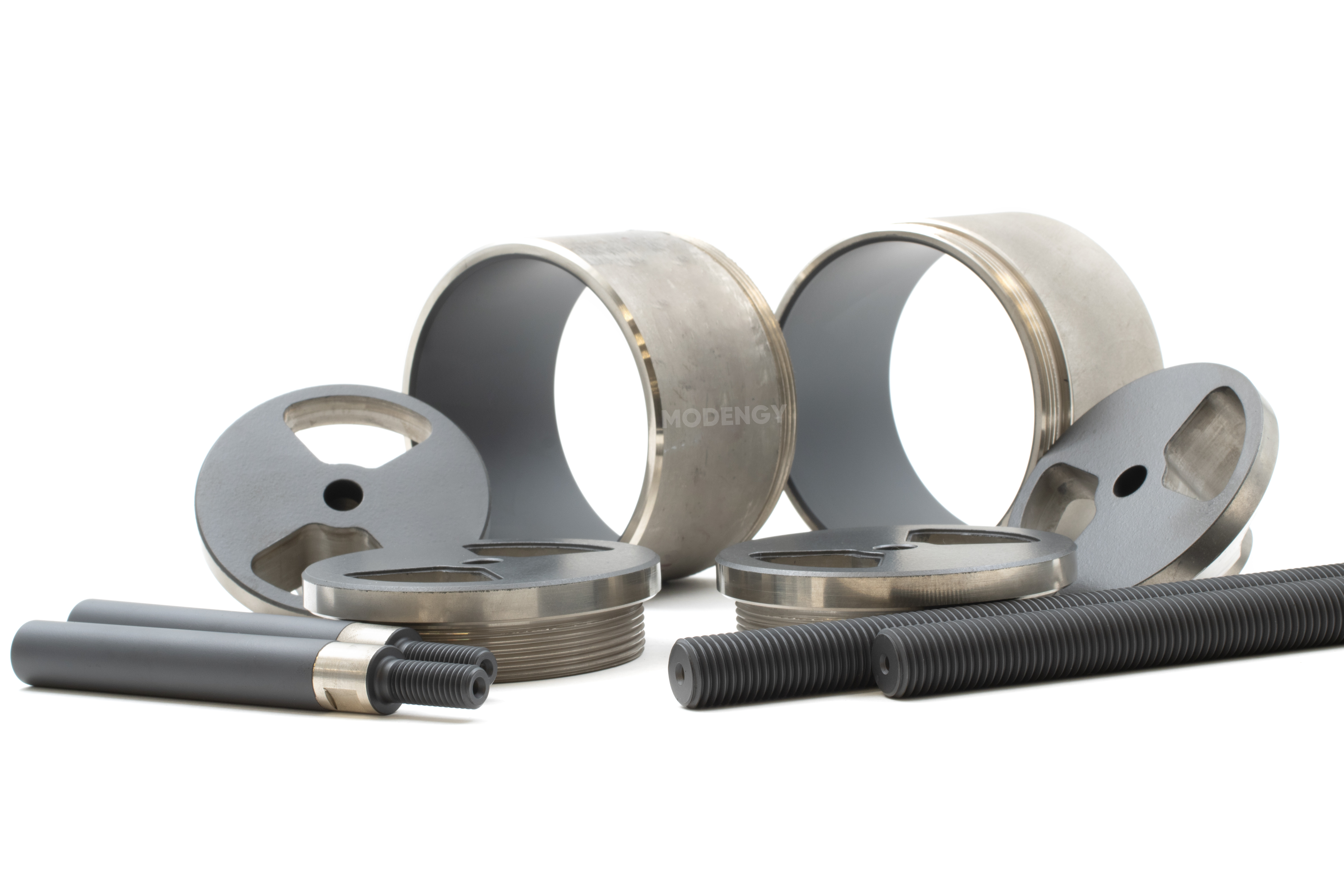

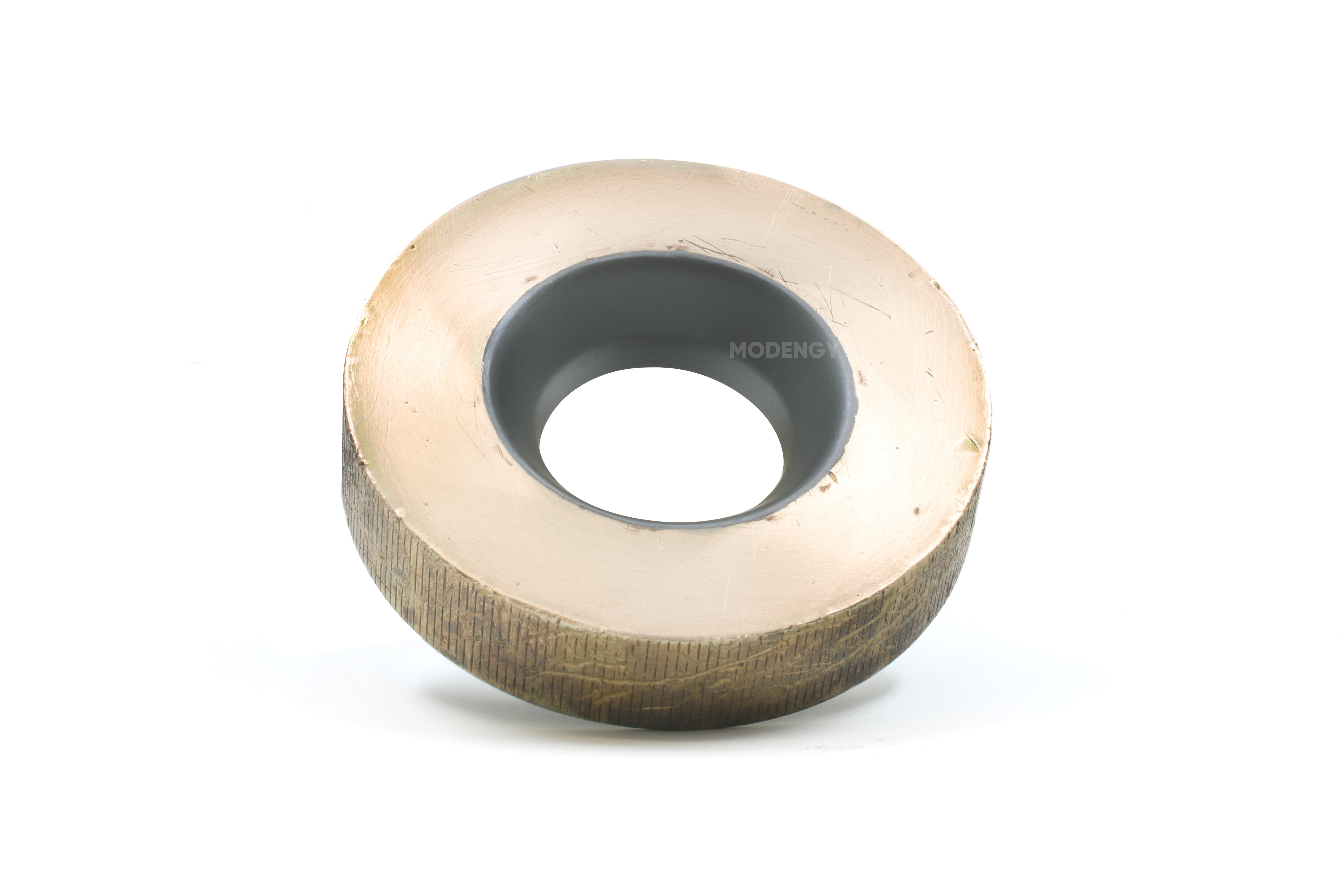

The valve parts need long-term protection against wearing. For this purpose, MODENGY 1014 coating is applied onto the metal rods and bush sleeves. And in order to prevent interacting surfaces from sticking, MODENGY 1007 coating with high anti-adhesive properties is applied onto the valve sliding piston and seat.
Before
After

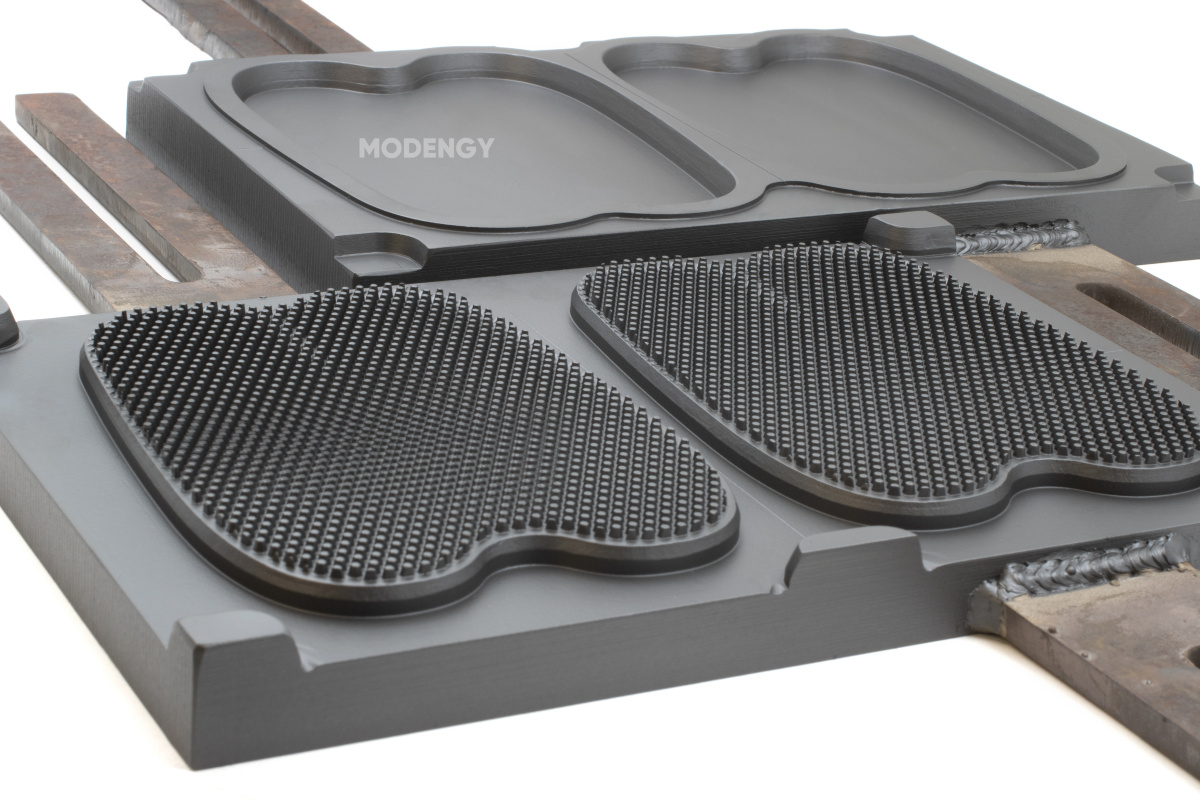

In order to protect the parts against sticking, MODENGY 1007 coating is applied onto the molds. It has high anti-adhesive properties, operates within a wide temperature range, has long service term, provides effective operating and easy cleaning of the equipment.
Before
After

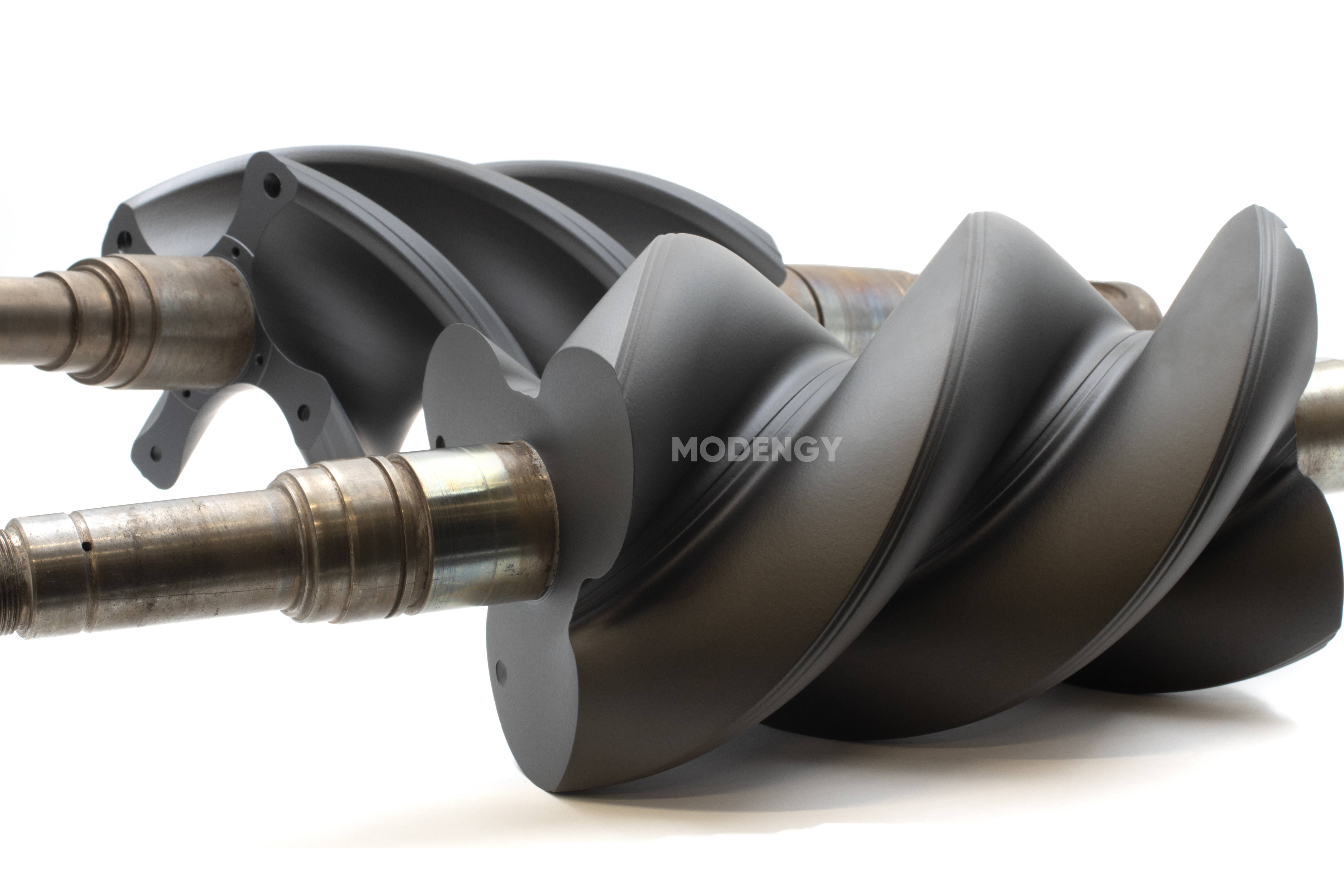

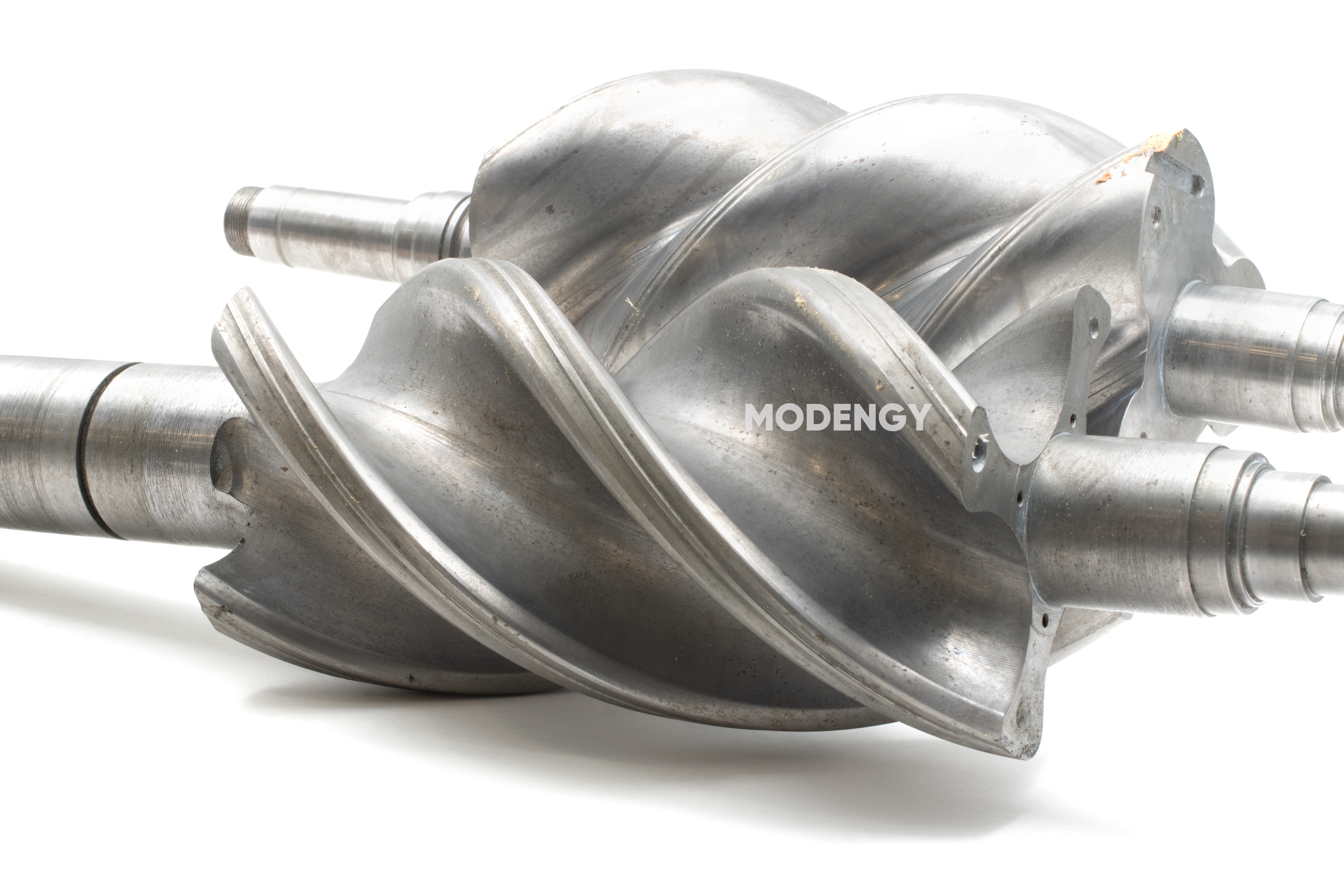

MODENGY 1007 coating operates within a wide temperature range (-50 to +350 °С), provides corrosion protection for the rotors, reduces friction and noise, and thus extends service lifetime of the screw blocks.
Before
After
In process of equipment running, polycarbonate is sticking to the punch surfaces which makes taking the finished items out difficult. MODENGY 1007 coating having high anti-adhesive properties solves this issue.
Before
After
MODENGY 1007 coating prevents the self-stick labels from sticking to the shaft surfaces, and thus, improves their operational efficiency.
Before
After
High anti-adhesive properties of MODENGY 1007 coating prevent polymer packaging film from sticking to edge-soldering elements.
Before
After

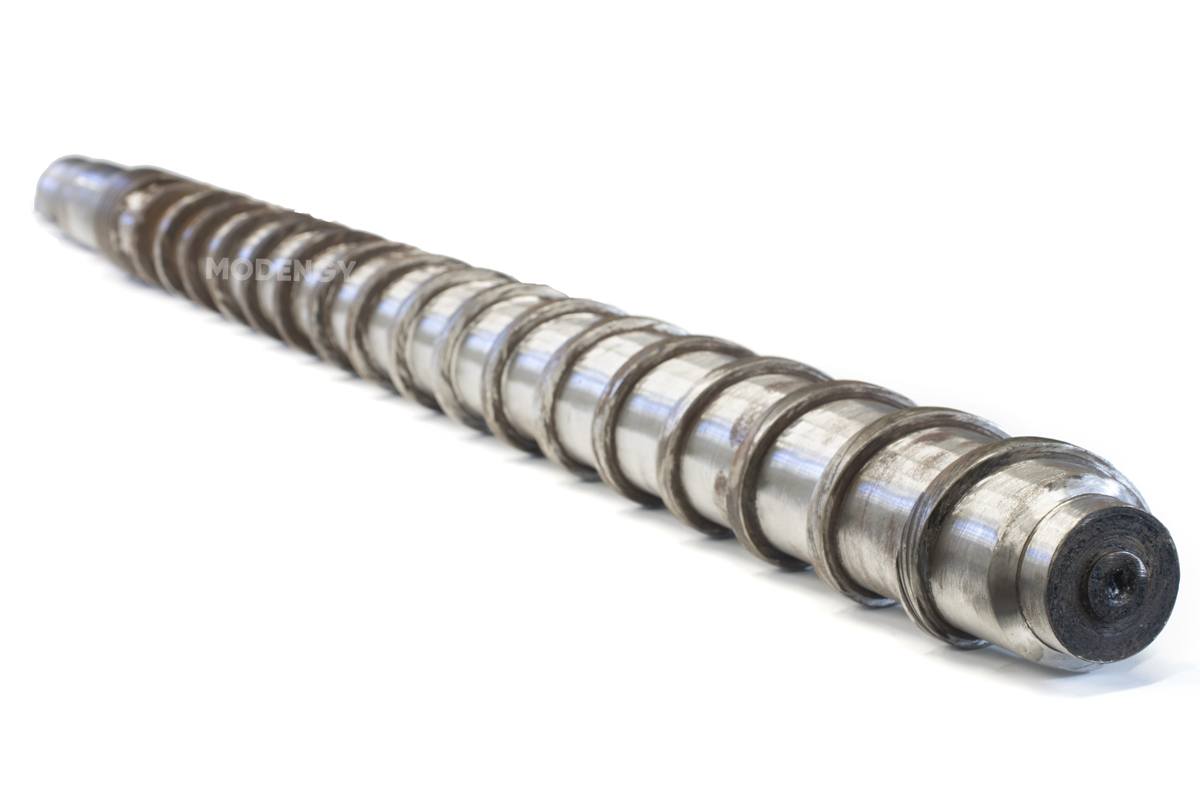

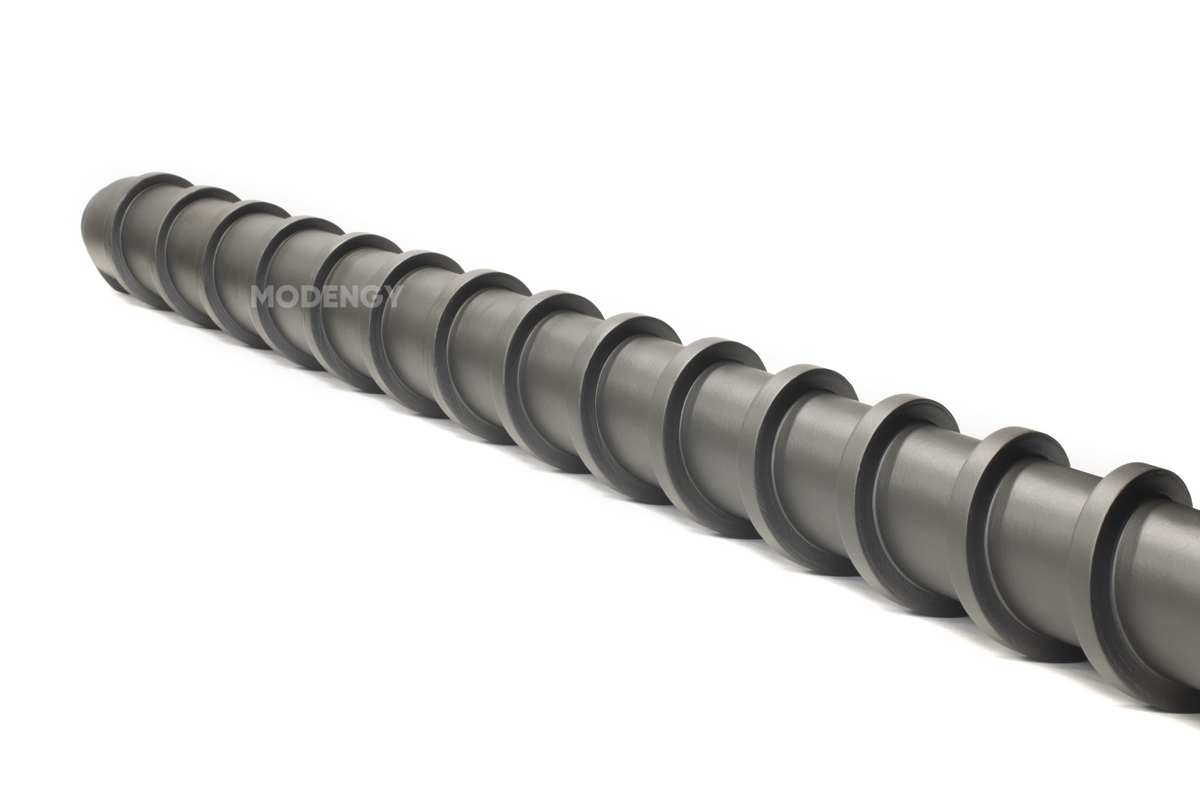

Applying of MODENGY 1007 anti-adhesive coating onto the metal screw solve the issue of melt polymer material sticking to its surface.
Before
After
To eliminate this issue of sticking of the polymer film, MODENGY 1007 solid-film lubricating coating is applied onto the shaft surfaces. It forms steady, wear-resistant layer with low friction coefficient and excellent separating properties.
Before
After
MODENGY 1007 coating protects the parts against polyvinylchloride sticking due to its high anti-adhesive properties.
Before
After

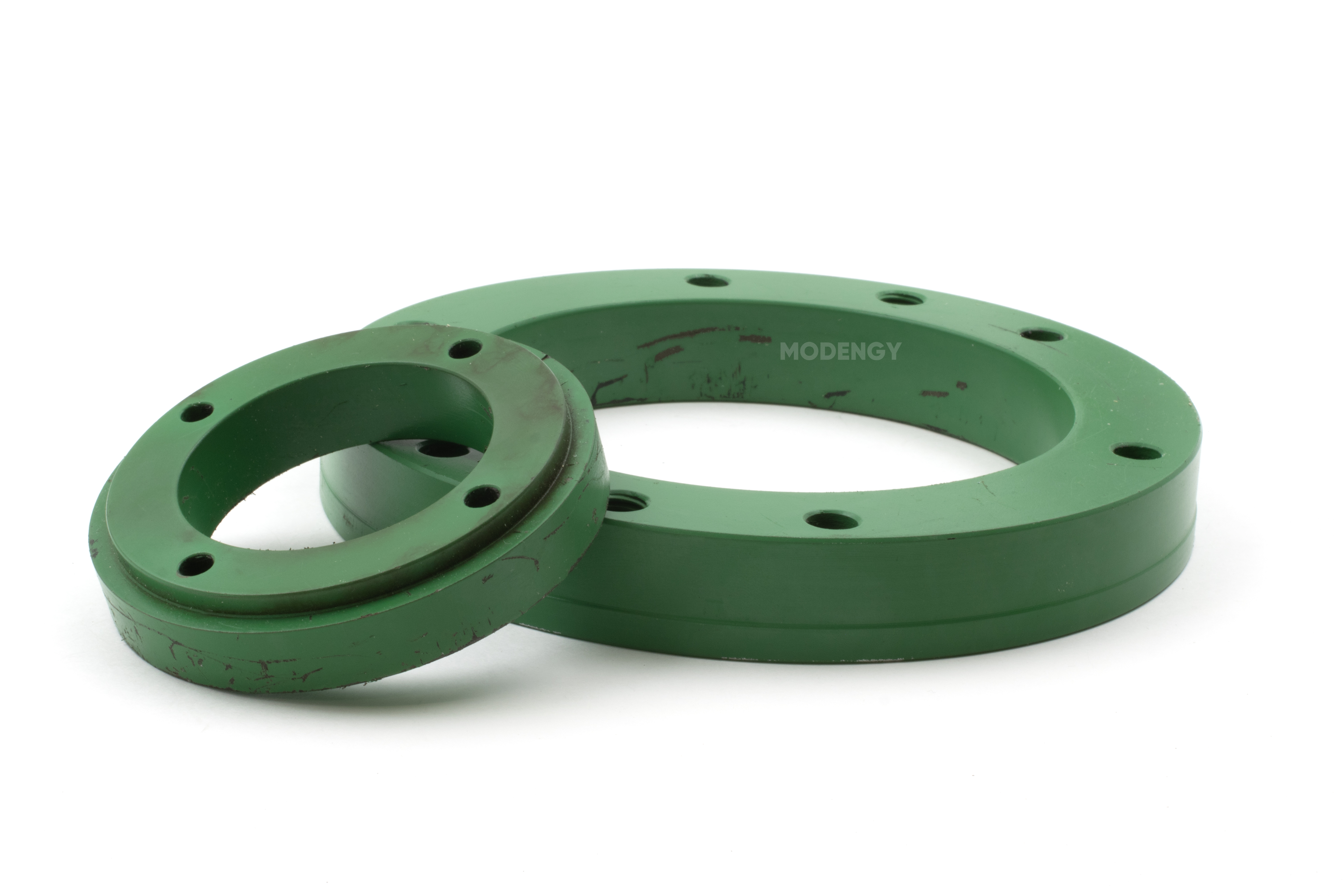

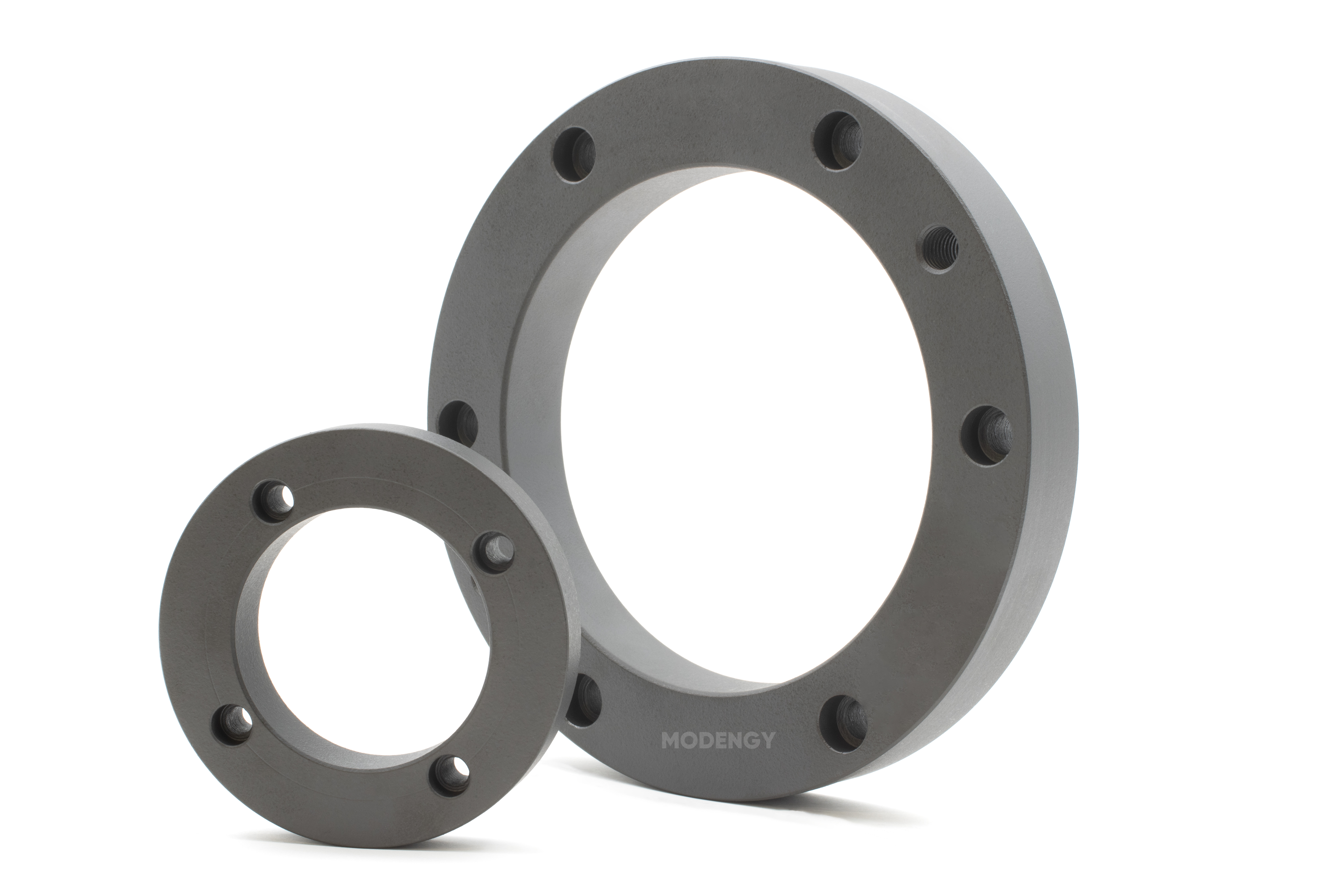

MOLDING 1007 coating effectively prevents sticking polyethylene to the flanges as well as increases productivity of the extrusion line, and decreases downtime periods at cleaning it.
Before
After

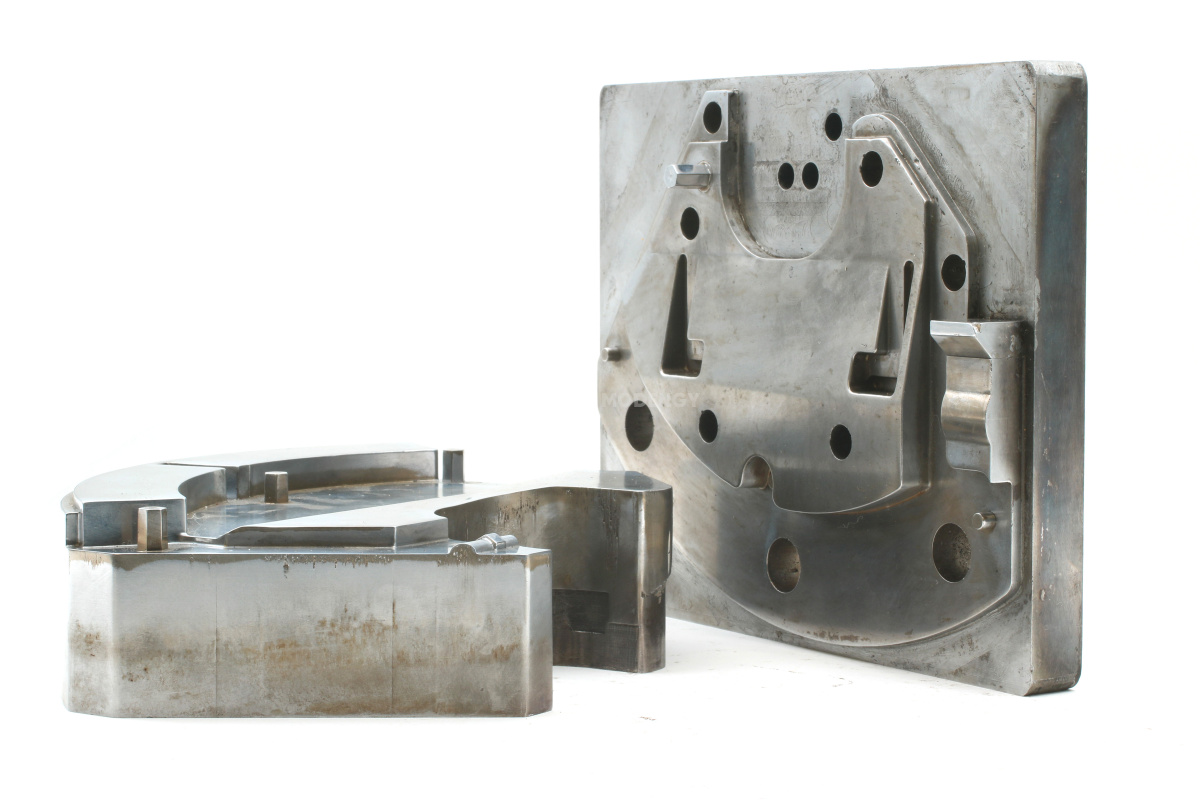

MODENGY 1007 coating with high anti-adhesive properties effectively protects the mold insert and punch against sticking of the polymer material, and thus provides trouble-free operating of the industrial equipment as well as improves quality of the output.
Before
After
MODENGY 1007 coating with high anti-adhesive properties provides effective functioning of the heating elements that are used at producing items of corrugated cardboard production.
Before
After
MODENGY 1007 coating protects the plate surfaces against carbon deposits forming and film sticking-on, and thus extends service lifetime of the packing equipment.
Before
After
In order to protect the thermo-knives from hot polymer sticking onto them, MODENGY 1007 anti-adhesive coting with high separating properties is used.
Before
After

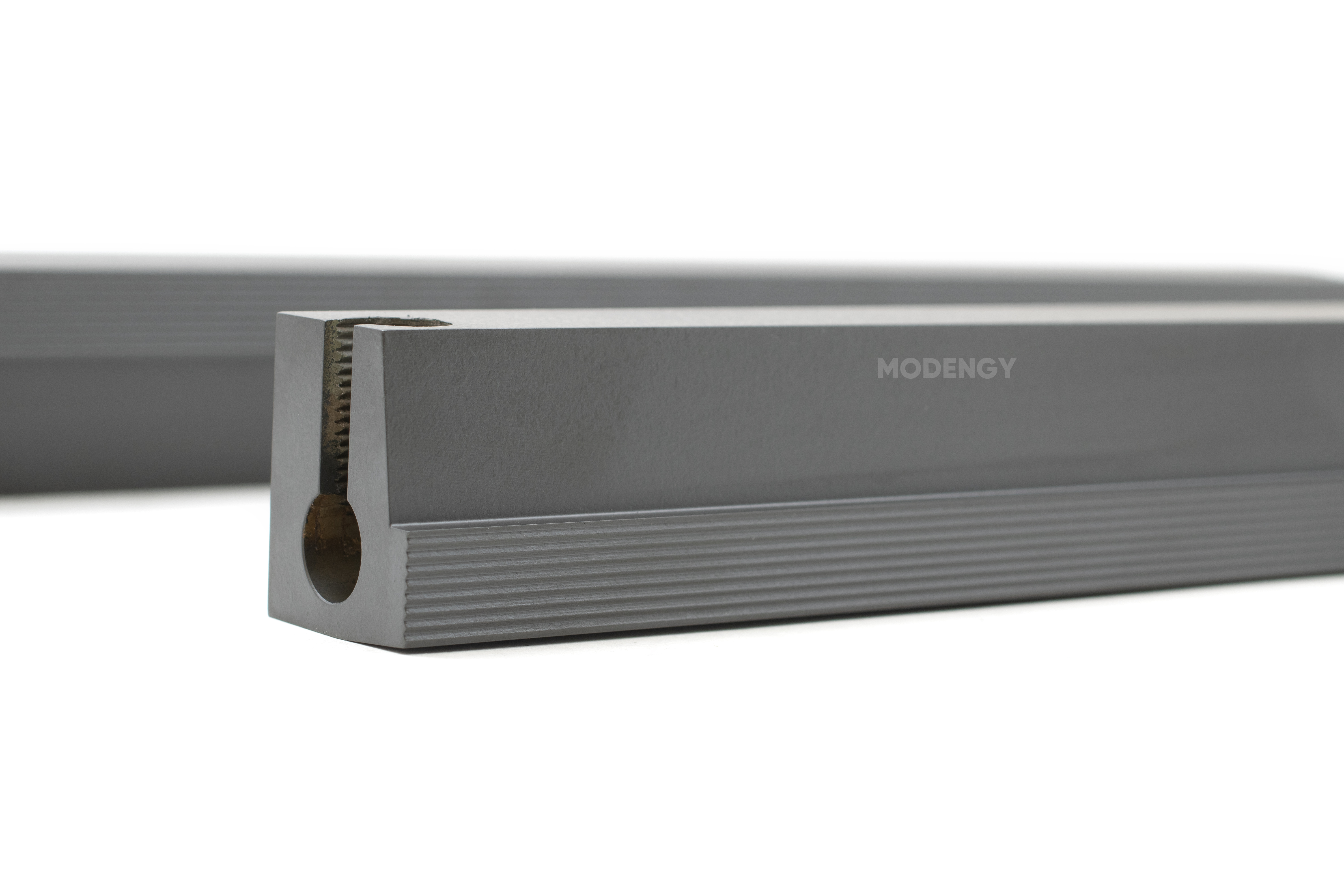

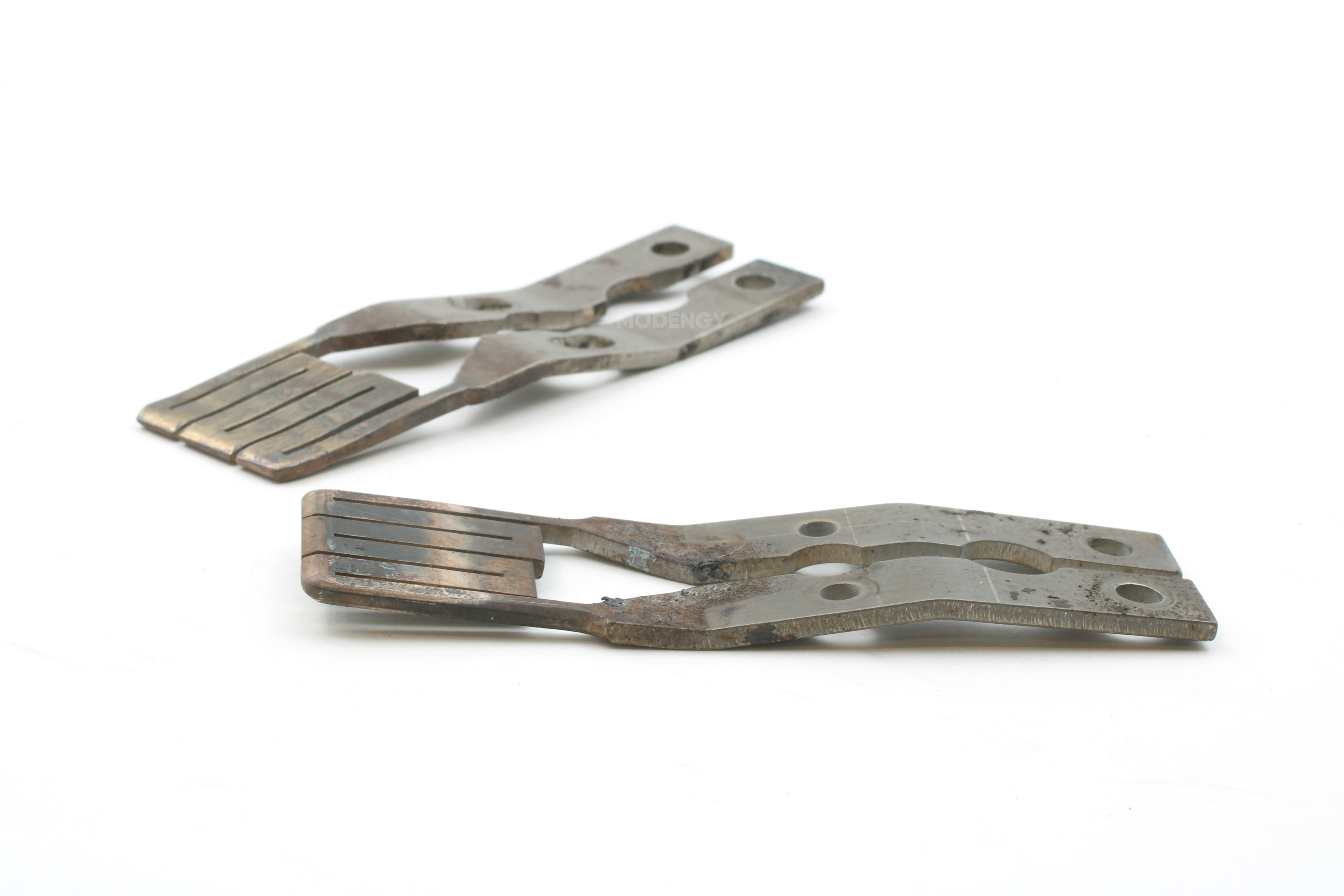

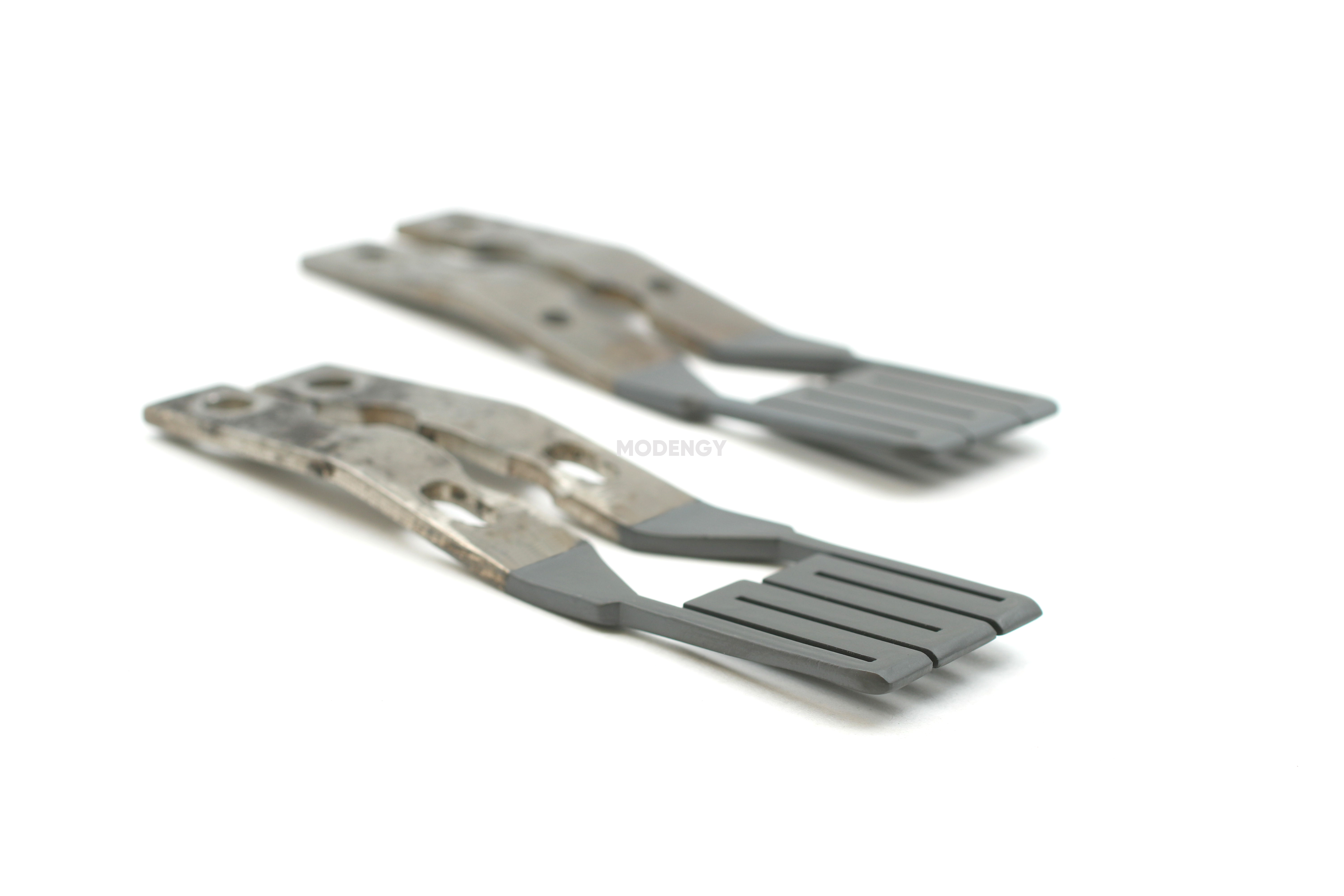

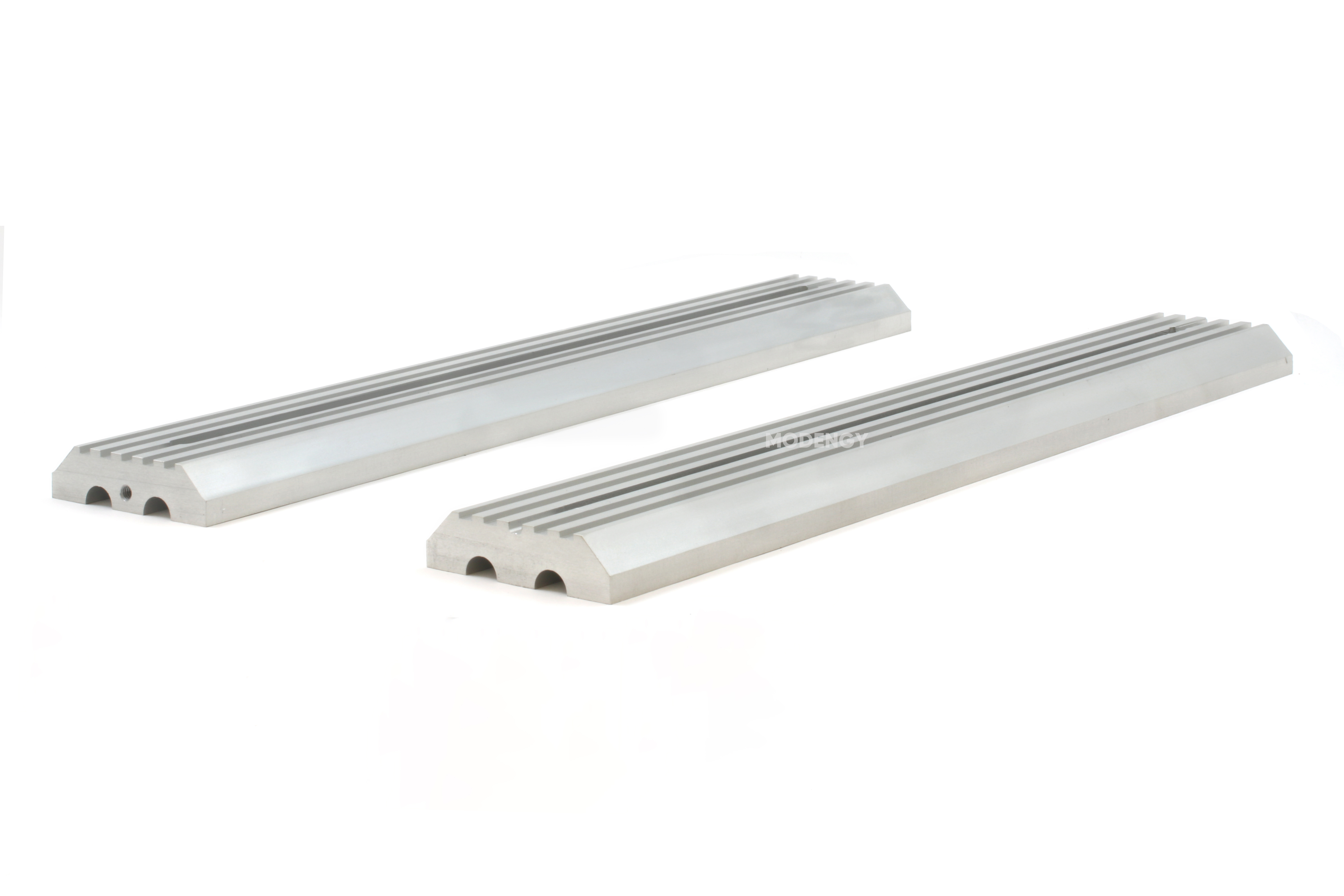

MODENGY 1007 coating having high separating and anti-adhesive properties is applied on the parts surfaces. This coating provides long-term protection for edge-soldering jaws against polymer film sticking in process of packaging line operating.
Before
After

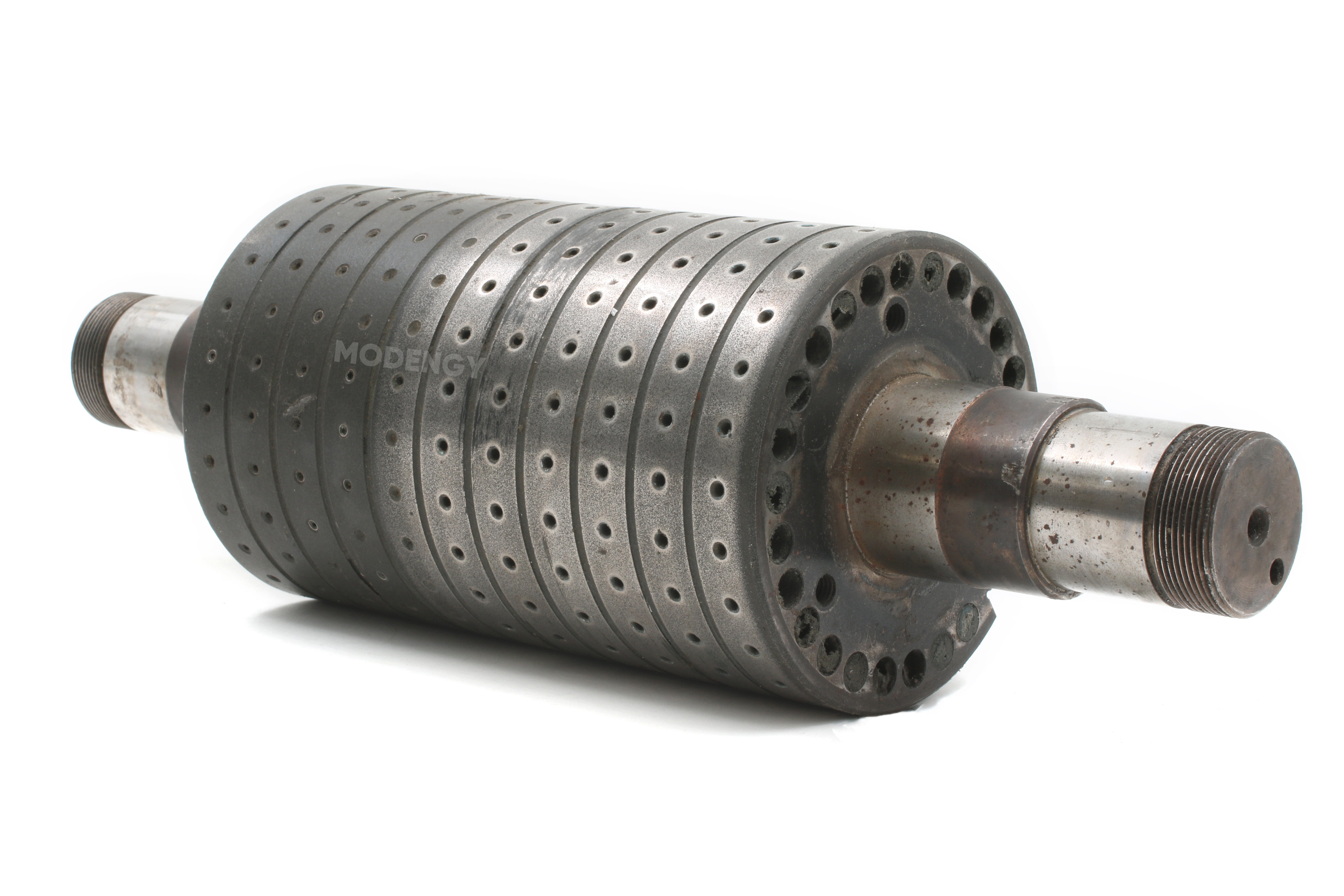

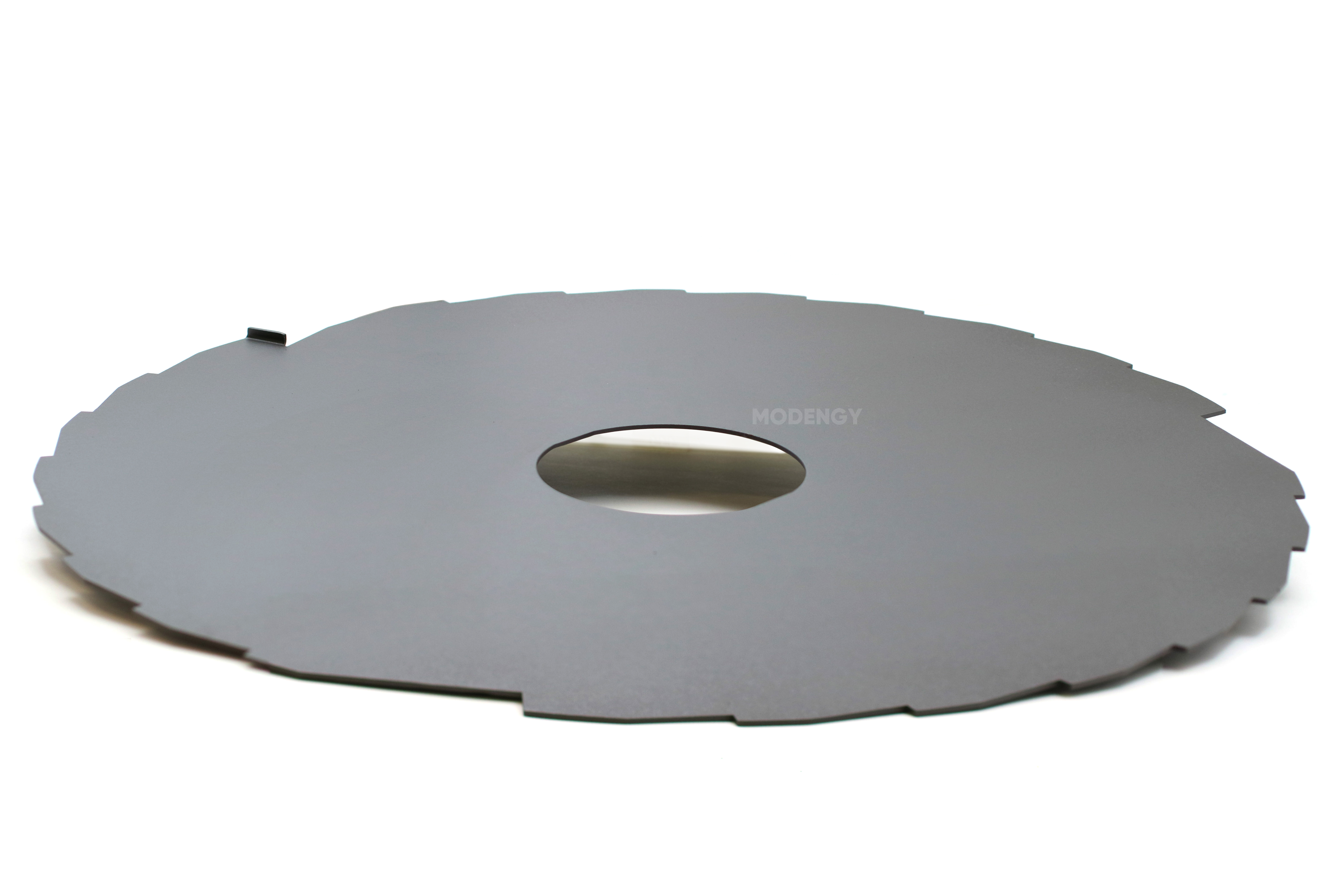

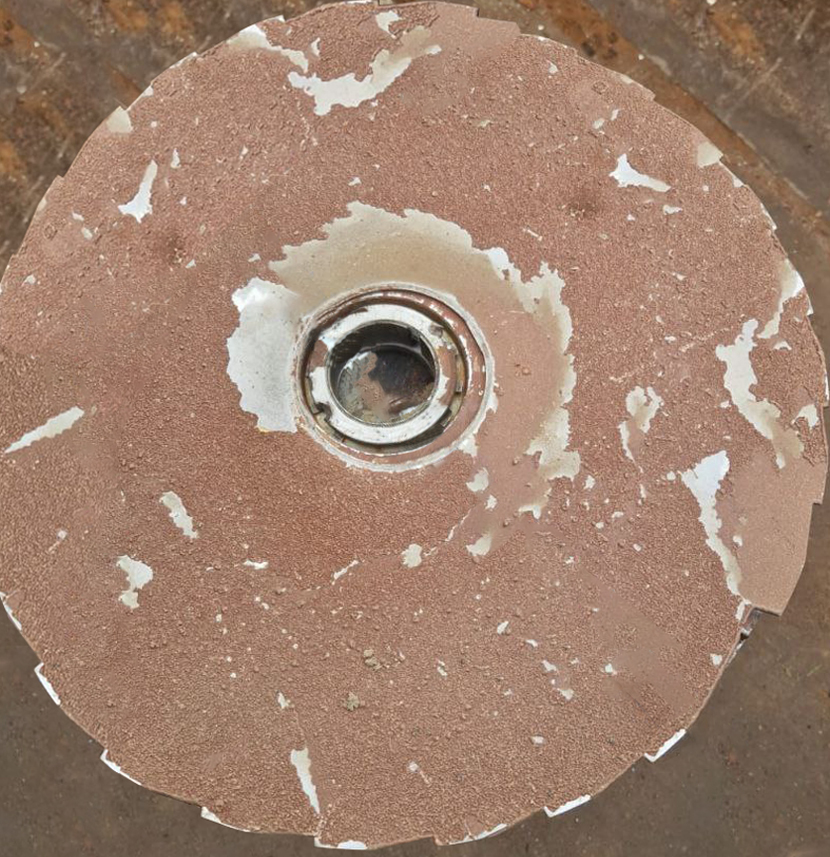

MODENGY 1007 coating with high separating properties provides protection for the distribution shaft disks of the machine tools to produce wood-based slabs against glue and sawdust sticking-on.
Before
After

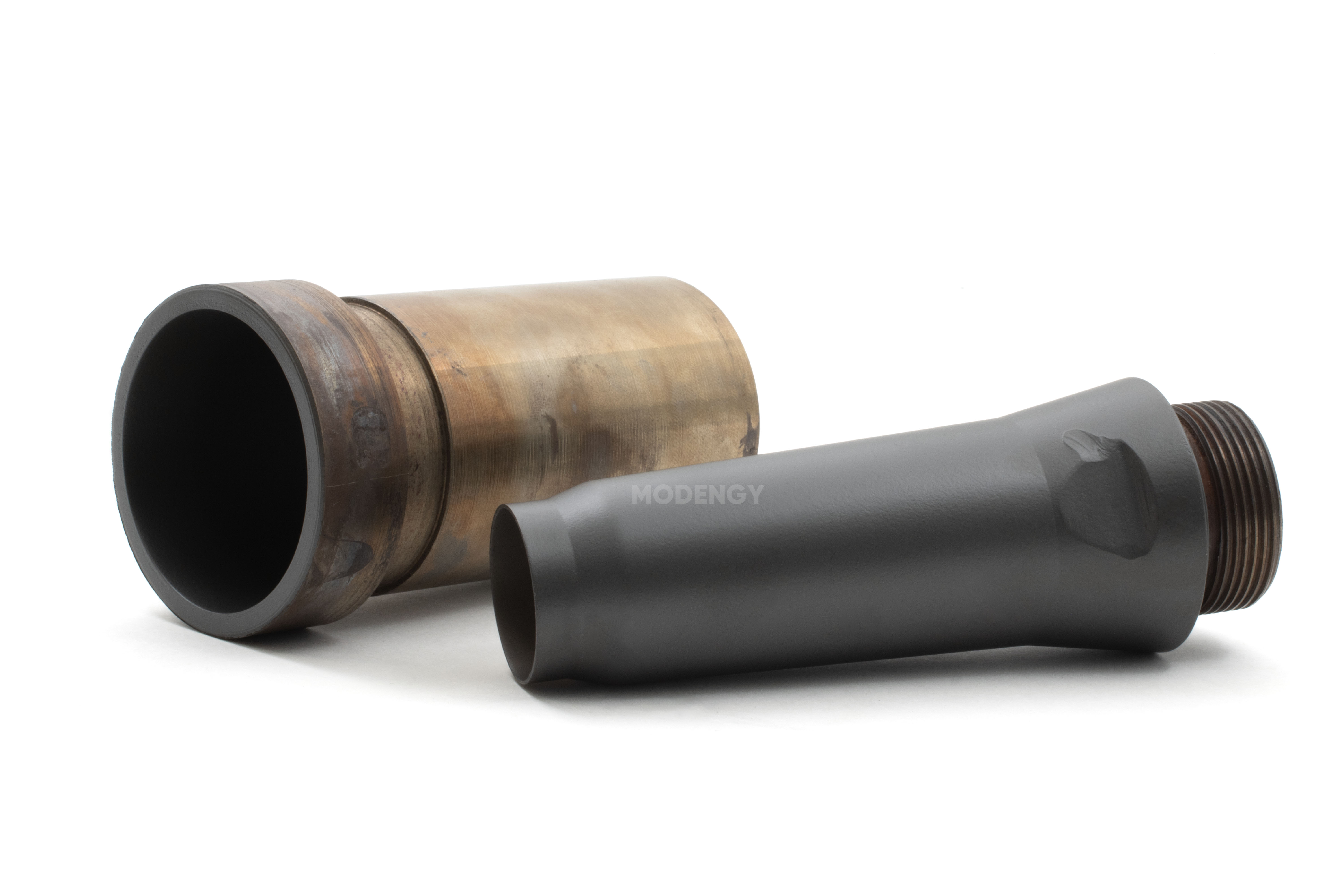

To provide high quality of producing LPP pipes, MODENGY 1007 coating is applied onto the working surfaces of the molding gauges. Due to using it, heated polymer sticking to the forming tool is prevented, high quality of outer surface of the pipes is provided. Besides, a smoothy layer of the coating reduces friction of the surfaces, and wear of the molding gauges, prevents increase of the finished items diameter.
Before
After

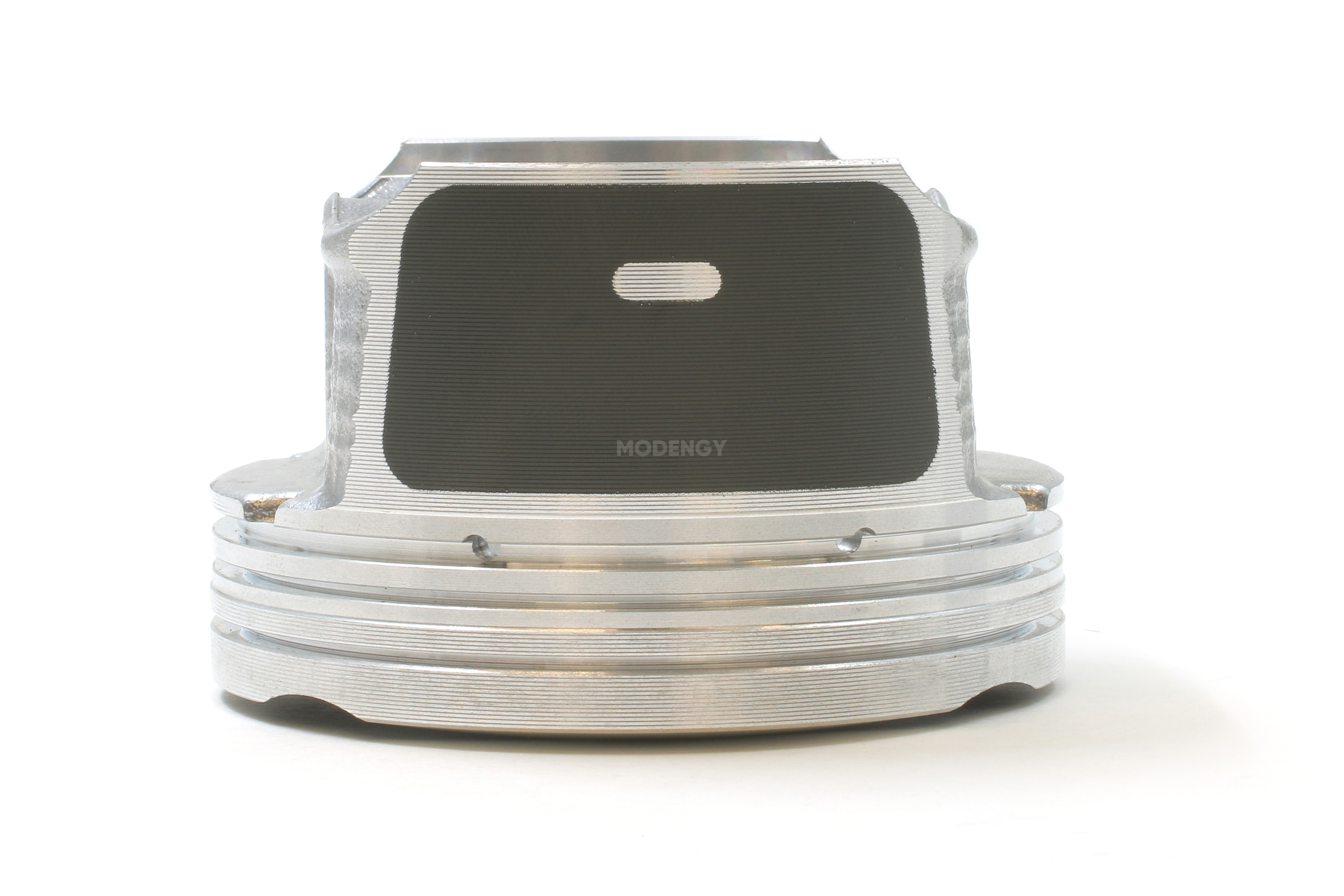

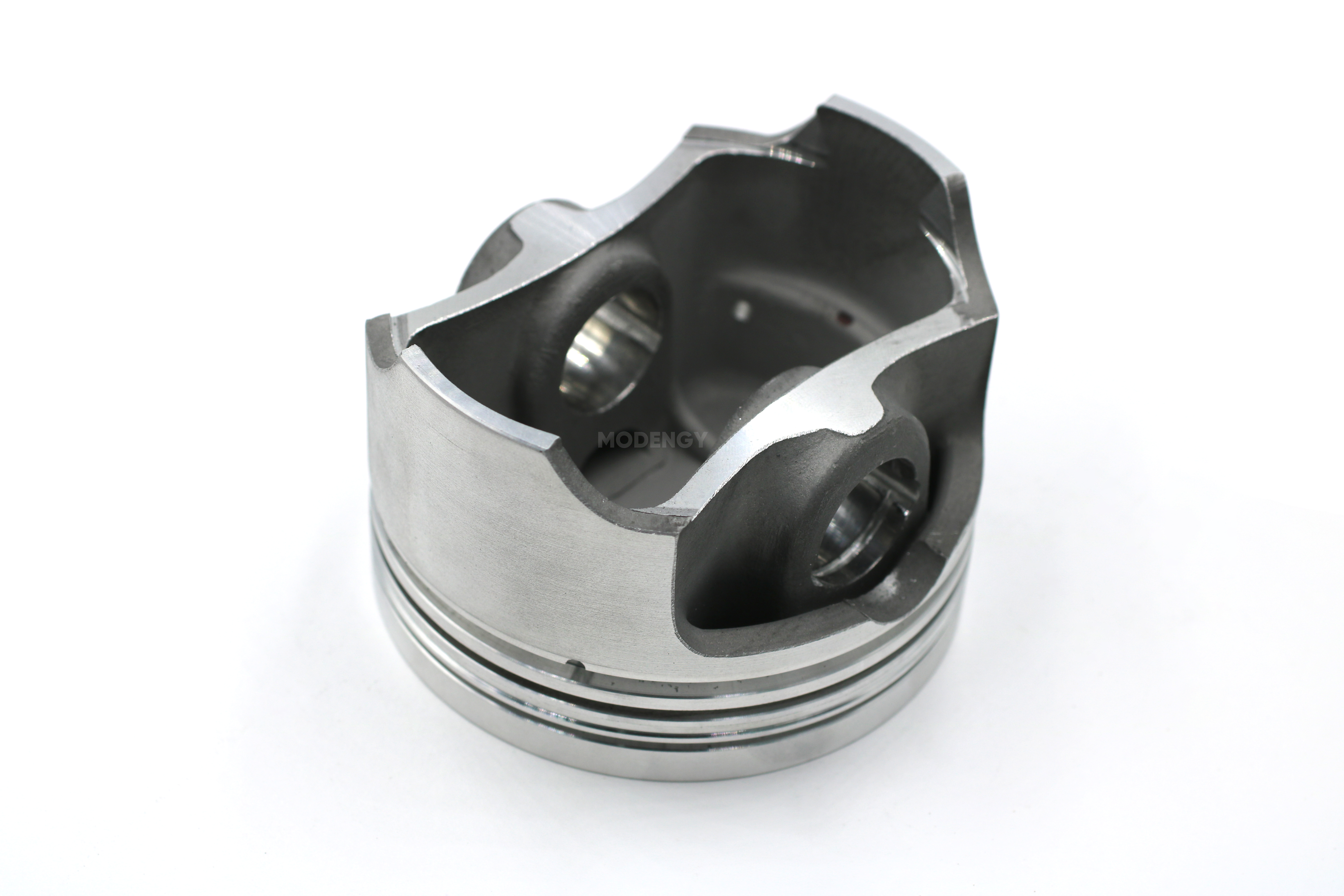

MODENGY 1007 coating is applied onto the piston skirts by the screen printing method at industrial production of the engine parts. It enables to make running-in easier, and to reduce wear of the pistons within the 'oil starving' period. As a result, engine reliability and operation term improve.
Before
After

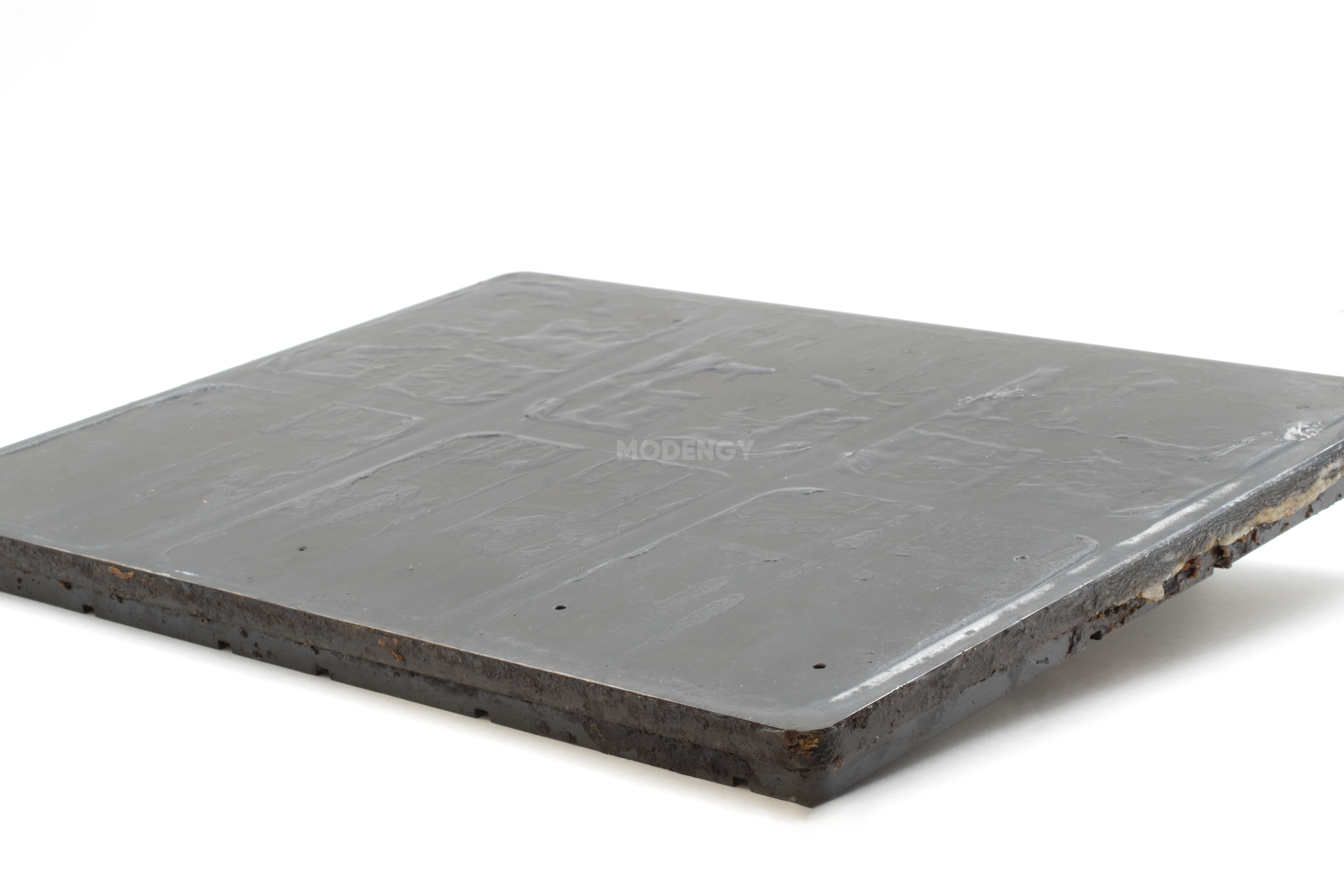

MODENGY 1007 anti-adhesive coating creates a steady anti-burning layer on the plates surfaces that withstands high temperatures up to +350 ℃.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator सतहों को साफ करने, चिकनाई हटाने और सक्रिय करने के लिए अभिप्रेत है
- MODENGY 1015 Special Solvent कोटिंग लगाने के बाद उपकरणों को धोने और अनक्योर कोटिंग को हटाने के लिए अभिप्रेत है
- MODENGY 1013 Special Solvent कोटिंग पॉलिमराइजेशन की पूर्णता को नियंत्रित करने के लिए
- MODENGY M1-250 Spray gun - MODENGY एंटी-फ्रिक्शन सॉलिड-फिल्म कोटिंग्स लगाने के लिए
Advantages
- विस्तृत service temperature range
- धूल भरे वातावरण (dusty environment) में कार्यक्षमता (workability)
- High adhesion
- इसमें anti-emergency lubrication के गुण मौजूद हैं।
- यह robots के साथ parts assembly की गति को बढ़ाता है।
- Offset printing द्वारा प्रभावी आवेदन विधि (Producting applying method)
- आद्र वातावरण (Humid environment) में Workability
- यह stick-slip motion को रोकता है।
- लम्बी Service life
- रासायनिक रूप से आक्रामक Media के प्रति प्रतिरोध (Resistance)
- यह friction units के सुचारू संचालन (smooth operating) में सुधार करने, शोर को कम करने और running-in को आसान बनाने में योगदान देता है।
- पूरी तरह Cure होने के बाद Non-toxic।
Specifications
- रंग: grey-black
- Service temperature की रेंज: -50 … +350 °C
- Standard coating consumption: 65 g / m²
- Cure temperature / time: +200 °C / 20 min
It is used in the following typical units
सिलेंडर और पिस्टन समूह, स्लाइडिंग बियरिंग्स, स्लाइडिंग गाइडवे, धातु/धातु घर्षण जोड़े वाली अन्य इकाइयाँ
