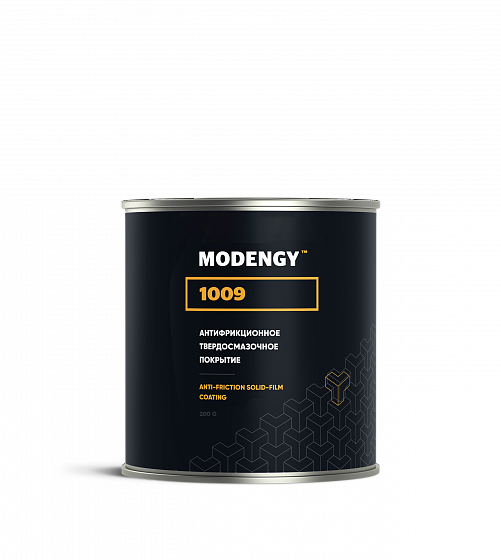

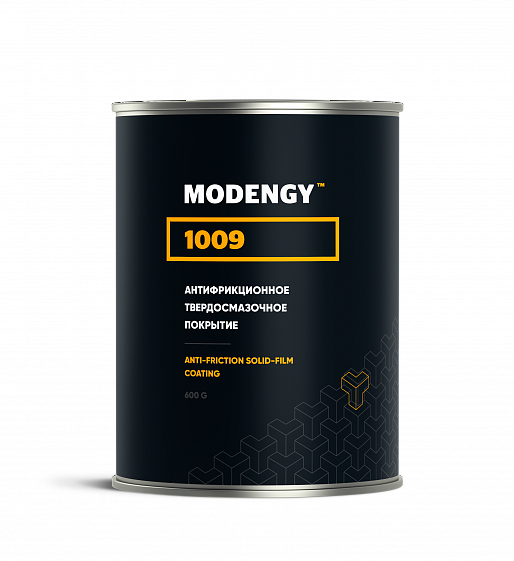

MODENGY 1009
200 G

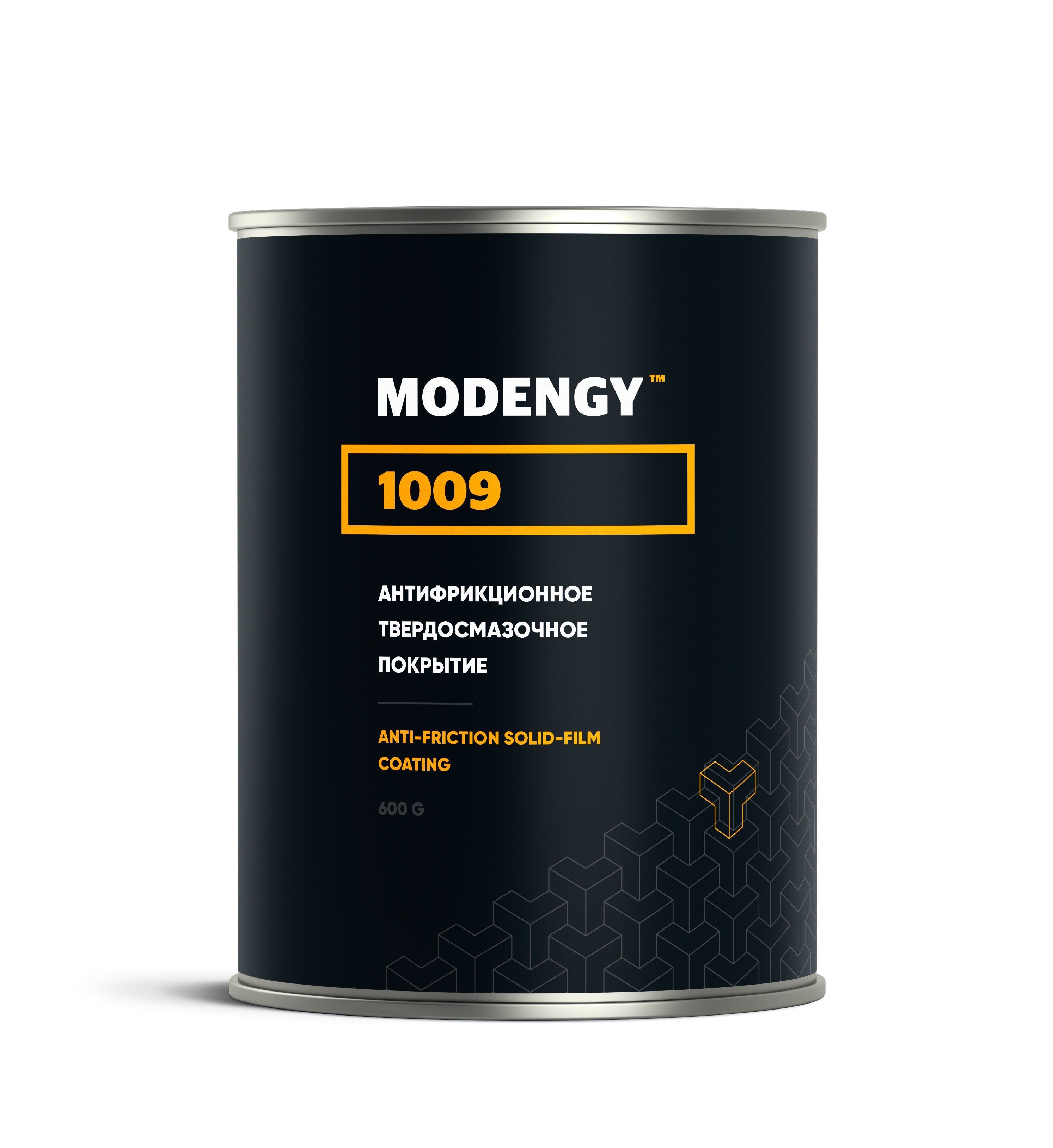

600 G

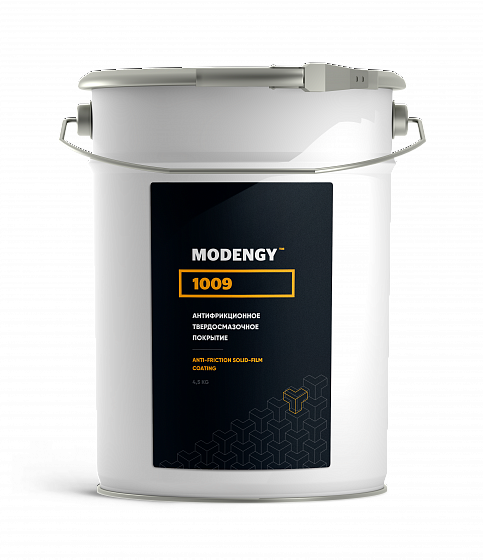

4.5 KG
Polytetrafluorethylene (PTFE) पर आधारित anti-friction solid-film coating
इसका उपयोग कार के तालों के हिस्सों, कब्जों (hinges), फास्टनिंग तत्वों; उपकरण-निर्माण उद्योग में थ्रेडेड कनेक्शन; प्रिंटिंग उपकरणों में स्लाइड गाइडवे; ट्रक क्रेन के टेलीस्कोपिक बूम; गर्मी, धूल, नमी और रासायनिक रूप से आक्रामक पदार्थों के संपर्क में आने वाली घर्षण इकाइयों में किया जाता है – जहाँ तेल और ग्रीस प्रभावी नहीं होते हैं।
Package sizes:
MODENGY 1009 in action
Before
After

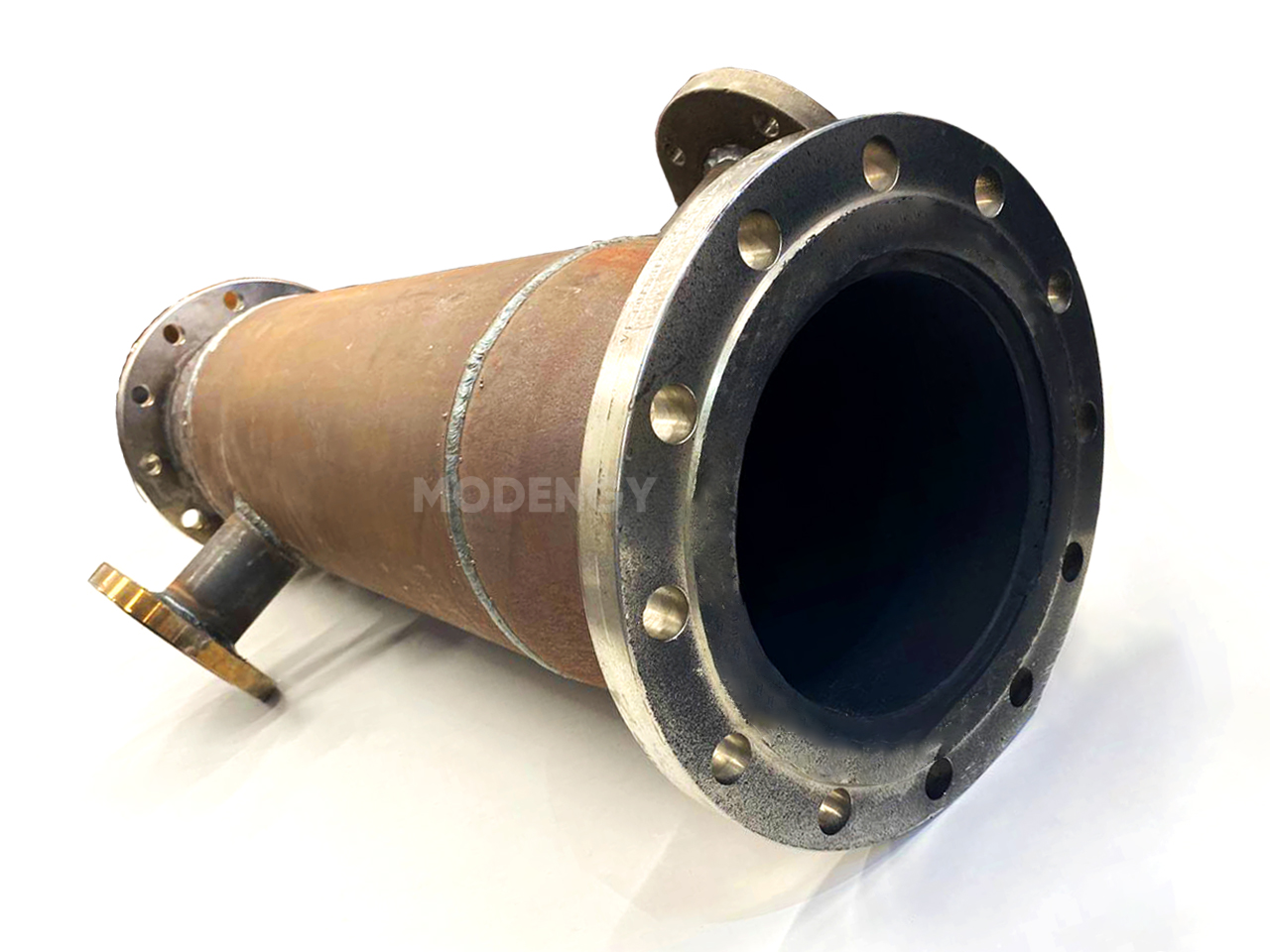

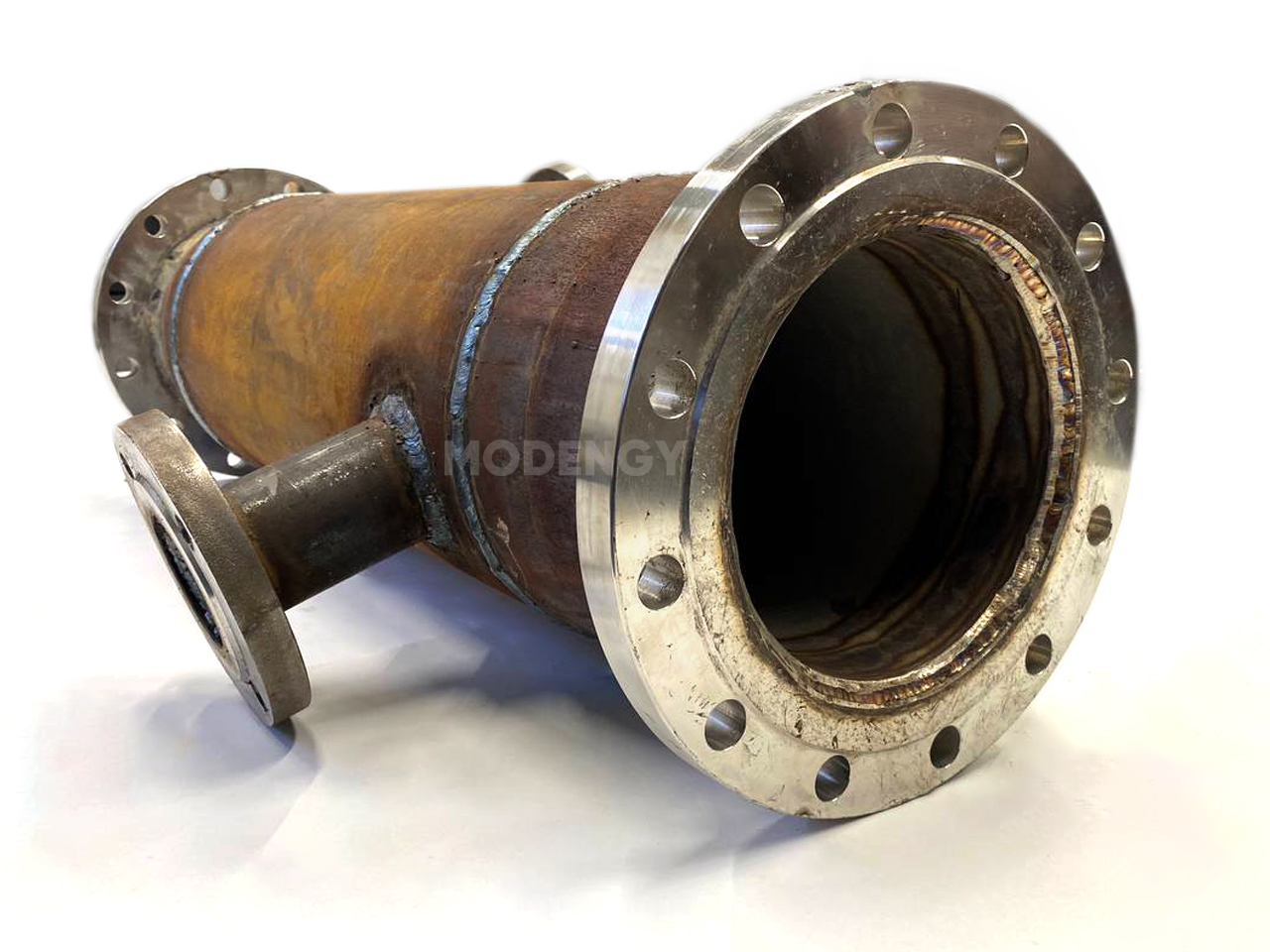

MODENGY 1009 solid-film coating with high anti-adhesive properties based on PTFE successfully prevents the impurities from sticking.
This coating removes need in constant cleaning the gas pass pipes providing safe and efficient production of chemical products.
This coating removes need in constant cleaning the gas pass pipes providing safe and efficient production of chemical products.
Before
After

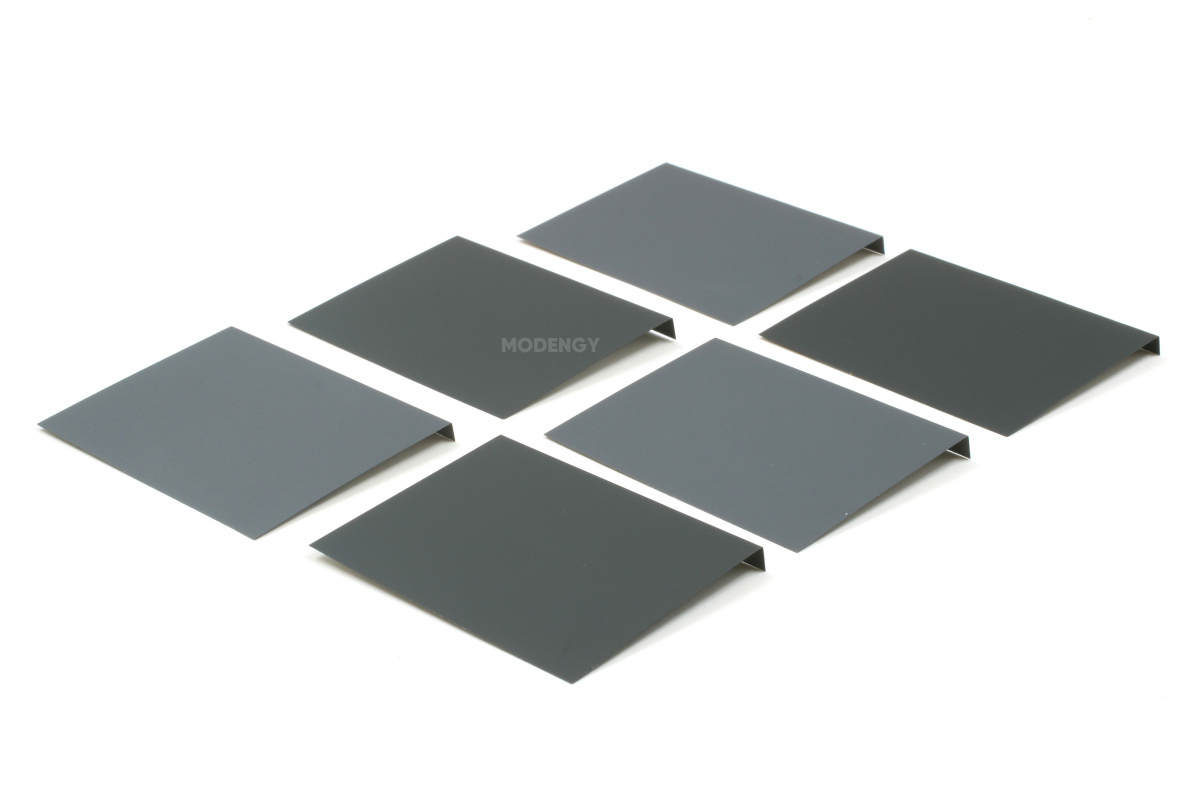

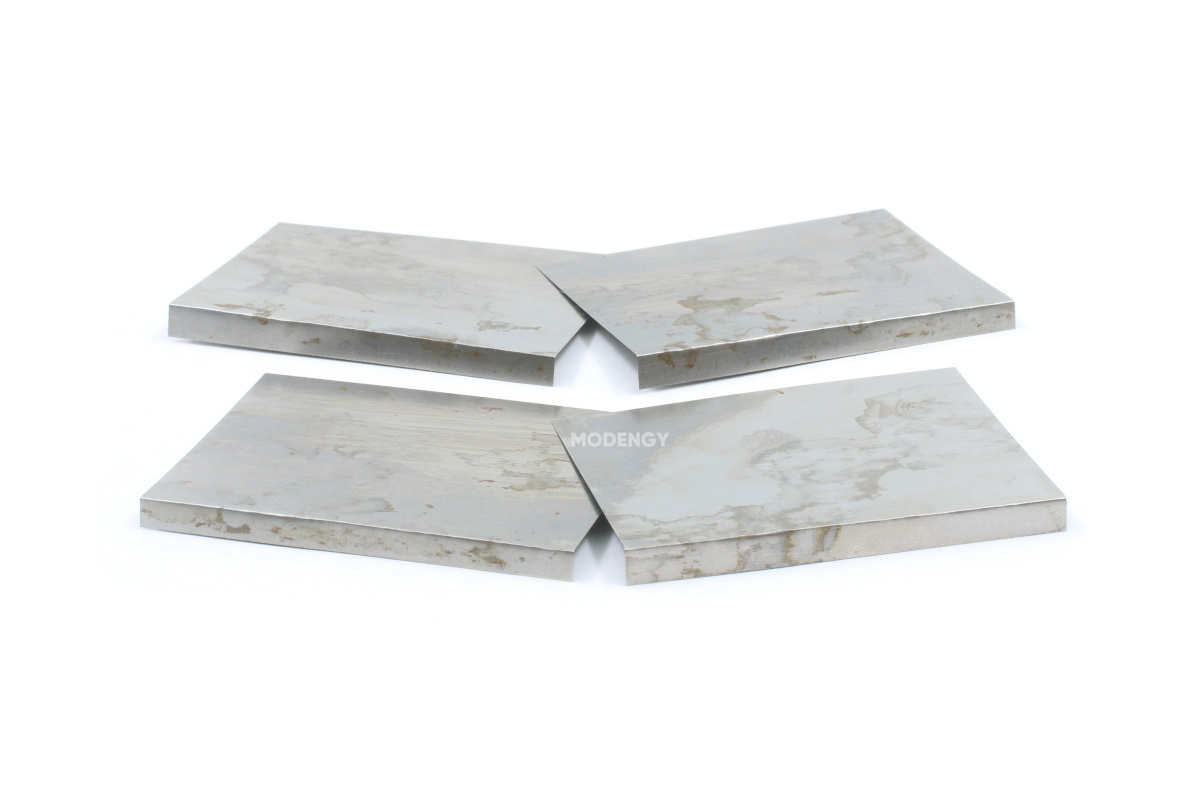

In order to improve glass containers sliding along the medical equipment side guides, MODENGY 1009 anti-friction coating based on polytetrafluorethylene is applied.
Before
After

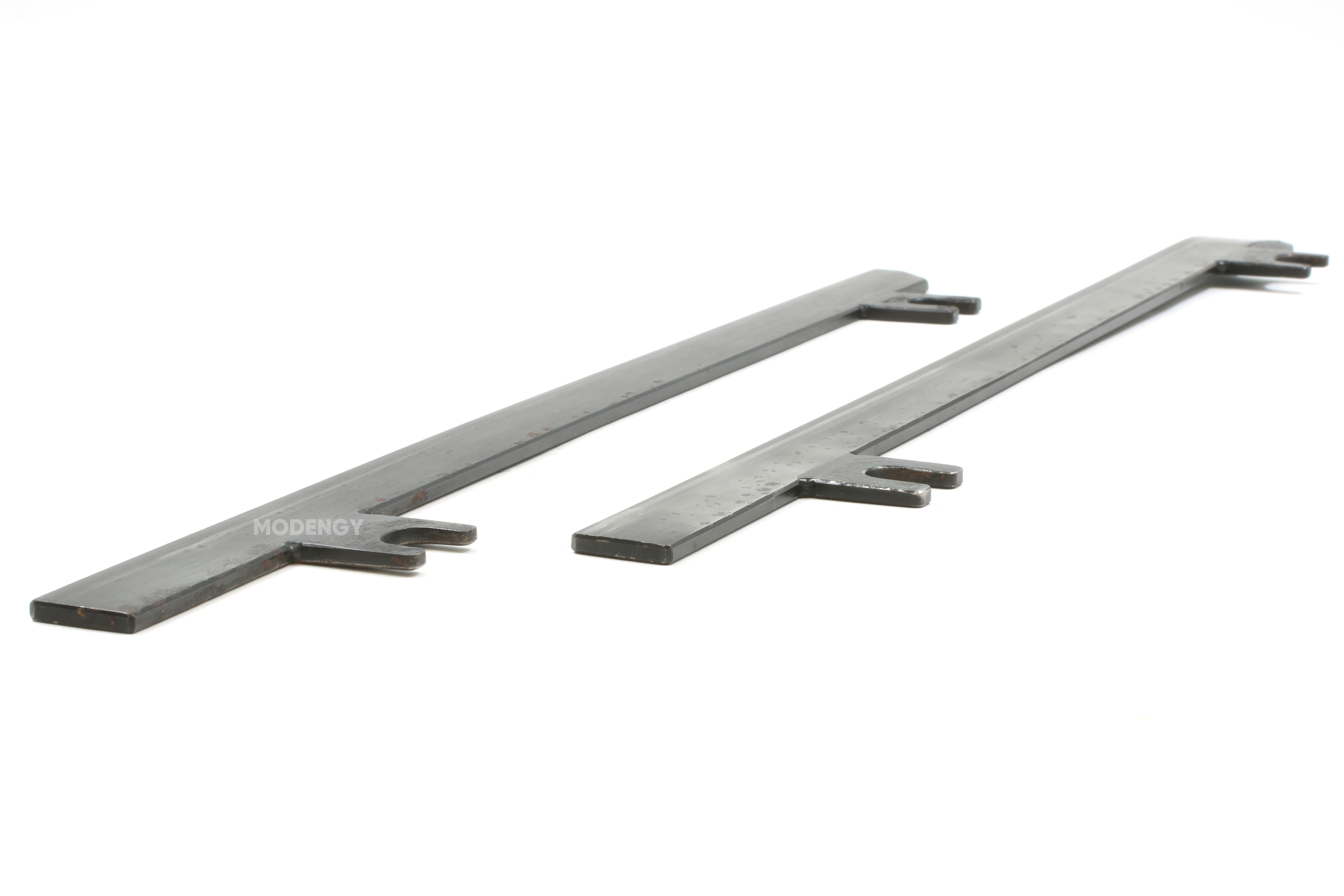

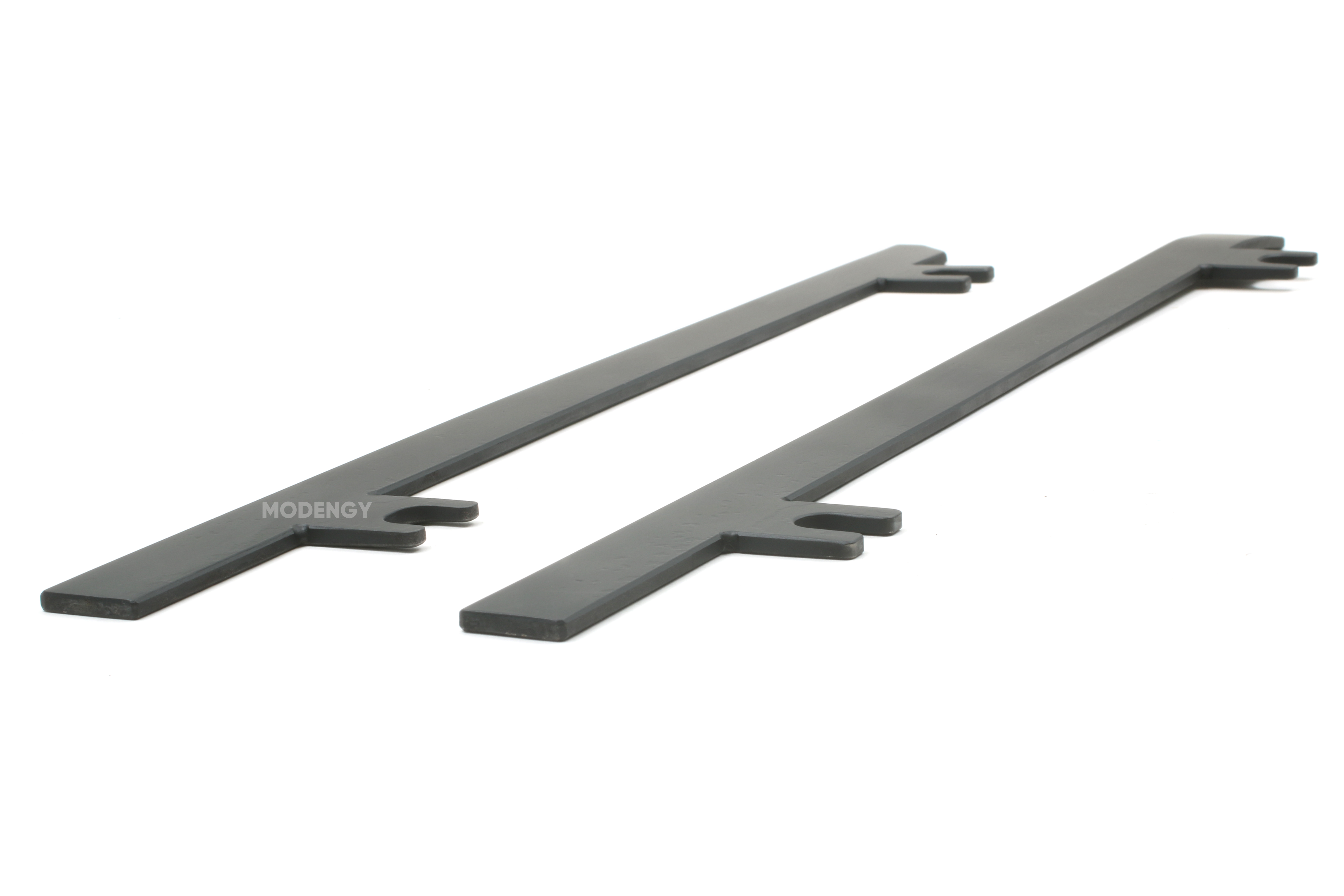

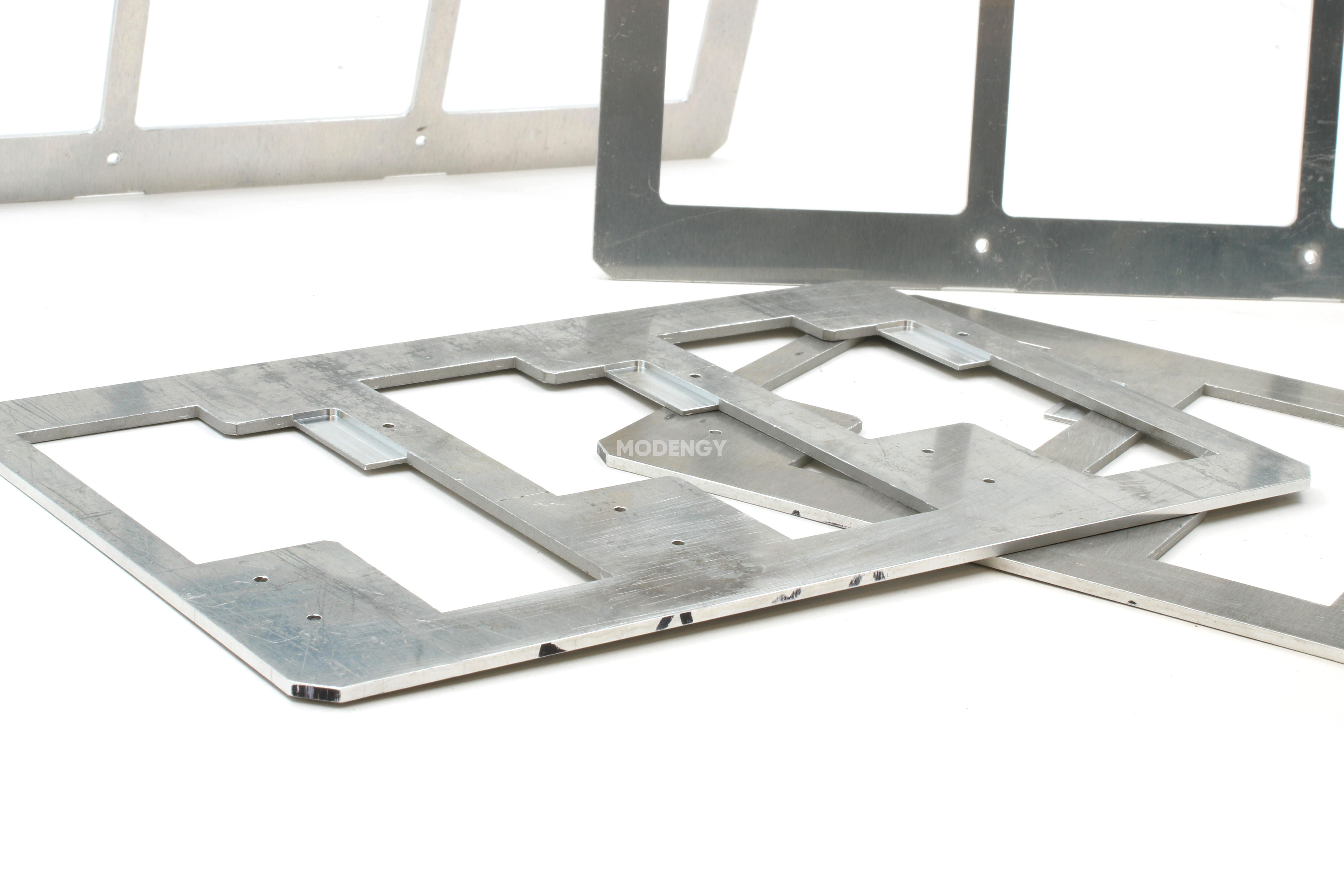

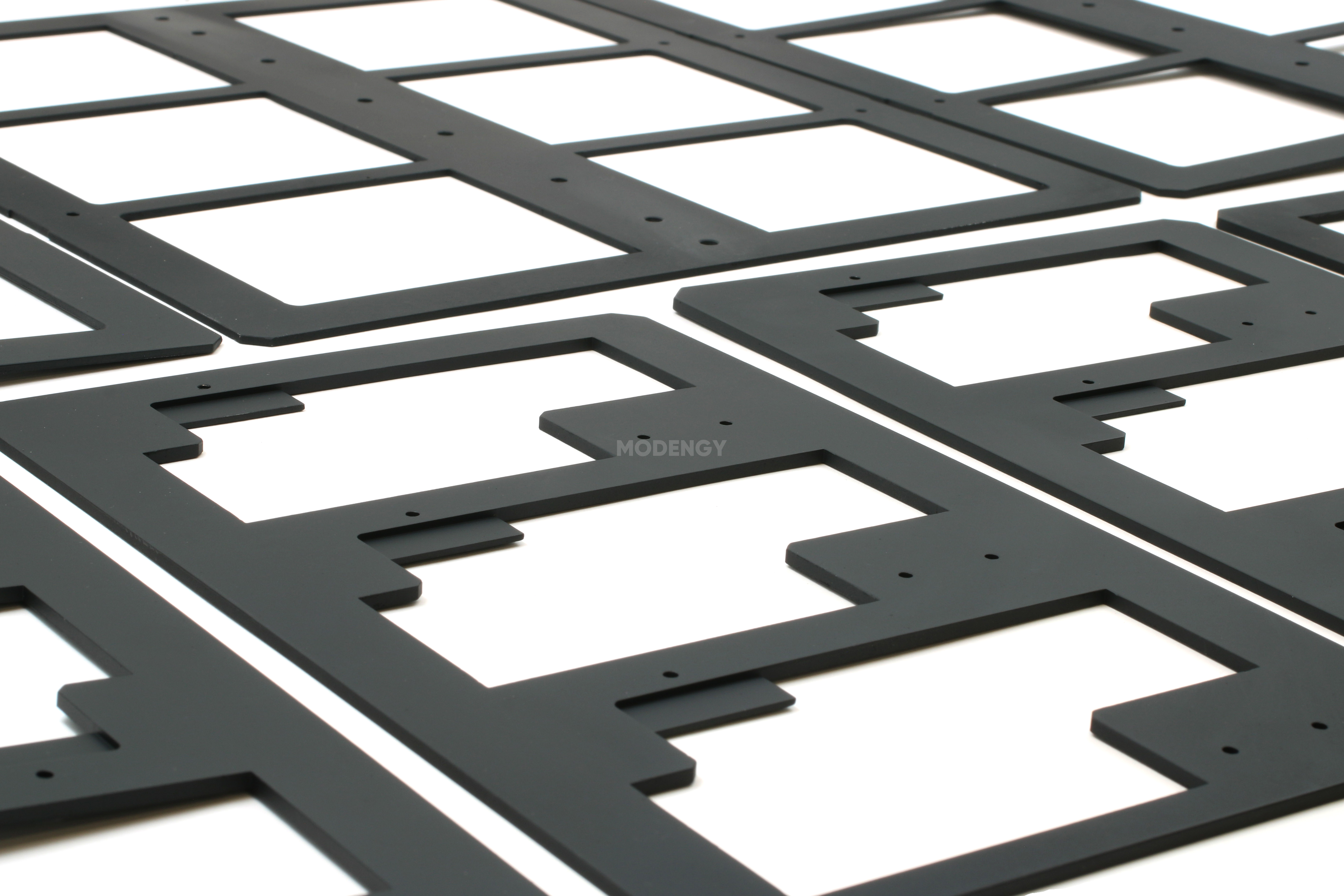

It forms a layer with low adhesion to varnish on the parts, due to which sticking-on is significantly prevented, and cleaning the frames from a thick layer of cured material gets easier.
Before
After

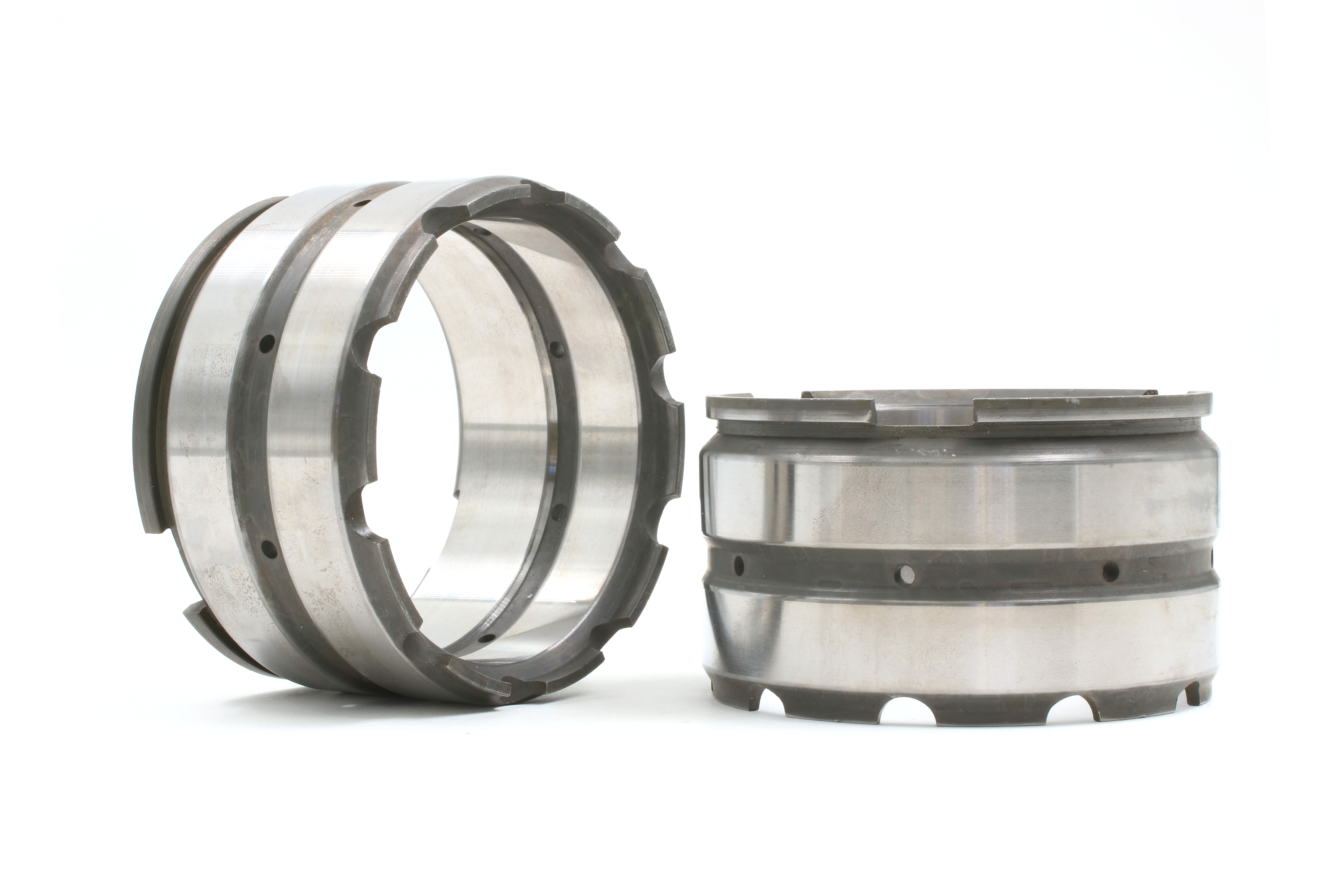

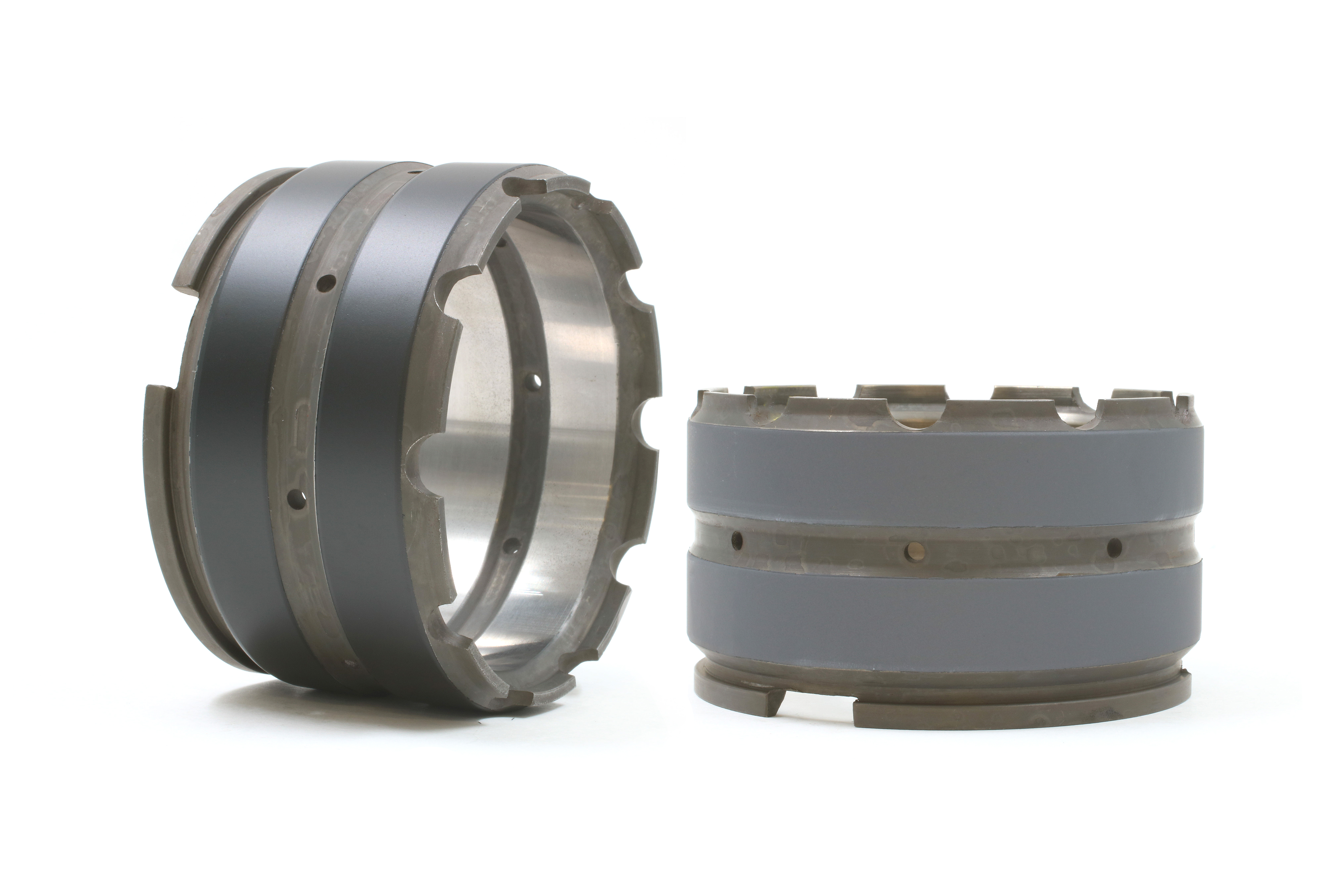

They form a thin lubricating layer on the surfaces that reduces friction and wear, provides fast forming of an air wedge while he turbines are moving to the operating mode.
Before
After

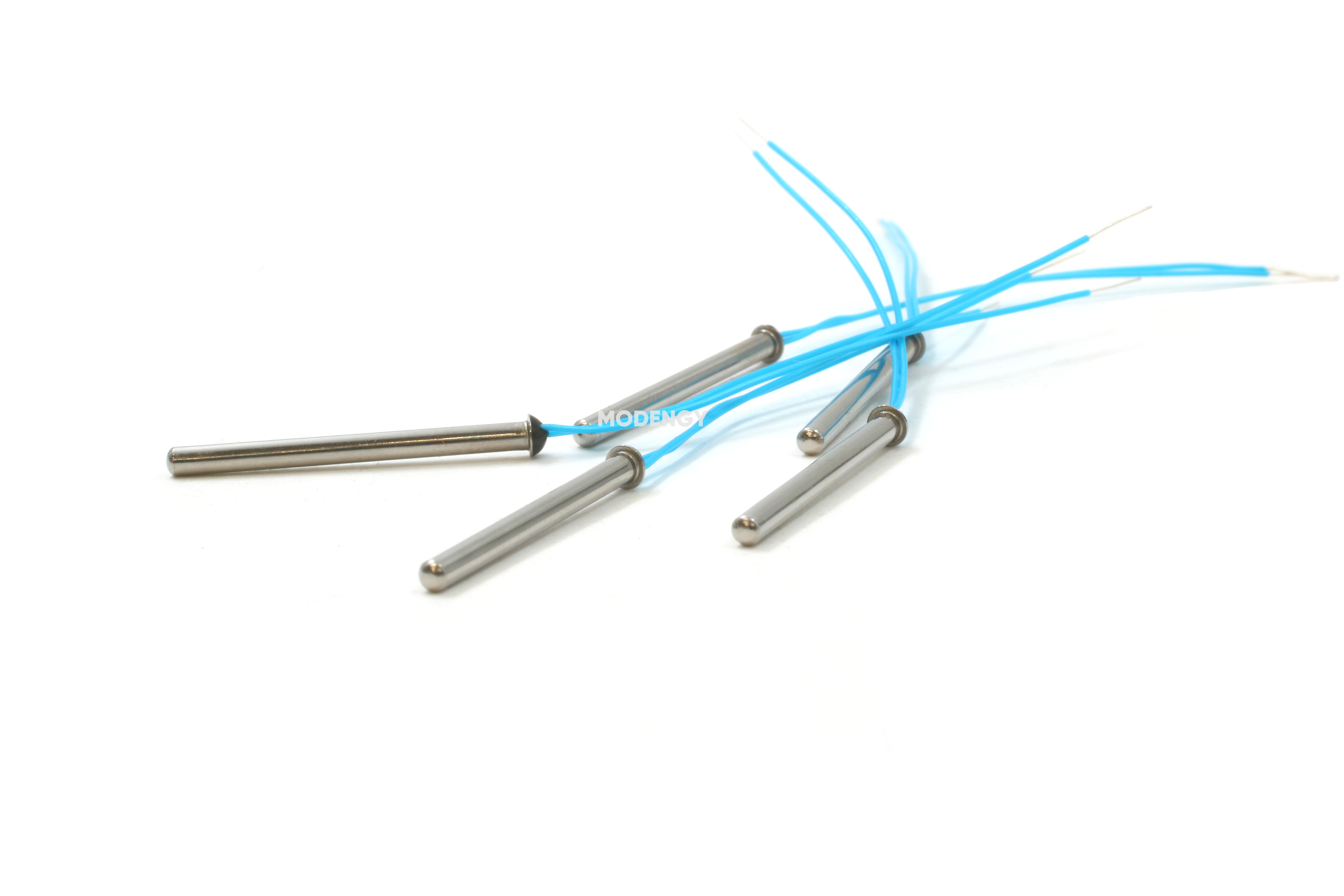

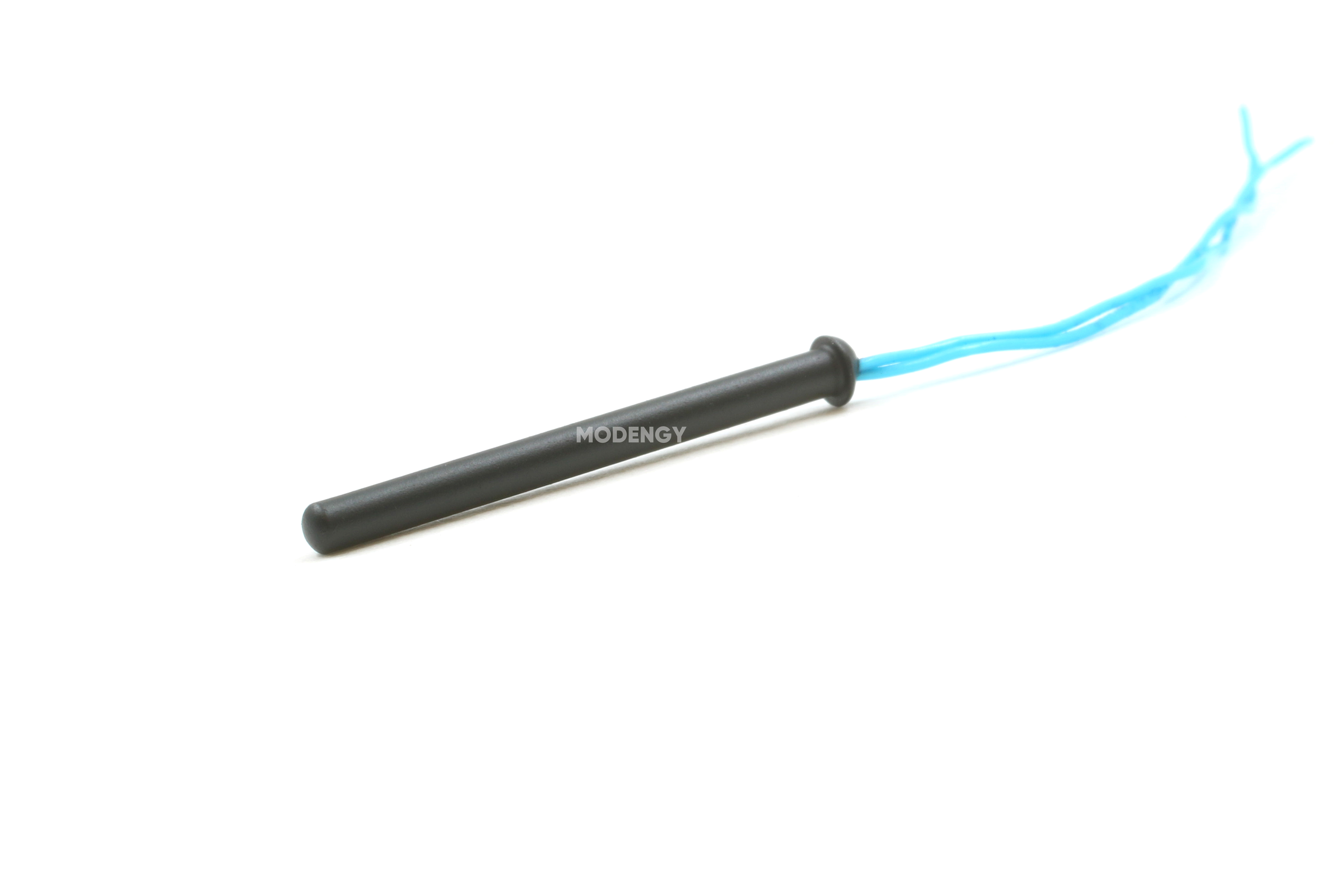

For the purpose of extending service lifetime of the parts under aversive operational conditions as well as of preventing forming the deposits, MODENGY 1009 coating is applied onto the metal surfaces of the sensors.
Before
After

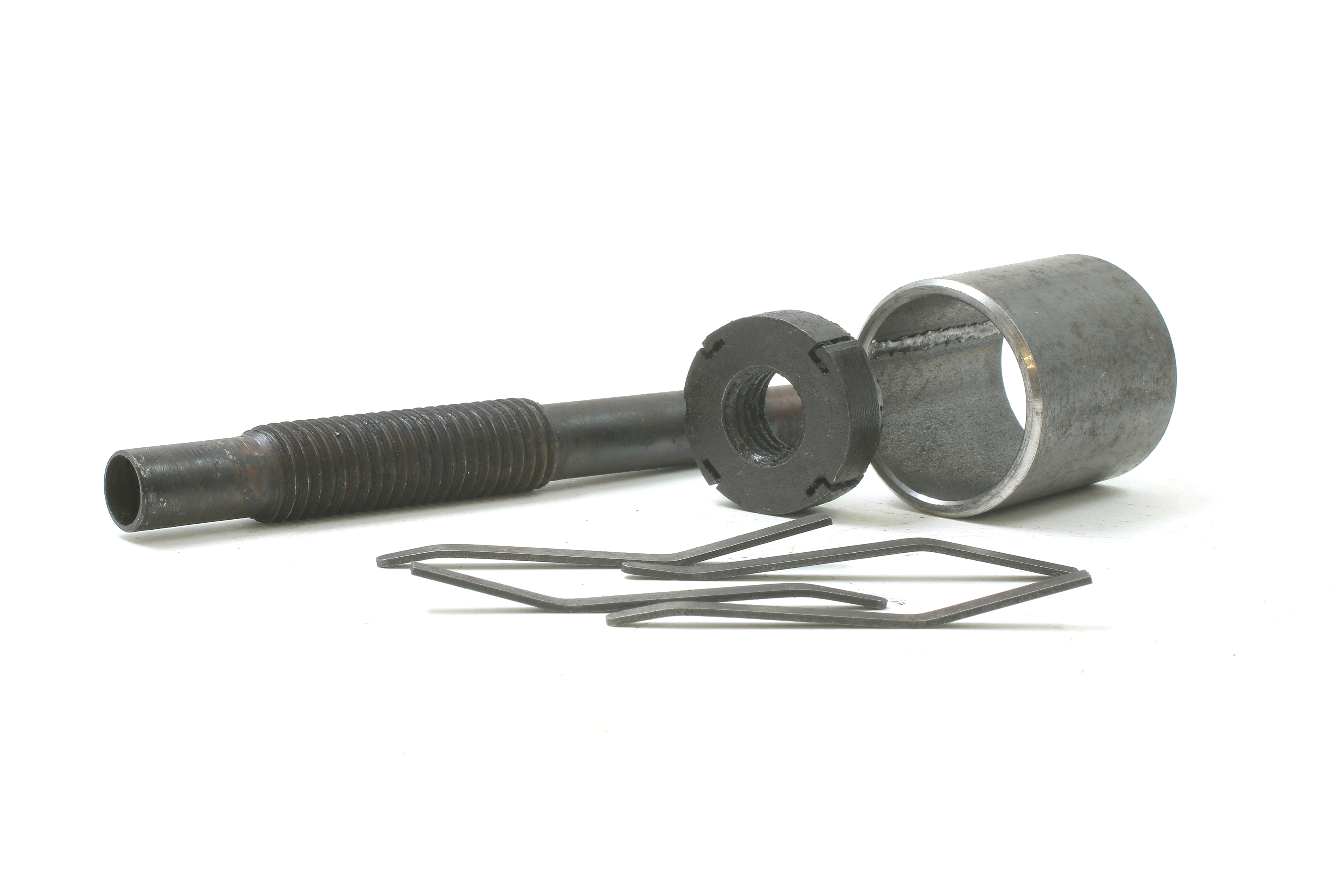

To provide aesthetic appearance for the parts, MODENGY 1003 and MODENGY 1009 solid-film coatings are used. MODENGY 1009 also protects the parts against corrosion extending their service lifetime. The coatings need no renewing for the entire operation period of the tyre studding devices.
Before
After
In order to prevent scuffing of the parts, MODENGY 1006 and MODENGY 1009 anti-friction solid-film coatings are used. They reduce friction in rotation process of the cuff, and thus prolong service lifetime, and operation reliability of the unit.
Before
After
To make the gimlet entering into the wood easier, and to provide corrosion protection, MODENGY 1014 and MODENGY 1009 anti-friction solid-film coatings are applied onto the holder surfaces.
Before
After

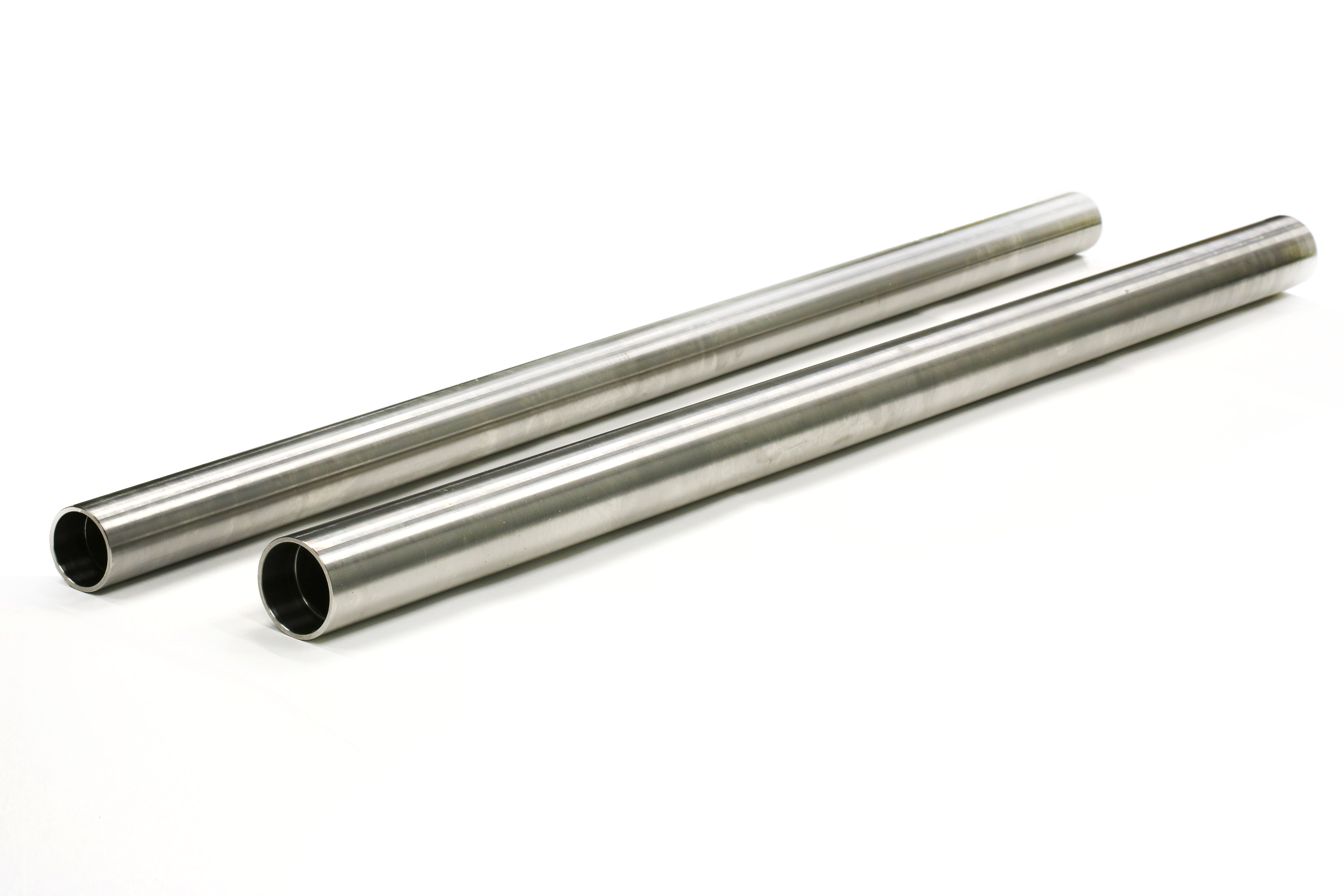

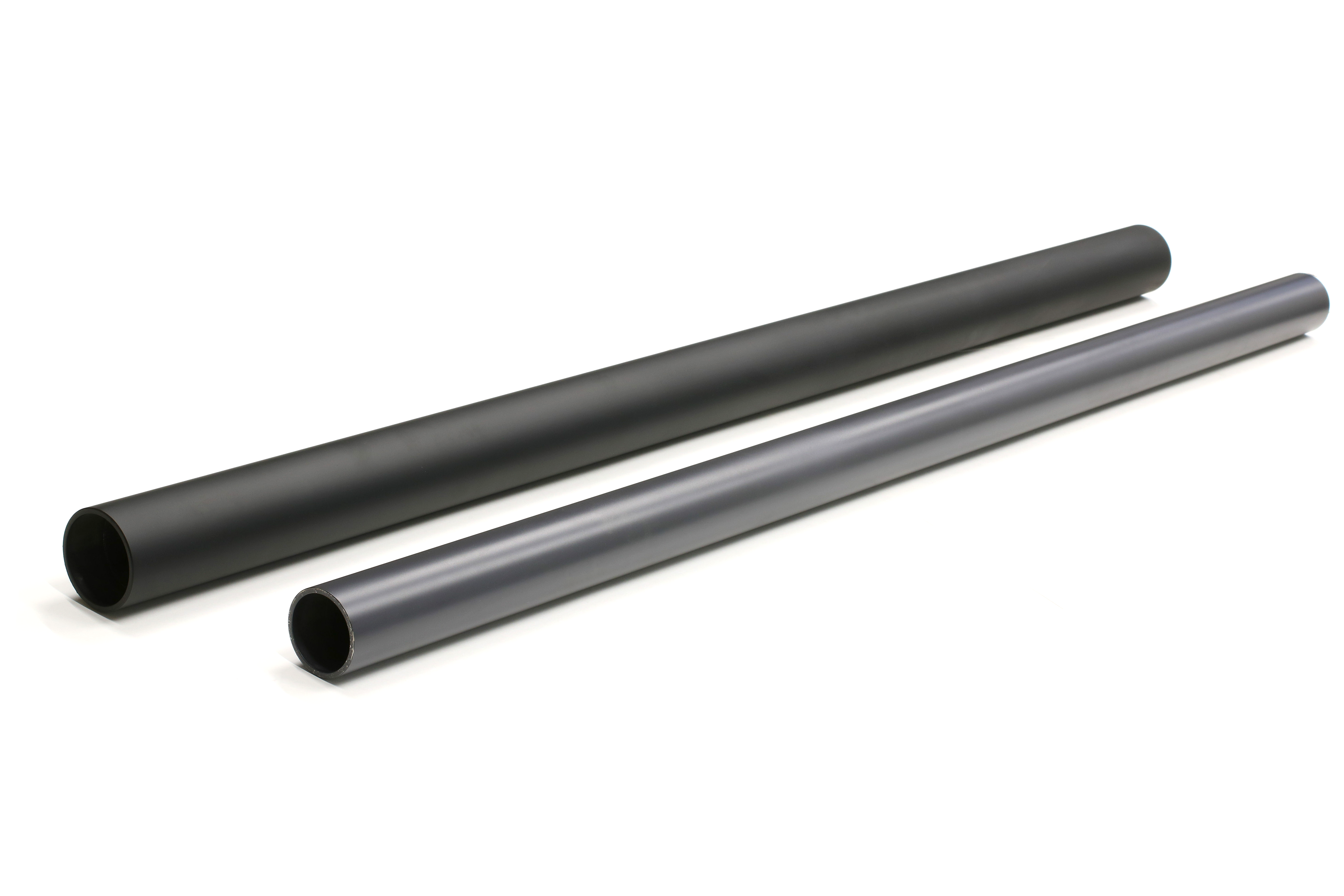

To make belt moving easier, MODENGY 1009 and MODENGY 1014 anti-friction solid-film coatings are applied onto the shafts. Due to this, smoothness of the products moving along the conveyor improves, and wear of the parts in the metal-to-polymer pair reduces.
Before
After

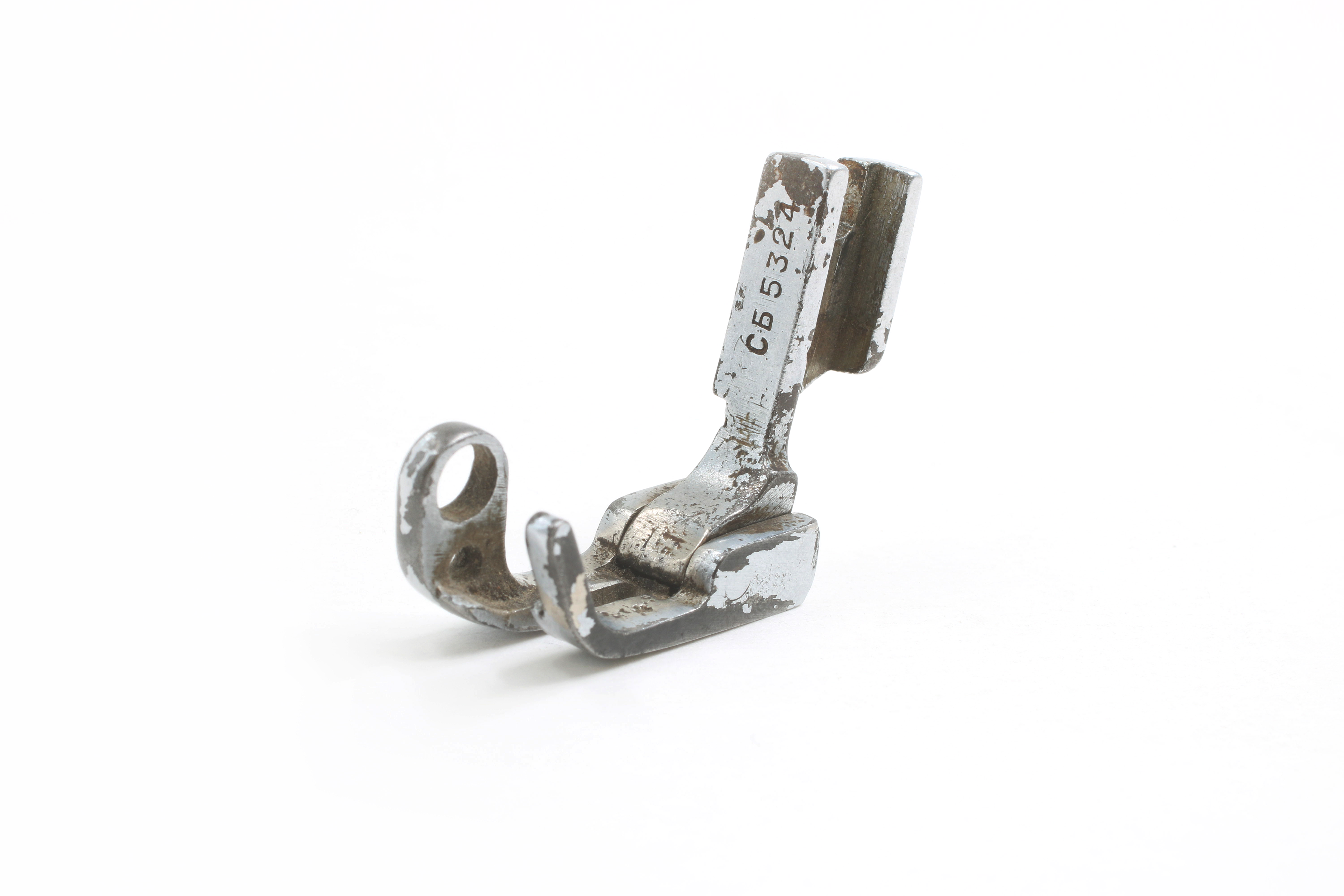

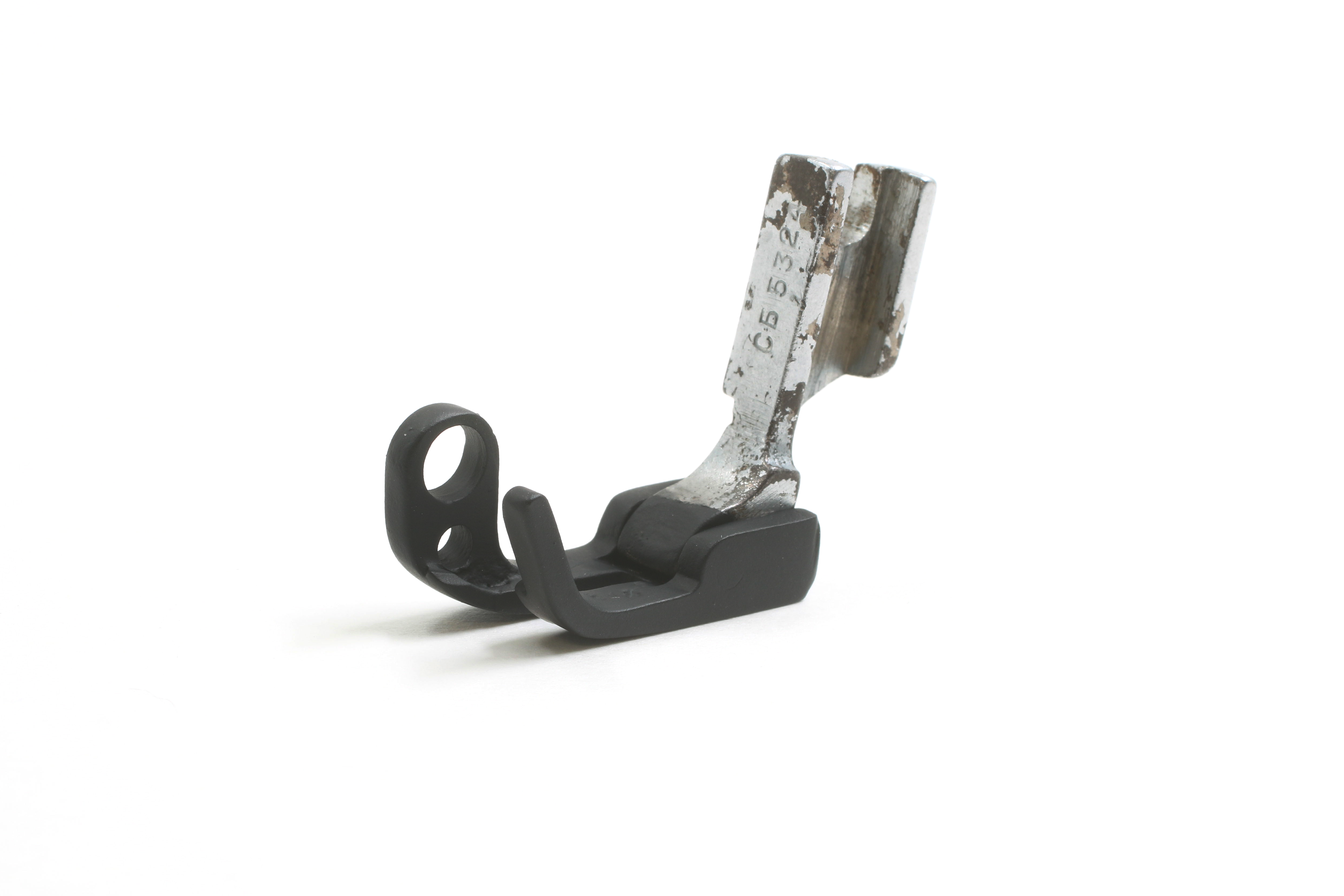

To reduce friction coefficient between the metal surface of the presser foot, and the leather material, MODENGY 1009 anti-friction solid-film coating is used. It provides easy presser foot sliding along the tissue without crumpling. Amount of defective products goes down, and sewing speed gets faster.
Before
After

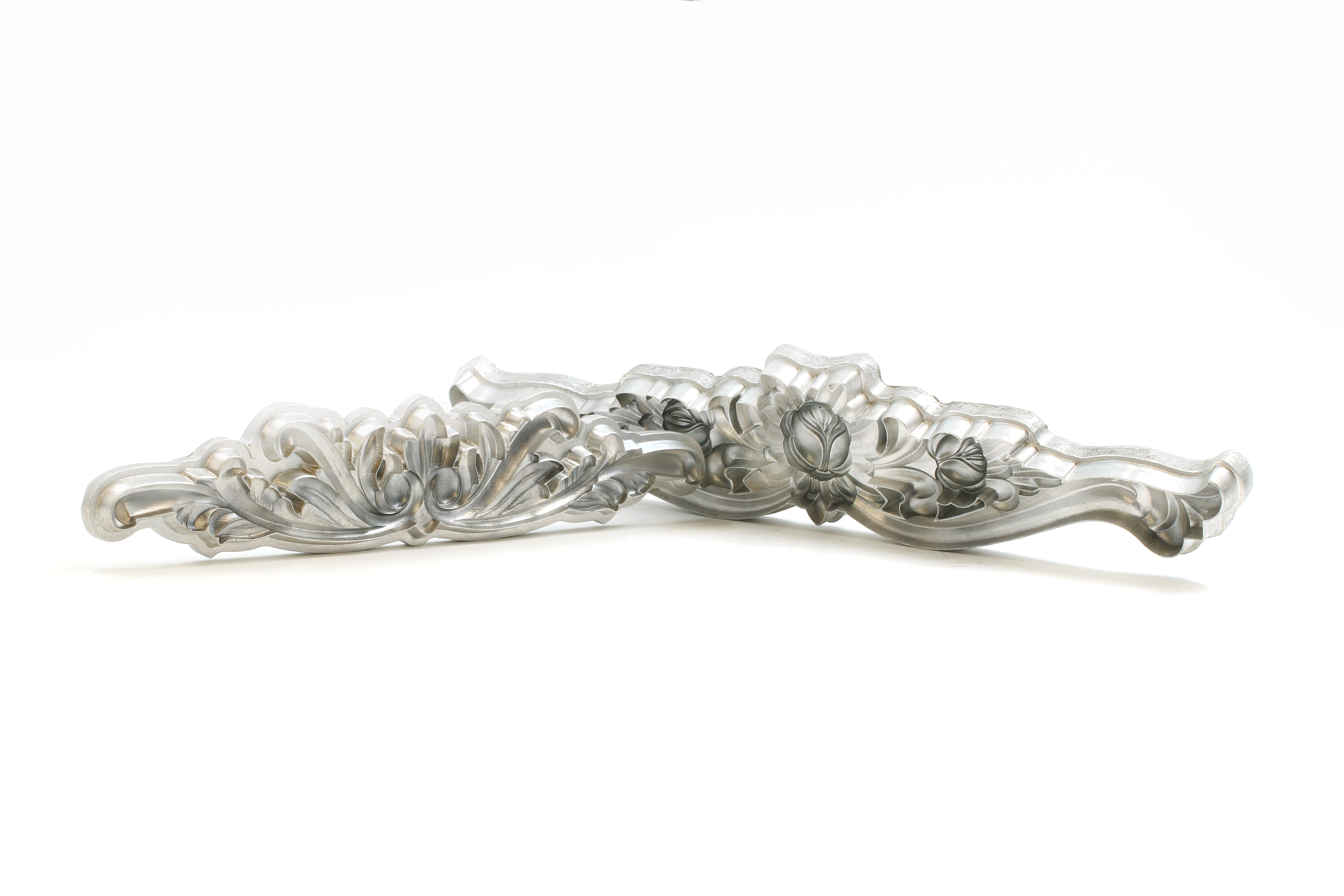

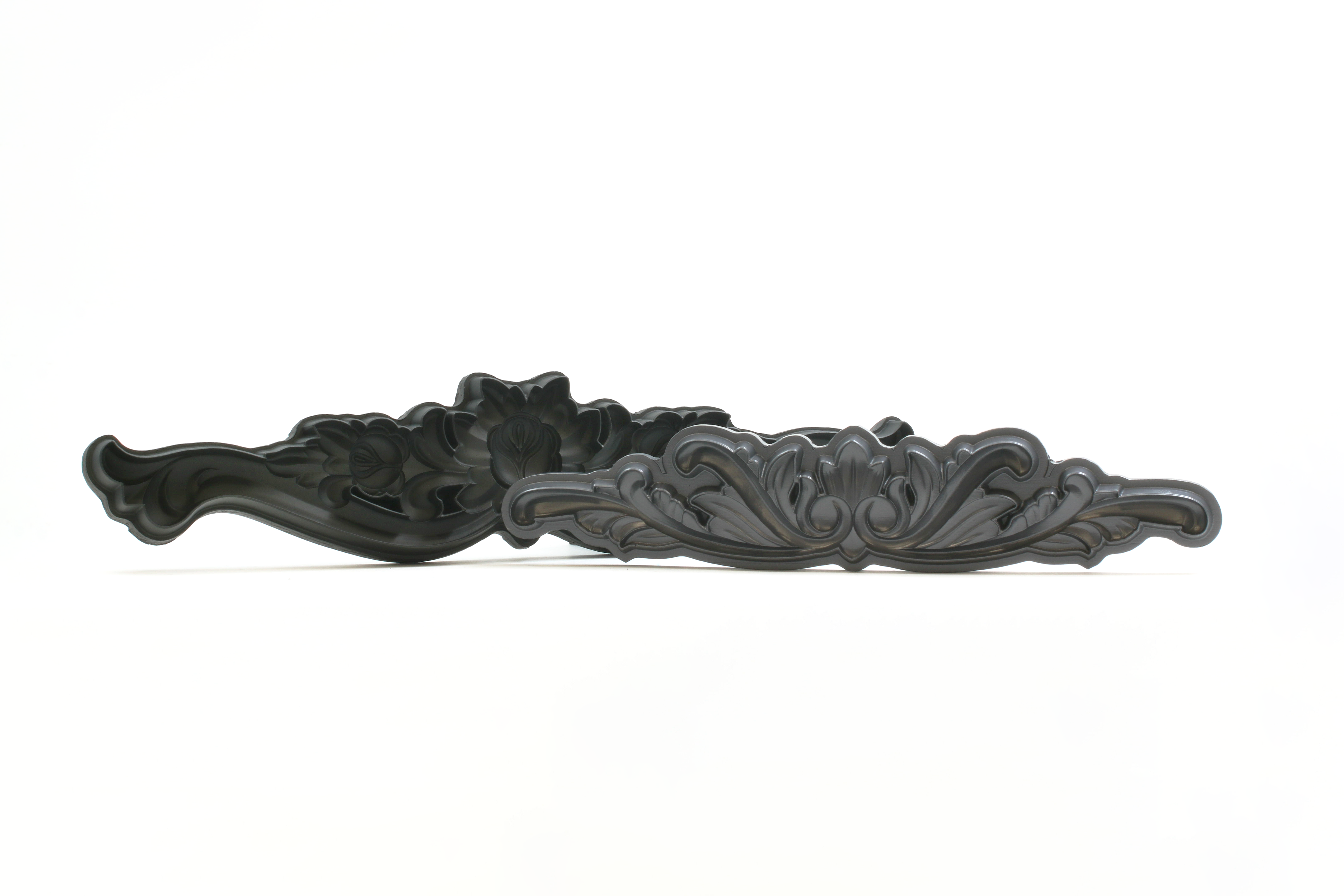

MODENGY 1009 and MODENGY 1014 coatings having anti-adhesive properties help prevent paste sticking to the operating surface of the moulds, decrease number of defective items in process of their production, extend service lifetime of the equipment.
Additional expendable materials
and equipment
- MODENGY Special Cleaner-Activator सतहों को साफ करने, चिकनाई हटाने और सक्रिय करने के लिए अभिप्रेत है
- MODENGY 1013 Special Solvent कोटिंग लगाने के बाद उपकरणों को धोने के लिए, बिना सूखी कोटिंग को हटाने के लिए, कोटिंग के पूरी तरह पोलीमराइजेशन को नियंत्रित करने के लिए
- MODENGY M1-250 स्प्रे गन - MODENGY एंटी-फ्रिक्शन सॉलिड-फिल्म कोटिंग्स लगाने के लिए
Advantages
- न्यूनतम Friction coefficient
- रासायनिक प्रतिरोध (Chemical resistance)
- विस्तृत service temperature range (-100 से 250 °C)
- धूल भरे वातावरण (dusted environment) में संचालन क्षमता (Operability)
- पूरी तरह से Cure होने के बाद Non-toxic।
- यह stick-slip motion को रोकता है।
- लंबी सर्विस लाइफ (यूनिट कंस्ट्रक्शन के आधार पर यह लंबे समय तक lubrication भी प्रदान कर सकता है)
- यह robots द्वारा parts assembly को और तेज़ बनाता है।
- उच्च Anticorrosive गुण
- सौंदर्यात्मक उपस्थिति (black matt colour)
- High polymerization temperature न होने के कारण, इसे plastics पर लगाया जा सकता है।
- इसे oils और greases के साथ इस्तेमाल किया जा सकता है।
- यह electrostatic spraying के लिए उपयुक्त है।
- High hydrophobic properties - यह moisture gathering और freezing-on को रोकता है।
Specifications
- रंग: black matt
- Service temperature range: -100 to +250 °С
- मानक coating consumption: 118 g/m²
- Cure temperature/ time: +120 °C / 30 min
It is used in the following typical units
स्लाइड बेयरिंग और गाइडवे, थ्रेडेड कनेक्शन, सीलिंग डिवाइस, मेटल-टू-मेटल, मेटल-टू-प्लास्टिक, प्लास्टिक-टू-प्लास्टिक घर्षण जोड़ों वाली अन्य इकाइयाँ
