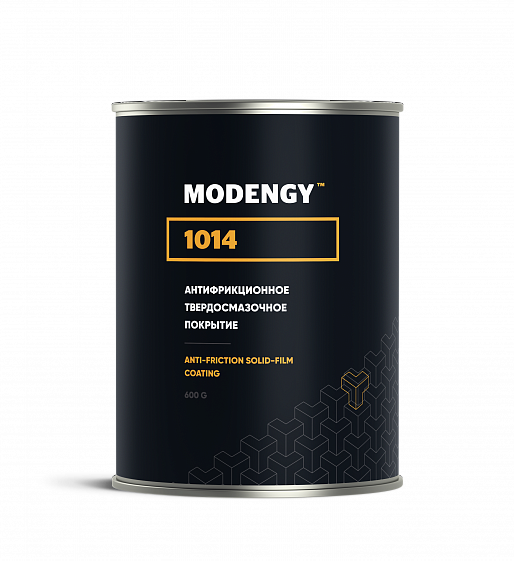

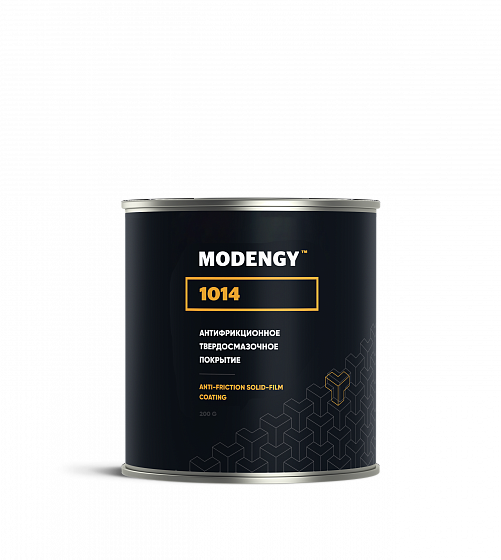

MODENGY 1014
200 G Bottle

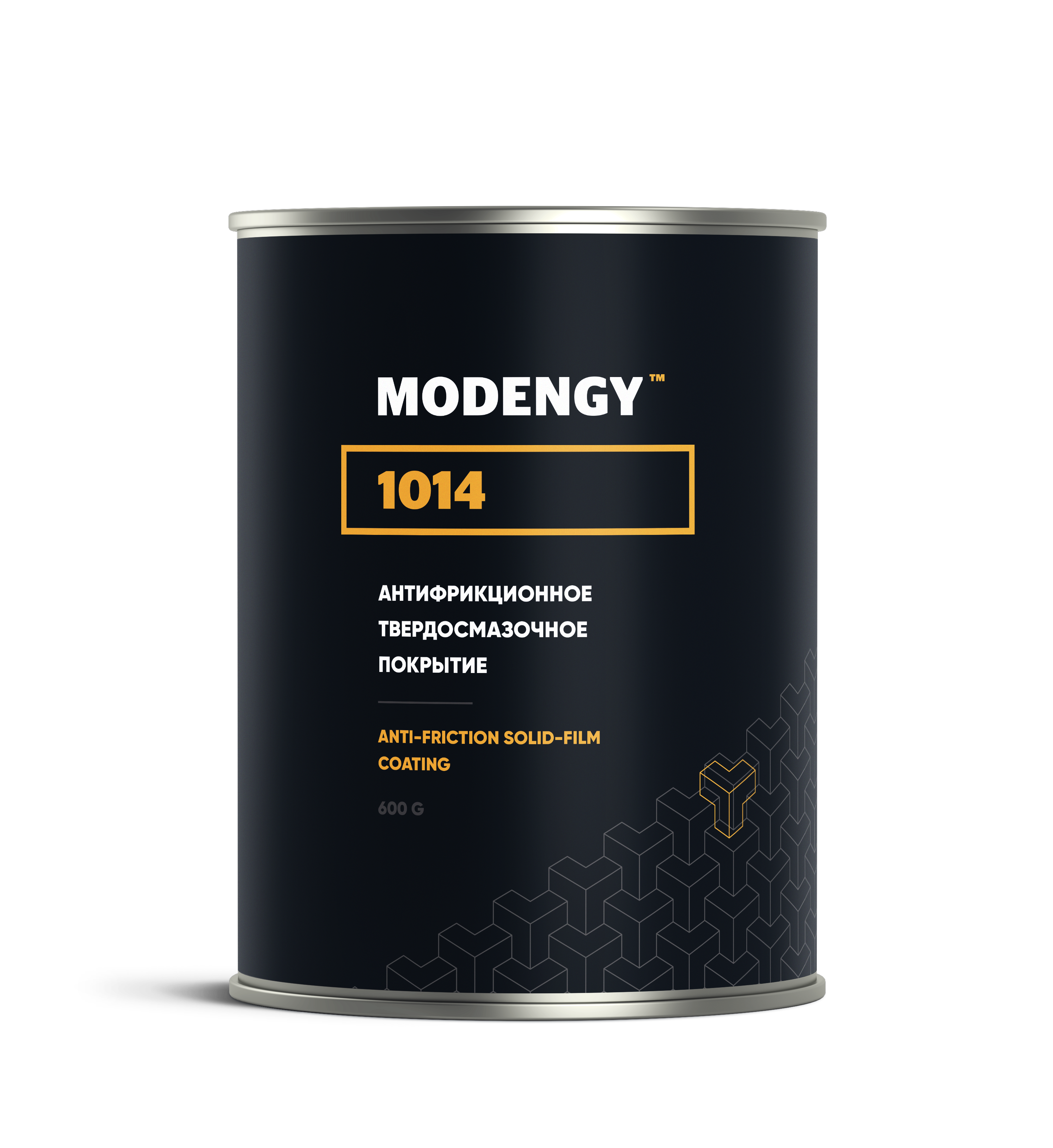

600 G Can

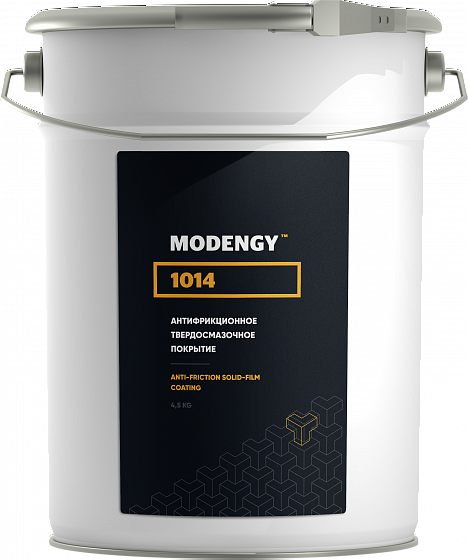

4.5 KG Pail
Polytetrafluorethylene (PTFE) और molybdenum disulfide पर आधारित anti-friction solid-film coating
इसका उपयोग रासायनिक पंपों और पाइपलाइन वाल्वों में किया जाता है; पैकेजिंग उपकरणों की सोल्डरिंग प्लेटों में; गर्मी, धूल, नमी और रासायनिक रूप से आक्रामक पदार्थों के संपर्क में आने वाली स्लाइडिंग घर्षण इकाइयों में जहां तेल और ग्रीस प्रभावी नहीं होते हैं; वायवीय सिलेंडरों, तालों के पुर्जों, हिंजों, कारों में ऑटोमोटिव फास्टनिंग तत्वों में; एयरोस्पेस मशीनरी की इकाइयों और तंत्रों में; अपतटीय तेल मंच के फास्टनरों में; पॉलिमर उत्पादन लाइन अंशशोधकों (कैलिव्रेटर) में किया जाता है।
Package sizes:
MODENGY 1014 in action

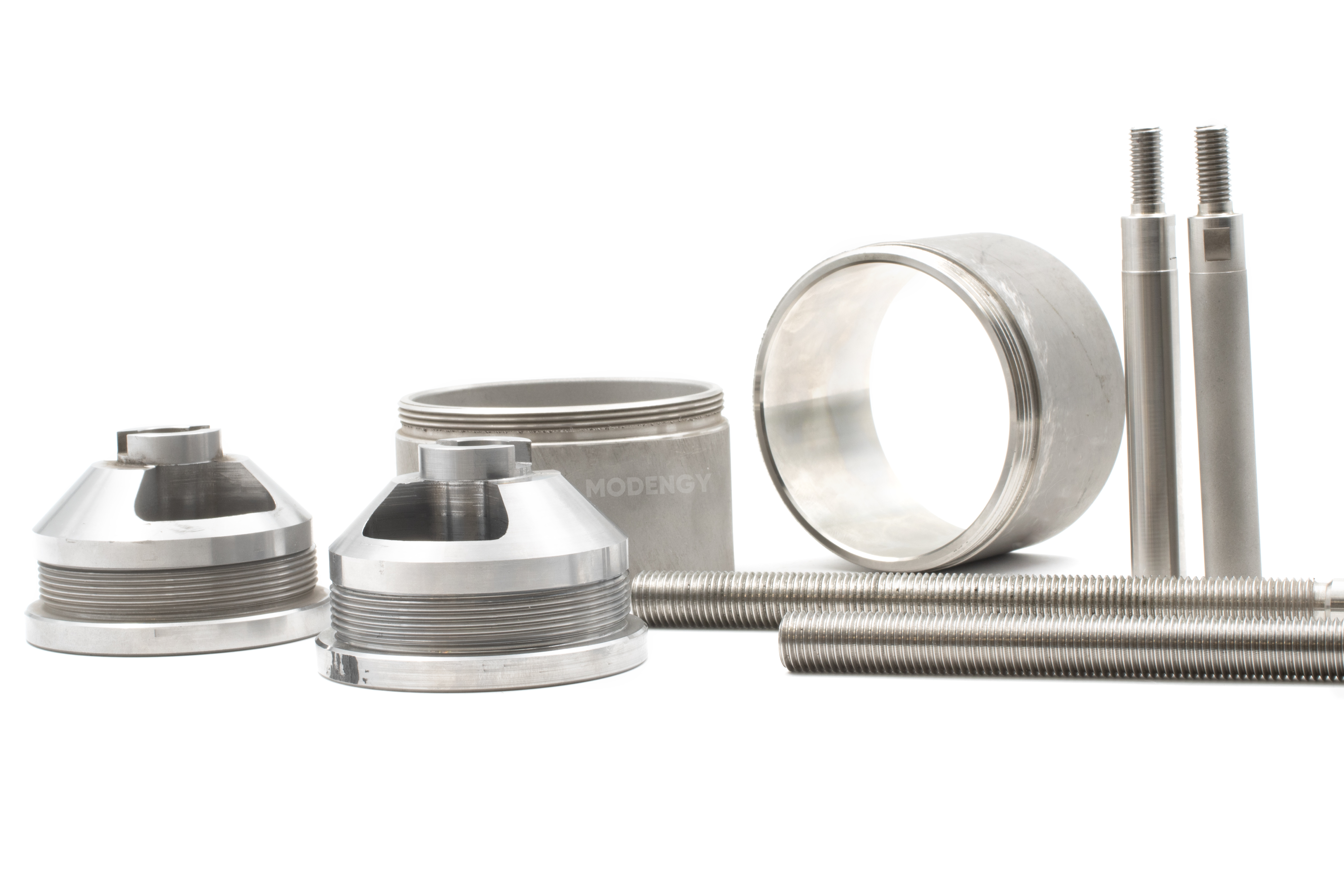

Before
After
MODENGY 1014 coating provides stable and low friction coefficient, significantly extends service lifetime of the control valve pistons.
Before
After

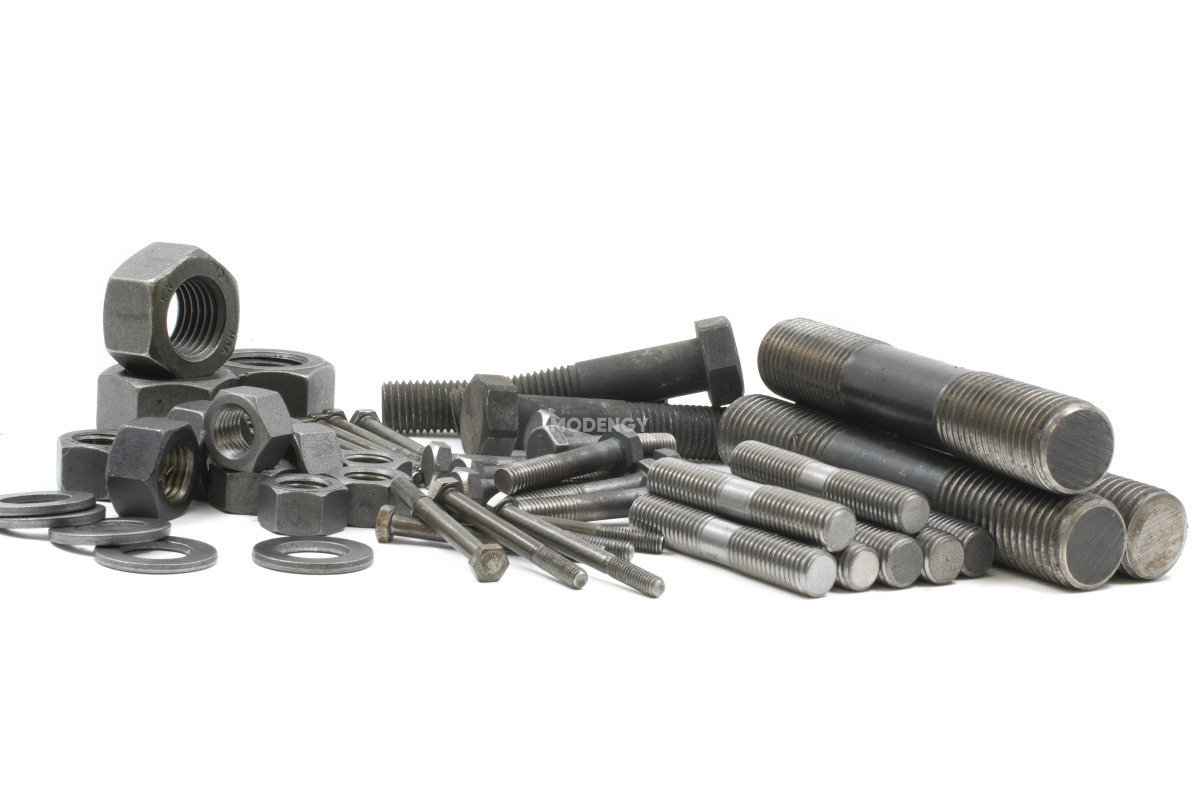

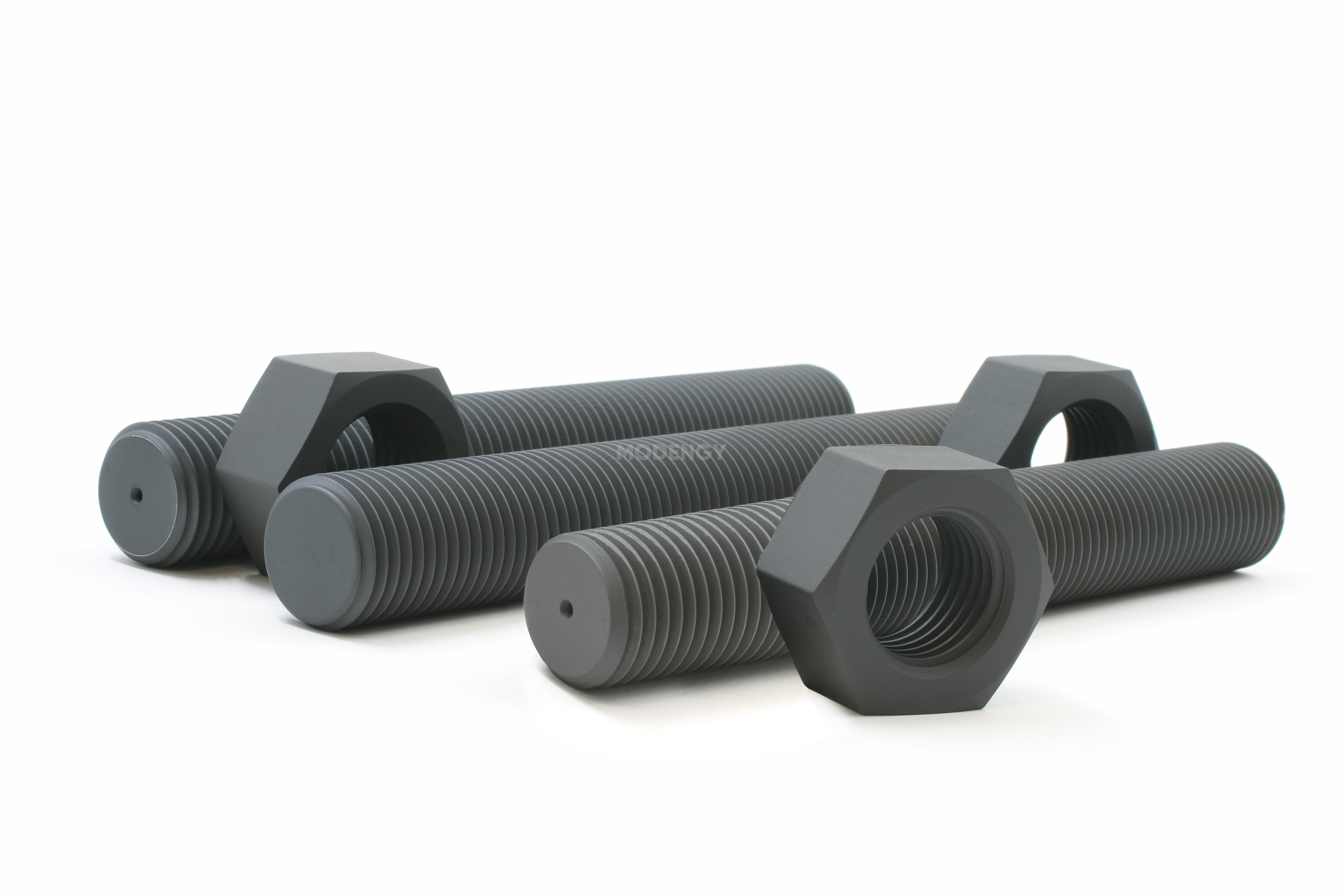

Use of MODENGY 1014 coating provides standard mounting, long efficient running, and easy dismantling of the threaded connections.
Before
After

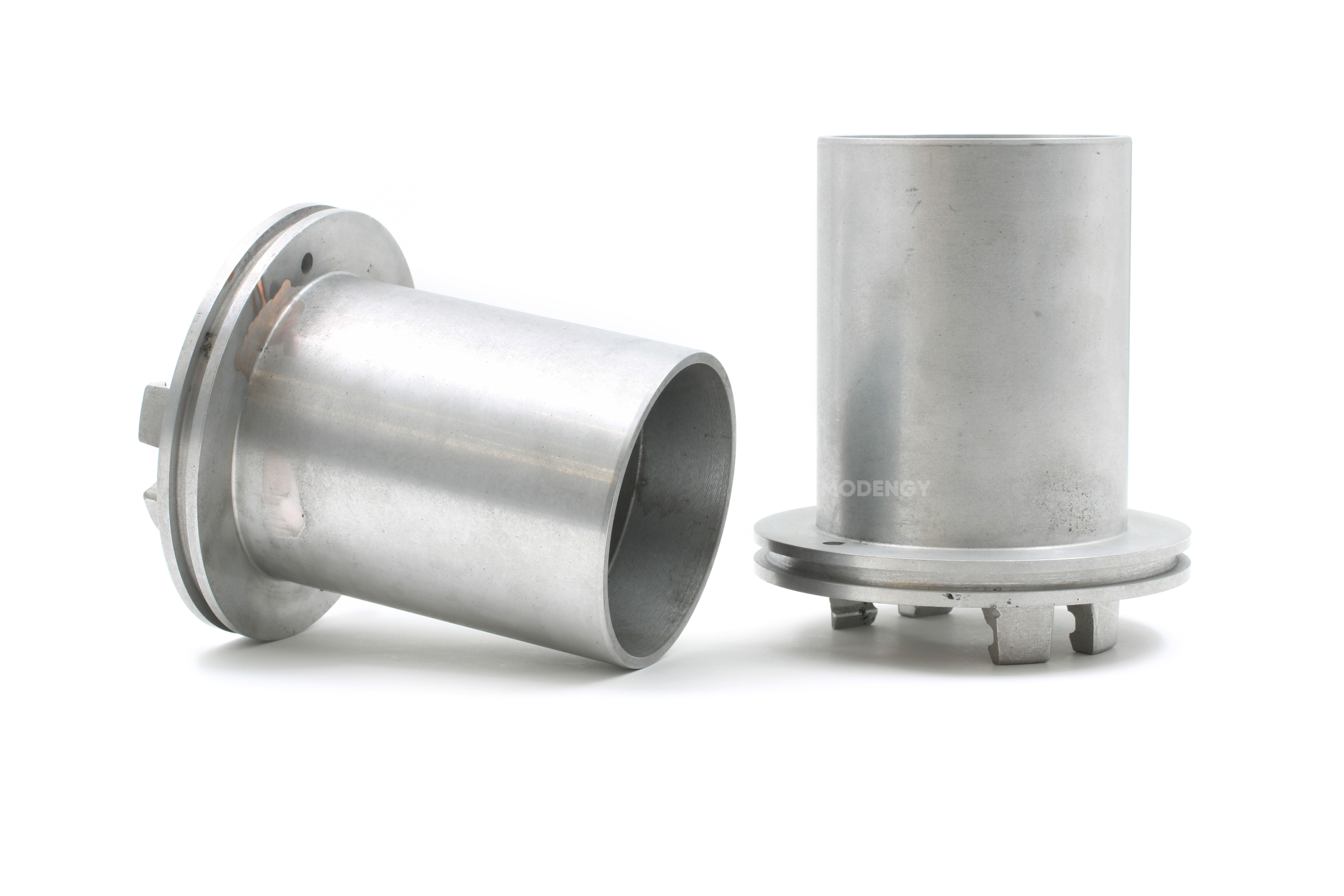

The valve parts need long-term protection against wearing. For this purpose, MODENGY 1014 coating is applied onto the metal rods and bush sleeves. And in order to prevent interacting surfaces from sticking, MODENGY 1007 coating with high anti-adhesive properties is applied onto the valve sliding piston and seat.
Before
After

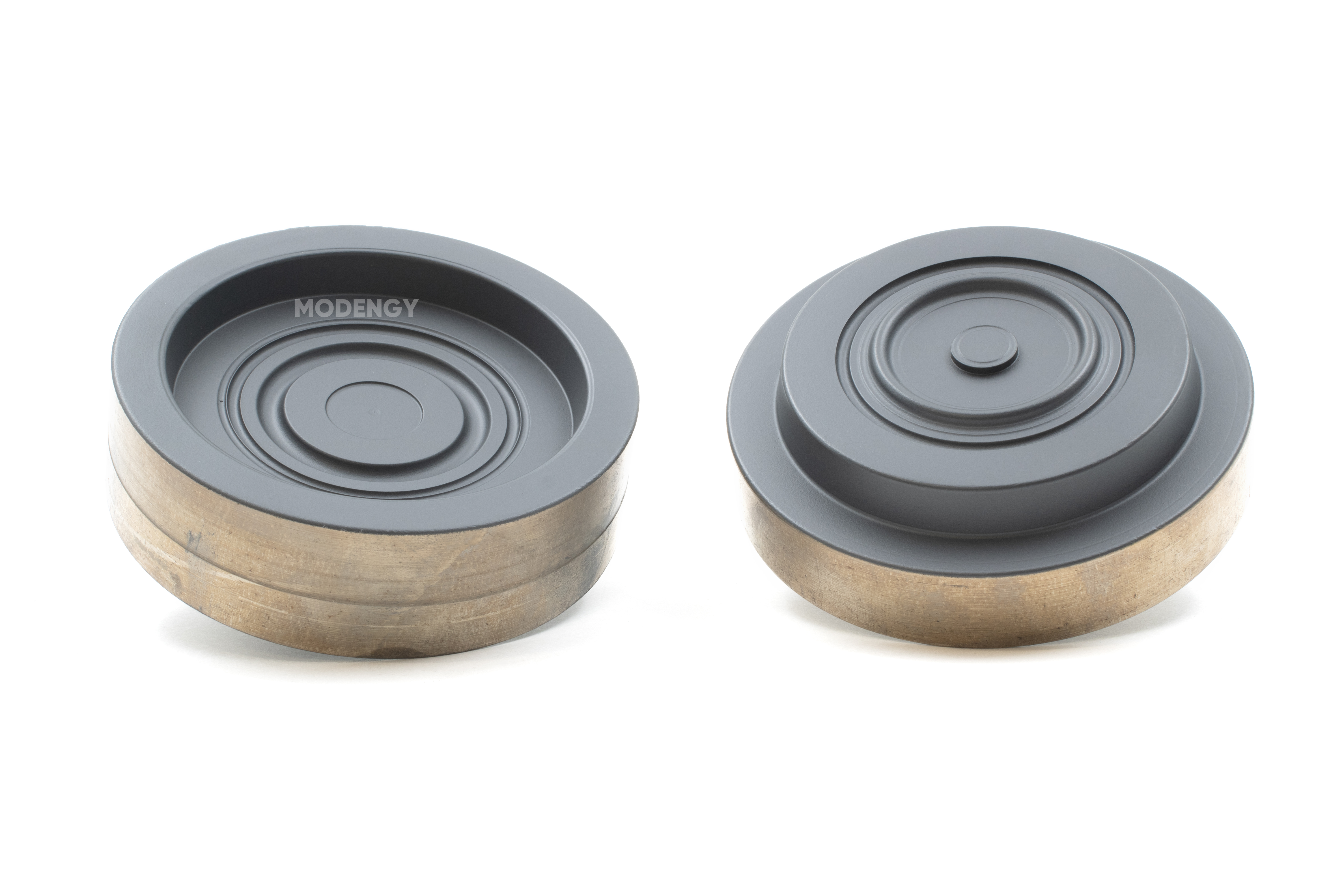

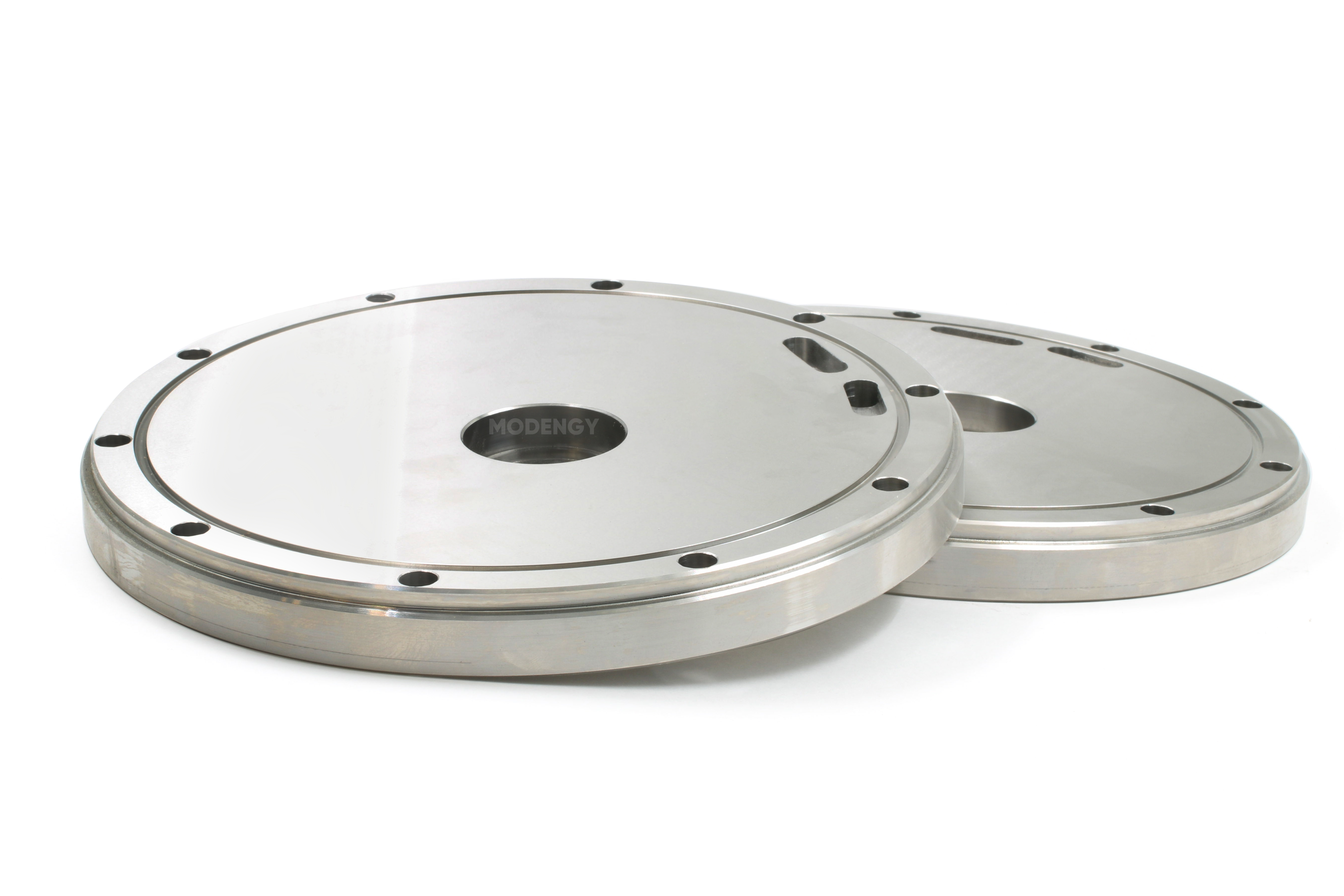

MODENGY 1014 coating has high anti-adhesive and anti-corrosive properties that is why using it on the molds significantly extends service lifetime of the parts, and improves items production quality.
Before
After

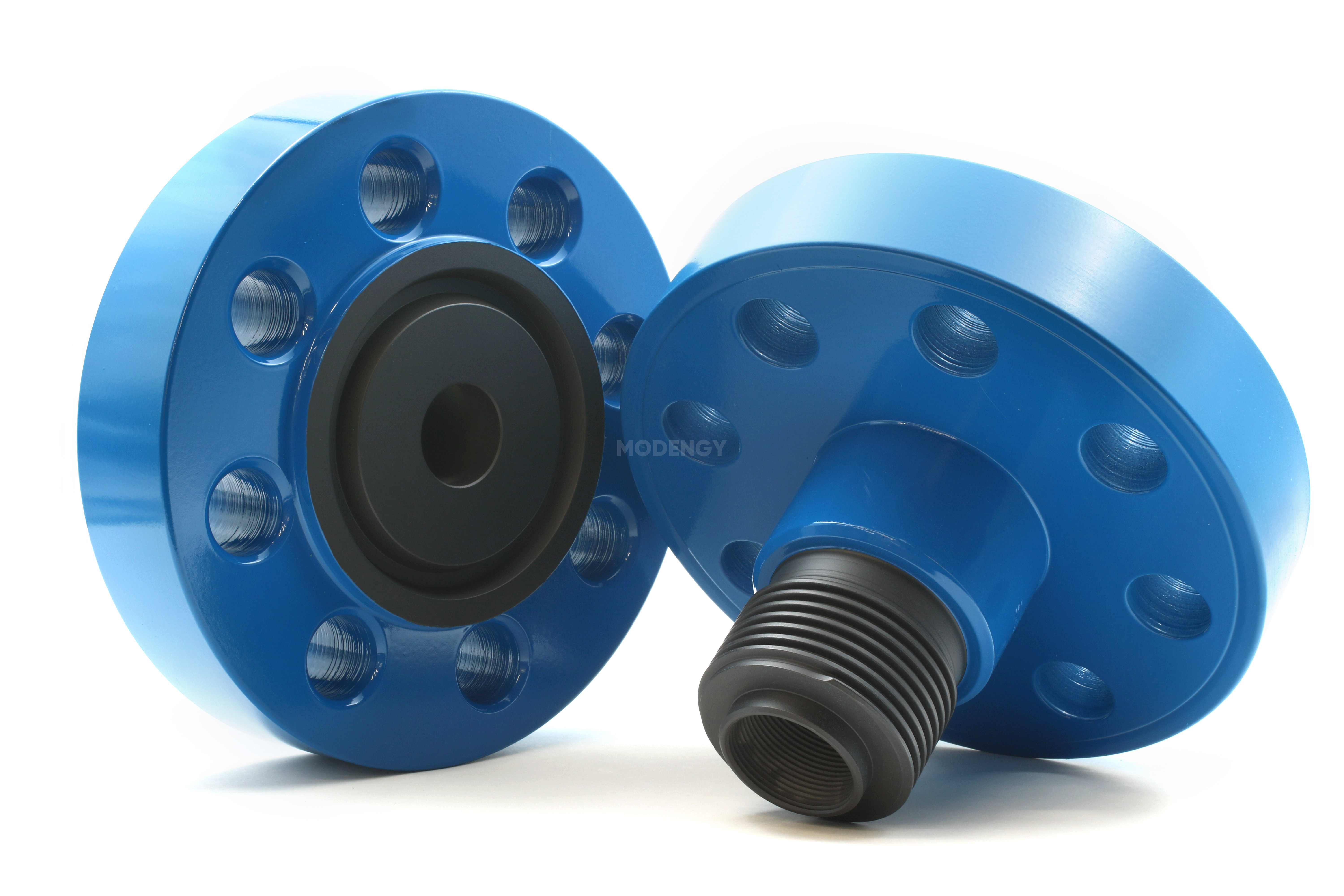

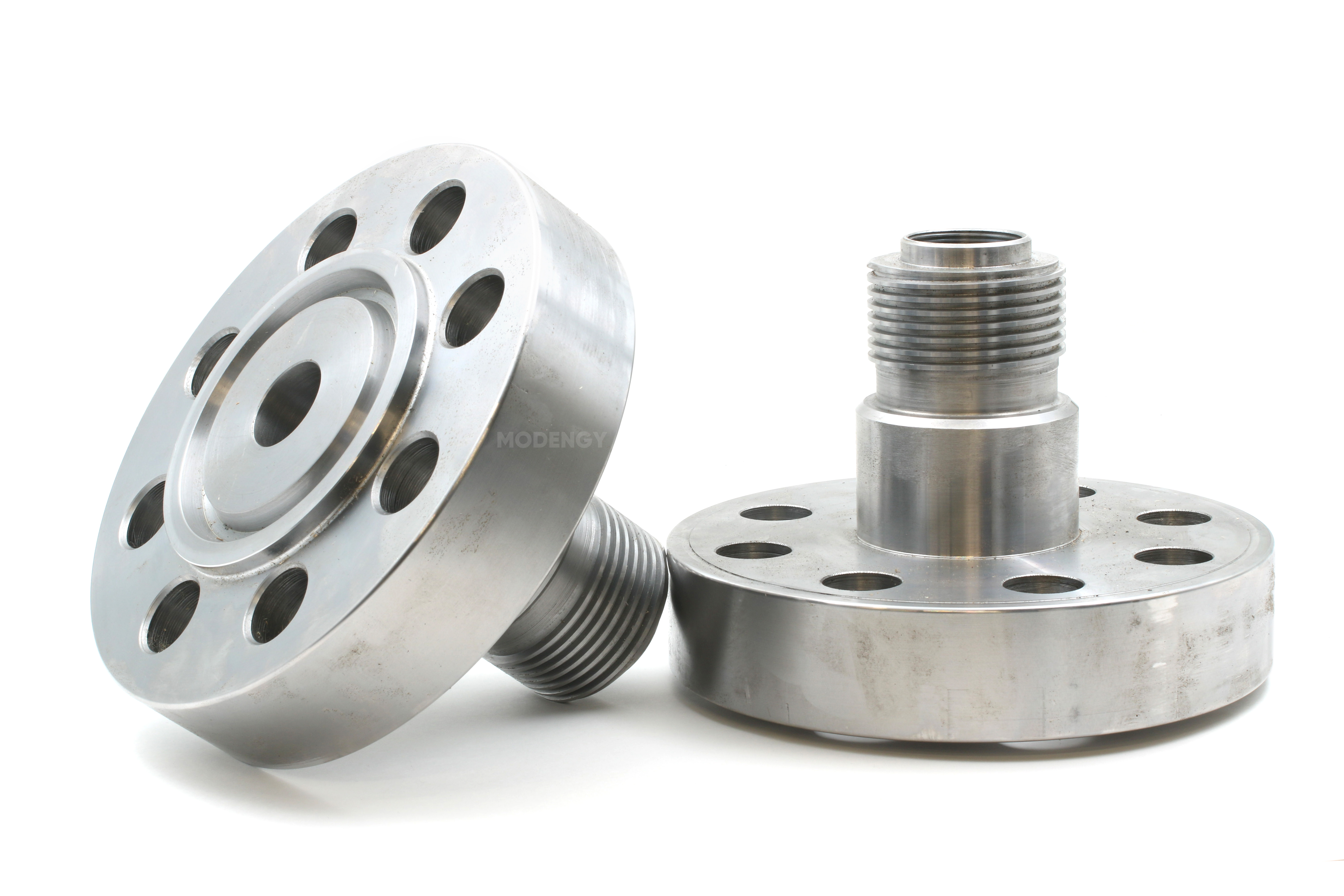

Fastening elements in the oil-and-gas field are operated under conditions of increased humidity, are exposed to chemically aggressive media.
Before
After

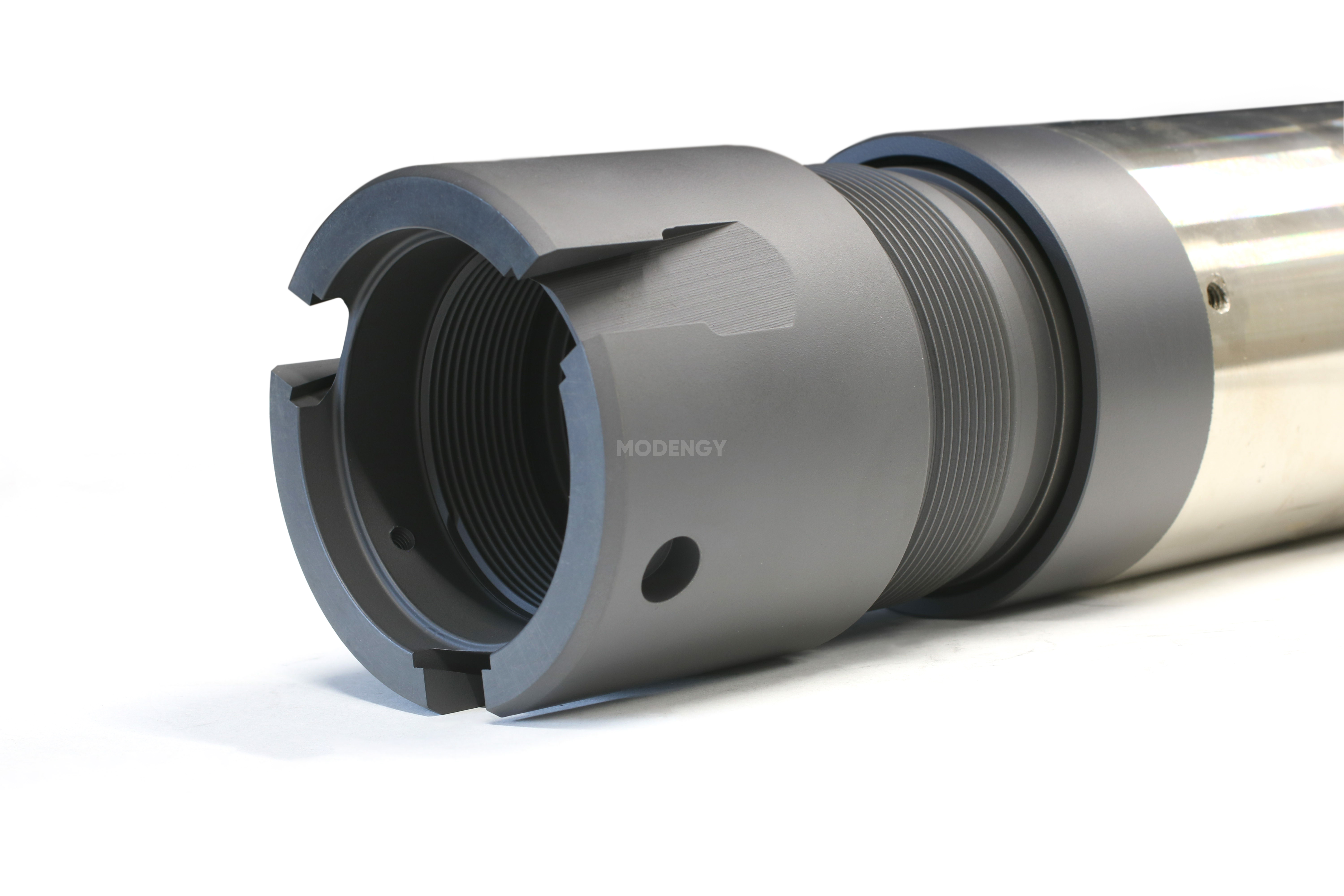

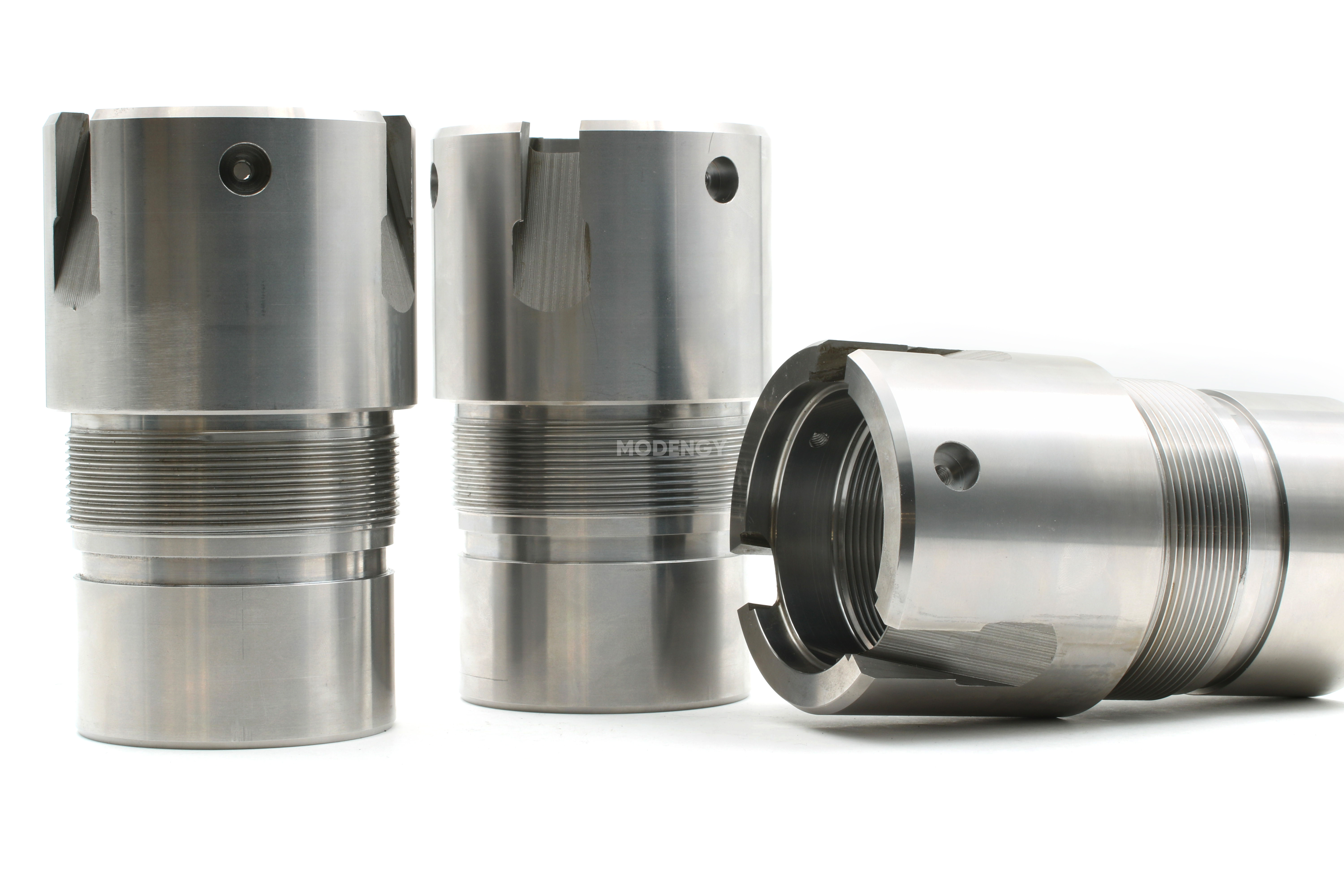

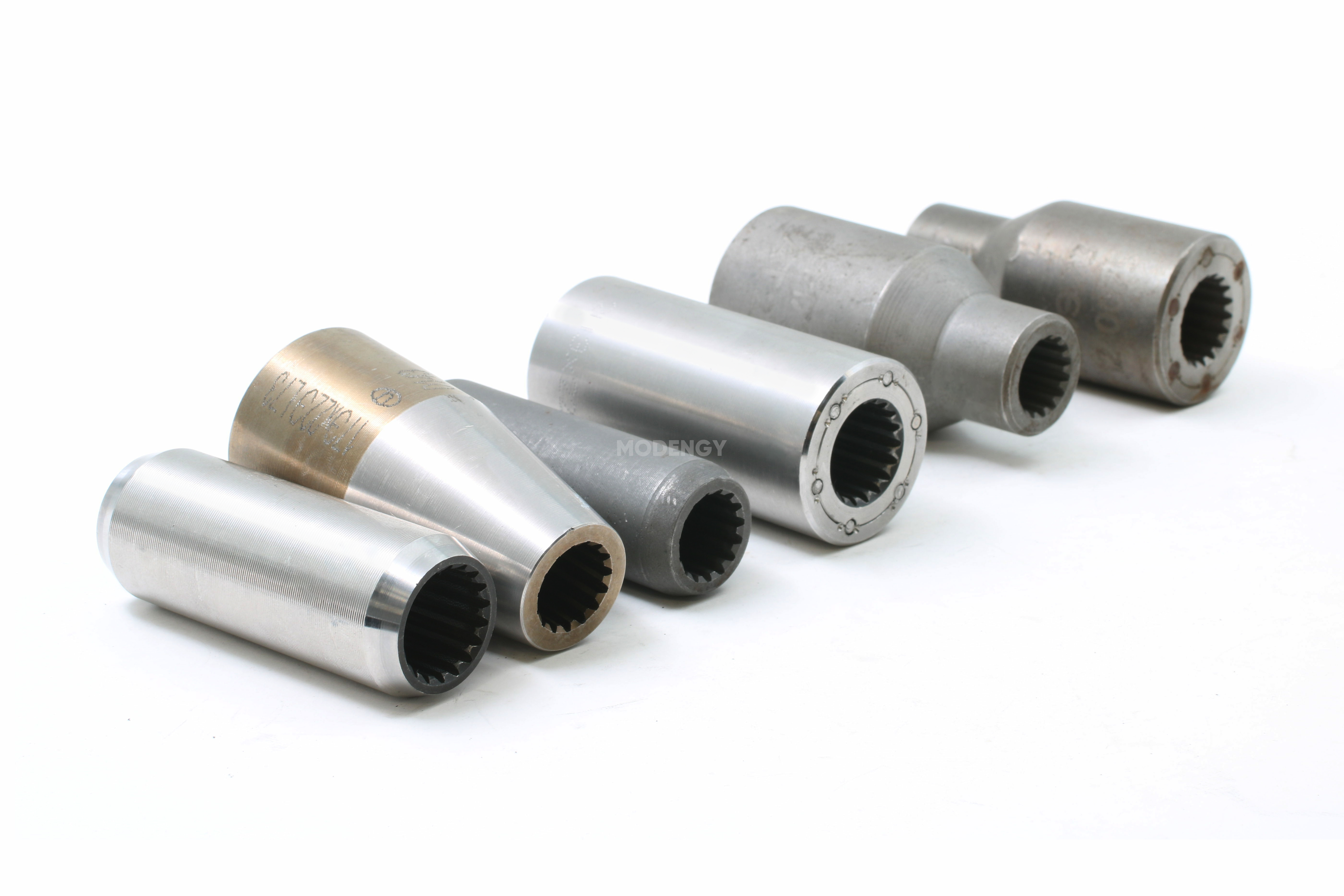

Applying MODENGY 1014 coating provides effective protection for the couplings against impact of aggressive external factors. This is a proved solution to extend service term and improve operational reliability of the oil and gas equipment.
Before
After

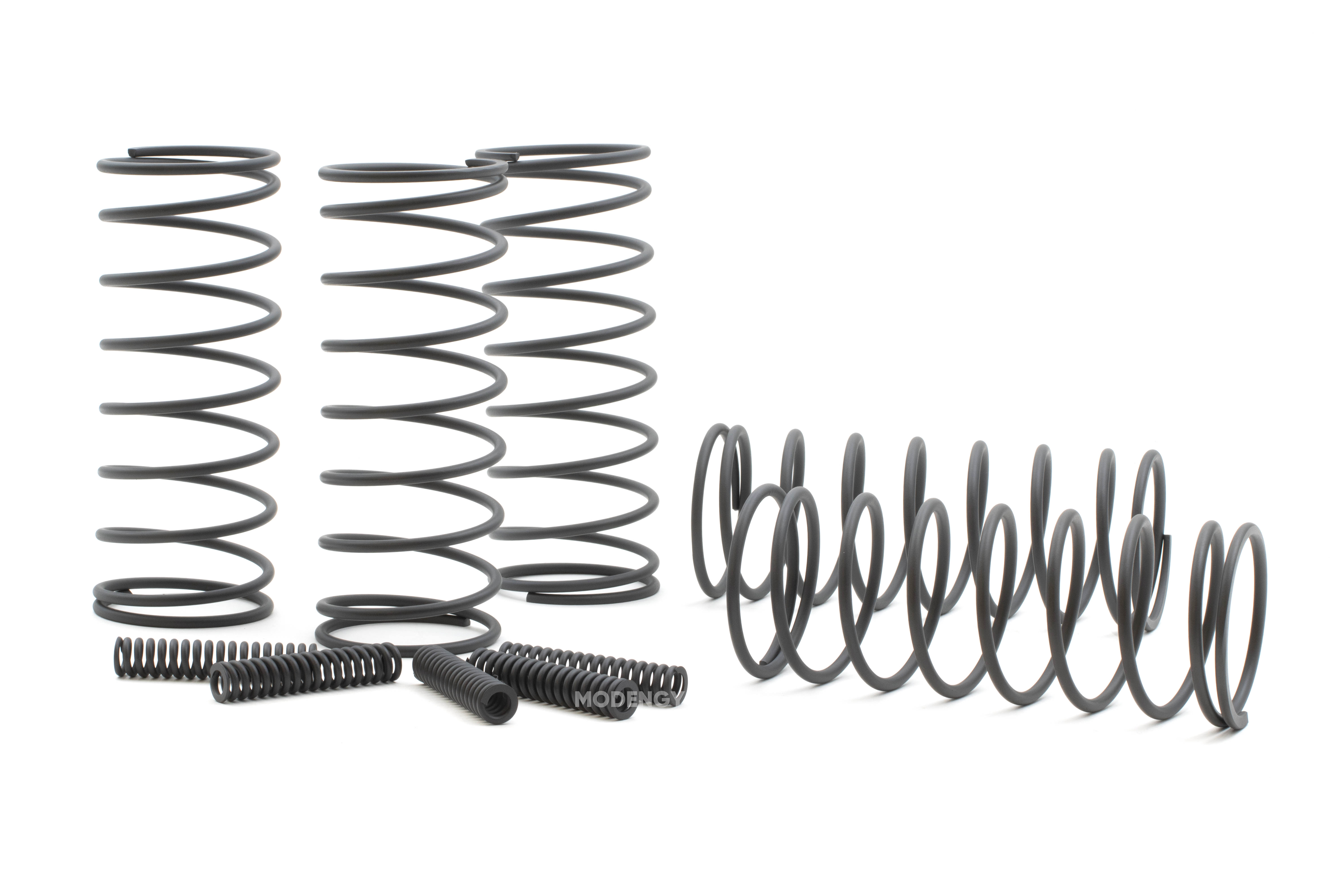

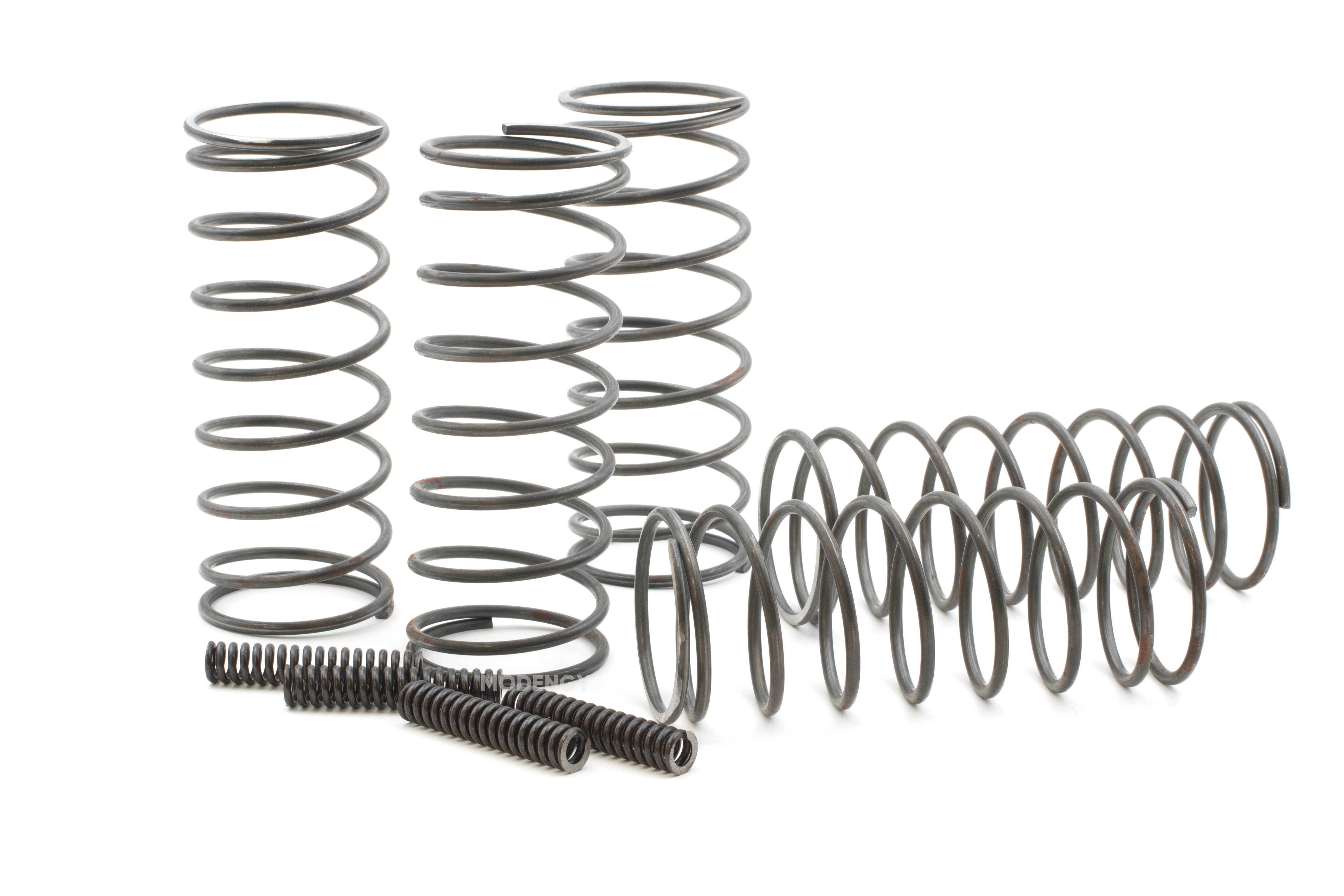

In order to extend service lifetime of the springs and to protect them against destruction, MODENGY 1014 anti-friction solid-film coating is applied onto them.
Before
After

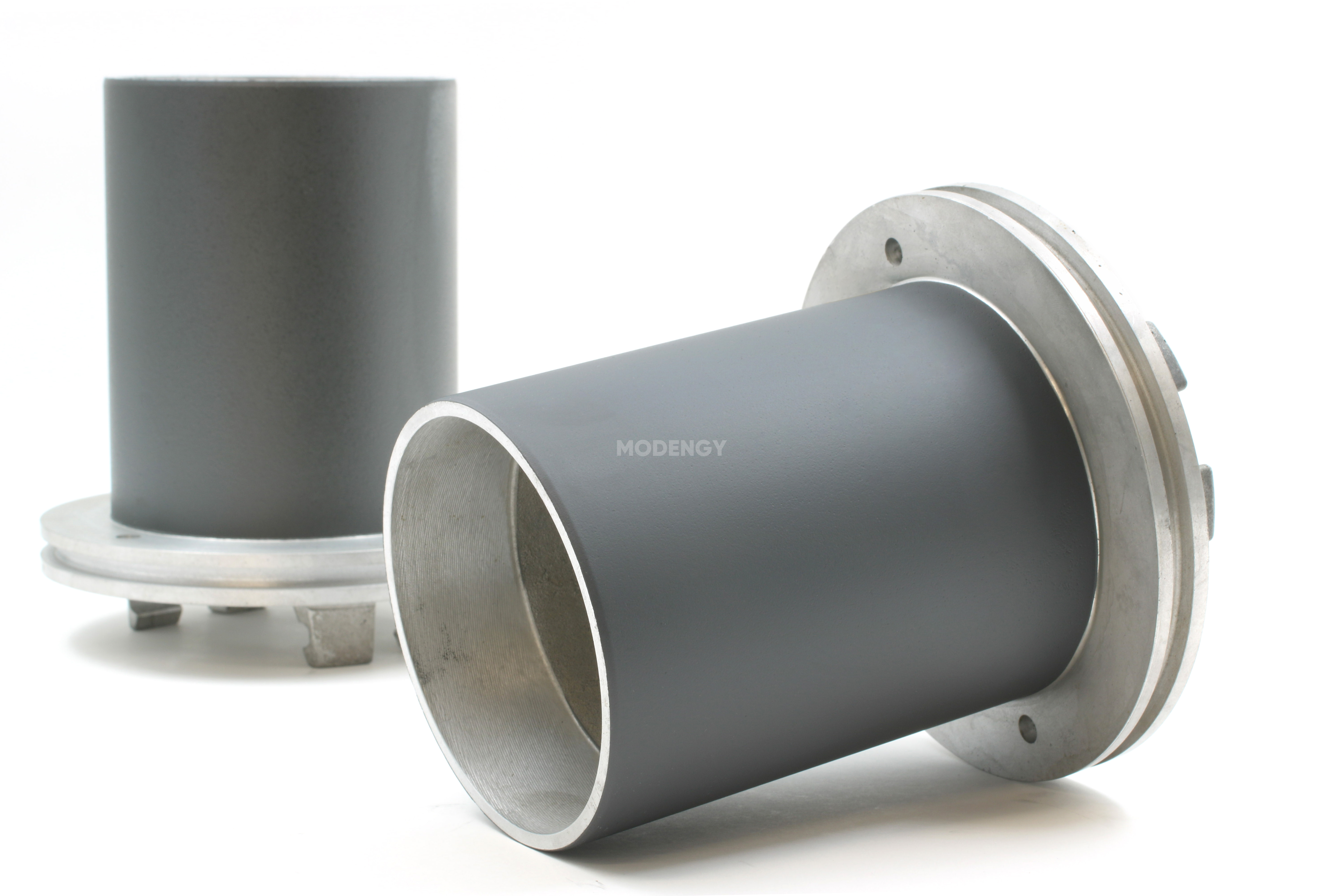

MODENGY 1014 anti-friction solid-film coating is applied onto internal surfaces of the pneumatic cylinders. It has low friction coefficient, and separating properties, prevents stick-slip motion, provides trouble-free operation of the painting machines.
Before
After

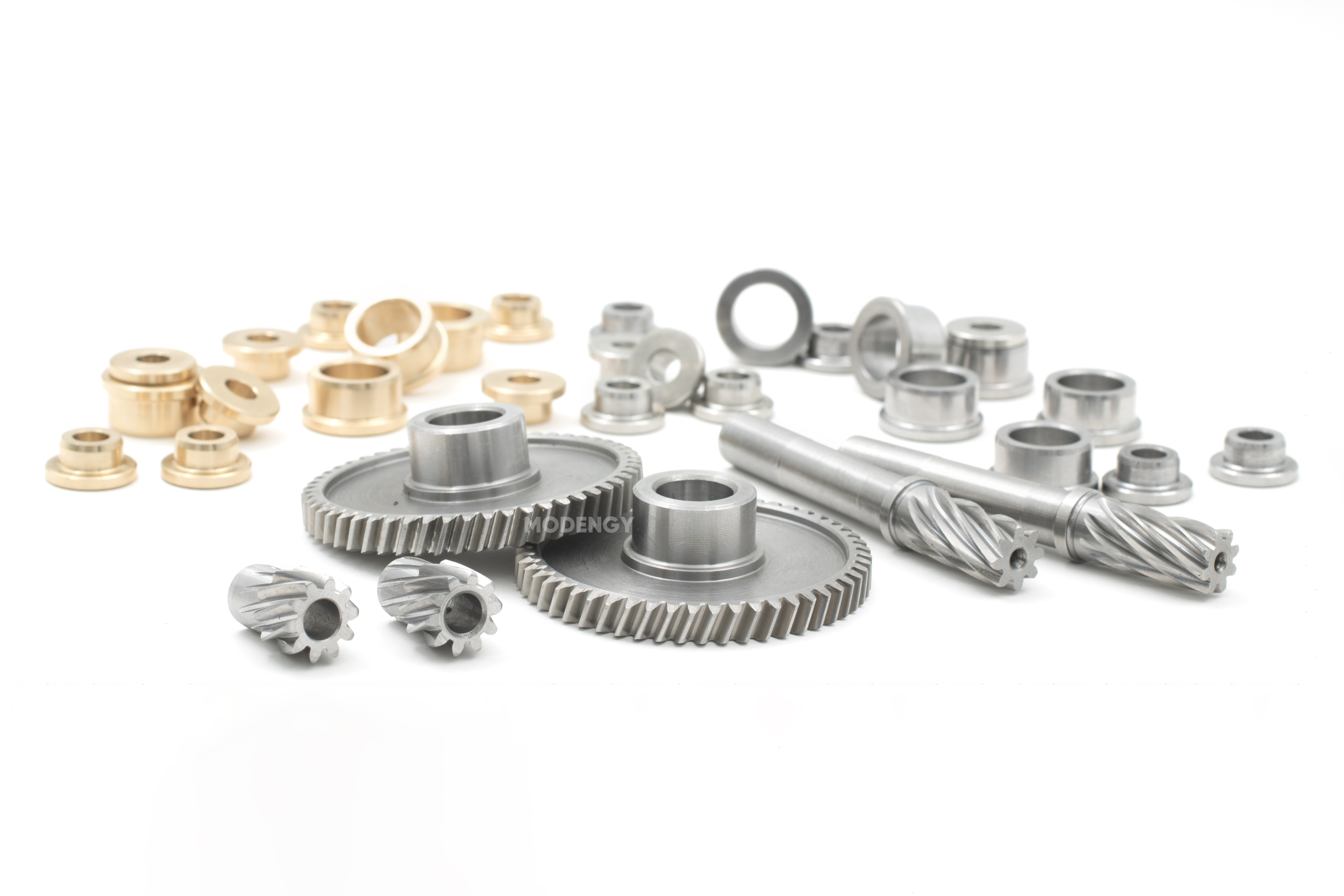

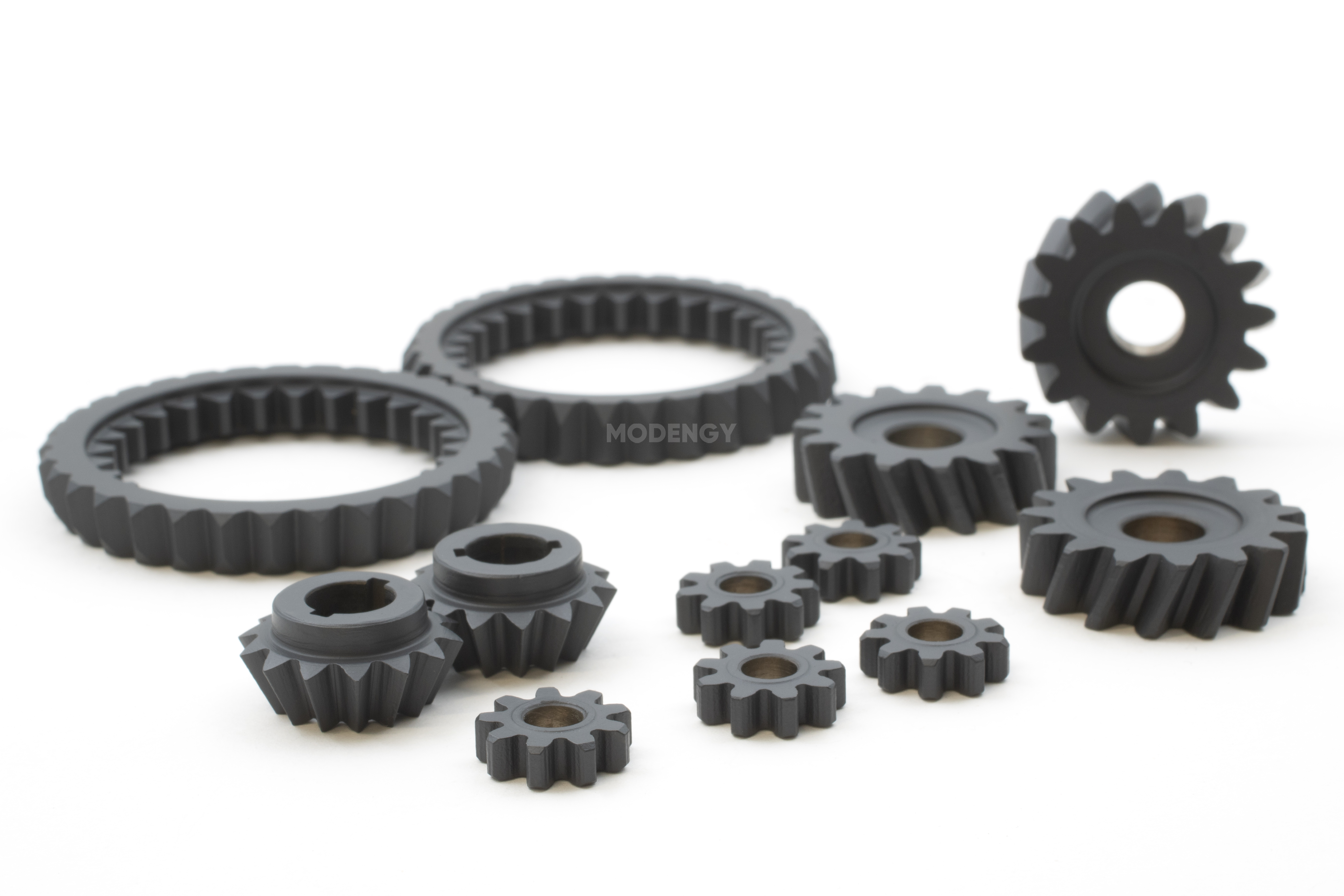

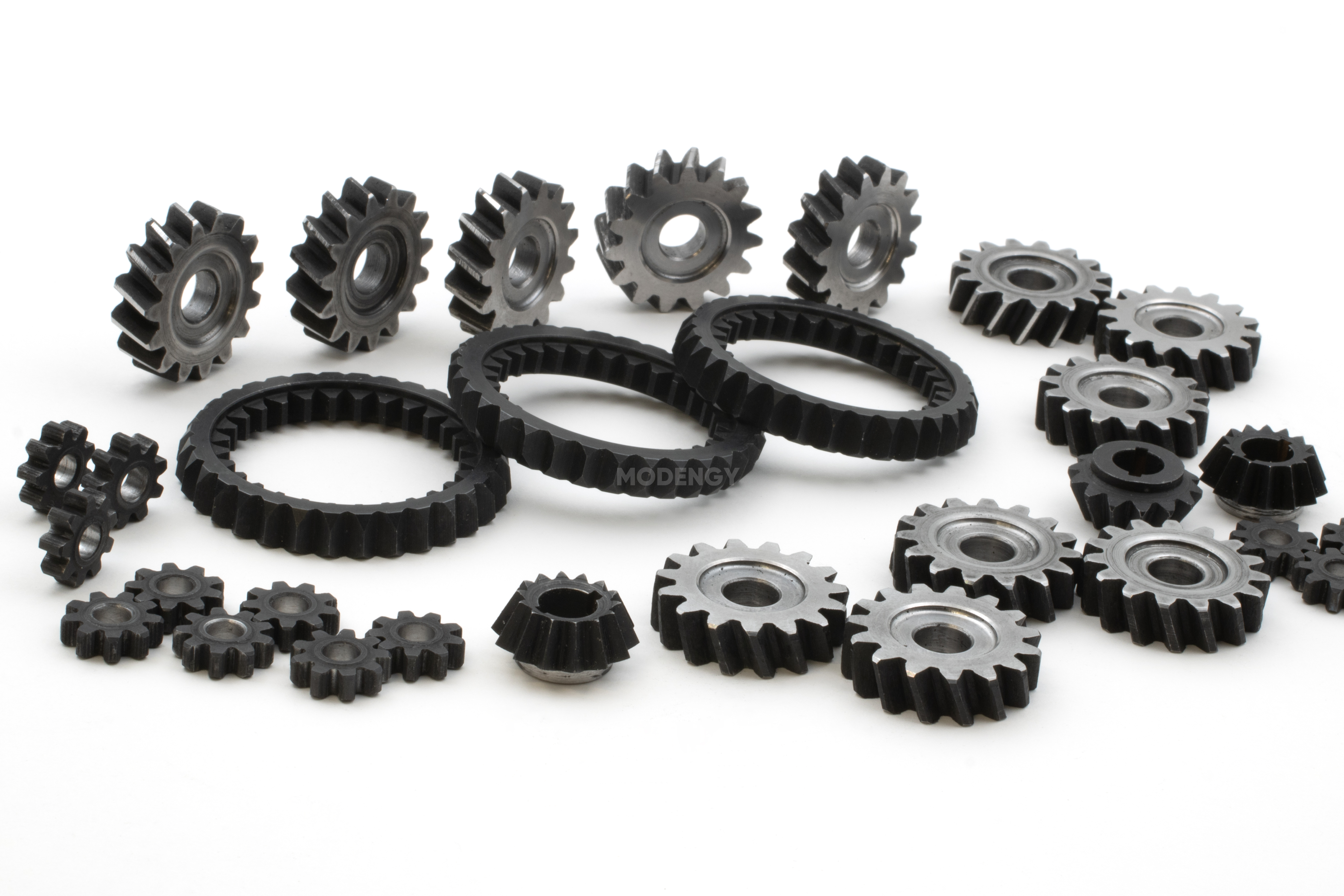

For the purpose of extending service lifetime and increasing efficiency of the pinions, MODENGY 1014 coating designed that provides a stable and low friction coefficient, and is capable to operate at high contact pressures.
Before
After
MODENGY 1014 coating enables to provide reliable operating of the spacecrafts under condition of extreme thermal loads.
Before
After
This coating based on molybdenum disulfide and polytetrafluorethylene provides effective reduction of friction and wear intensity in the unit as well as protects the parts against ice-covering at operating under conditions of low temperatures.
Before
After
They provide low friction coefficient at starting of the units after a long downtime, wear reduction, and protection against such chemically aggressive medium as antifreeze.
Before
After
They provide low friction coefficient at starting of the units after a long downtime, wear reduction, and protection against such chemically aggressive medium as antifreeze.
Before
After

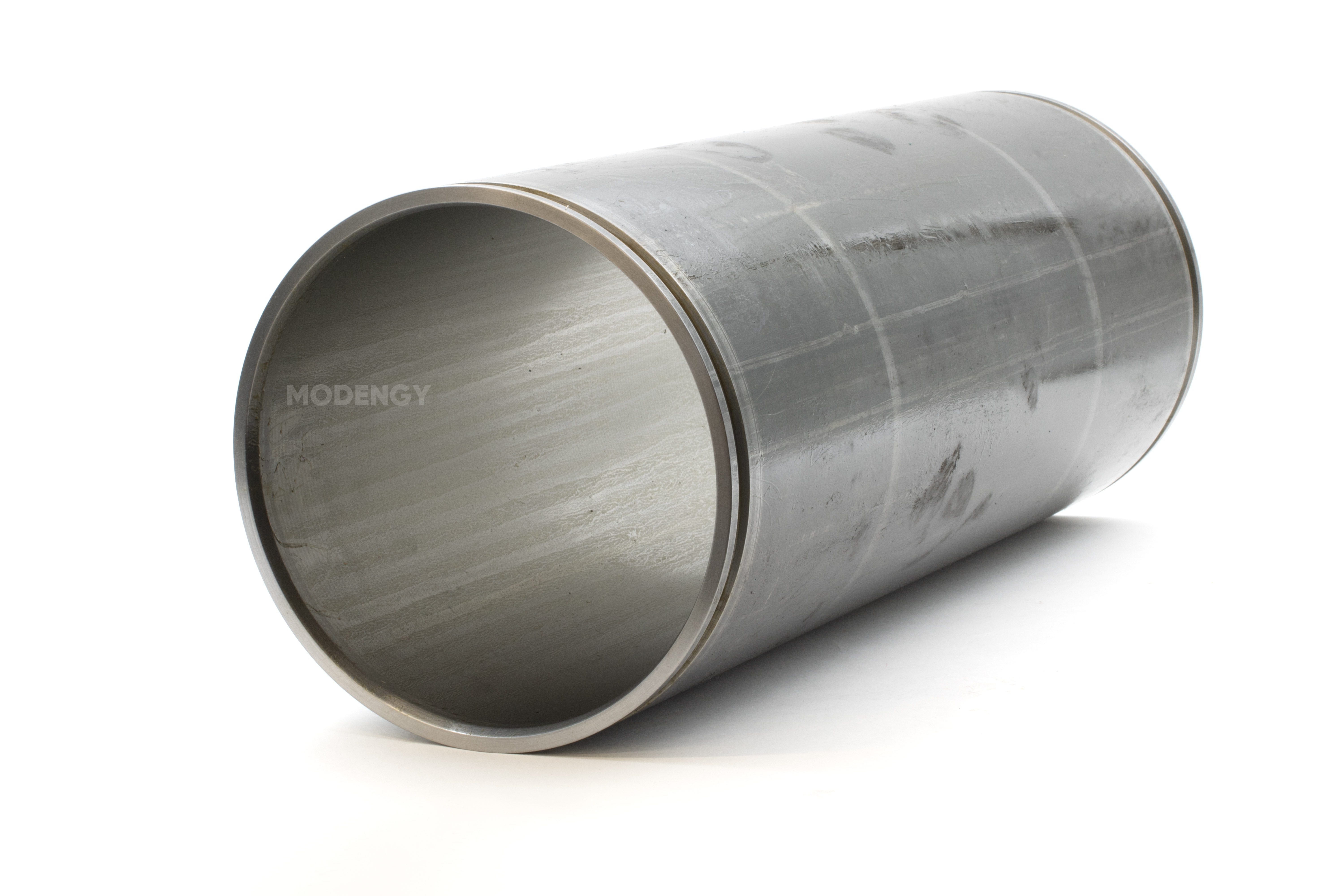

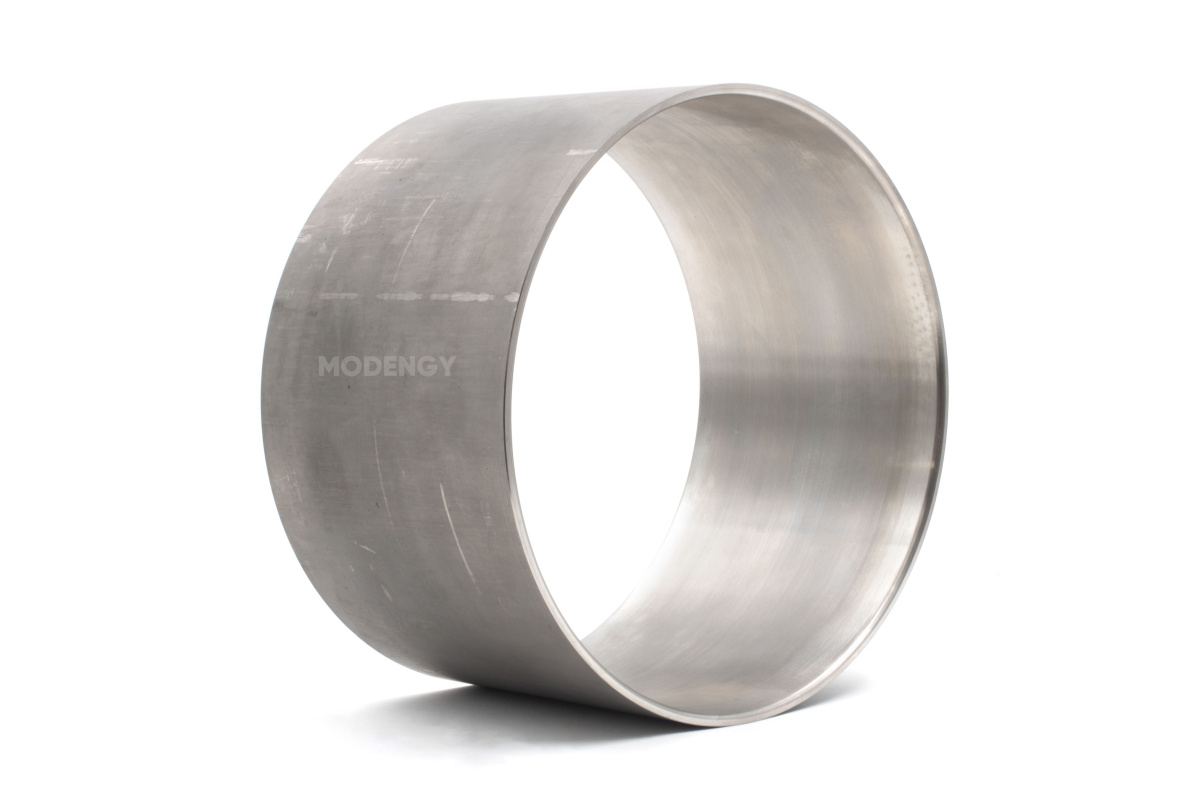

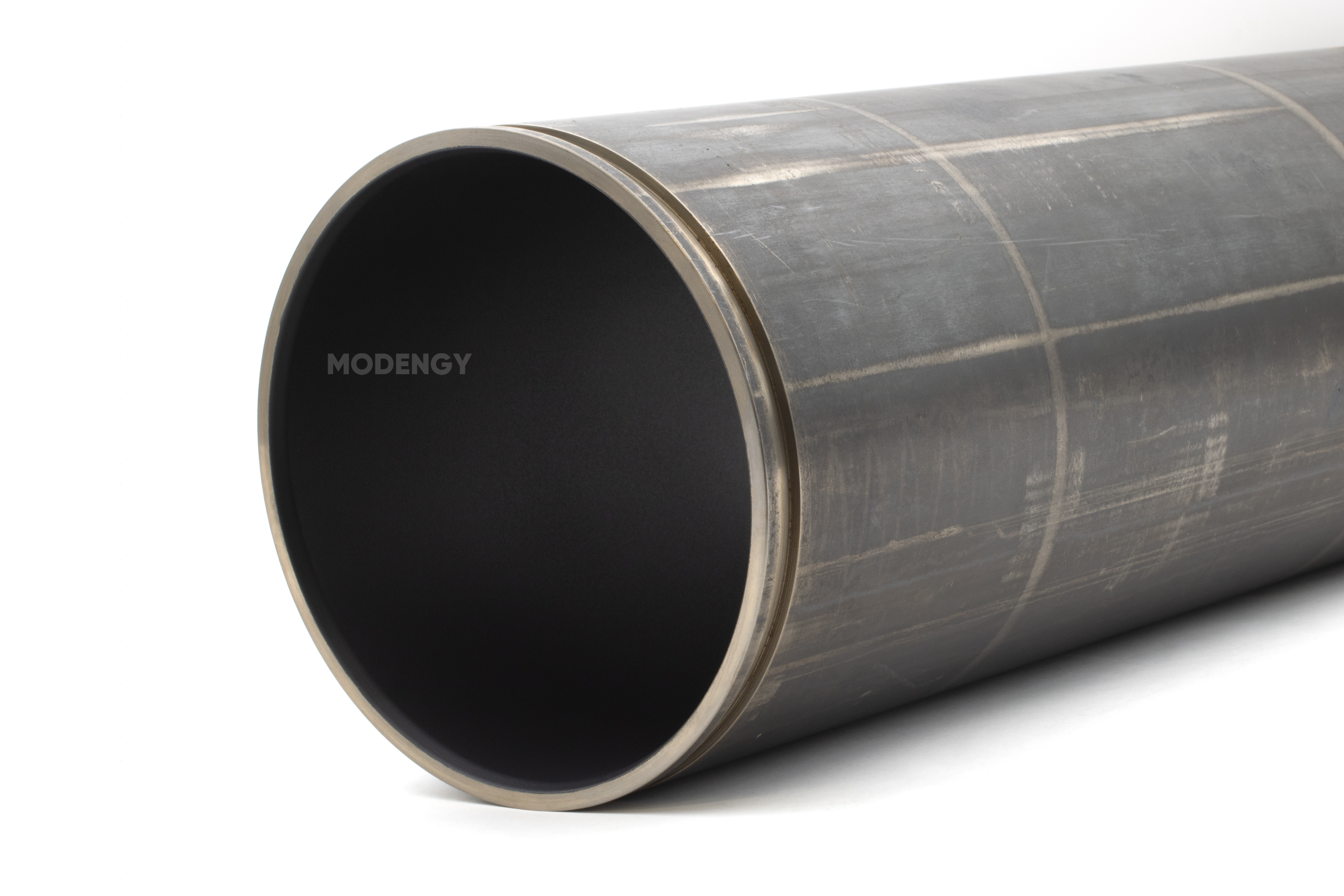

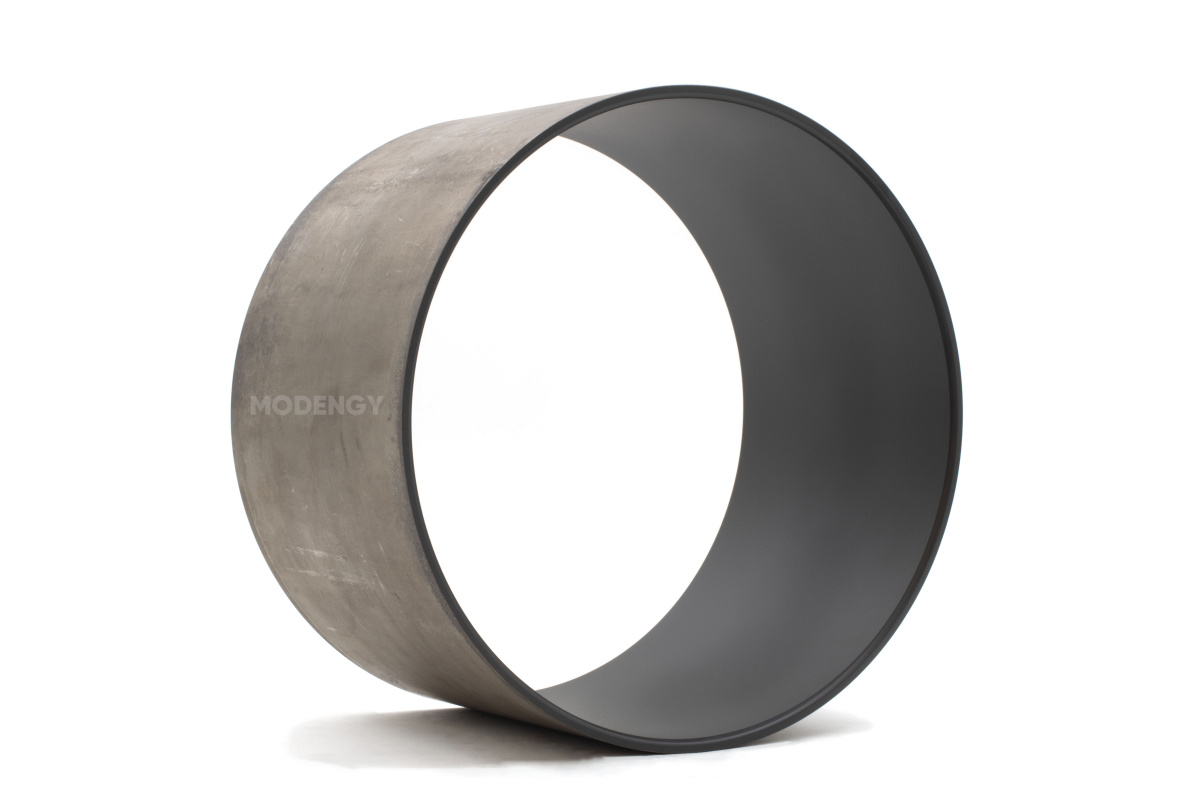

MODENGY 1014 antifriction solid-film coating is used to protect the internal surfaces of the pneumatic cylinder liners from corrosion.
Before
After

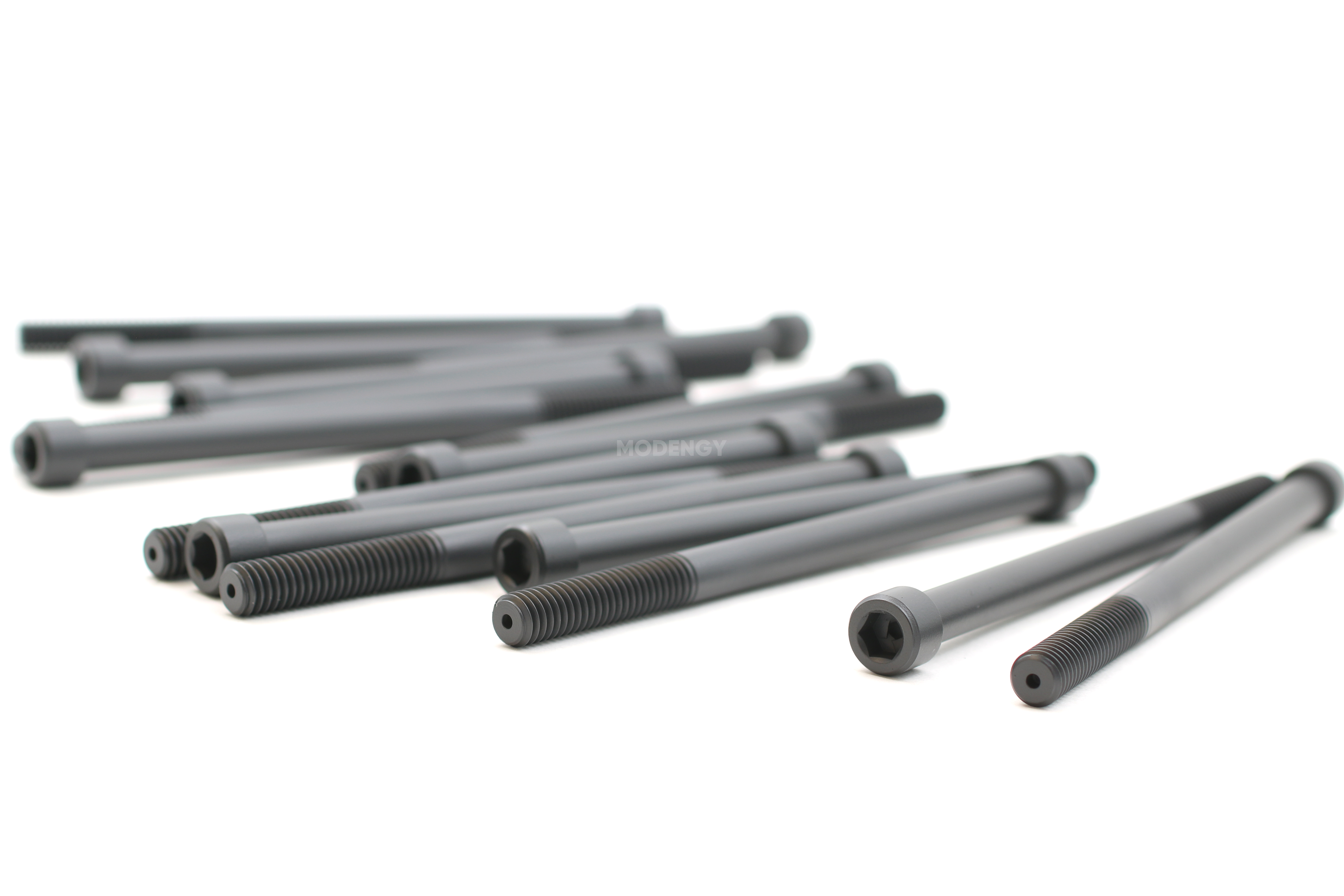

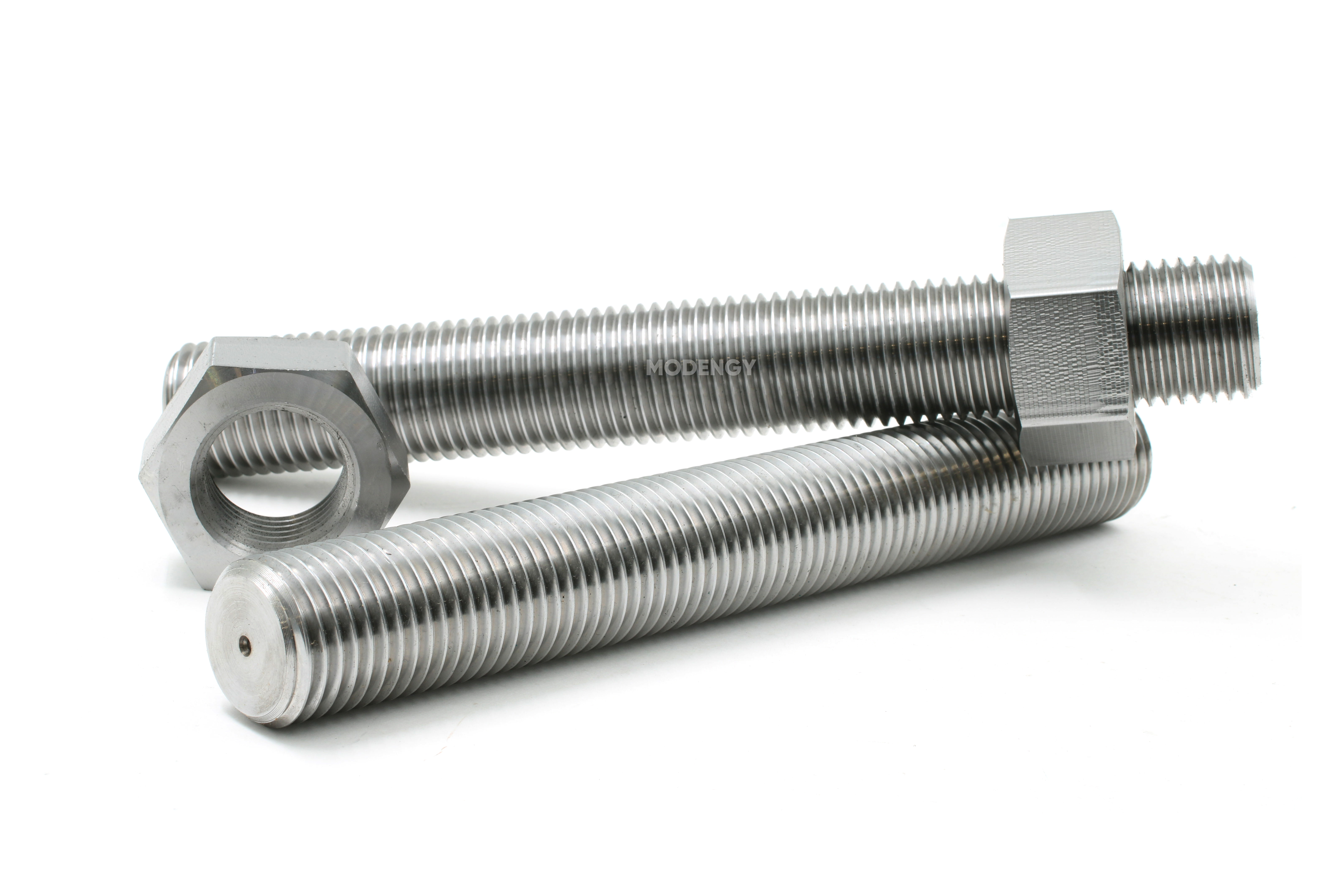

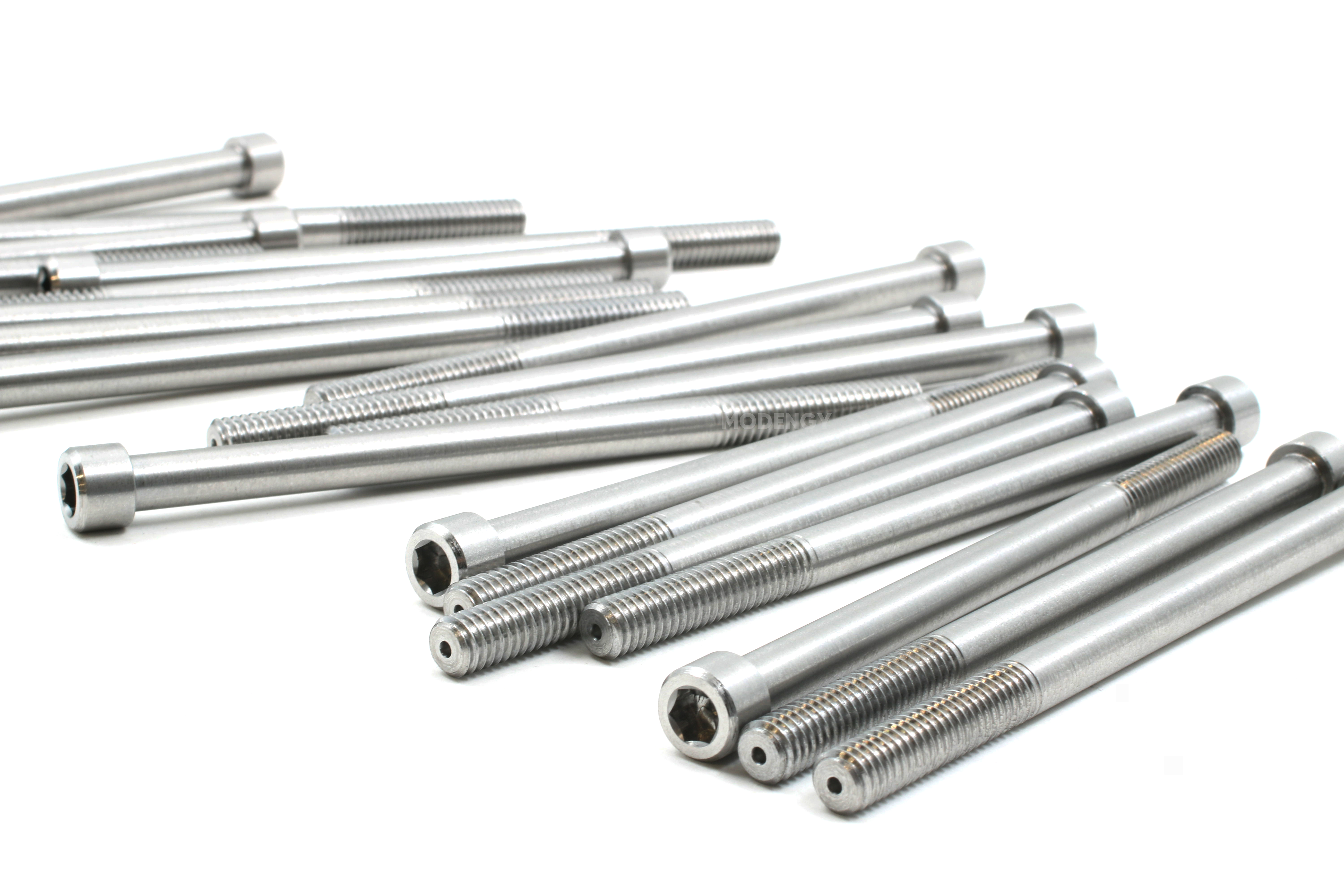

MODENGY 1014 coating based on polytetrafluorethylene and molybdenum disulfide effectively reduces friction, and protects steel screws against corrosion.
Before
After
For the purpose of protecting these parts against wearing, and to extend service lifetime of the equipment, MODENGY 1003 and MODENGY 1014 anti-friction solid-film coatings are used.
Before
After

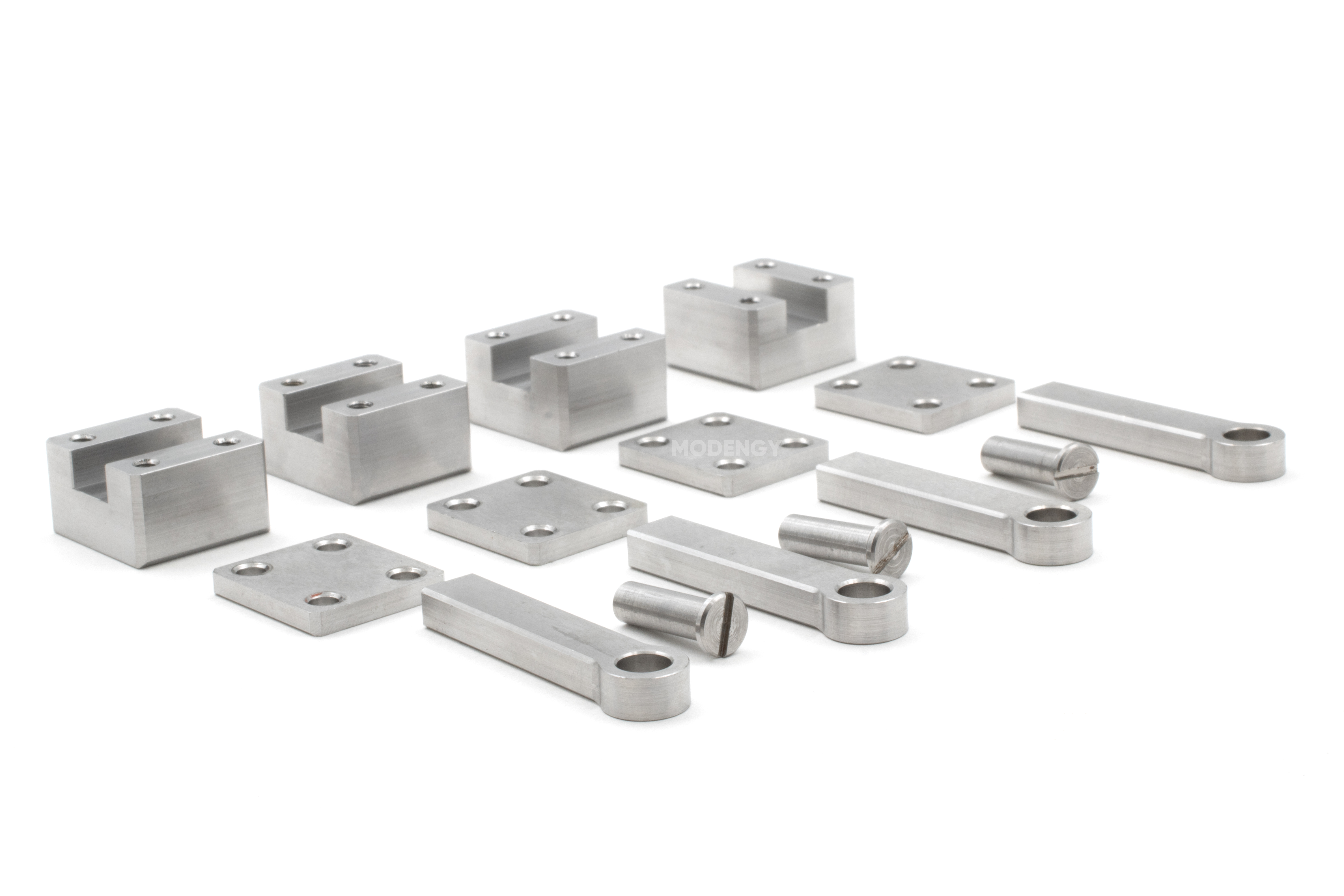

In order to provide long protection against atmospheric and chemical corrosion, MODENGY 1014 anti-friction solid-film coating based on molybdenum disulfide and polytetrafluorethylene is applied onto the parts.
Before
After
In order to provide low friction coefficient and prevent wearing, MODENGY 1014 coating is getting applied onto the flow-meter parts.
Before
After

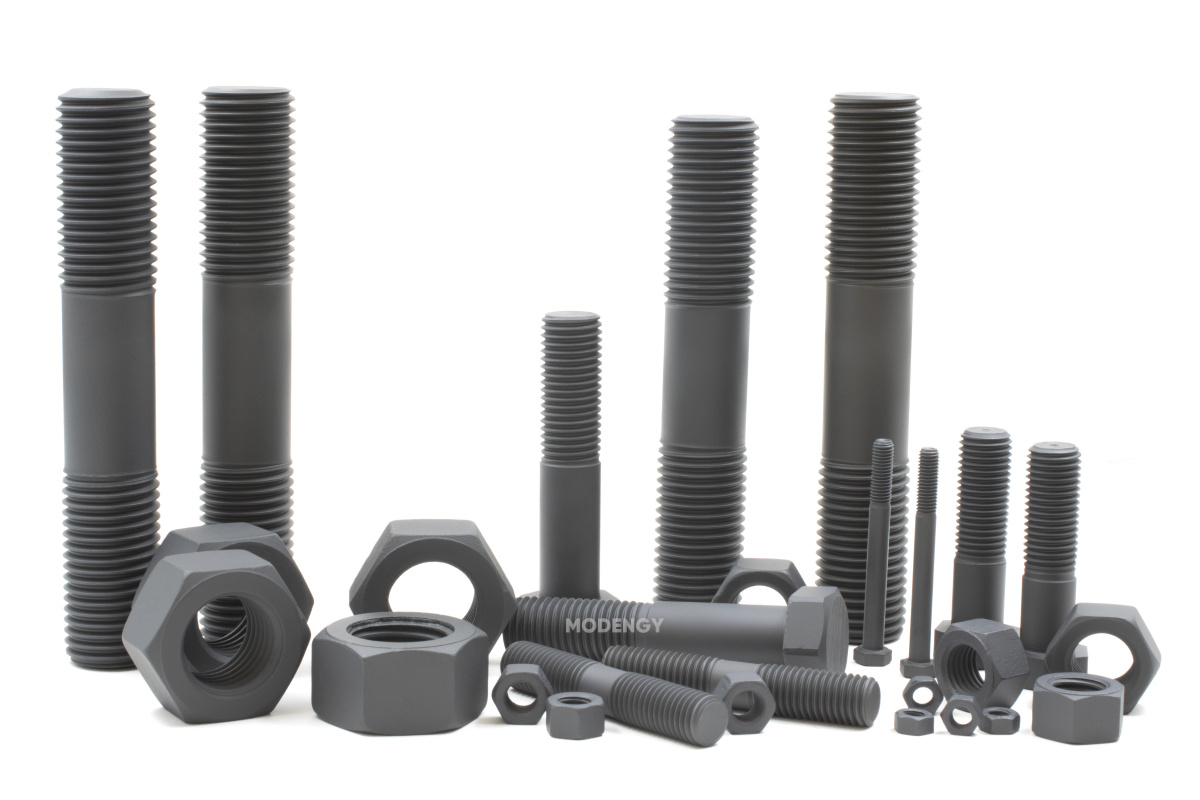

MODENGY coatings system successfully replaces imported coatings for oil-and-gas equipment fasteners demonstrating great results in comparative tests.
Before
After

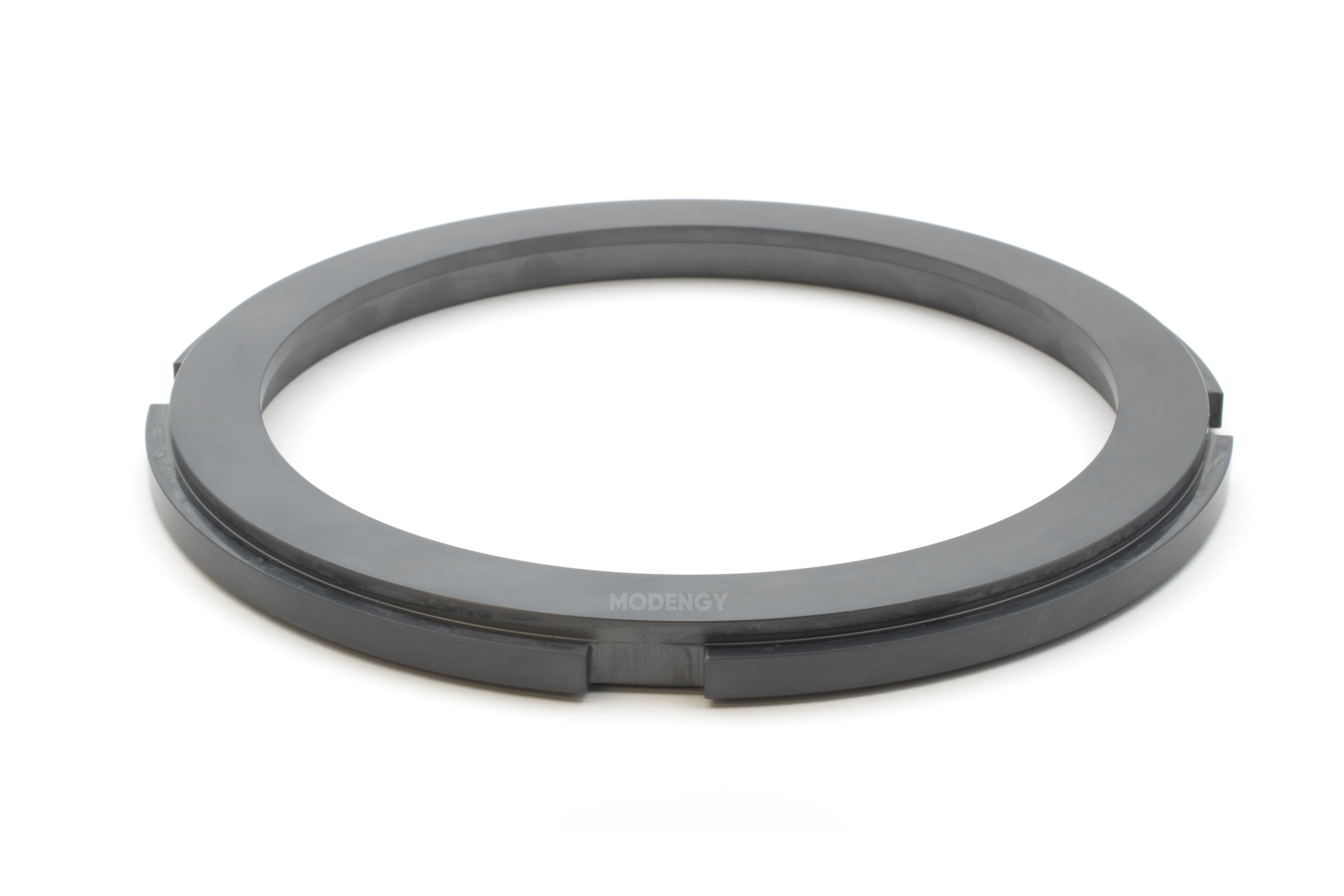

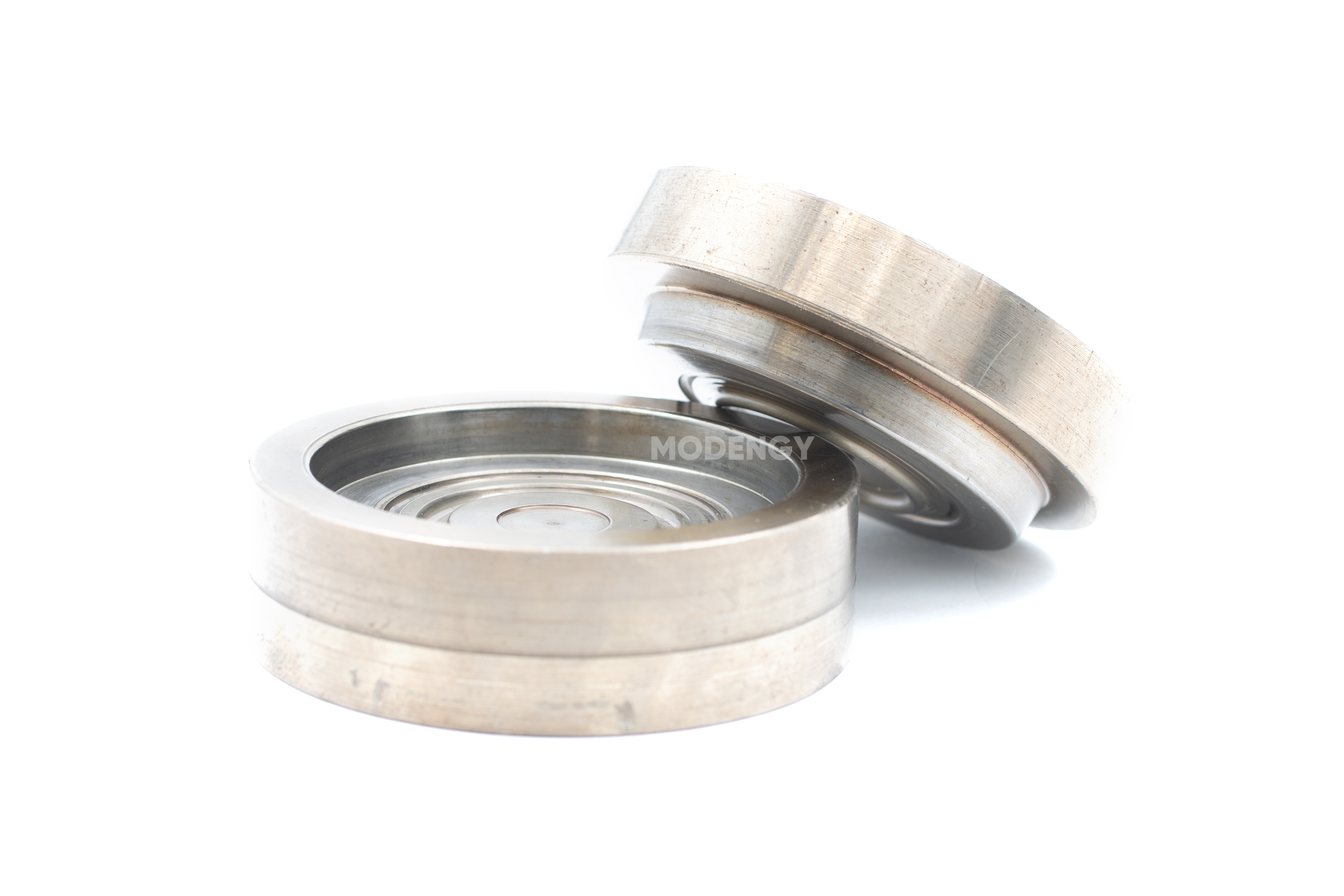

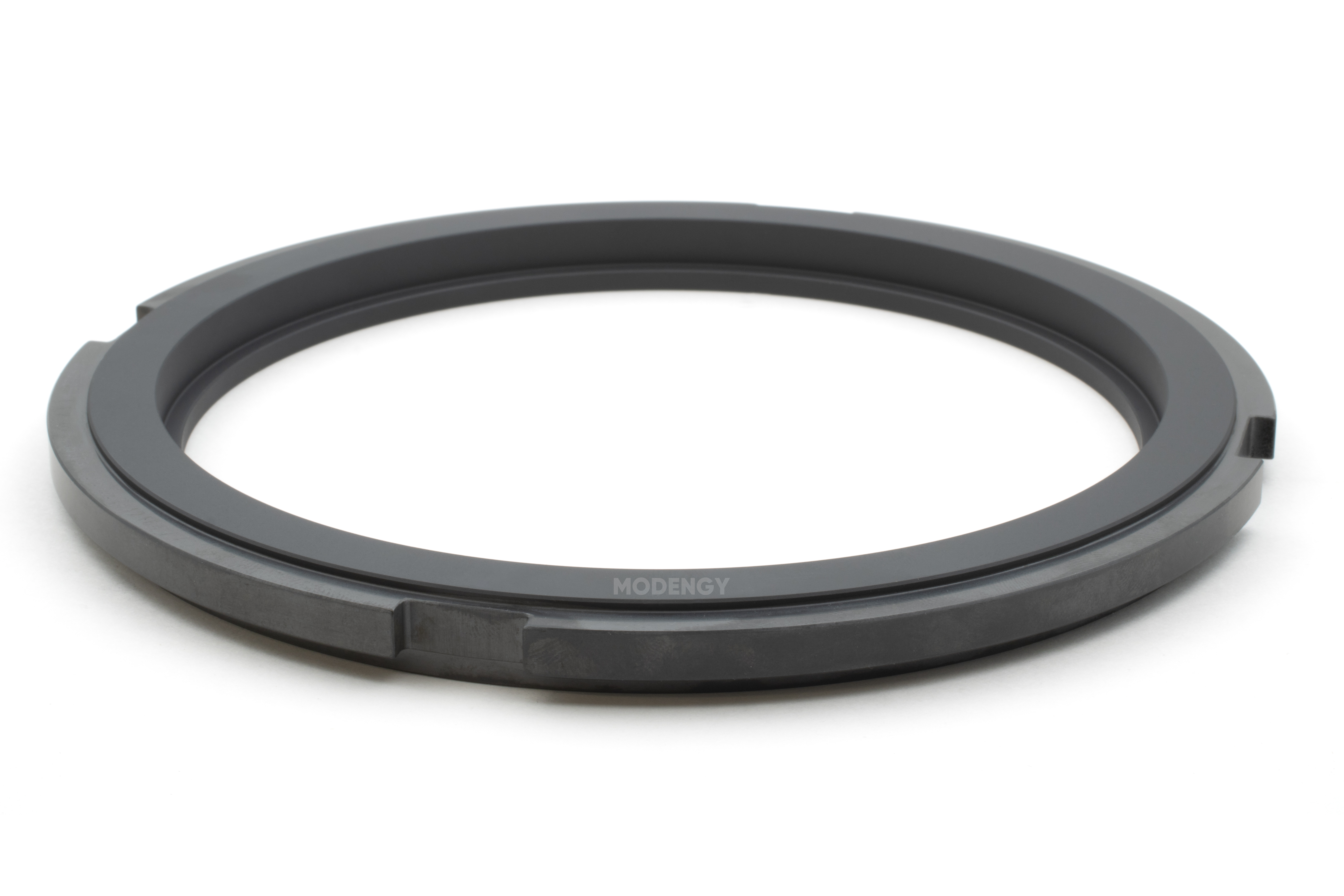

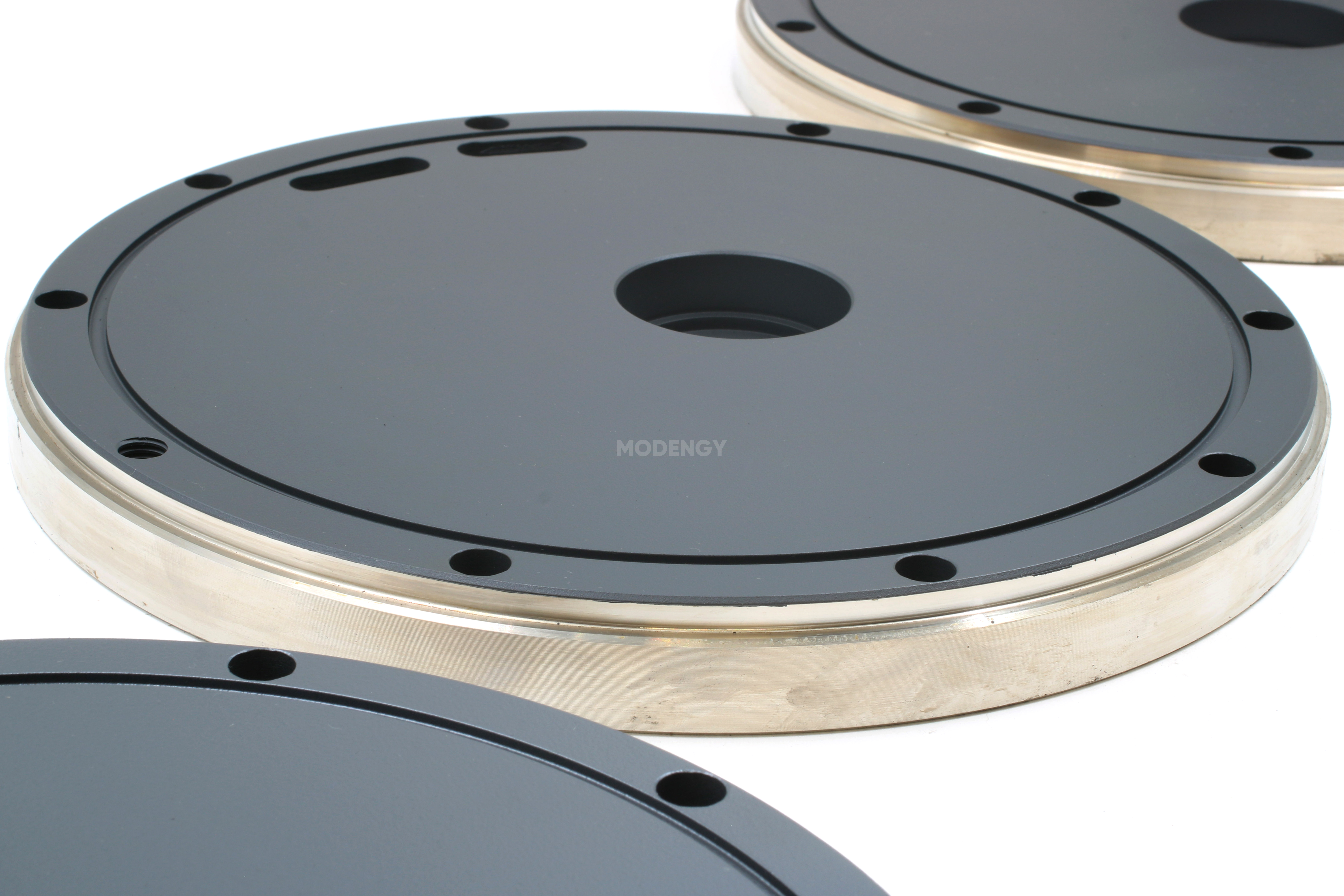

MODENGY 1014 solid-film coating having high anti-friction and protective properties is applied onto Face seals.
Additional expendable materials
and equipment
- MODENGY स्पेशल क्लीनर-एक्टिवेटर सतहों को साफ करने, ग्रीस हटाने और सक्रिय करने के लिए अभिप्रेत है
- MODENGY 1013 स्पेशल साल्वेंट कोटिंग लगाने के बाद उपकरणों को धोने, बिना सूखी कोटिंग को हटाने, कोटिंग पॉलिमराइजेशन की पूर्णता को नियंत्रित करने के लिए
- MODENGY M1-250 स्प्रे गन - MODENGY एंटी-फ्रिक्शन सॉलिड-फिल्म कोटिंग्स लगाने के लिए
Advantages
- कम Friction coefficient
- रासायनिक प्रतिरोध (Chemical resistance)
- Room temperature पर तेज़ी से cure होना।
- विस्तृत service temperature range
- Dust environment में Workability
- उच्च Adhesion
- पूरी तरह से cure होने के बाद non-toxic।
- यह stick-slip motion को रोकता है।
- Properties को अलग करना
- दीर्घकालिक Service life
- यह Robots के साथ parts assembly की गति को बढ़ा देता है।
- उच्च Anticorrosive गुण
Specifications
- रंग: grey
- Service temperatures range: -75 … +255 °С
- Corrosion protection: > 672 hour (ISO 9227)
- Standard coating consumption: 55 g / m²
- Cure temperature / time: +200 °C / 40 min
It is used in the following typical units
स्लाइडिंग बियरिंग्स, स्लाइडिंग गाइडवे, थ्रेडेड कनेक्शन, धातु/धातु, धातु/प्लास्टिक, धातु/रबर घर्षण जोड़े वाली अन्य इकाइयाँ
