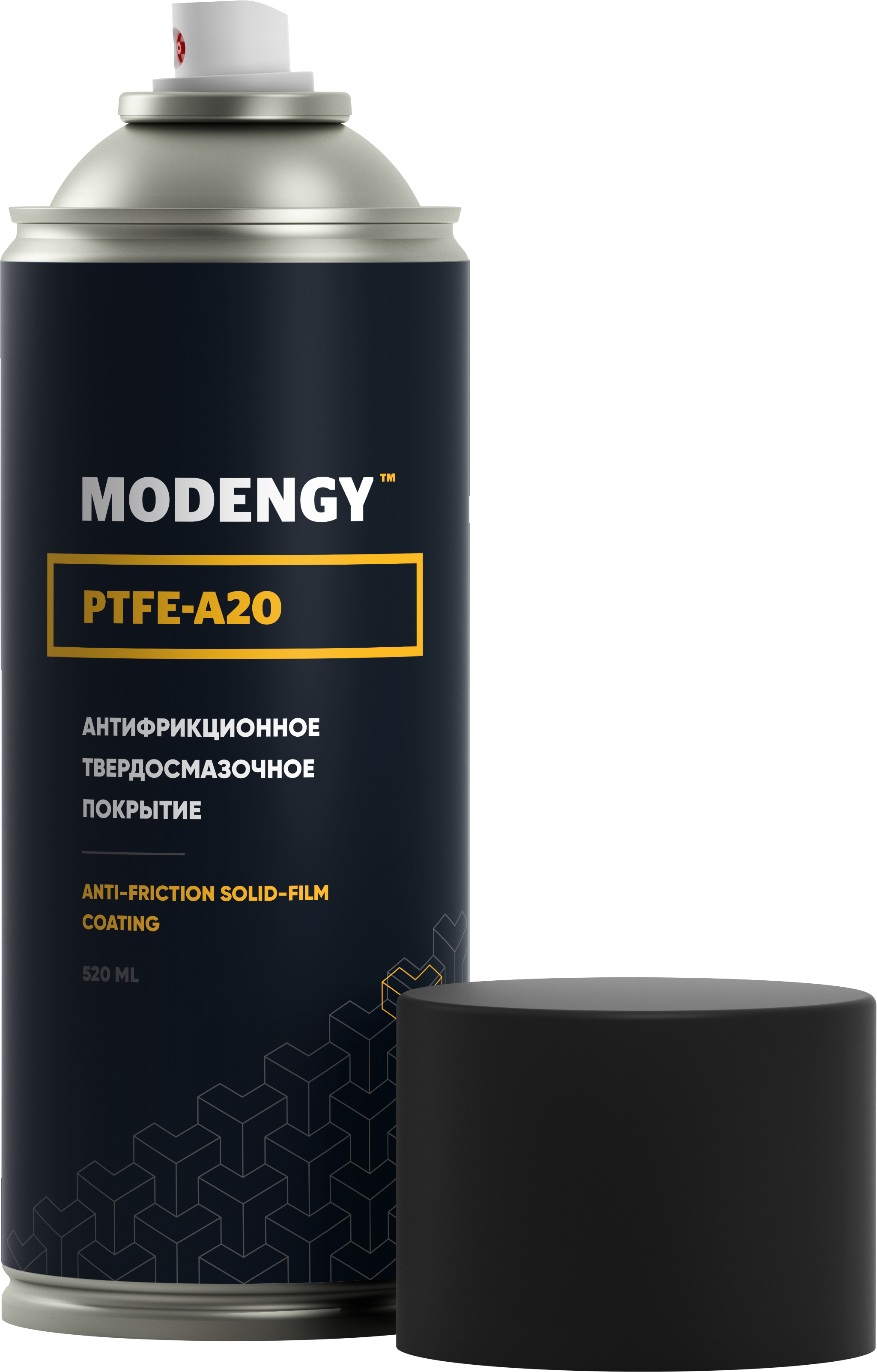

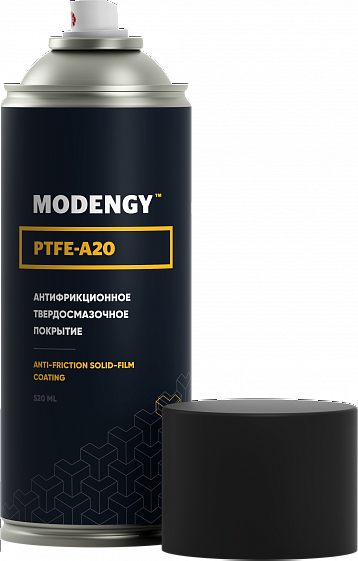

MODENGY PTFE-A20

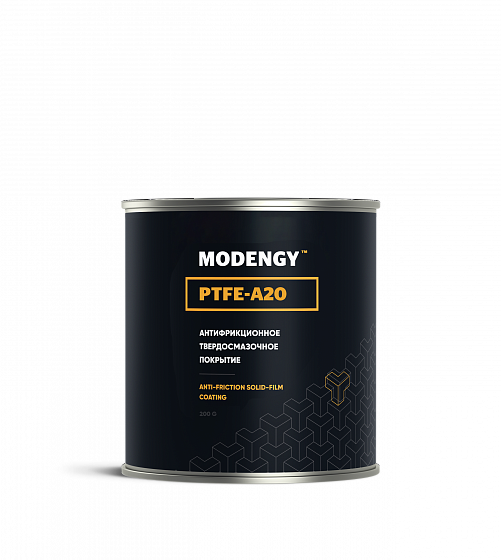

200 G
520 ML

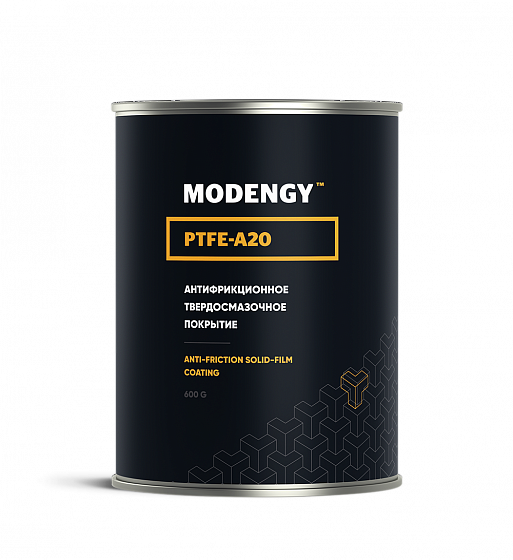

600 G

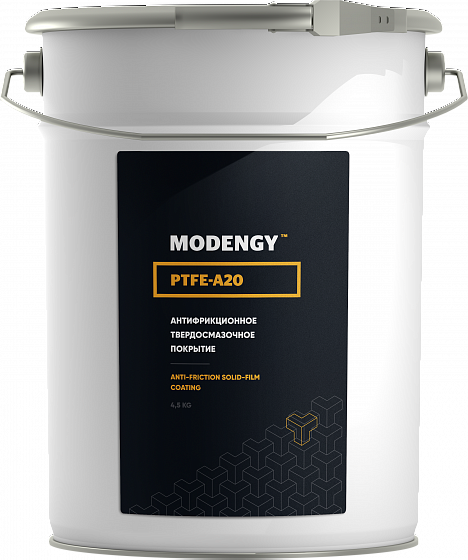

4.5 KG
Polytetrafluorethylene (PTFE) पर आधारित anti-friction solid-film coating
इसका उपयोग पाइपलाइन फिटिंग के सीलिंग उपकरणों में एक एंटी-अधेशन एजेंट के रूप में किया जाता है जो चिपकने से रोकता है, और फिसलन में सुधार करता है। इसे कार के आंतरिक भागों, स्लाइडिंग दरवाजों के पुर्जों, फर्नीचर के कब्जों, कार्यालय उपकरणों के घटकों, लकड़ी और धातु प्रसंस्करण में मशीन टूल्स के स्लाइडिंग गाइड, कपड़ा उद्योग में, पैकेजिंग उपकरण इकाइयों और पुर्जों (पैकेजिंग सामग्री को चिपकने से सुरक्षा) पर लगाया जाता है।
Package sizes:
MODENGY PTFE-A20 in action
Before
After
In order to extend service lifetime of the crimping pads, MODENGY PTFE-A20 coating based on polytetrafluorethylene is used. It effectively reduces friction between rubber and foil improving operating and reducing wear of the equipment.
Before
After

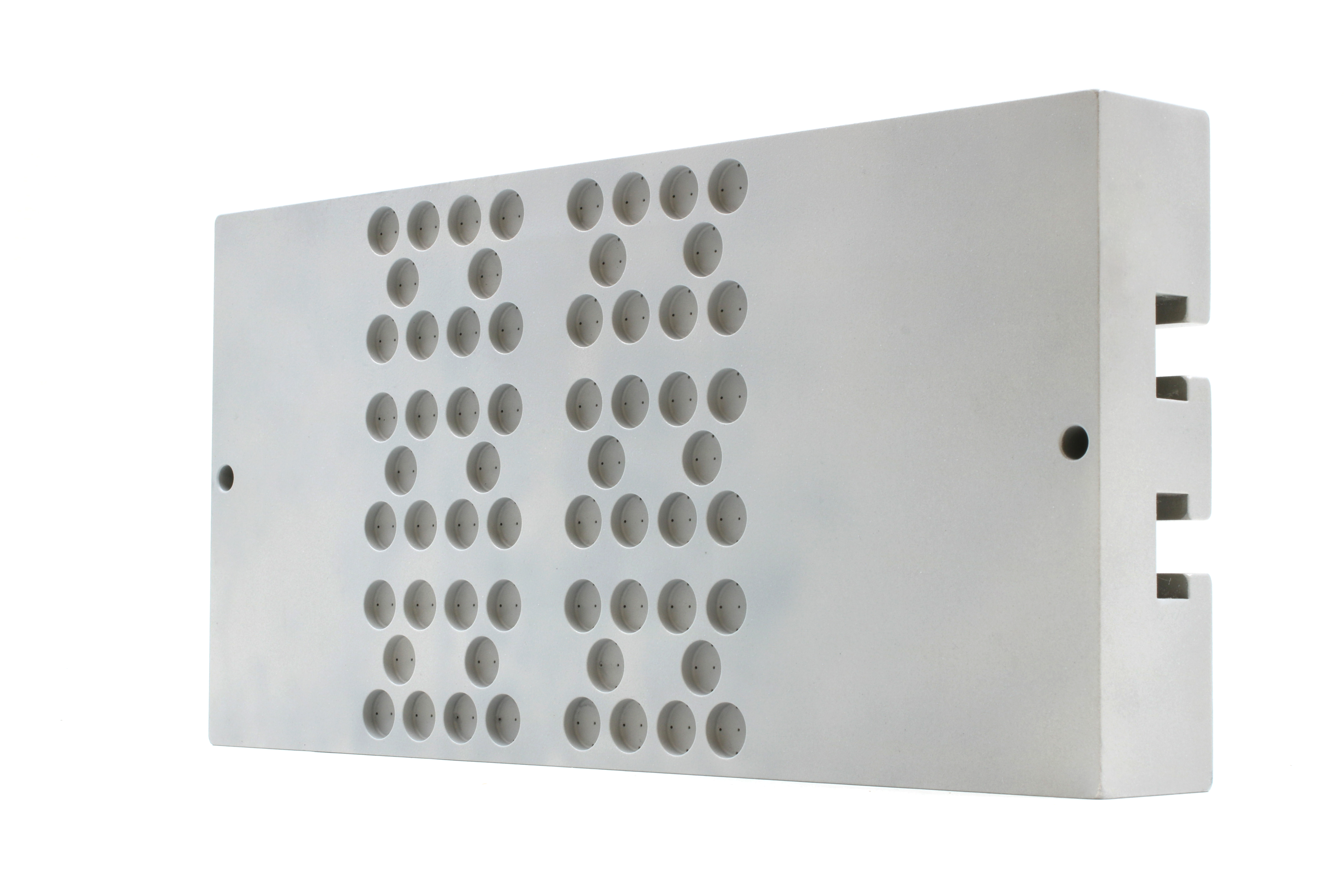

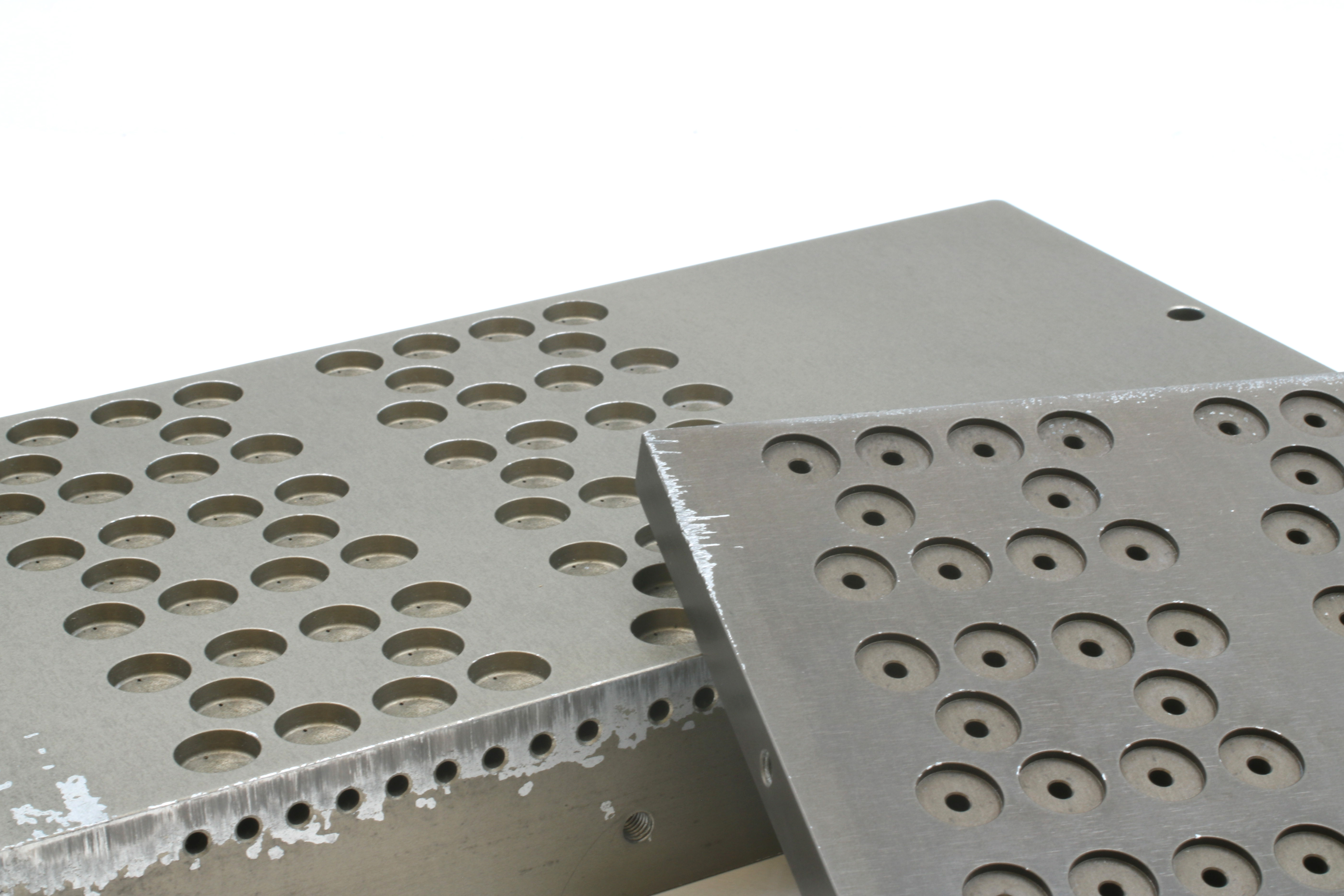

Due to its anti-adhesive properties, MODENGY PTFE-A20 coating based on polytetrafluorethylene prevents polymer material from sticking to the surfaces of the plates in process of moulding a blister type package for pharmaceutical preparations.
Before
After

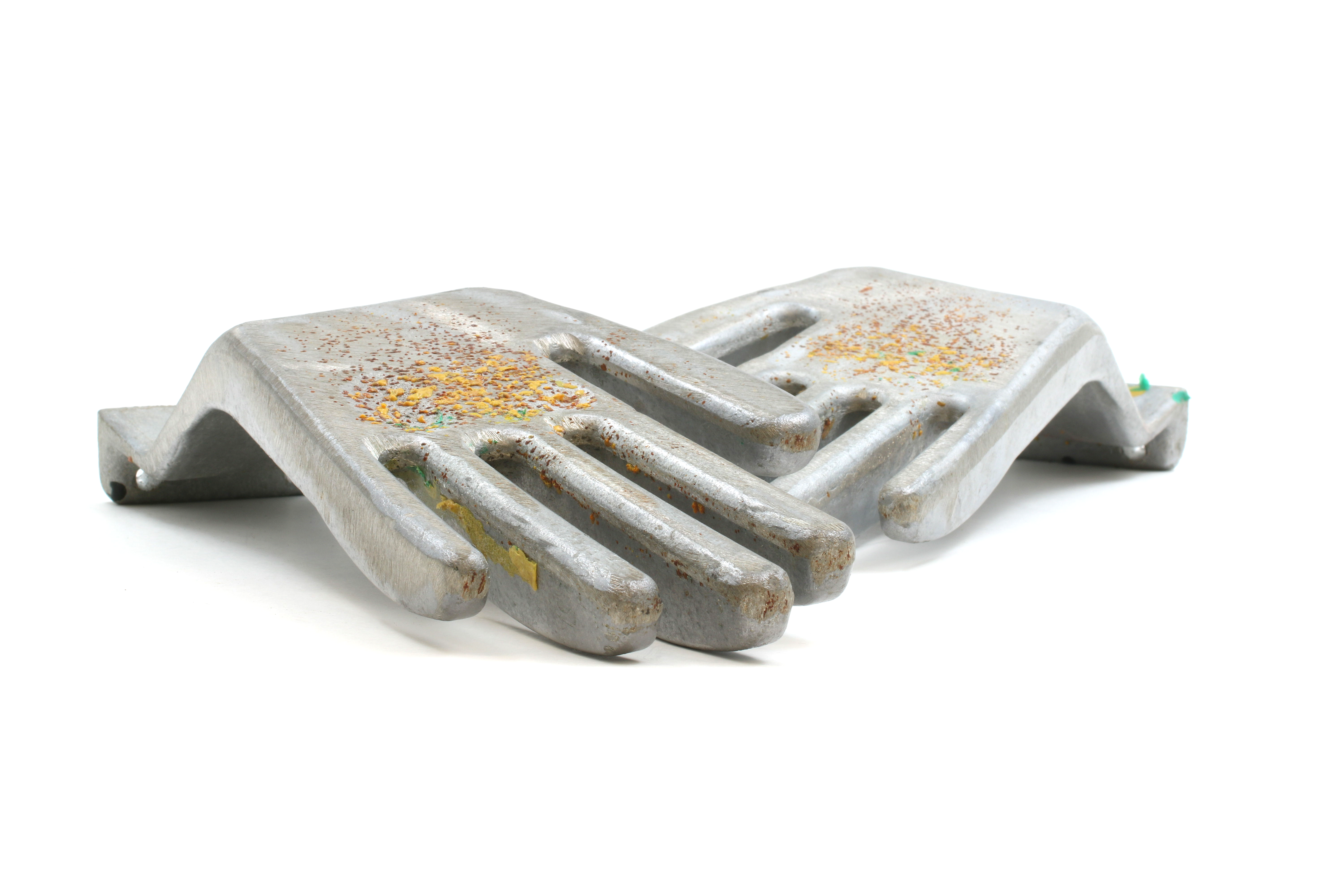

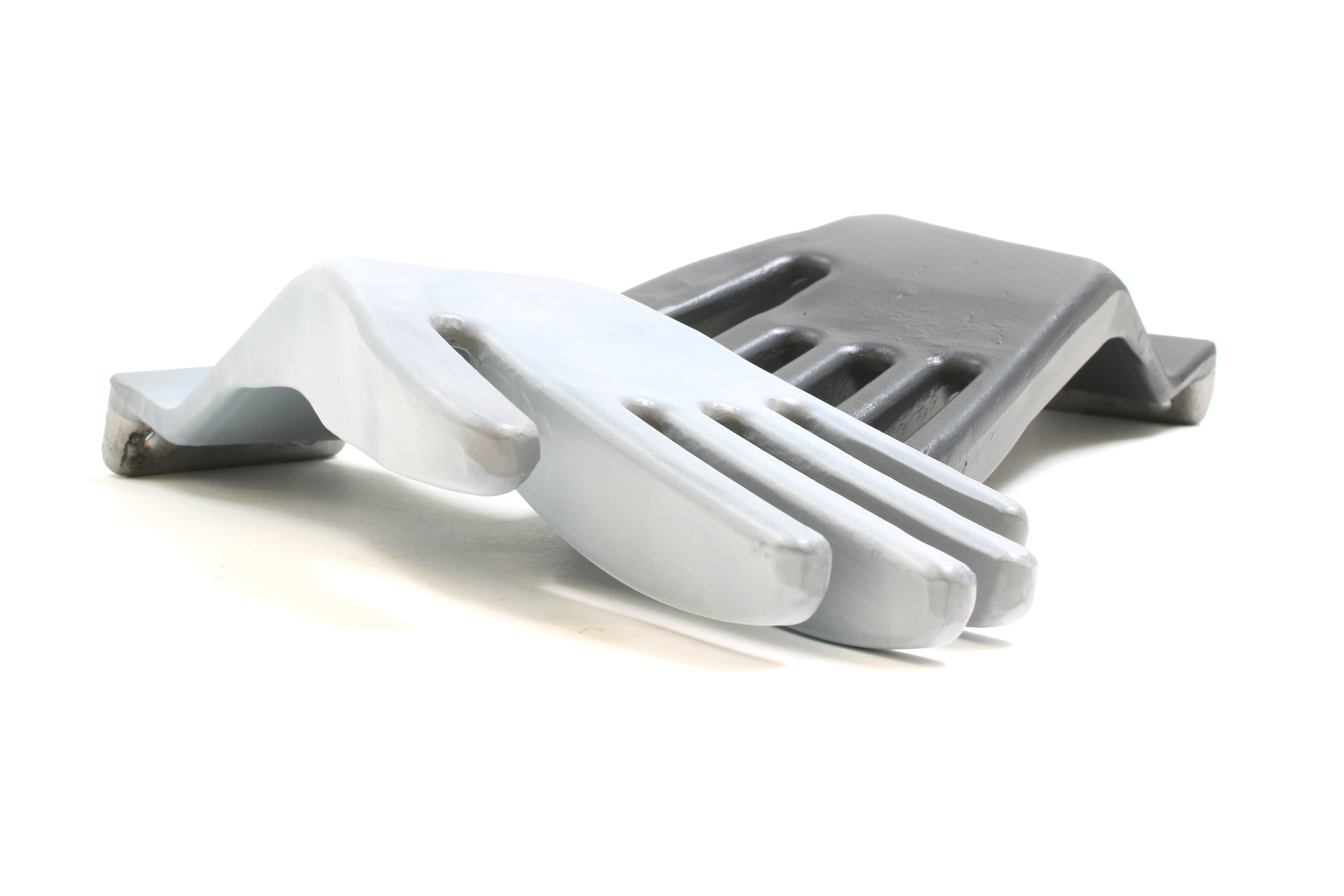

To prevent latex sticking, MODENGY 1007 and MODENGY PTFE-A20 anti-adhesive coatings are applied onto the moulds. Use of these products provides long undisturbed operating of the line on producing gloves
Before
After

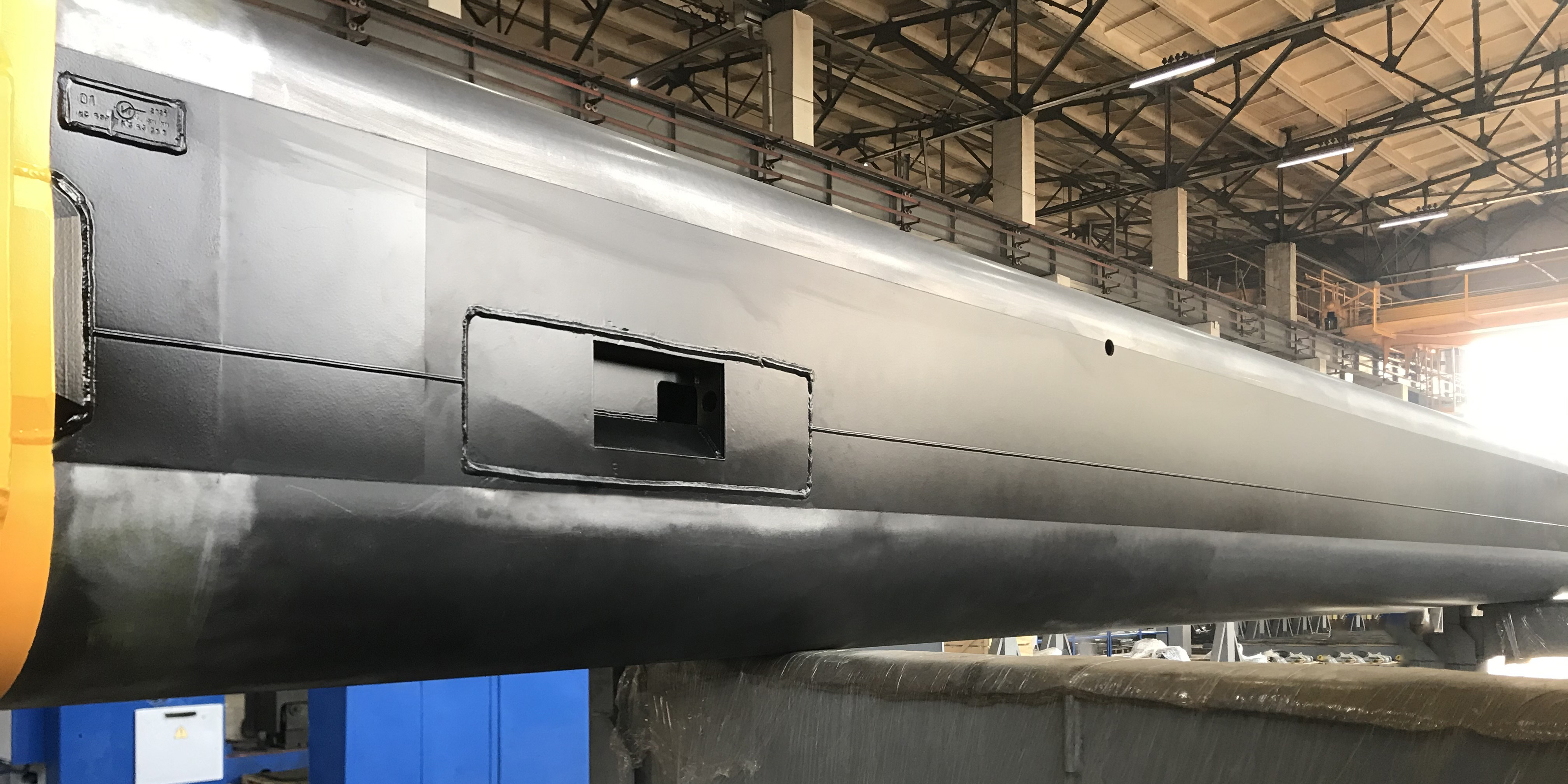

MODENGY PTFE-A20 coating based on polytetrafluorethylene forms an anti-friction layer on the surface having high load-carrying capacity. This coating is applied just single onto the boom sections, it has wide service temperature range (-50 … +130 °С), and high adhesion. While operating jointly with a grease, the coating reduces friction coefficient, prevents stick-slip motion, and protects against corrosion.
Before
After

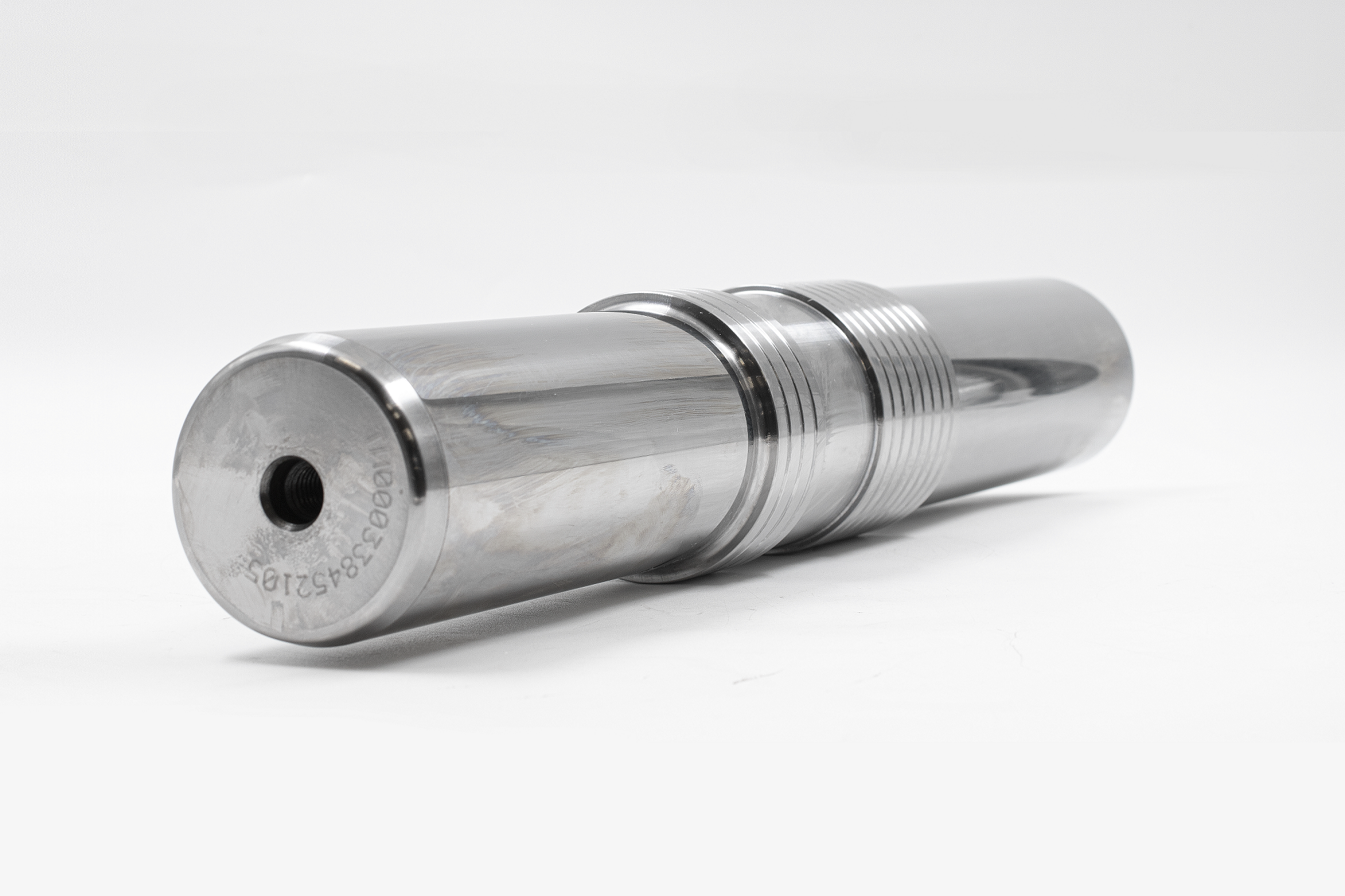

Applying MODENGY 1066 and MODENGY PTFE-A20 coatings onto the work surface of the rods reduces friction between them and the valve rubber seals. Due to this wear of the parts is prevented, and tightness of the units improves.
Before
After
Binocular producers tend to provide smooth running of the parts, and to prevent their jamming at operating. For these purposes, MODENGY PTFE-A20 solid-film coating is used.
Before
After
To extend service lifetime, MODENGY 1014 and MODENGY PTFE-А20 coatings having high lubricating and anticorrosive properties are applied onto the surface of the striking part.
Due to friction reduction, service lifetime of the polymer seals extends as well since because of their wear, the whole structure loses its tightness, and the unit have to be overhauled, and the specialty machinery has to stand idle.
Due to friction reduction, service lifetime of the polymer seals extends as well since because of their wear, the whole structure loses its tightness, and the unit have to be overhauled, and the specialty machinery has to stand idle.
Before
After

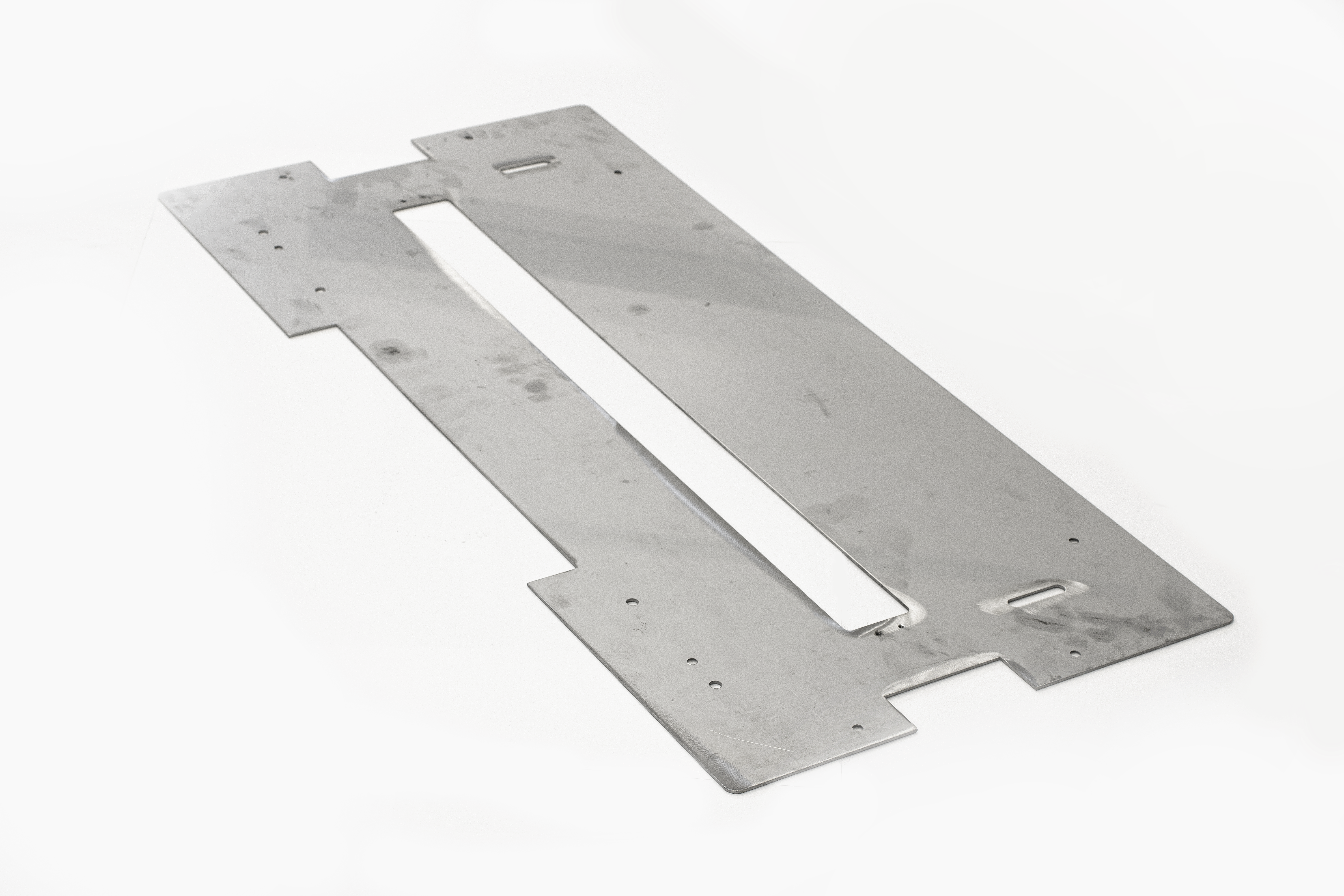

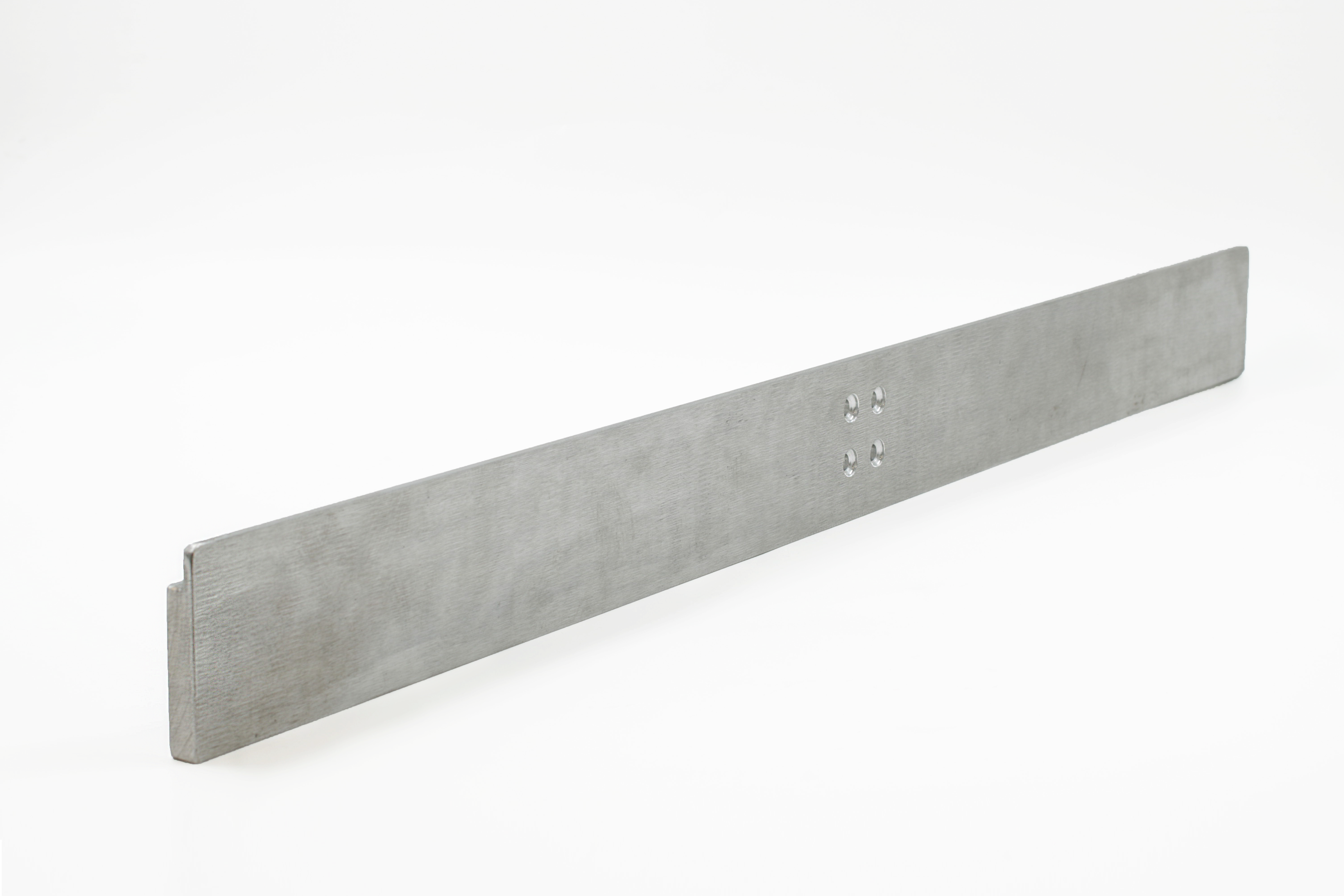

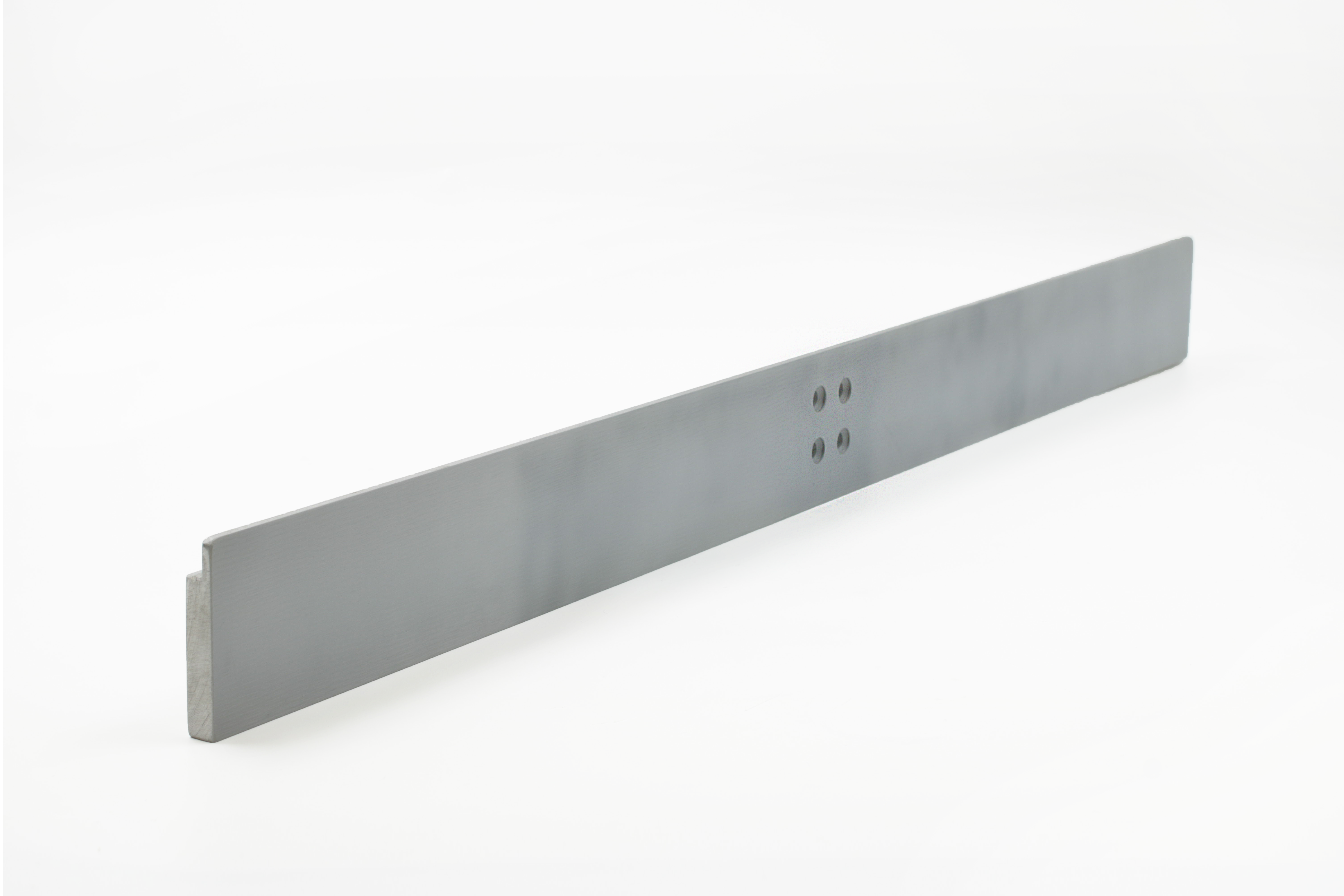

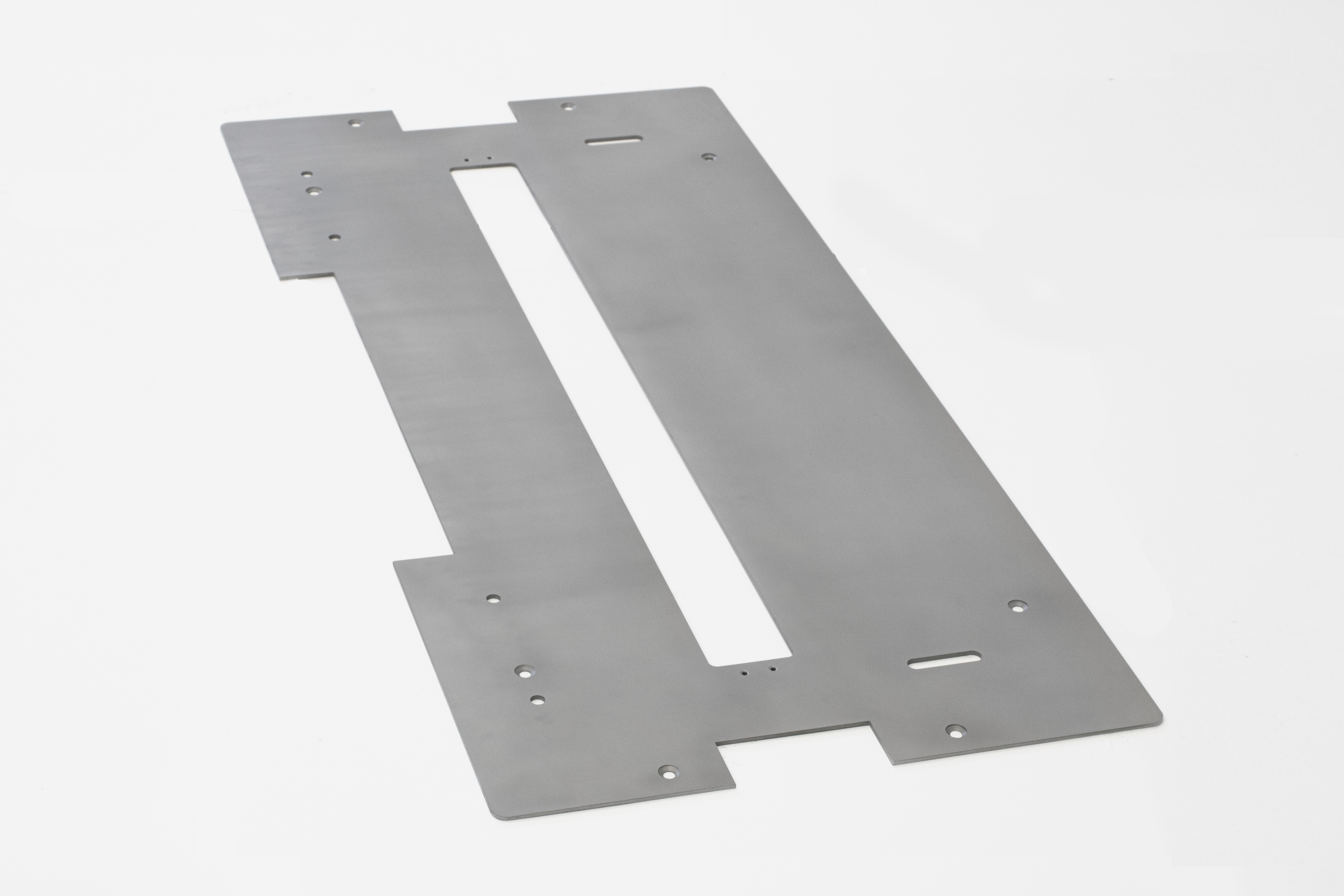

MODENGY PTFE-A20 coating applied onto the restrictors, table tops, and other parts of the packaging devices provides smooth containers moving, and doesn’t dirty the finished products.
Before
After
MODENGY PTFE-A20 based on polytetrafluorethylene (PTFE) provides a smooth bottles sliding along the table top preventing them against falling. Use of this coating enables to reduce defective items quantity at the packaging line.
Before
After

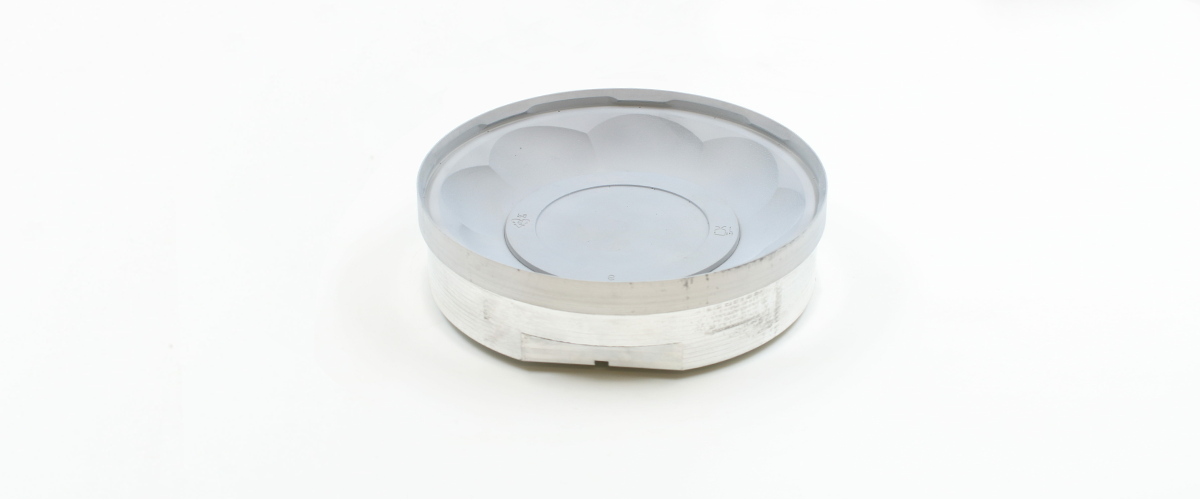

MODENGY PTFE-A20 coating based on polytetrafluorethylene forms a resistant dry layer on the molding elements. It is of translucent colour, has high separating and anti-sticking properties, and makes the process of withdrawal the finished packages easier.
Before
After

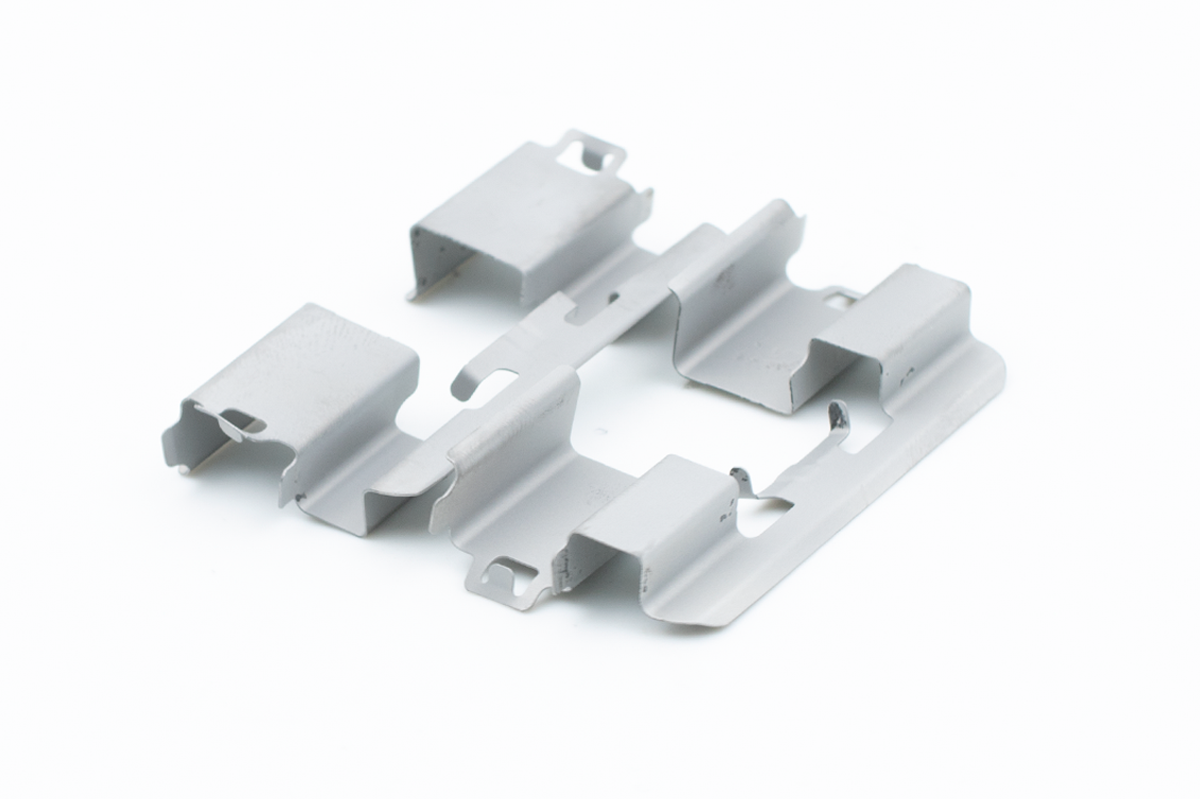

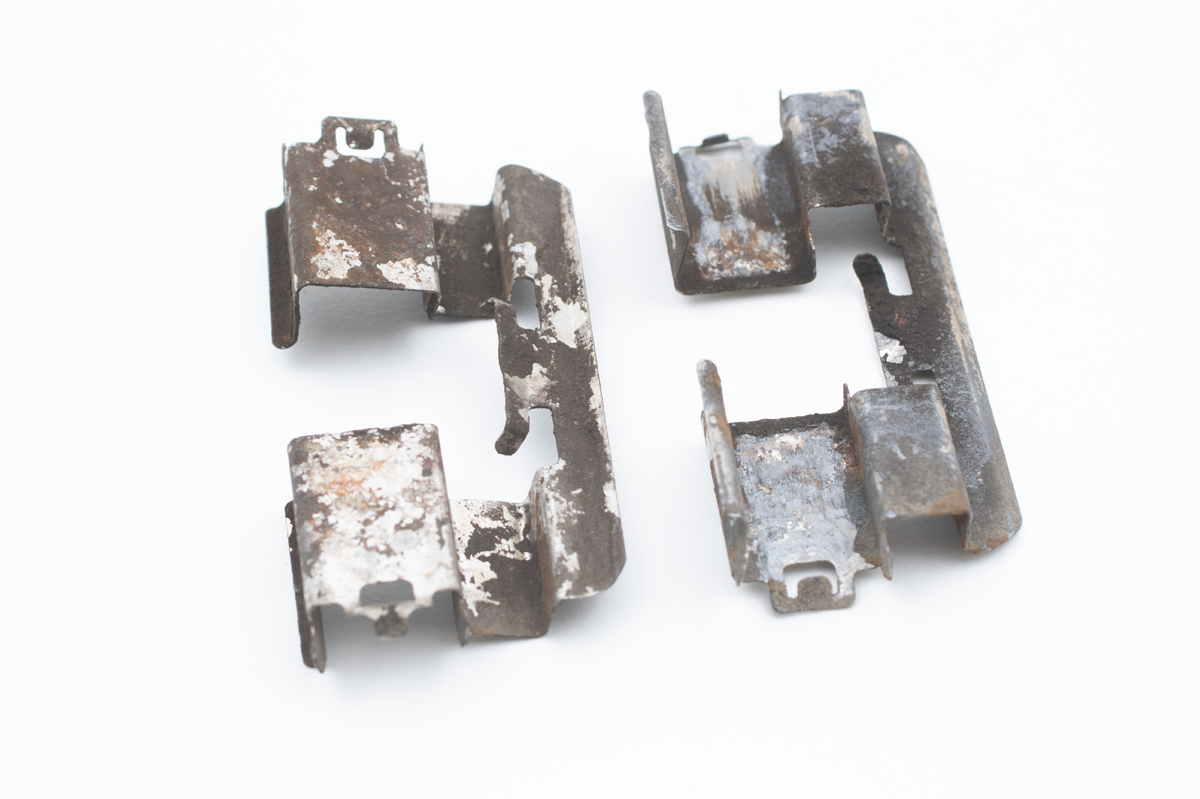

MODENGY PTFE-A20 creates a dry lubricating layer on the brake pad pressure plates that prevents sticking abrasive, and the pads' wear particles, protects the plates against corrosion, provides retain of mobility and smooth operation of the mechanism for a long term.
Before
After

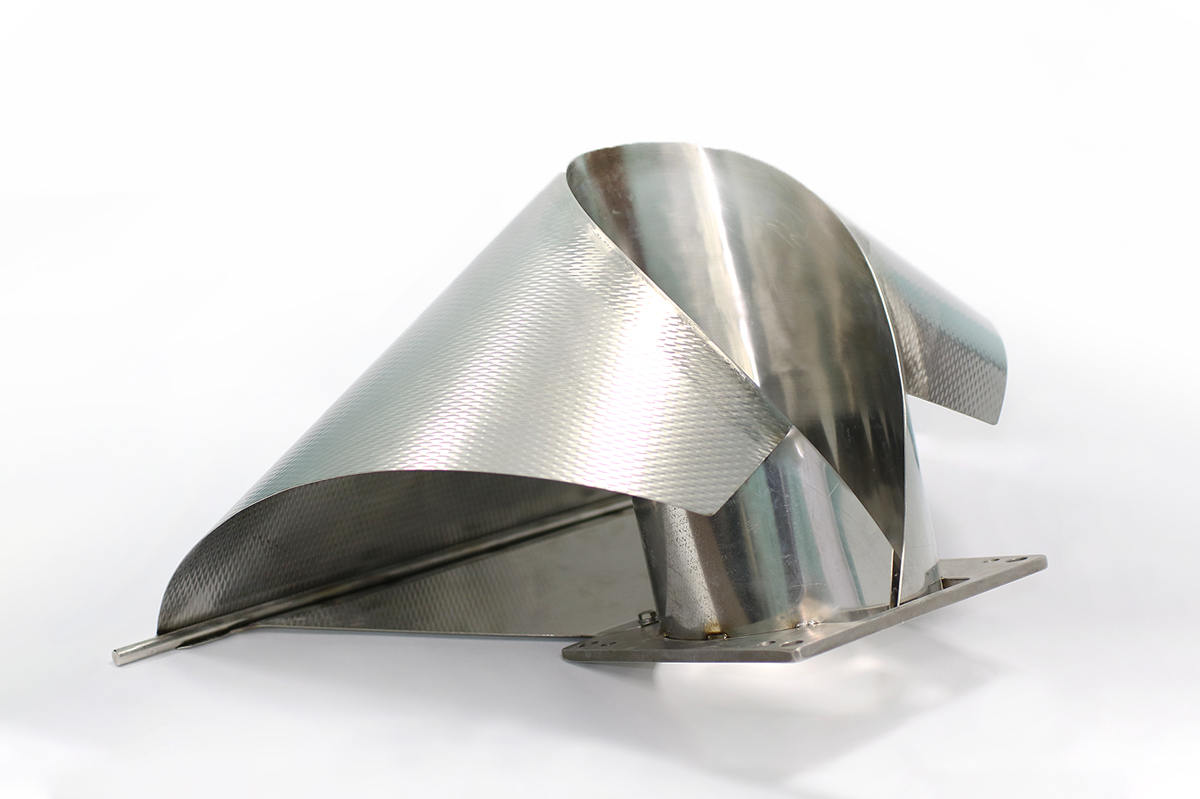

Product package quality depends on equipment state, and the materials used for its maintenance.

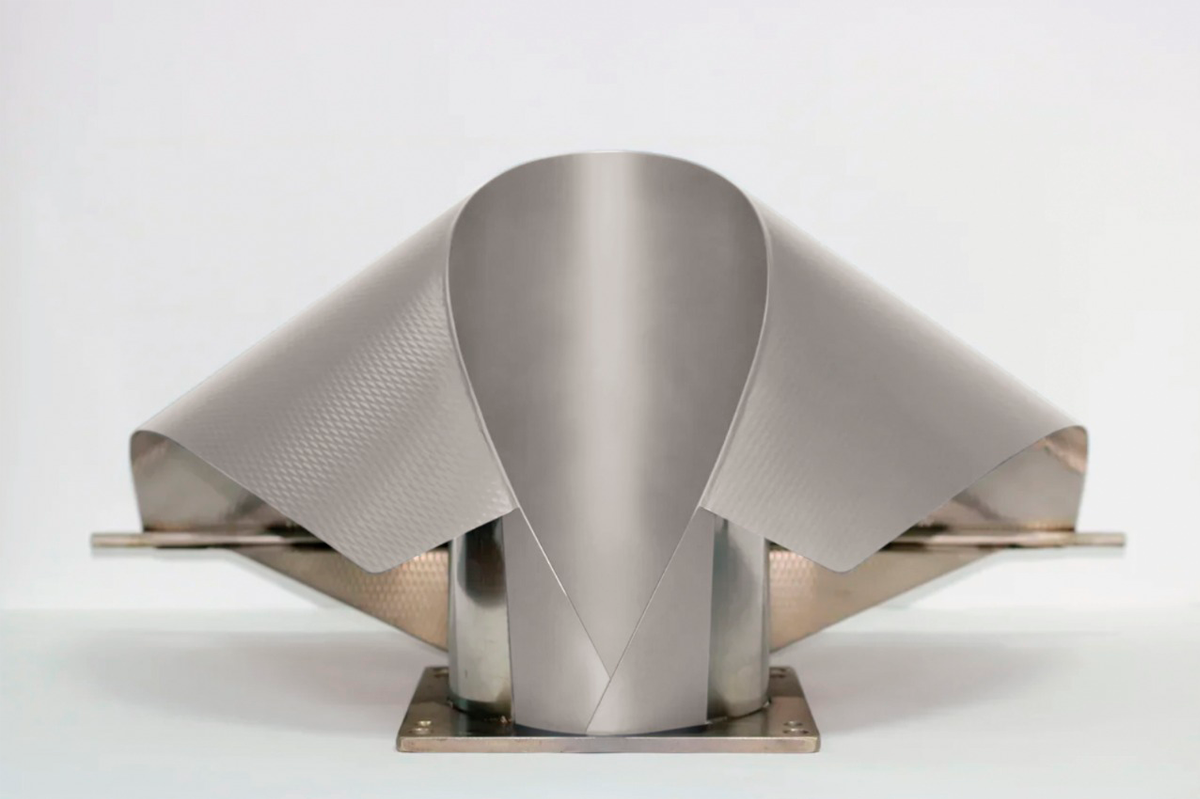

MODENGY PTFE-A20 is applied onto the guideways (collars) of the filling-and-packaging machines. As a result, friction reduces greatly, and sliding of the packaging film moving along the collar improves.
Before
After

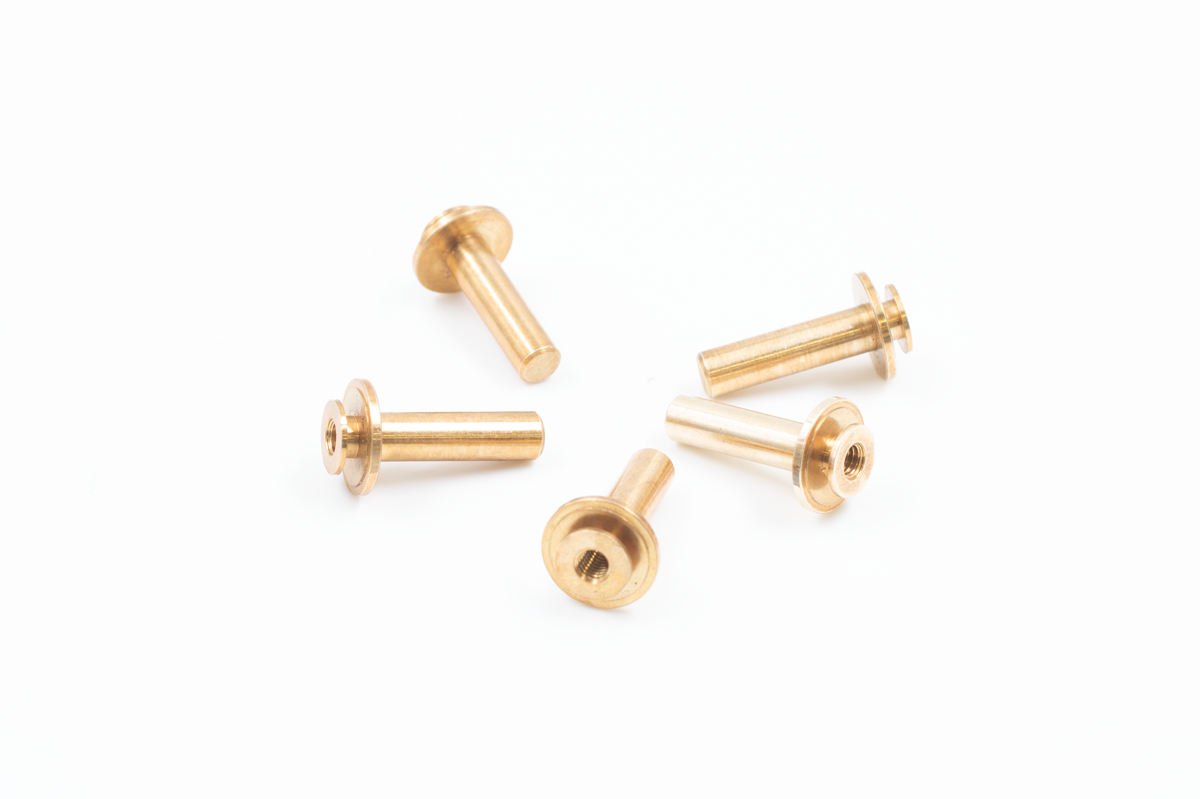

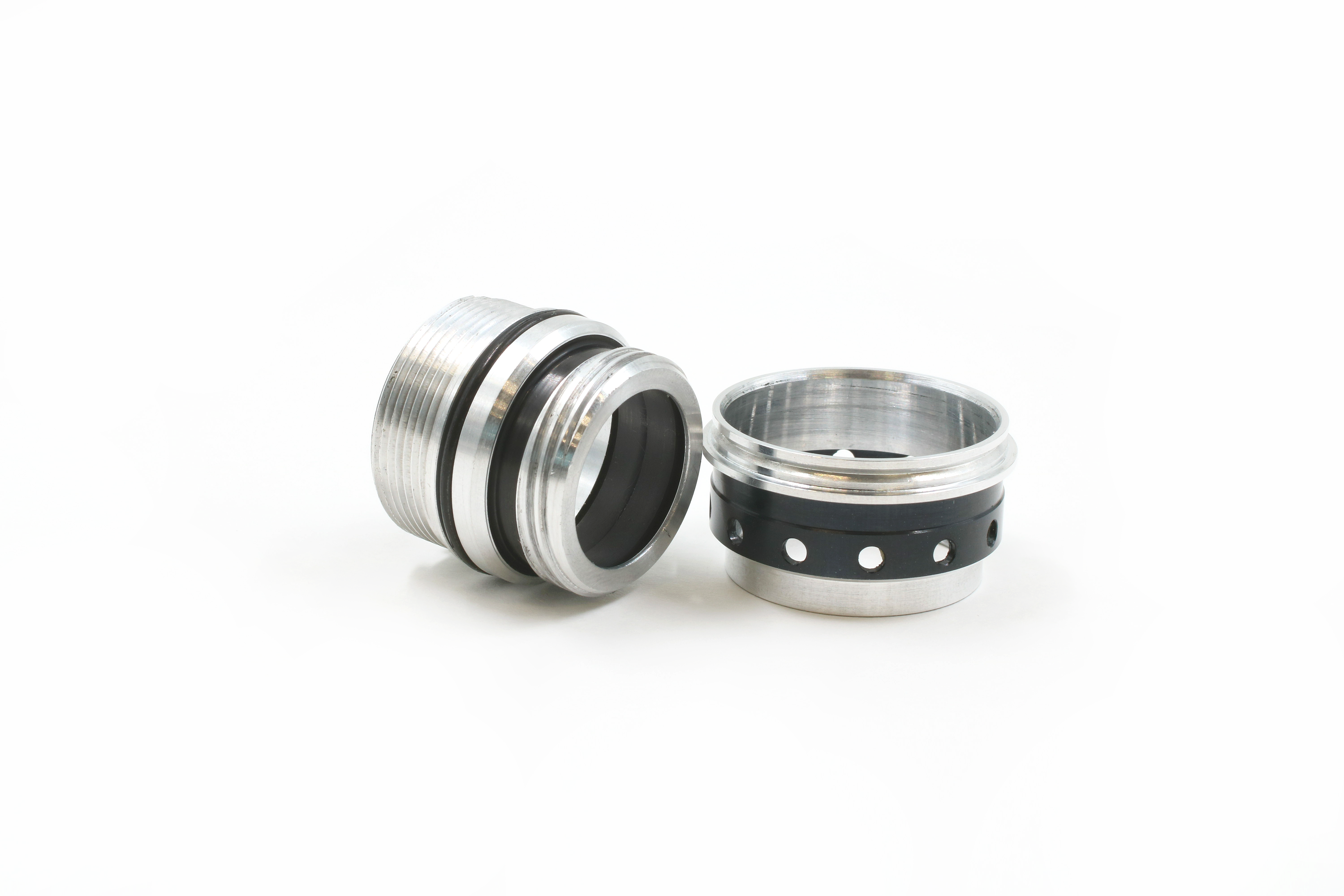

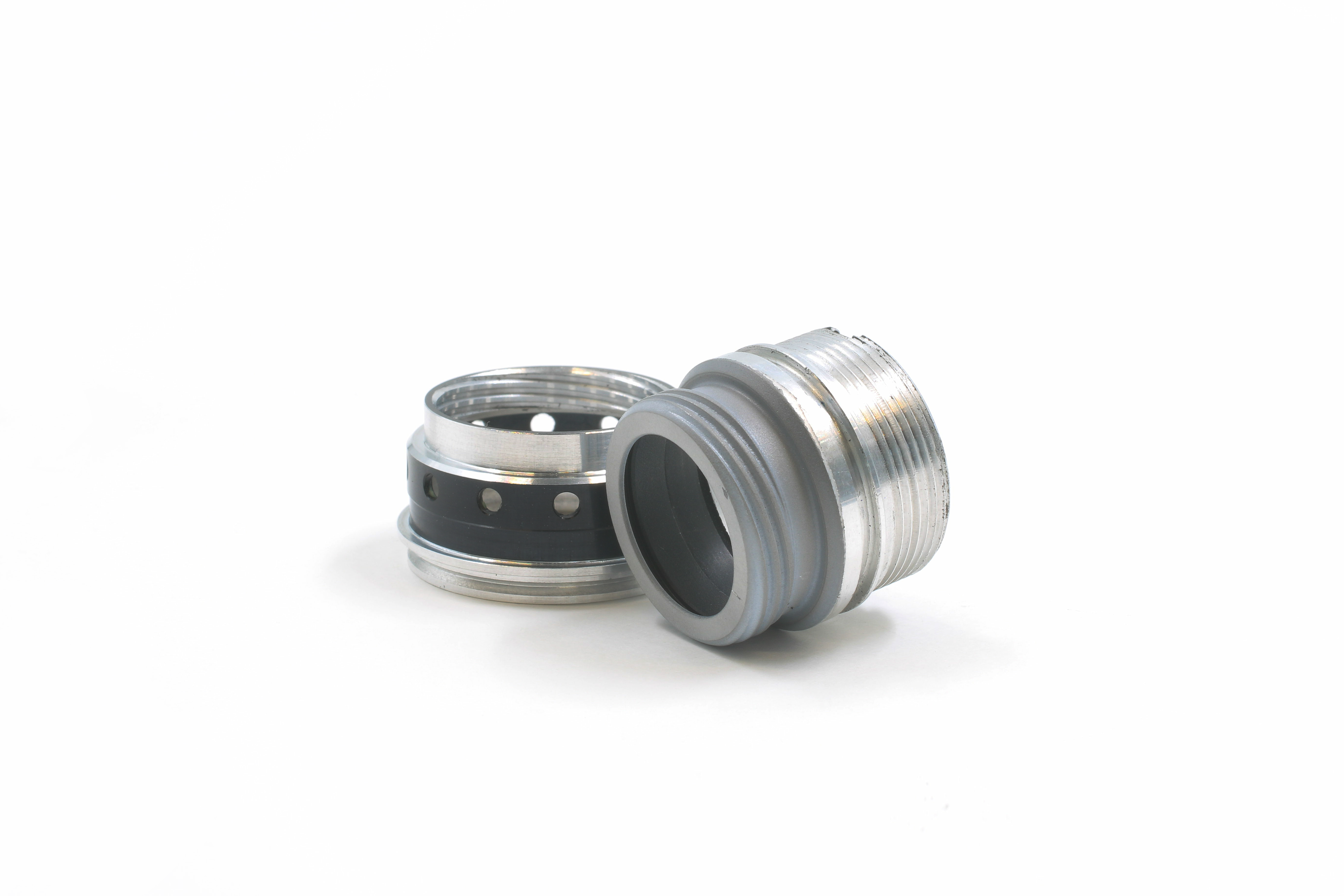

The issue of forming galvanic couple is typical for shutter moving elements of the gas pressure regulators. MODENGY PTFE-A20 and MODENGY 1014 coatings creates a strong separating layer on the surface which impedes oxidation, and reduces friction.
Additional expendable materials
and equipment
- MODENGY स्पेशल क्लीनर-एक्टिवेटर सतहों को साफ करने, ग्रीस हटाने और सक्रिय करने के लिए अभिप्रेत है
- MODENGY 1013 स्पेशल सॉल्वेंट कोटिंग लगाने के बाद उपकरणों को धोने और बिना सुखी कोटिंग को हटाने के लिए
- MODENGY M1-250 स्प्रे गन - MODENGY एंटी-फ्रिक्शन सॉलिड-फिल्म कोटिंग्स लगाने के लिए
Advantages
- Room temperature पर Fast cure
- उच्च Anticorrosive गुण (Salt mist में किए गए Speed tests के परिणामों के अनुसार > 168 घंटे)
- यह stick-slip motion और squeak को रोकता है।
- व्यापक Service temperature range
- कम Friction coefficient
- यह धूल (dust) और अपघर्षक कणों (abrasive particles) को चिपकने से रोकता है।
- Translucent coating पाट्र्स की बाहरी दिखावट (appearance) को खराब नहीं करती है।
- इससे रोबोट्स द्वारा parts assembly अधिक तेज़ हो जाती है।
- पूरी तरह Cure होने के बाद Non-toxic।
Specifications
- रंग: white translucent
- सर्विस टेम्परेचर रेंज: -50 … +130 °С
- Corrosion protection: > 168 hours (ISO 9227)
- मानक Coating consumption: 60 g / m²
- Curing temperature / time: +20 °C / 30 min
Applying the coating by your own
सतह को तैयार करने और साफ करने के लिए उपयोग करें। केवल यही अच्छी adhesion की गारंटी देता है
Aerosol can को coating के साथ कम से कम 3 मिनट तक हिलाते रहें जब तक आपको अंदर एक छोटी गेंद की टैपिंग की आवाज़ न सुनाई दे
Aerosol can से coating को उपचारित की जाने वाली सतह पर 20 से 30 cm की दूरी से स्प्रे करें
Let the coating dry for at least 10 मिनट। at room temperature until opacity appears (it’s the interim air-drying stage)
यदि आवश्यक हो तो सूखी हुई पिछली परत के ऊपर coating की दूसरी परत लगाएं
Coating को कमरे के तापमान (room temperature) पर कम से कम 30 मिनट तक सूखने दें (यह अंतिम air-drying stage है)।
It is used in the following typical units
सीलिंग उपकरण, स्लाइडिंग गाइडवे, स्लाइडिंग बियरिंग्स, लचीले शाफ्ट, थ्रेडेड कनेक्शन, गियर ट्रांसमिशन, अन्य इकाइयाँ जिनमें घर्षण युग्म हों जैसे कि धातु/प्लास्टिक, प्लास्टिक/प्लास्टिक, चमड़ा/प्लास्टिक, चमड़ा/धातु, लकड़ी/चमड़ा, धातु/रबड़, धातु/धातु
